Mill-Max Mfg. Corp.
- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

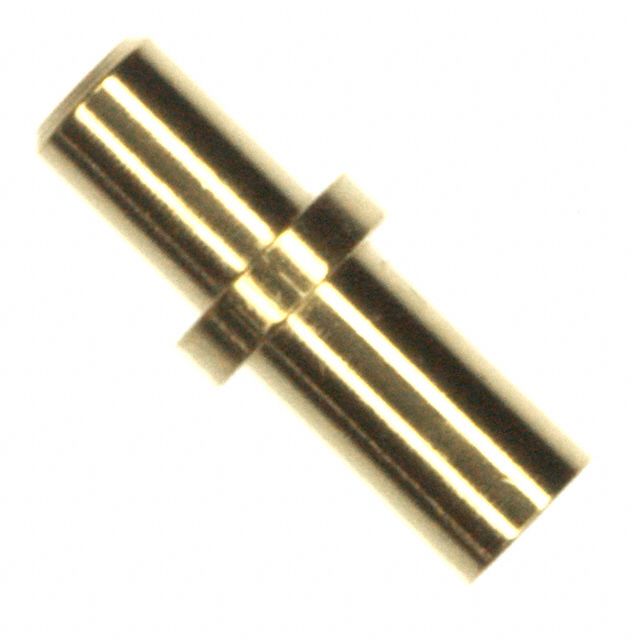

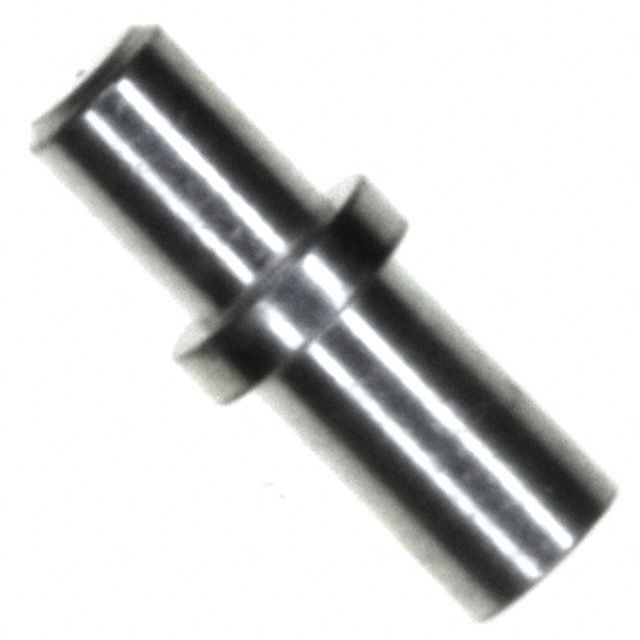

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 322
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.317" (8.05mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.089" (2.26mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
856 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 322
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.317" (8.05mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.089" (2.26mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
6817 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0322
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.317" (8.05mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.089" (2.26mm)
Flange Diameter : 0.125" (3.18mm)
Tail Diameter : -
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1000 in stock

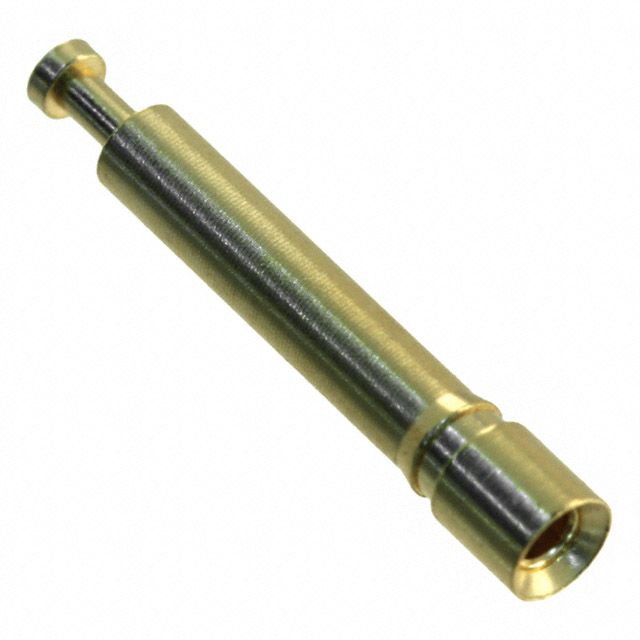

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 325
Part Status : Active
Tail Type : Turret
Termination : Press-Fit
Length - Overall : 0.630" (16.00mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.090" (2.29mm)
Flange Diameter : 0.102" (2.59mm)
Tail Diameter : -
Socket Depth : 0.495" (12.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
577 in stock

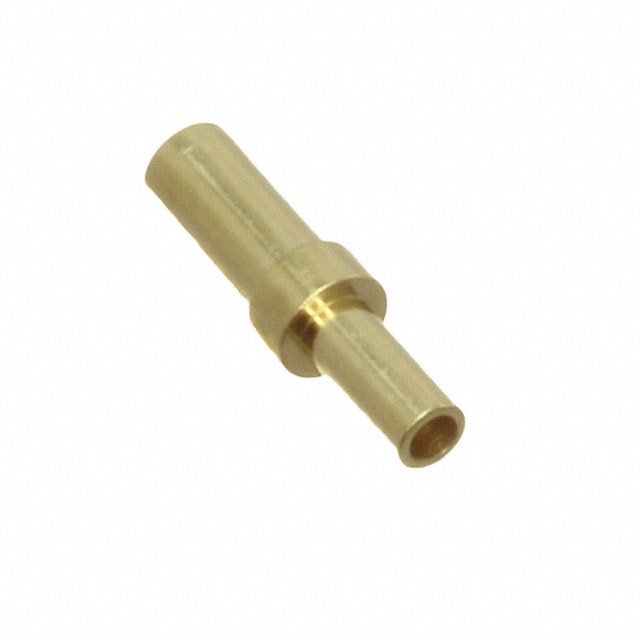

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 326
Part Status : Active
Tail Type : No Tail
Termination : Swage
Length - Overall : 0.294" (7.47mm)
Accepts Pin Diameter : 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.060" (1.52mm)
Flange Diameter : 0.094" (2.39mm)
Tail Diameter : -
Socket Depth : 0.170" (4.32mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
5141 in stock

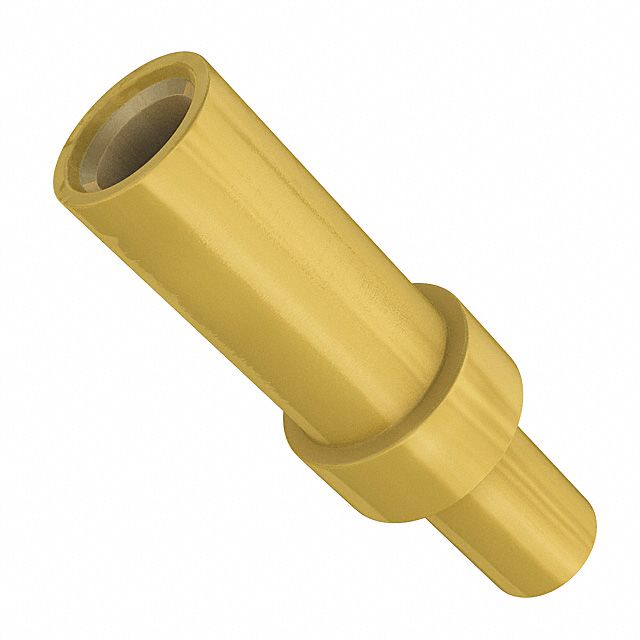

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 326
Part Status : Active
Tail Type : No Tail
Termination : Swage
Length - Overall : 0.294" (7.47mm)
Accepts Pin Diameter : 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.060" (1.52mm)
Flange Diameter : 0.094" (2.39mm)
Tail Diameter : -
Socket Depth : 0.170" (4.32mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
12600 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 326
Part Status : Active
Tail Type : No Tail
Termination : Swage
Length - Overall : 0.325" (8.26mm)
Accepts Pin Diameter : 0.022" ~ 0.032" (0.56mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.051" (1.30mm)
Mounting Hole Diameter : 0.060" (1.52mm)
Flange Diameter : 0.094" (2.39mm)
Tail Diameter : -
Socket Depth : 0.170" (4.32mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2500 in stock

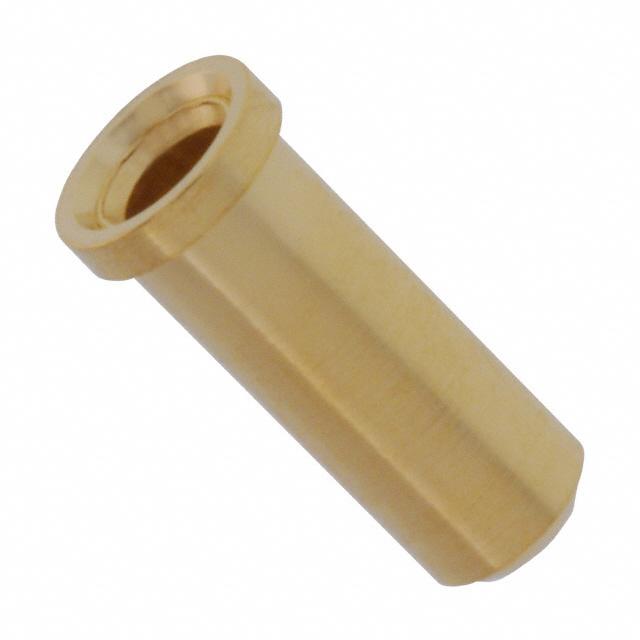

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 327
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.206" (5.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
8719 in stock

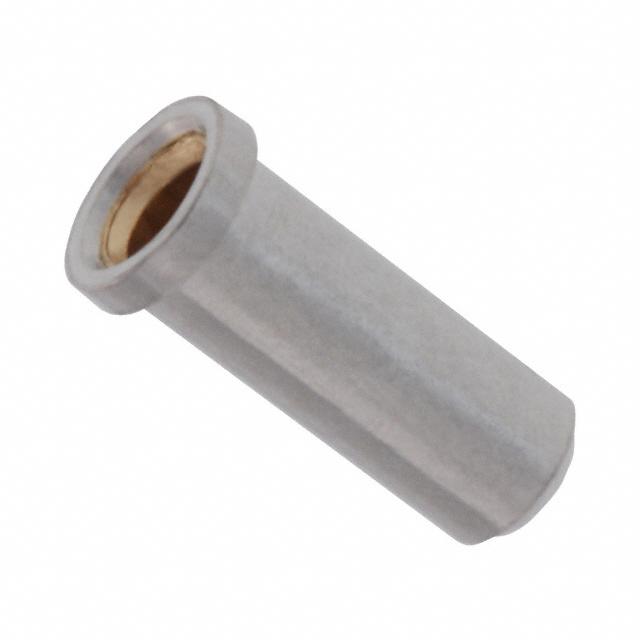

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 327
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.206" (5.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
36957 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0327
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.206" (5.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1000 in stock

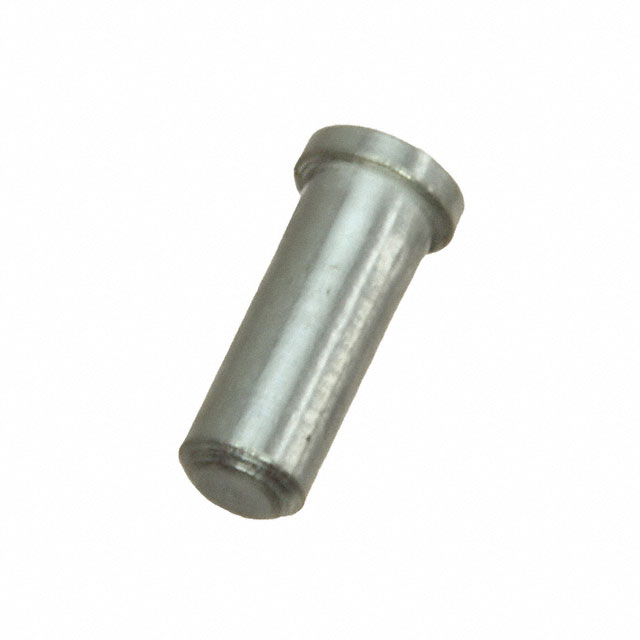

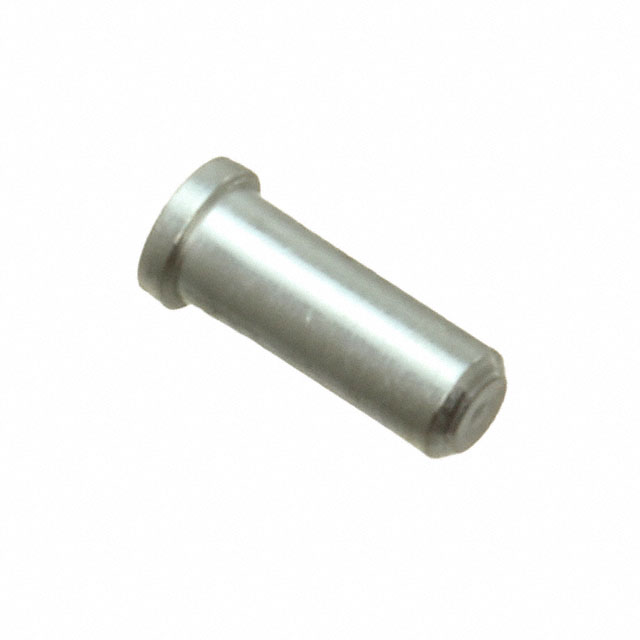

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0327
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.206" (5.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
1000 in stock

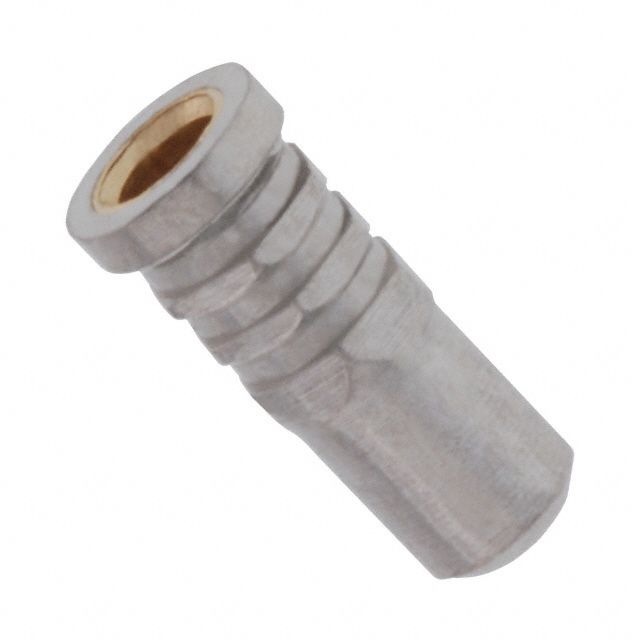

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 328
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit, Hex
Length - Overall : 0.206" (5.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.079" (2.01mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.180" (4.57mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2854 in stock
