Mill-Max Mfg. Corp.
- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

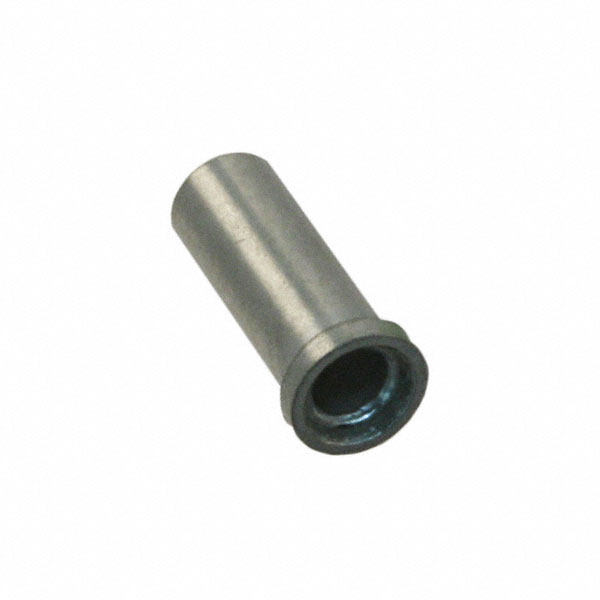

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 312
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.206" (5.23mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.075" (1.91mm)
Flange Diameter : 0.091" (2.31mm)
Tail Diameter : -
Socket Depth : 0.206" (5.23mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
9659 in stock

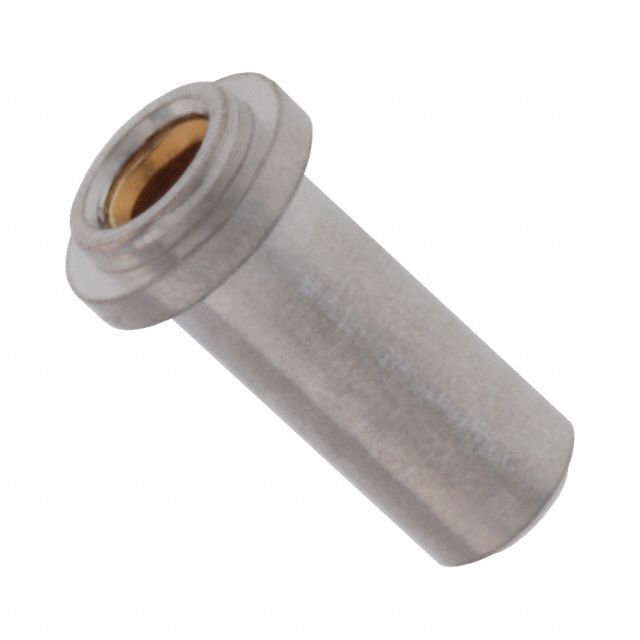

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 314
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.087" (2.21mm)
Flange Diameter : 0.126" (3.20mm)
Tail Diameter : -
Socket Depth : 0.236" (5.99mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2586 in stock

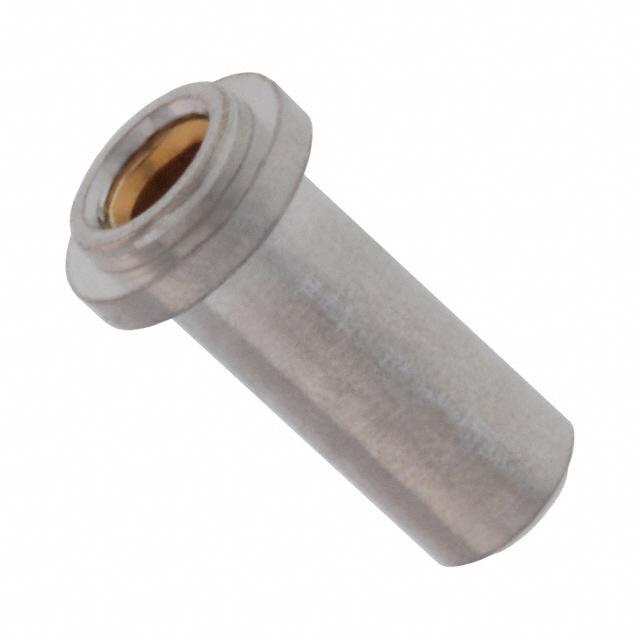

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 314
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.087" (2.21mm)
Flange Diameter : 0.126" (3.20mm)
Tail Diameter : -
Socket Depth : 0.236" (5.99mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
11458 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0314
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.087" (2.21mm)
Flange Diameter : 0.126" (3.20mm)
Tail Diameter : -
Socket Depth : 0.236" (5.99mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
1000 in stock

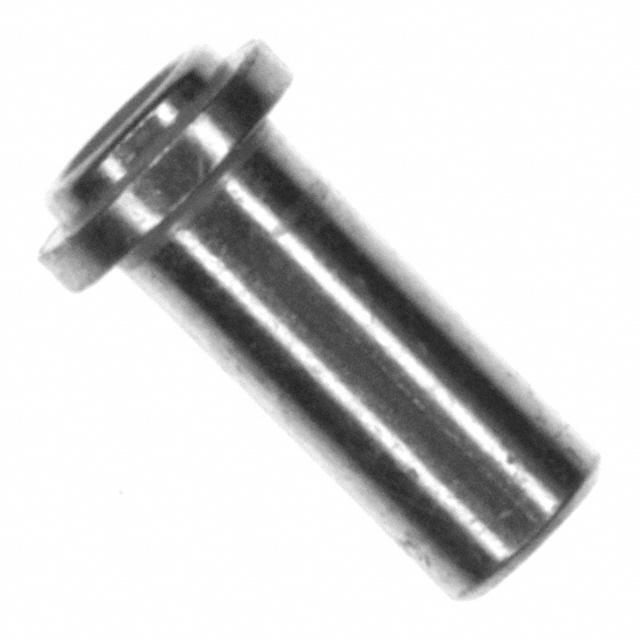

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 316
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.087" (2.21mm)
Flange Diameter : 0.126" (3.20mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
1279 in stock

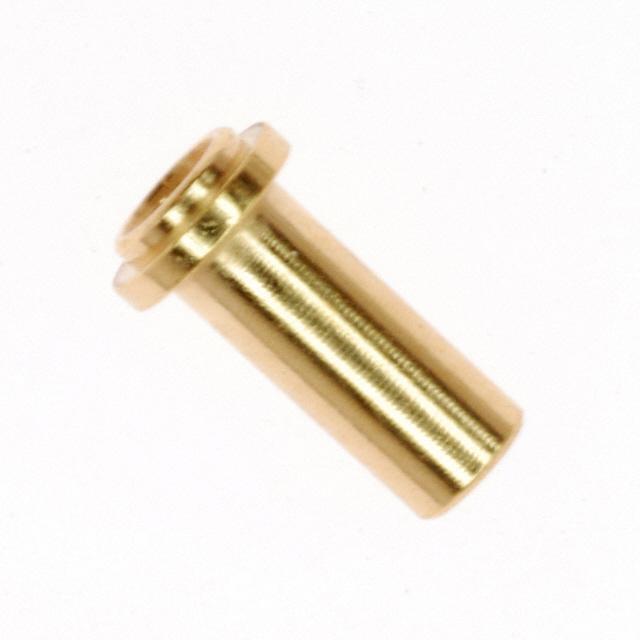

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 316
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.236" (6.00mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.087" (2.21mm)
Flange Diameter : 0.126" (3.20mm)
Tail Diameter : -
Socket Depth : 0.195" (4.95mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
9490 in stock

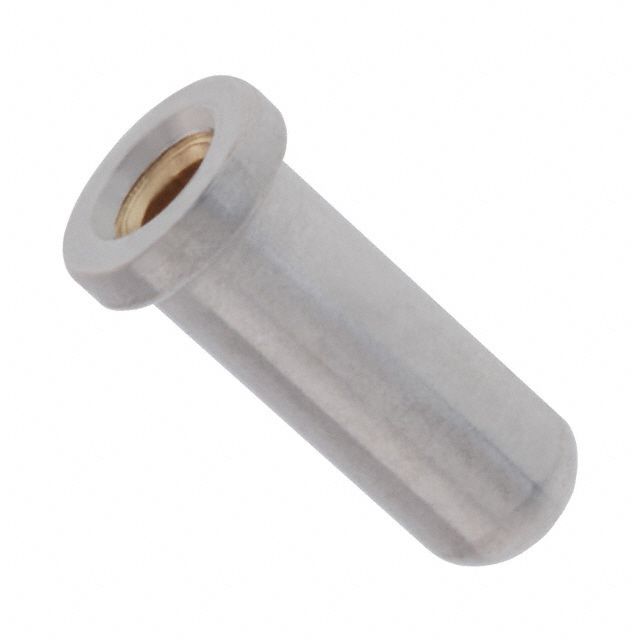

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 317
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.253" (6.43mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.091" (2.31mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
10631 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 317
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.253" (6.43mm)
Accepts Pin Diameter : 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.064" (1.63mm)
Mounting Hole Diameter : 0.091" (2.31mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : -
Socket Depth : 0.220" (5.59mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
3643 in stock

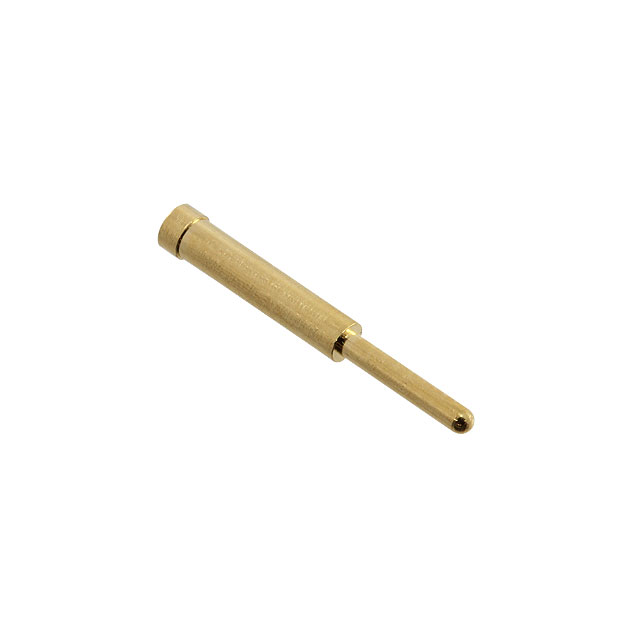

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 319
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.586" (14.88mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : 0.042" (1.07mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
11004 in stock

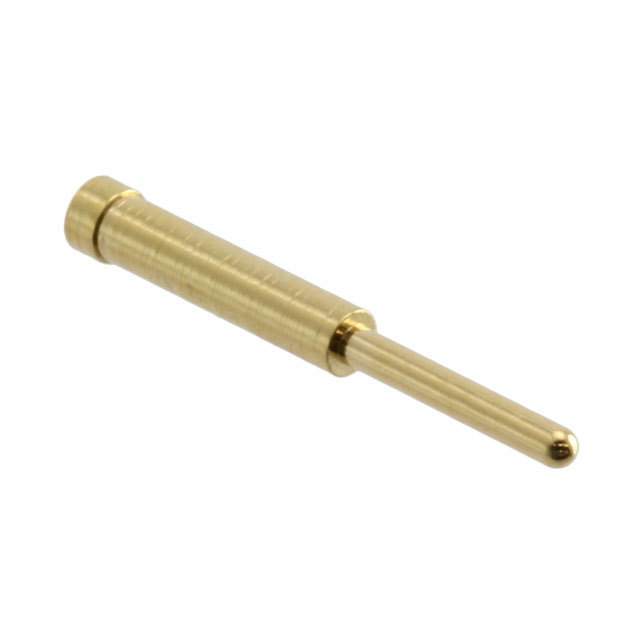

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 319
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.626" (15.90mm)
Accepts Pin Diameter : 0.037" ~ 0.043" (0.94mm ~ 1.09mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.054" (1.37mm)
Mounting Hole Diameter : 0.042" (1.07mm)
Flange Diameter : 0.078" (1.98mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : 0.200" (5.08mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
11365 in stock

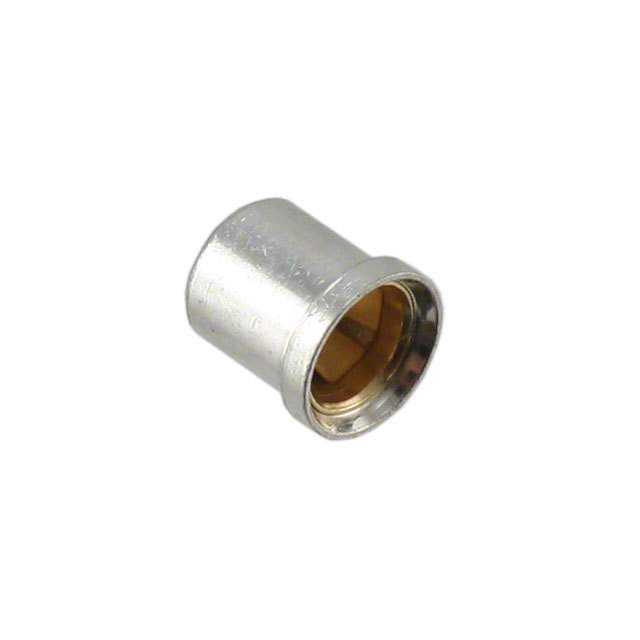

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 321
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.156" (3.96mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
33548 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 321
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.156" (3.96mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
5533 in stock
