- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.
Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.
Part Number
Manufacturer
Description
Unit Price
In Stock

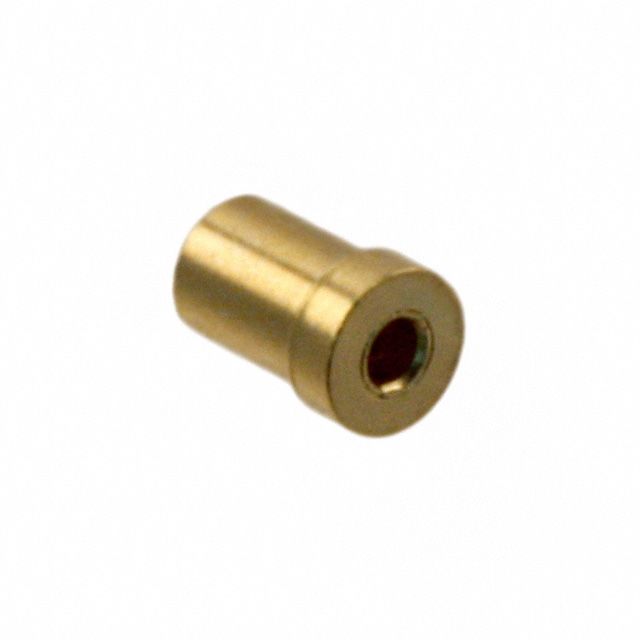

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 378
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.132" (3.35mm)
Accepts Pin Diameter : 0.020" ~ 0.032" (0.51mm ~ 0.81mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.082" (2.08mm)
Flange Diameter : 0.092" (2.34mm)
Tail Diameter : -
Socket Depth : 0.132" (3.35mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
2290 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 0384
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.140" (3.56mm)
Accepts Pin Diameter : 0.045" ~ 0.065" (1.14mm ~ 1.65mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.088" (2.24mm)
Mounting Hole Diameter : 0.105" (2.67mm)
Flange Diameter : 0.122" (3.10mm)
Tail Diameter : -
Socket Depth : 0.140" (3.56mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
16362 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 385
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.043" (1.09mm)
Mounting Hole Diameter : 0.046" (1.17mm)
Flange Diameter : 0.055" (1.40mm)
Tail Diameter : -
Socket Depth : 0.145" (3.68mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
6000 in stock

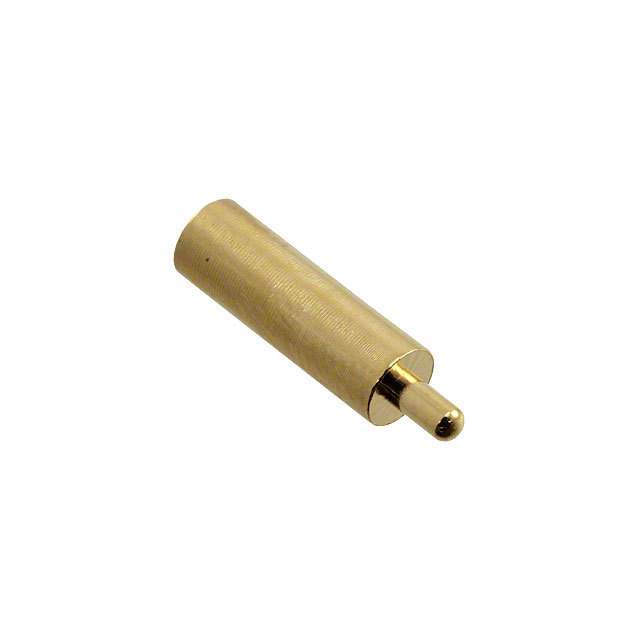

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 387
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.565" (14.35mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.063" (1.60mm)
Flange Diameter : 0.147" (3.73mm)
Tail Diameter : 0.060" (1.52mm)
Socket Depth : 0.375" (9.53mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
794 in stock

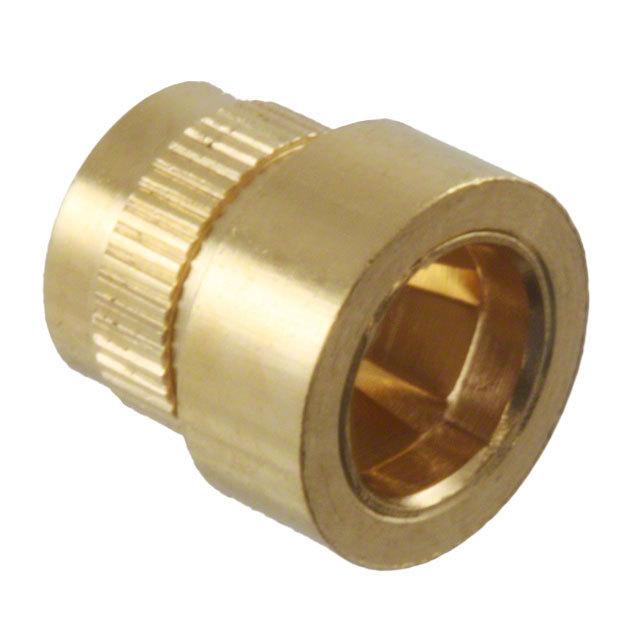

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 388
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.138" (3.50mm)
Flange Diameter : 0.170" (4.32mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
27163 in stock

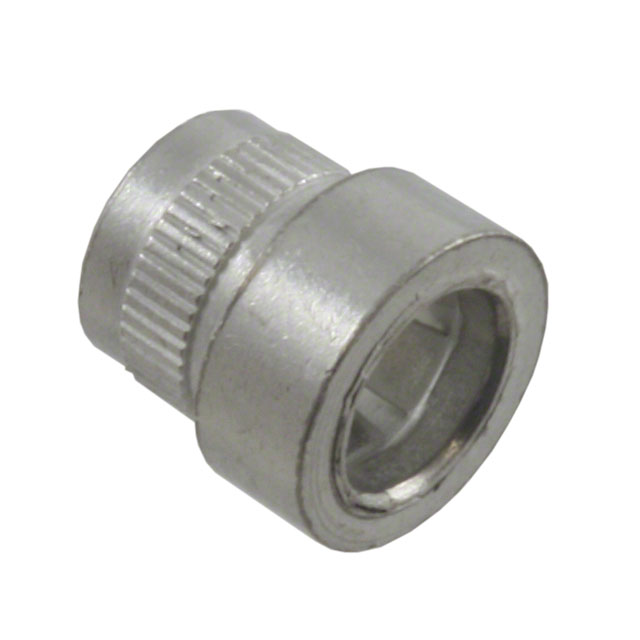

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 388
Part Status : Active
Tail Type : No Tail
Termination : Press-Fit
Length - Overall : 0.165" (4.19mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.138" (3.50mm)
Flange Diameter : 0.170" (4.32mm)
Tail Diameter : -
Socket Depth : 0.165" (4.19mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)
0
6028 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 389
Part Status : Active
Tail Type : Turret
Termination : Swage
Length - Overall : 0.642" (16.31mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Flange Diameter : 0.159" (4.04mm)
Tail Diameter : -
Socket Depth : 0.385" (9.78mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
6970 in stock

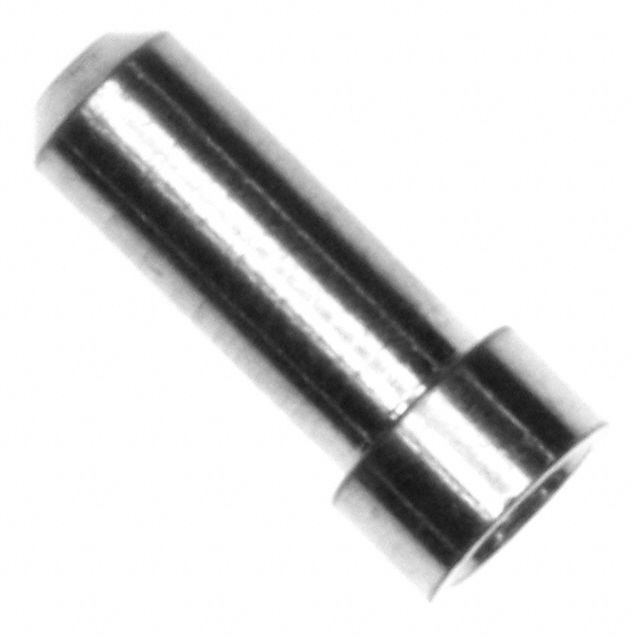

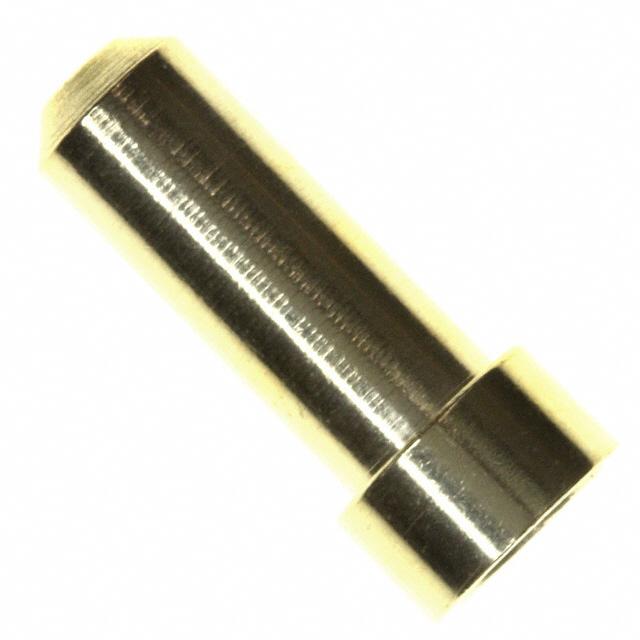

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 390
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.465" (11.81mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.188" (4.78mm)
Tail Diameter : -
Socket Depth : 0.415" (10.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
4394 in stock
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 390
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.465" (11.81mm)
Accepts Pin Diameter : 0.084" ~ 0.102" (2.13mm ~ 2.59mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.122" (3.10mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.188" (4.78mm)
Tail Diameter : -
Socket Depth : 0.415" (10.54mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
17099 in stock

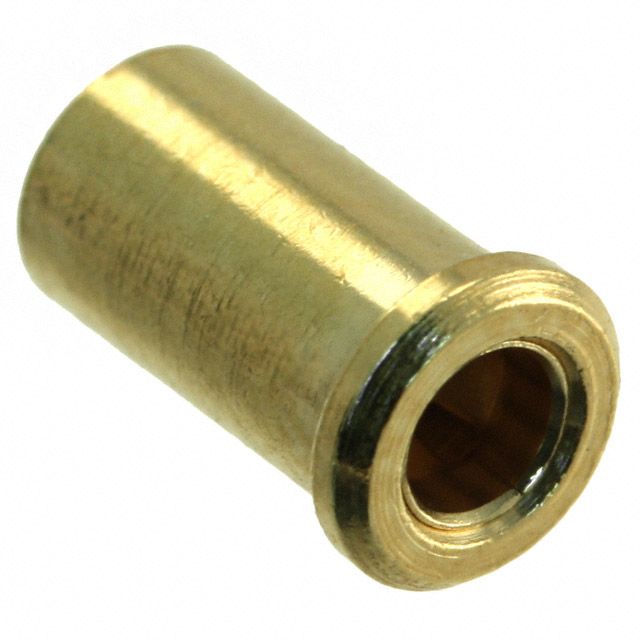

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 391
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.309" (7.85mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.159" (4.04mm)
Flange Diameter : 0.189" (4.80mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
14506 in stock

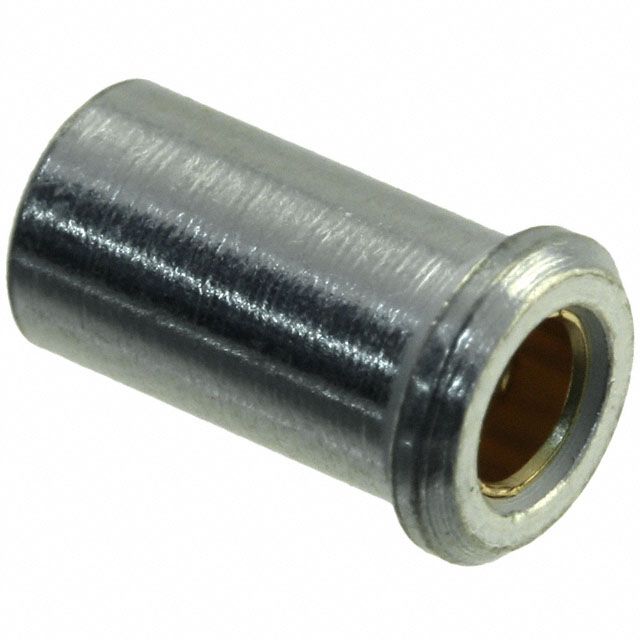

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 391
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.309" (7.85mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.159" (4.04mm)
Flange Diameter : 0.189" (4.80mm)
Tail Diameter : -
Socket Depth : 0.260" (6.60mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
8190 in stock

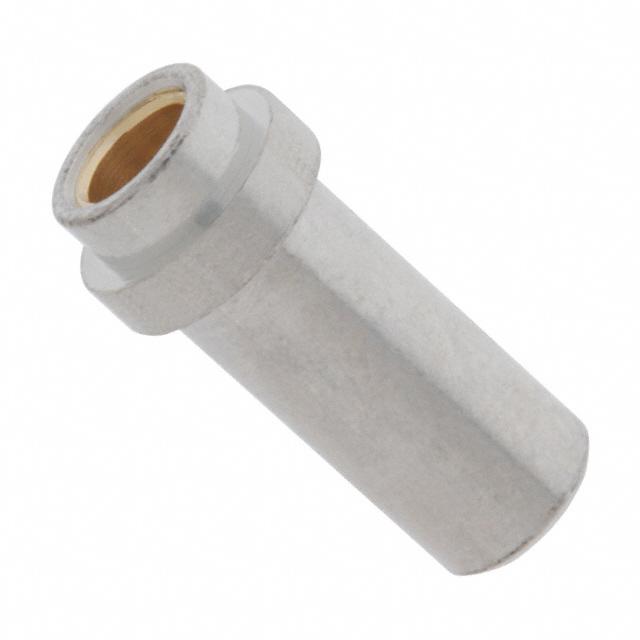

Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 393
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.412" (10.46mm)
Accepts Pin Diameter : 0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.107" (2.72mm)
Mounting Hole Diameter : 0.144" (3.66mm)
Flange Diameter : 0.187" (4.75mm)
Tail Diameter : -
Socket Depth : 0.340" (8.64mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)
0
8423 in stock
