Mill-Max Mfg. Corp.

- Mill-Max Mfg. Corp., located at 190 Pine Hollow Road, Oyster Bay, NY 11771, is a vertically integrated engineering and manufacturing company capable of producing over 100 million interconnect components a week, making us the largest manufacturer of precision machined interconnect components in North America.

Established in 1971 by Roger Bahnik, Chairman and CEO, Mill-Max has a tradition of exercising total control from raw materials to finished product. Our 150,000 square foot plant houses all facilities including: engineering, tooling, primary and secondary machining, stamping, gold and tin plating, injection molding, automatic assembly operations and strict process control, monitored by our experienced Quality Control Inspectors.


Part Number

Manufacturer

Description

Unit Price

In Stock

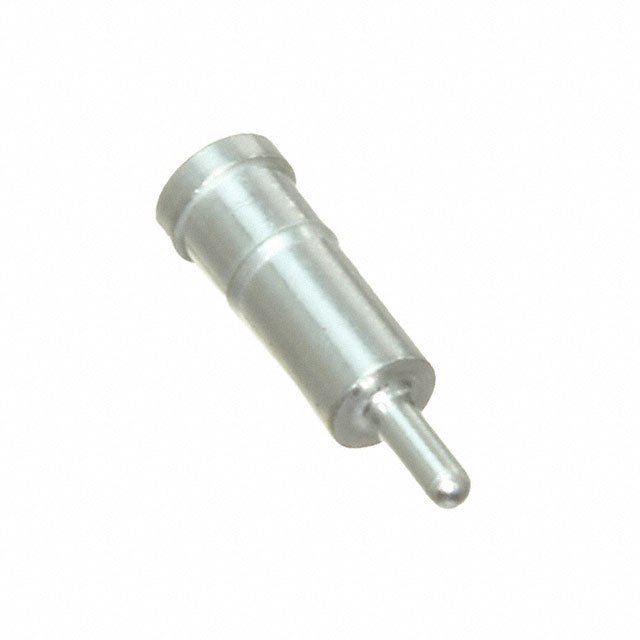

0433-0-15-80-03-80-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0433
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 0.390" (9.91mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.106" (2.69mm)
Flange Diameter : 0.120" (3.05mm)
Tail Diameter : 0.040" (1.02mm)
Socket Depth : 0.205" (5.21mm)
Contact Material : Beryllium Copper
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

1000 in stock

0435-0-15-15-03-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 435
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.255" (6.48mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

500 in stock

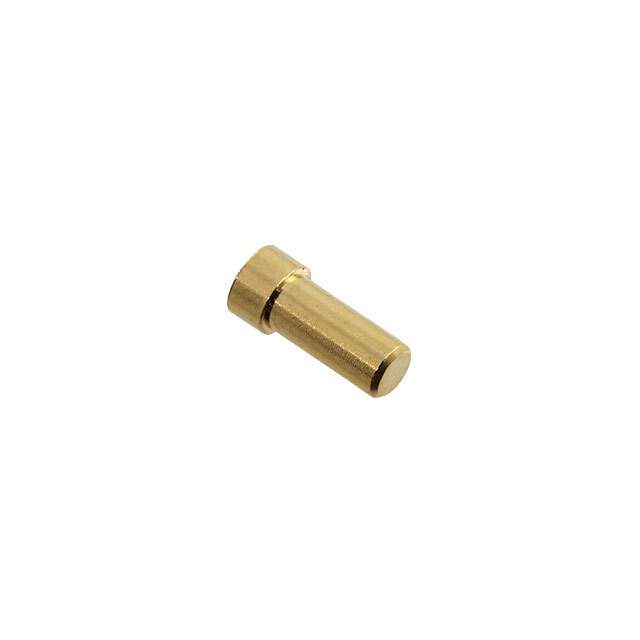

0436-0-15-15-03-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 436
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.290" (7.37mm)
Accepts Pin Diameter : 0.040" ~ 0.060" (1.02mm ~ 1.52mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.102" (2.59mm)
Flange Diameter : 0.118" (3.00mm)
Tail Diameter : -
Socket Depth : 0.255" (6.48mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

2112 in stock

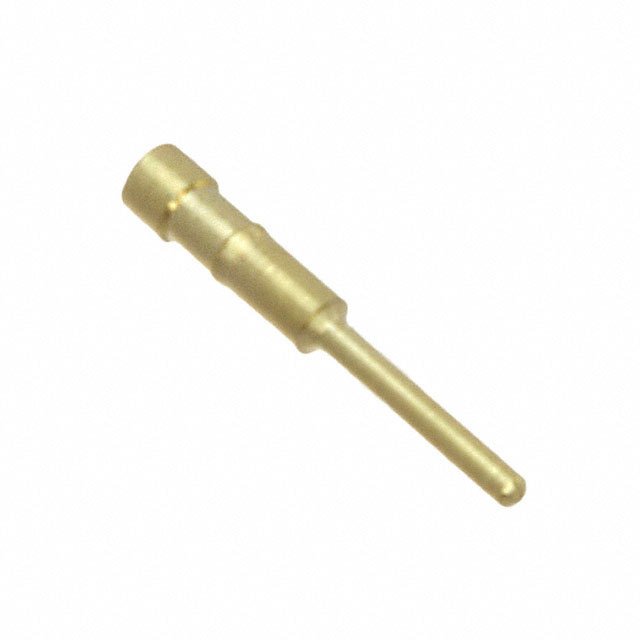

0439-0-15-15-04-27-04-4

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0439
Part Status : Active
Tail Type : Standard Tail
Termination : Press-Fit
Length - Overall : 1.000" (25.40mm)
Accepts Pin Diameter : 0.008" ~ 0.013" (0.20mm ~ 0.33mm)
Accepts Square Pin Size : -
Pin Hole Diameter : -
Mounting Hole Diameter : 0.025" (0.64mm)
Flange Diameter : 0.029" (0.74mm)
Tail Diameter : 0.140" (3.56mm)
Socket Depth : 0.055" (1.40mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1280 in stock

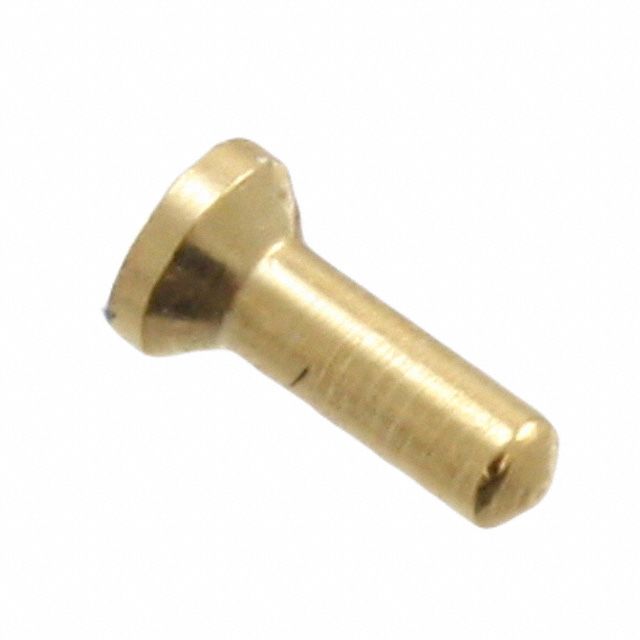

0442-0-15-15-11-27-10-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 442
Part Status : Active
Tail Type : No Tail
Termination : Solder
Length - Overall : 0.136" (3.45mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Flange Diameter : 0.070" (1.77mm)
Tail Diameter : -
Socket Depth : 0.122" (3.10mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

774 in stock

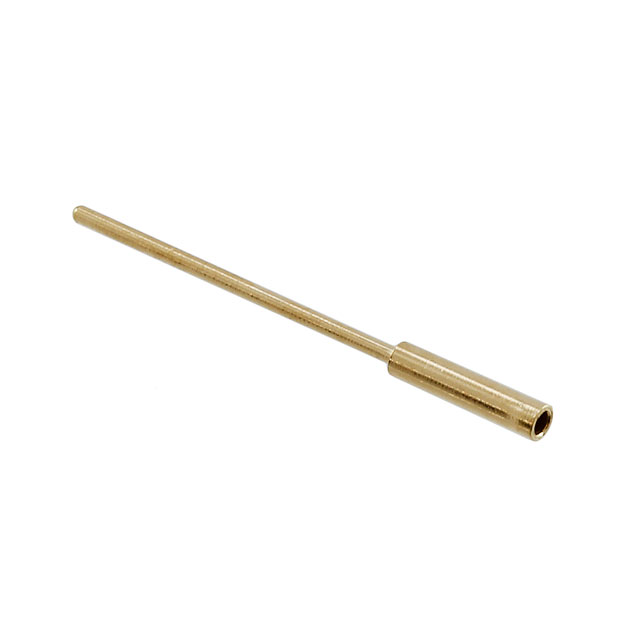

0461-0-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.575" (14.61mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1546 in stock

0461-0-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.575" (14.61mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

50339 in stock

0461-0-15-80-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 0461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.575" (14.61mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1000 in stock

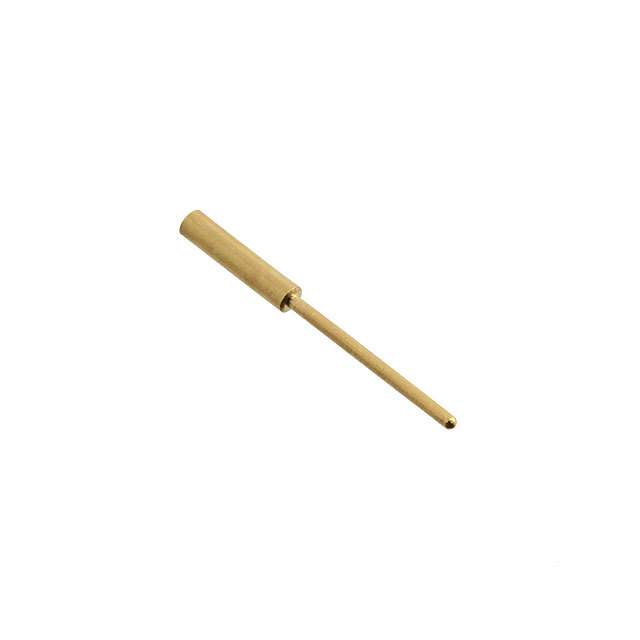

0461-1-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.450" (11.43mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

4238 in stock

0461-1-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.450" (11.43mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

1958 in stock

0461-2-15-15-11-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.355" (9.02mm)
Accepts Pin Diameter : 0.015" ~ 0.020" (0.38mm ~ 0.51mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

8468 in stock

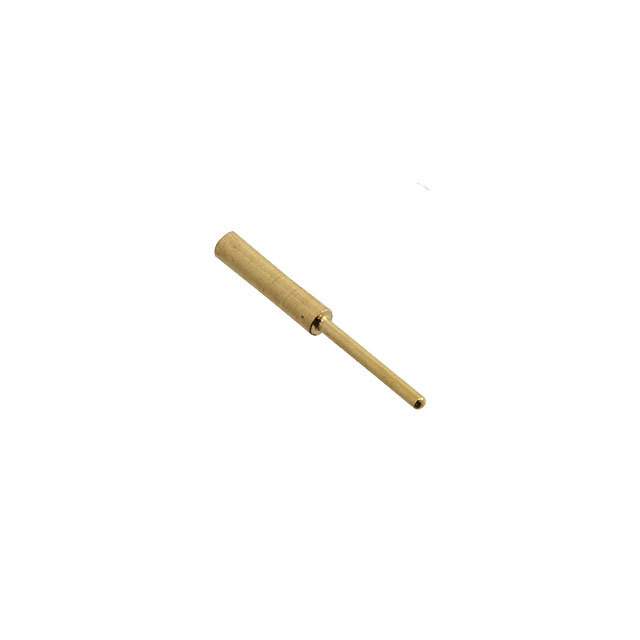

0461-2-15-15-21-27-04-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 461
Part Status : Active
Tail Type : Standard Tail
Termination : Solder
Length - Overall : 0.355" (9.02mm)
Accepts Pin Diameter : 0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Accepts Square Pin Size : -
Pin Hole Diameter : 0.031" (0.79mm)
Mounting Hole Diameter : 0.020" (0.51mm)
Flange Diameter : 0.041" (1.04mm)
Tail Diameter : 0.018" (0.46mm)
Socket Depth : 0.150" (3.81mm)
Contact Material : Beryllium Copper
Contact Finish : Gold
Contact Finish Thickness : 30.0µin (0.76µm)

5604 in stock
