IXYS Integrated Circuits Division

- IXYS Integrated Circuits Division, formerly Clare, Inc., an IXYS Company, designs, manufactures, and markets high-voltage integrated circuits (ICs) and optically isolated Solid State Relays (OptoMOS®) for the communication, industrial, power, and consumer markets.

As a pioneer in the development of Solid State Relays (SSRs), they have become a leading supplier to the telecommunications, security, utility metering, and industrial control industries. IXYS Integrated Circuits Division SSR solutions are rapidly replacing older electromechanical devices in many applications and enhancing overall system performance. They continue to develop leadership products that offer higher levels of integration and electrical performance.

Part Number
Manufacturer
Description
Unit Price
In Stock

IX4428N IX4428N

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 2.4V
Current - Peak Output (Source, Sink) : 1.5A, 1.5A
Input Type : Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 10ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
4574 in stock

IX9907N IX9907N

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Type : AC DC Offline Switcher
Topology : Flyback
Internal Switch(s) : Yes
Number of Outputs : 1
Voltage - Supply (Min) : 10.5V
Voltage - Supply (Max) : 40V
Voltage - Output : -
Current - Output / Channel : -
Frequency : -
Dimming : Triac
Applications : Lighting
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
120 in stock

IX9908-EVAL IX9908-EVAL

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Series : -
Part Status : Active
Current - Output / Channel : 600mA
Outputs and Type : 1, Isolated
Voltage - Output : 19 V ~ 26 V
Features : Dimmable
Voltage - Input : 90 ~ 135 VAC
Supplied Contents : Board(s)
Utilized IC / Part : IX9908
0
100 in stock

IX9908N IX9908N

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Type : AC DC Offline Switcher
Topology : Flyback
Internal Switch(s) : No
Number of Outputs : 1
Voltage - Supply (Min) : 10.5V
Voltage - Supply (Max) : 18V
Voltage - Output : -
Current - Output / Channel : -
Frequency : -
Dimming : -
Applications : Lighting
Operating Temperature : -25°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
833 in stock

IXDD604PI IXDD604PI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 9ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
785 in stock

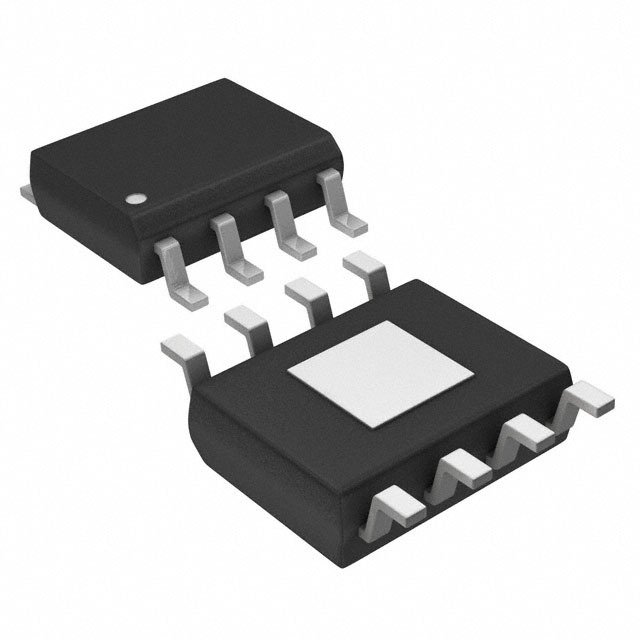

IXDD604SI IXDD604SI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 9ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOIC-EP
0
4256 in stock

IXDD604SIA IXDD604SIA

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 9ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
3927 in stock

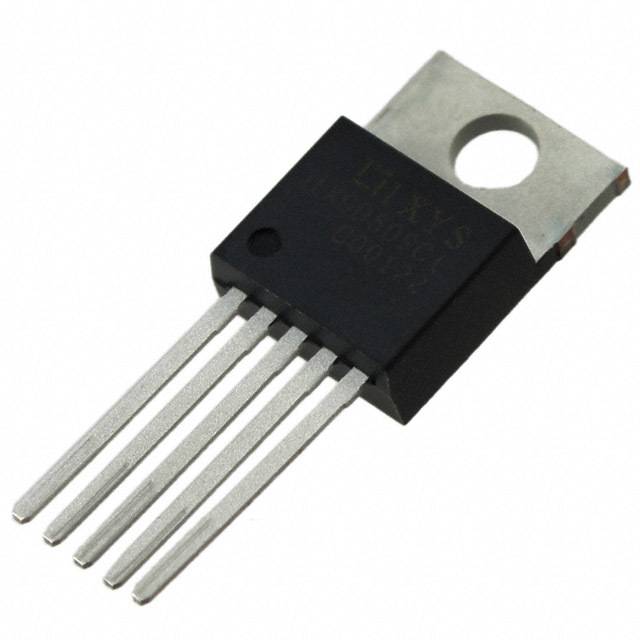

IXDD609CI IXDD609CI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 9A, 9A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 22ns, 15ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-5
Supplier Device Package : TO-220-5
0
652 in stock

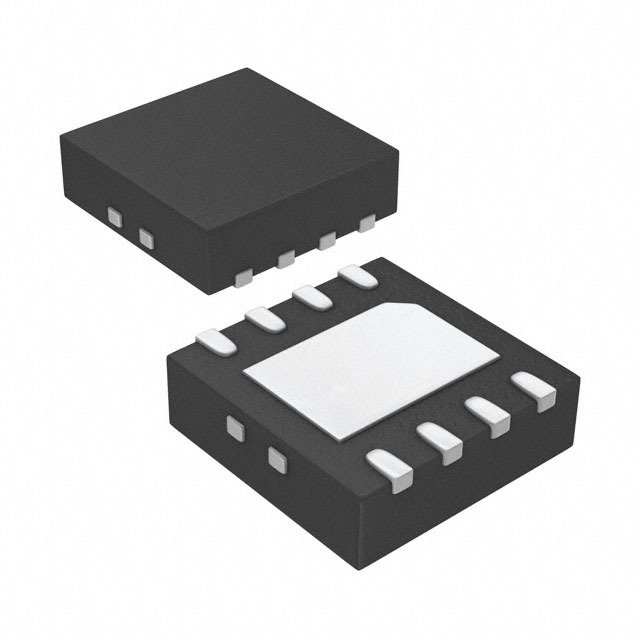

IXDD609D2TR IXDD609D2TR

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 9A, 9A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 22ns, 15ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-DFN-EP (5x4)
0
3127 in stock

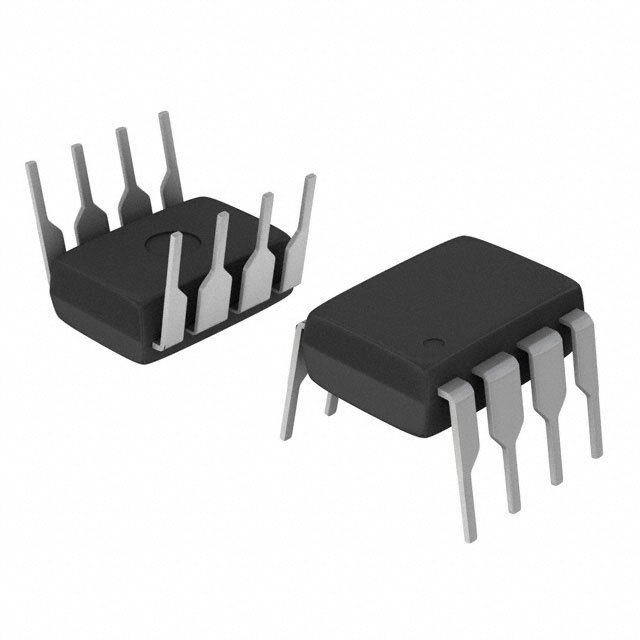

IXDD609PI IXDD609PI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 9A, 9A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 22ns, 15ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
3060 in stock

IXDD609SI IXDD609SI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 9A, 9A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 22ns, 15ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOIC-EP
0
4339 in stock

IXDD609SIA IXDD609SIA

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 9A, 9A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 22ns, 15ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
28886 in stock
