IXYS Integrated Circuits Division
- IXYS Integrated Circuits Division, formerly Clare, Inc., an IXYS Company, designs, manufactures, and markets high-voltage integrated circuits (ICs) and optically isolated Solid State Relays (OptoMOS®) for the communication, industrial, power, and consumer markets.
As a pioneer in the development of Solid State Relays (SSRs), they have become a leading supplier to the telecommunications, security, utility metering, and industrial control industries. IXYS Integrated Circuits Division SSR solutions are rapidly replacing older electromechanical devices in many applications and enhancing overall system performance. They continue to develop leadership products that offer higher levels of integration and electrical performance.
Part Number
Manufacturer
Description
Unit Price
In Stock

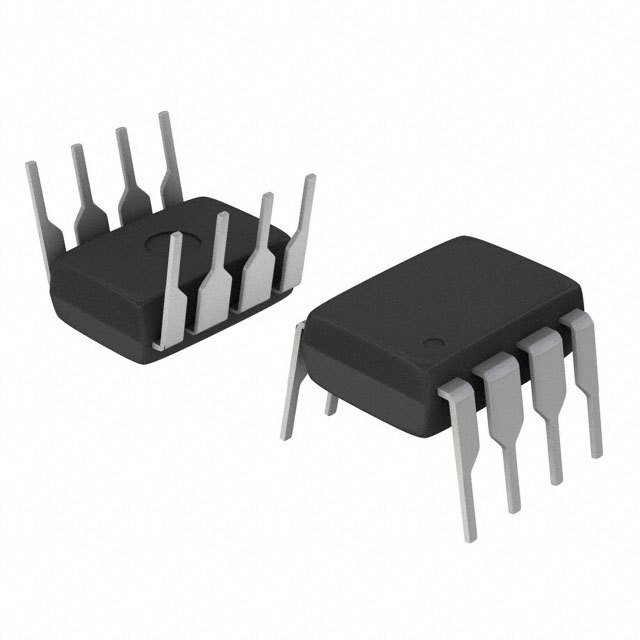

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 25ns, 25ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
Approvals : UR
0
459 in stock

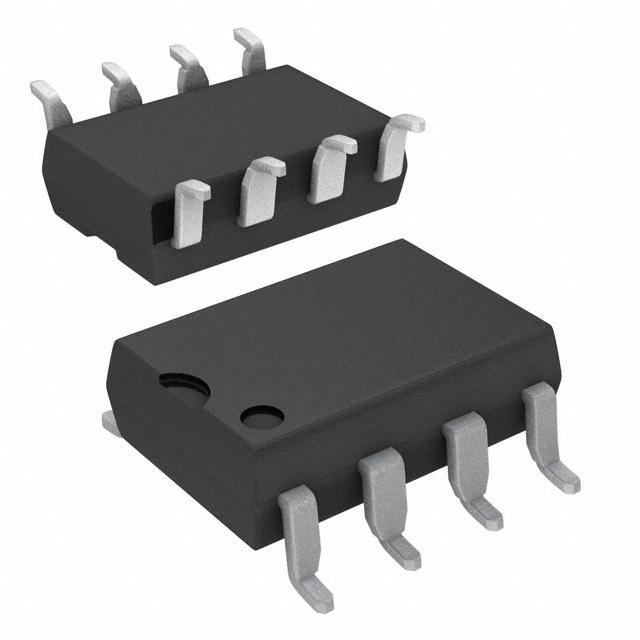

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Technology : Optical Coupling
Number of Channels : 1
Voltage - Isolation : 3750Vrms
Common Mode Transient Immunity (Min) : 10kV/µs
Propagation Delay tpLH / tpHL (Max) : 200ns, 200ns
Pulse Width Distortion (Max) : 65ns
Rise / Fall Time (Typ) : 25ns, 25ns
Current - Output High, Low : 2A, 2A
Current - Peak Output : 2.5A
Voltage - Forward (Vf) (Typ) : 1.35V
Current - DC Forward (If) (Max) : 20mA
Voltage - Supply : 10 V ~ 20 V
Operating Temperature : -40°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : 8-SMD
Approvals : UR
0
387 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 5 V ~ 20 V
Logic Voltage - VIL, VIH : 0.8V, 2.5V
Current - Peak Output (Source, Sink) : 5A, 5A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 7ns, 7ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOIC
0
1273 in stock

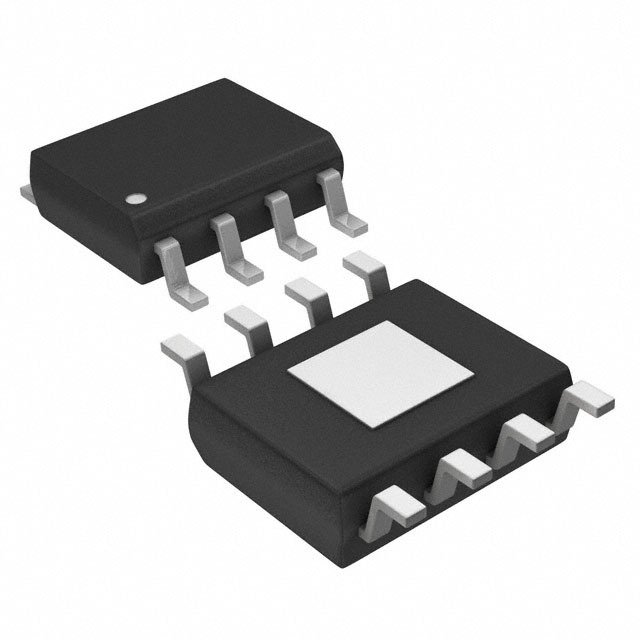

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 5 V ~ 20 V
Logic Voltage - VIL, VIH : 0.8V, 2.5V
Current - Peak Output (Source, Sink) : 5A, 5A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 7ns, 7ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOIC
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 3A, 3A
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 18ns, 18ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
566 in stock

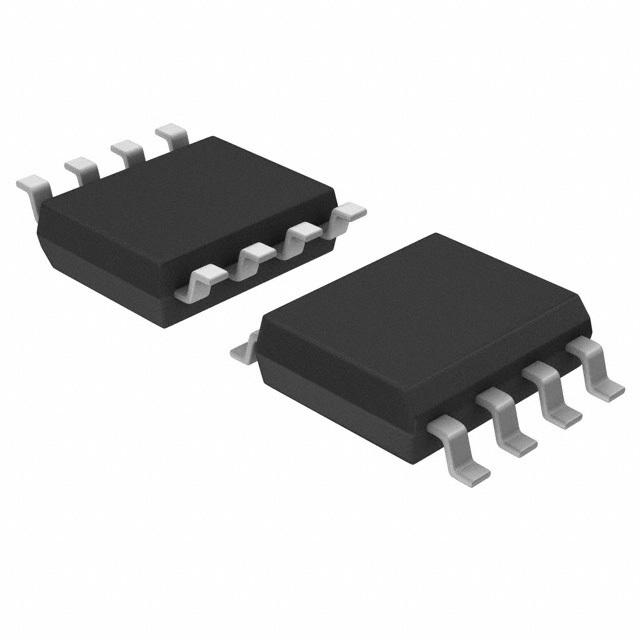

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 3A, 3A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 18ns, 18ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1063 in stock

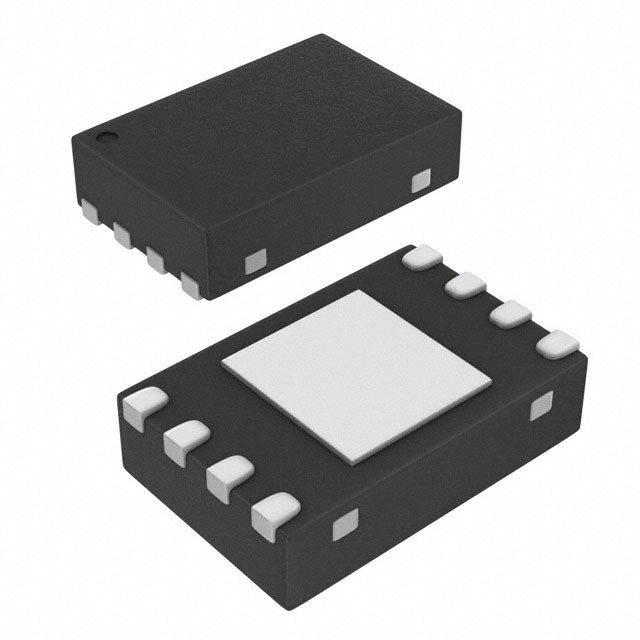

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 2.4V
Current - Peak Output (Source, Sink) : 1.5A, 1.5A
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 10ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-DFN (3x3)
0
100 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 2.4V
Current - Peak Output (Source, Sink) : 1.5A, 1.5A
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 10ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2496 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 2.4V
Current - Peak Output (Source, Sink) : 1.5A, 1.5A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 10ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-DFN (3x3)
0
65207 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 2.4V
Current - Peak Output (Source, Sink) : 1.5A, 1.5A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 10ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2282 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 2.4V
Current - Peak Output (Source, Sink) : 1.5A, 1.5A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 10ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
6596 in stock
IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 30 V
Logic Voltage - VIL, VIH : 0.8V, 2.4V
Current - Peak Output (Source, Sink) : 1.5A, 1.5A
Input Type : Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 10ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-DFN (3x3)
0
5270 in stock
