Welcome to Eruic

IXYS Integrated Circuits Division

- IXYS Integrated Circuits Division, formerly Clare, Inc., an IXYS Company, designs, manufactures, and markets high-voltage integrated circuits (ICs) and optically isolated Solid State Relays (OptoMOS®) for the communication, industrial, power, and consumer markets.

As a pioneer in the development of Solid State Relays (SSRs), they have become a leading supplier to the telecommunications, security, utility metering, and industrial control industries. IXYS Integrated Circuits Division SSR solutions are rapidly replacing older electromechanical devices in many applications and enhancing overall system performance. They continue to develop leadership products that offer higher levels of integration and electrical performance.

Part Number
Manufacturer
Description
Unit Price
In Stock

IXDI604SIA IXDI604SIA

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 9ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
1531 in stock

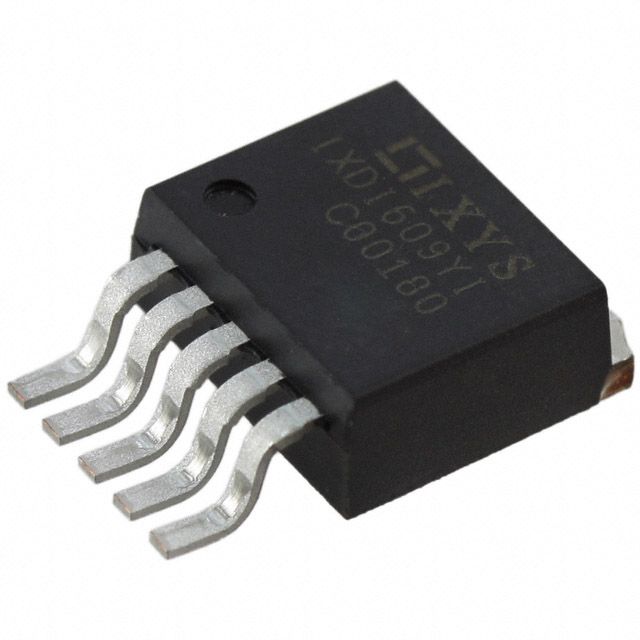

IXDI609YI IXDI609YI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 9A, 9A
Input Type : Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 22ns, 15ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package : TO-263-5
0
578 in stock

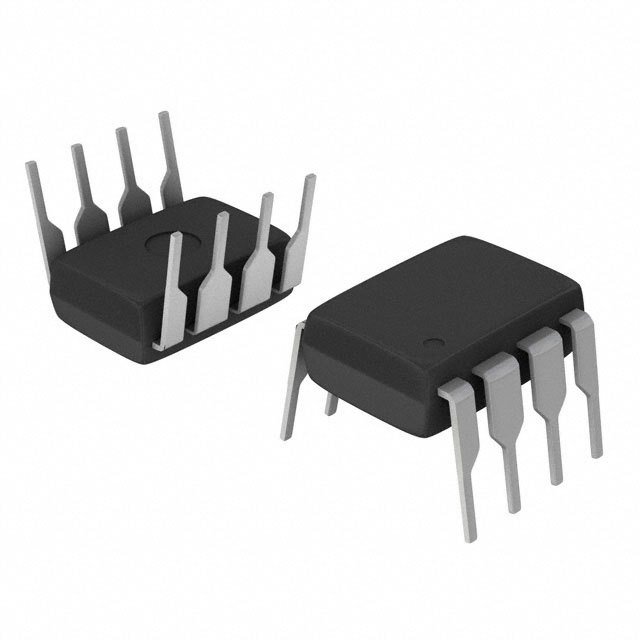

IXDN602PI IXDN602PI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 7.5ns, 6.5ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm)
Supplier Device Package : 8-DIP
0
251 in stock

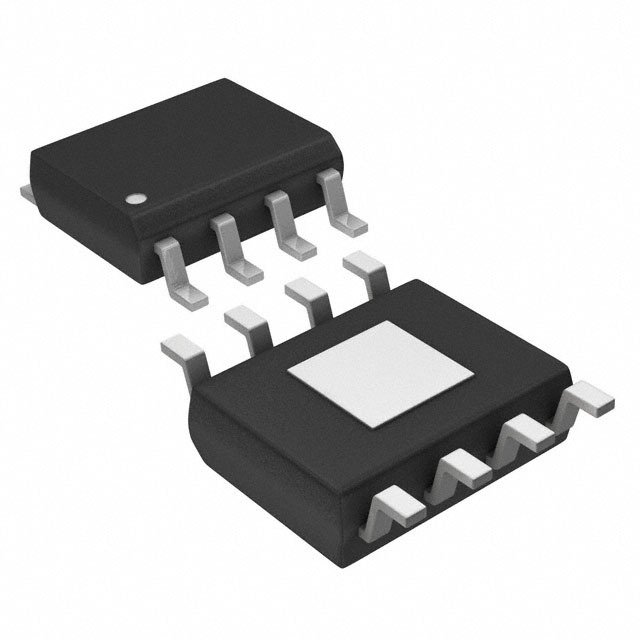

IXDN602SI IXDN602SI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 7.5ns, 6.5ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOIC-EP
0
1302 in stock

IXDN602SIA IXDN602SIA

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 2A, 2A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 7.5ns, 6.5ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
5120 in stock

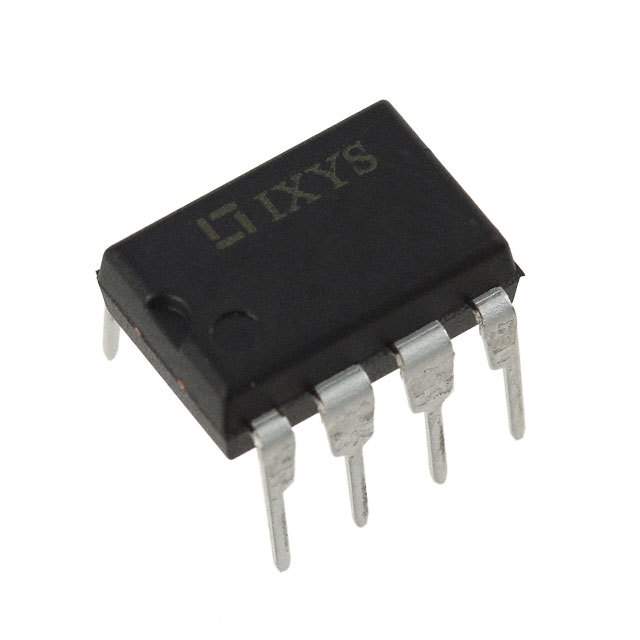

IXDN604PI IXDN604PI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 9ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 8-DIP (0.300", 7.62mm), 6 Leads
Supplier Device Package : 8-DIP
0
1591 in stock

IXDN604SI IXDN604SI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 9ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOIC-EP
0
3674 in stock

IXDN604SIA IXDN604SIA

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Independent
Number of Drivers : 2
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 4A, 4A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 9ns, 8ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
7104 in stock

IXDN604WW IXDN604WW

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : -
Series : *
Part Status : Obsolete
Driven Configuration : -
Channel Type : -
Number of Drivers : -
Gate Type : -
Voltage - Supply : -
Logic Voltage - VIL, VIH : -
Current - Peak Output (Source, Sink) : -
Input Type : -
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock

IXDN609SI IXDN609SI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 4.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3V
Current - Peak Output (Source, Sink) : 9A, 9A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 22ns, 15ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package : 8-SOIC-EP
0
6397 in stock

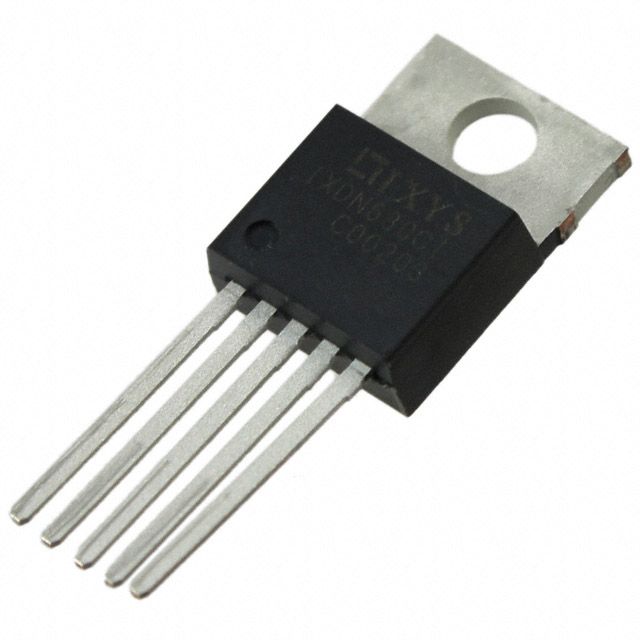

IXDN630CI IXDN630CI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 12.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3.5V
Current - Peak Output (Source, Sink) : 30A, 30A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 11ns, 11ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-5
Supplier Device Package : TO-220-5
0
4268 in stock

IXDN630YI IXDN630YI

IXYS Integrated Circuits Division
Manufacturer : IXYS Integrated Circuits Division
Packaging : Tube
Series : -
Part Status : Active
Driven Configuration : Low-Side
Channel Type : Single
Number of Drivers : 1
Gate Type : IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply : 12.5 V ~ 35 V
Logic Voltage - VIL, VIH : 0.8V, 3.5V
Current - Peak Output (Source, Sink) : 30A, 30A
Input Type : Non-Inverting
High Side Voltage - Max (Bootstrap) : -
Rise / Fall Time (Typ) : 11ns, 11ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package : TO-263-5
0
3510 in stock
