Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±10%
Voltage Rating - AC : 220V
Voltage Rating - DC : 630V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.472" W (26.00mm x 12.00mm)
Height - Seated (Max) : 0.846" (21.50mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
176 in stock

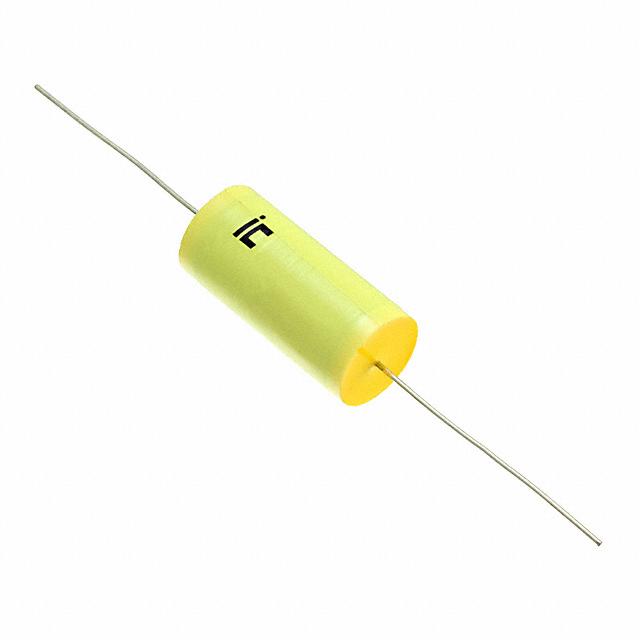

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MPW
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 630V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 260 mOhms
Operating Temperature : -55°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.866" Dia x 1.339" L (22.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : Low ESR
0
329 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±10%
Voltage Rating - AC : 200V
Voltage Rating - DC : 400V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 2.08 Ohms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.492" Dia x 1.339" L (12.50mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
83 in stock

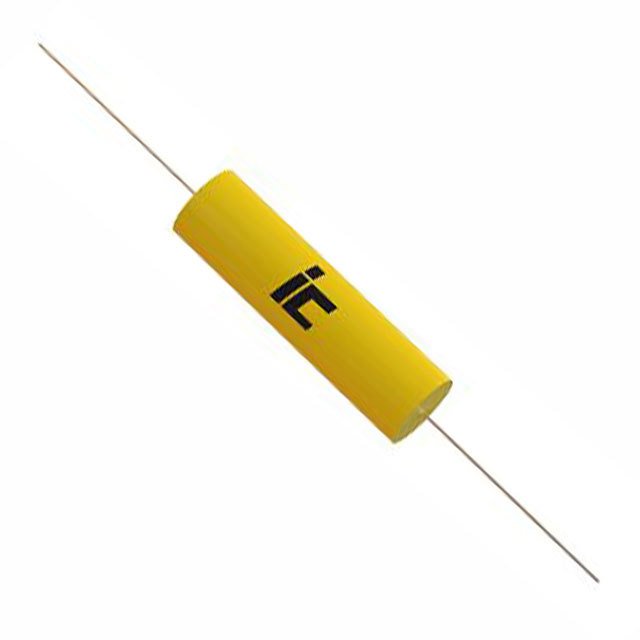

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 8.9 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.472" Dia x 1.339" L (12.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
487 in stock

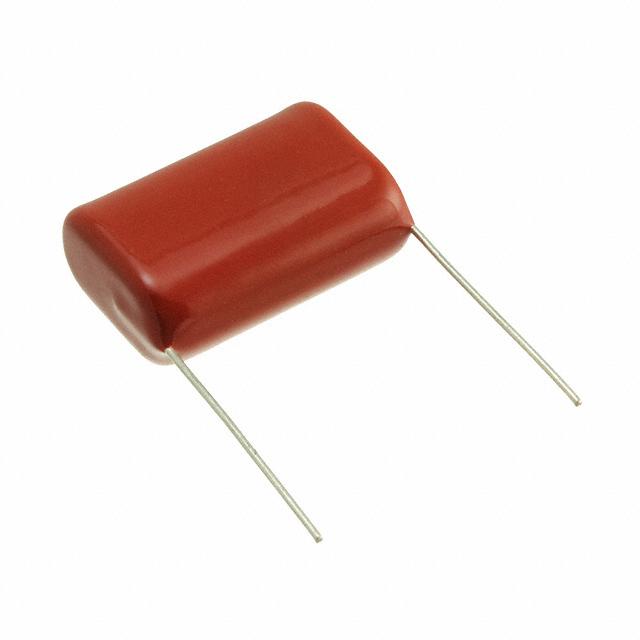

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 6.8µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.354" W (26.00mm x 9.00mm)
Height - Seated (Max) : 0.728" (18.50mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
2677 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 6.8µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.220" L x 0.512" W (31.00mm x 13.00mm)
Height - Seated (Max) : 0.906" (23.00mm)
Termination : PC Pins
Lead Spacing : 1.083" (27.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
1371 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MWR
Part Status : Active
Capacitance : 6.8µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : 260 mOhms
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 0.669" Dia x 1.339" L (17.00mm x 34.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : General Purpose
Ratings : -
Features : Low ESR
0
109 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : PHC
Part Status : Active
Capacitance : 6.8µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : 400V
Dielectric Material : Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) : 6.4 mOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Through Hole
Package / Case : Axial
Size / Dimension : 1.024" Dia x 1.811" L (26.00mm x 46.00mm)
Height - Seated (Max) : -
Termination : PC Pins
Lead Spacing : -
Applications : DC Link, DC Filtering; High Frequency, Switching
Ratings : -
Features : Low ESR, Low ESL
0
100 in stock

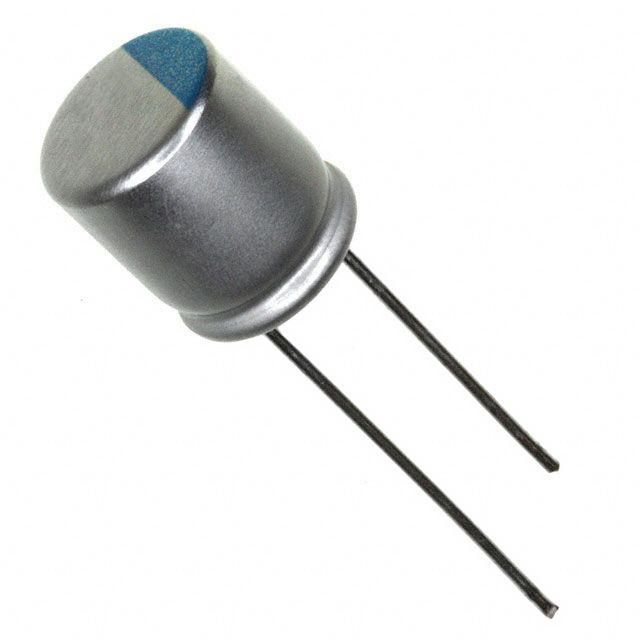

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : AVG
Part Status : Active
Type : Polymer
Capacitance : 680µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 16 mOhm
Lifetime @ Temp. : 1500 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 235mA @ 120Hz
Ripple Current @ High Frequency : 4.7A @ 100kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2362 in stock

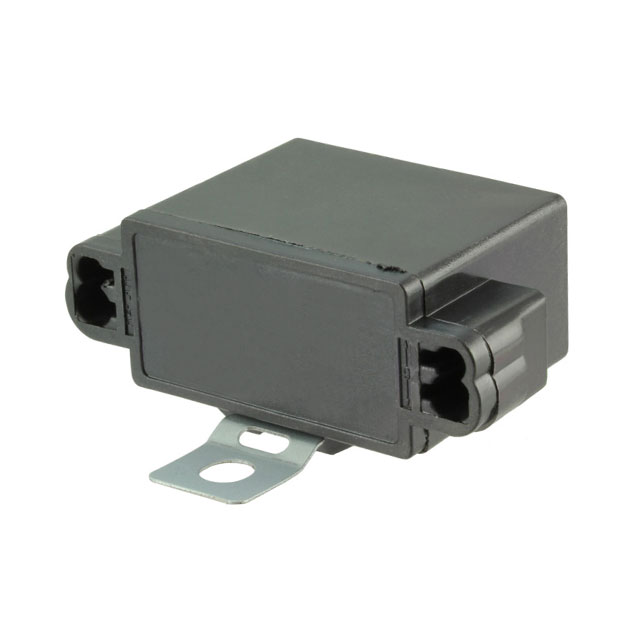

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 8µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
50 in stock

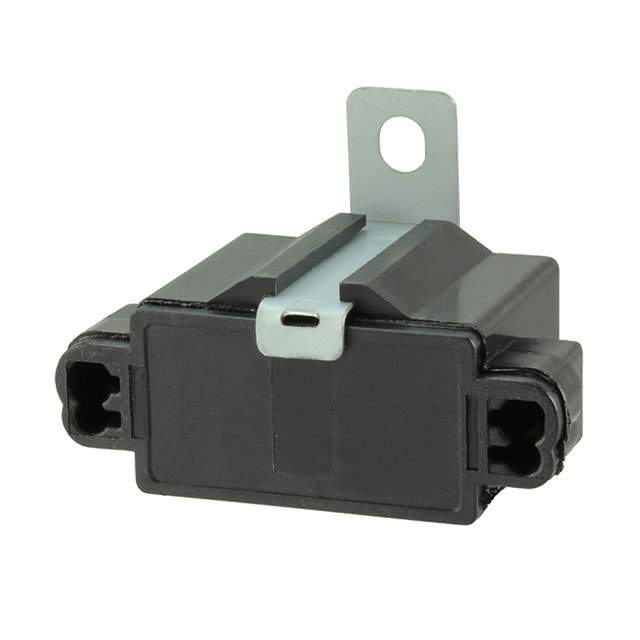

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 8µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
25 in stock

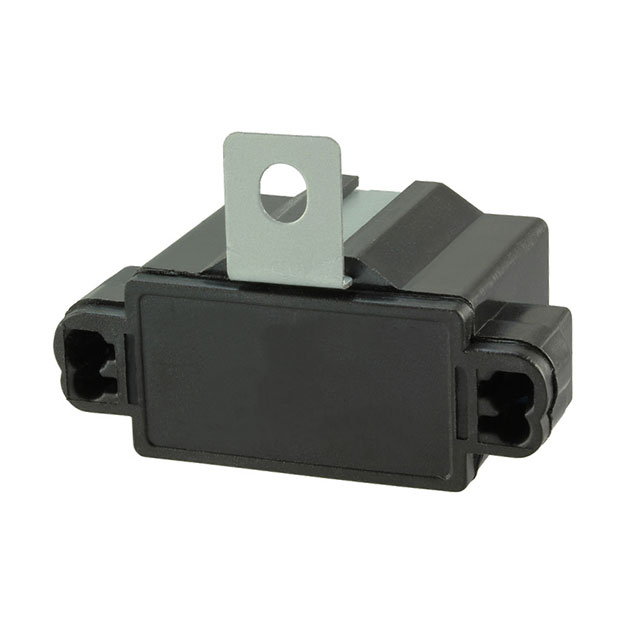

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 8µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
21 in stock
