Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock

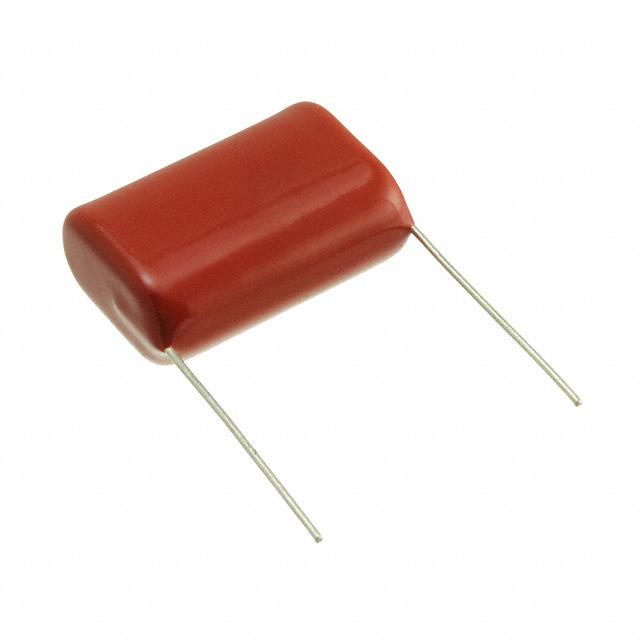

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 5.6µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.327" W (26.00mm x 8.30mm)
Height - Seated (Max) : 0.728" (18.50mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
1308 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 5.6µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.220" L x 0.465" W (31.00mm x 11.80mm)
Height - Seated (Max) : 0.866" (22.00mm)
Termination : PC Pins
Lead Spacing : 1.083" (27.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
157 in stock

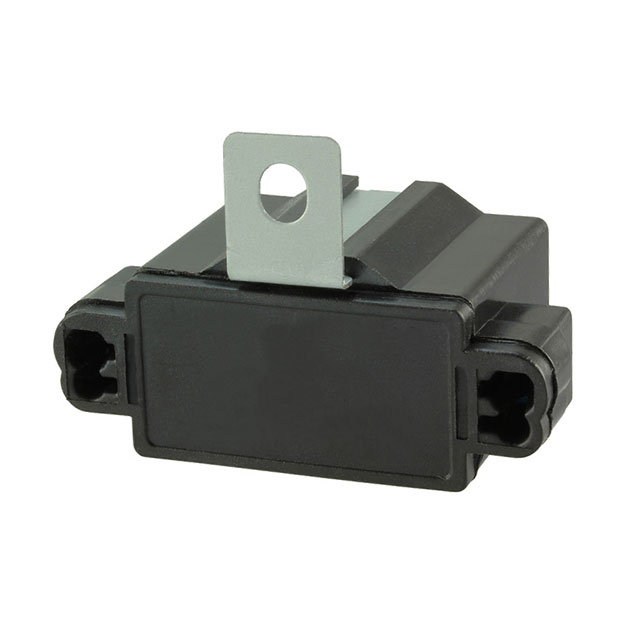

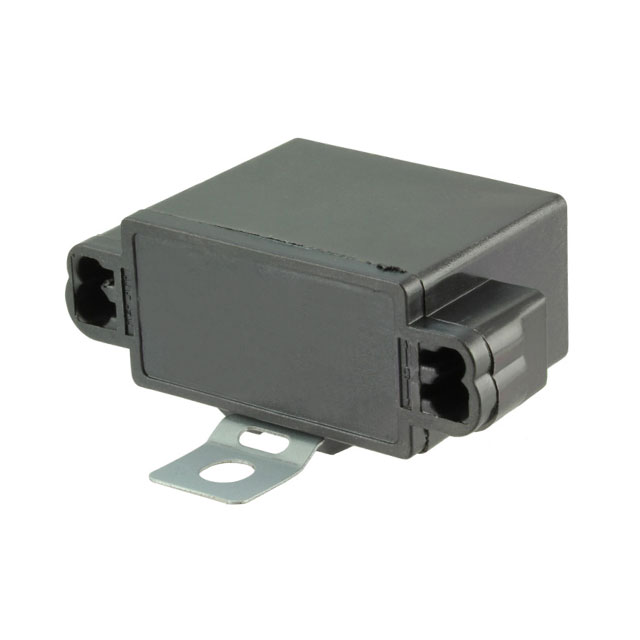

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 6µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
48 in stock

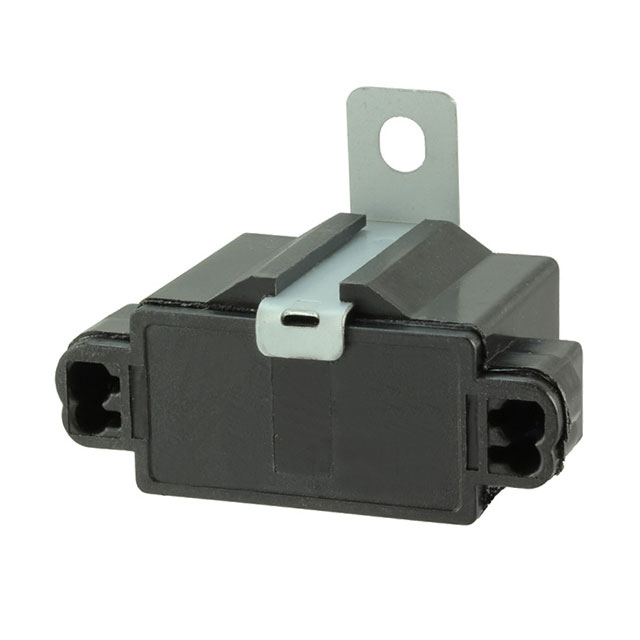

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 6µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
47 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : QPC
Part Status : Active
Capacitance : 6µF
Tolerance : ±10%
Voltage Rating - AC : 250V
Voltage Rating - DC : -
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -25°C ~ 70°C
Mounting Type : Chassis Mount
Package / Case : Rectangular Box
Size / Dimension : 1.811" L x 0.512" W (46.00mm x 13.00mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : Screwless - Push-In Spring
Lead Spacing : -
Applications : Motor Run
Ratings : -
Features : -
0
45 in stock

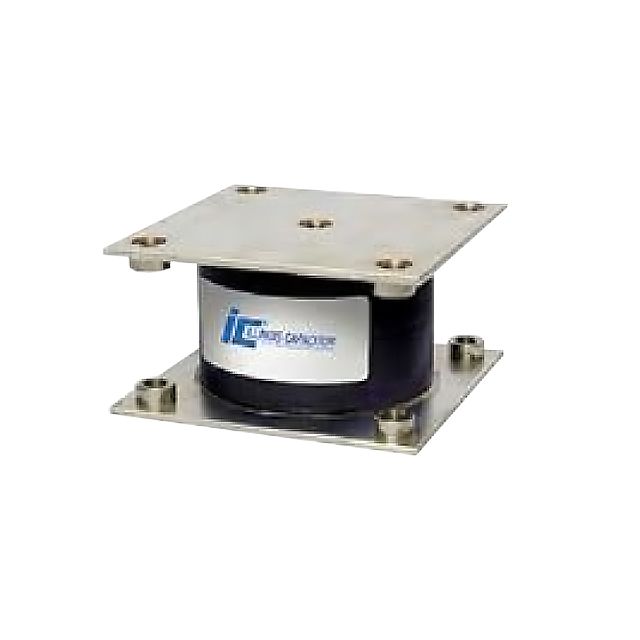

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : LC5
Part Status : Active
Capacitance : 6.3µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 800 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 3.937" L x 3.937" W (100.00mm x 100.00mm)
Height - Seated (Max) : 2.146" (54.50mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
5 in stock

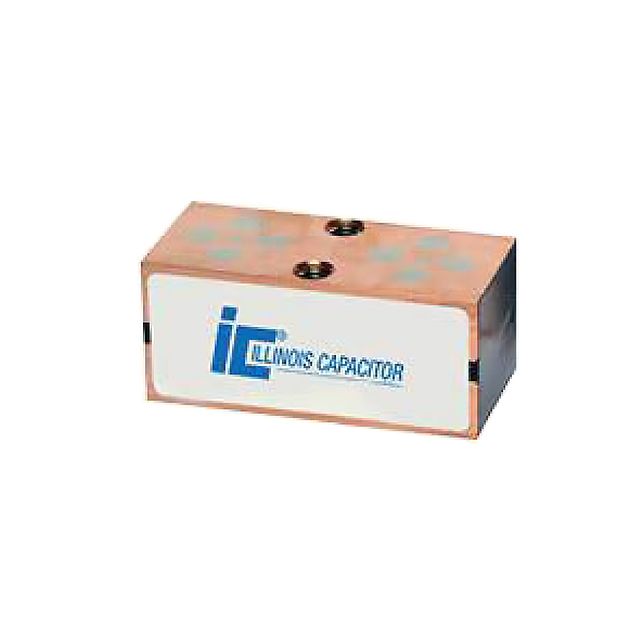

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC1
Part Status : Active
Capacitance : 0.66µF
Tolerance : ±10%
Voltage Rating - AC : 600V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 800 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 2.677" L x 1.181" W (68.00mm x 30.00mm)
Height - Seated (Max) : 1.193" (30.30mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
19 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : -
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Dielectric Material : -
ESR (Equivalent Series Resistance) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Termination : -
Lead Spacing : -
Applications : -
Ratings : -
Features : -
0
20 in stock

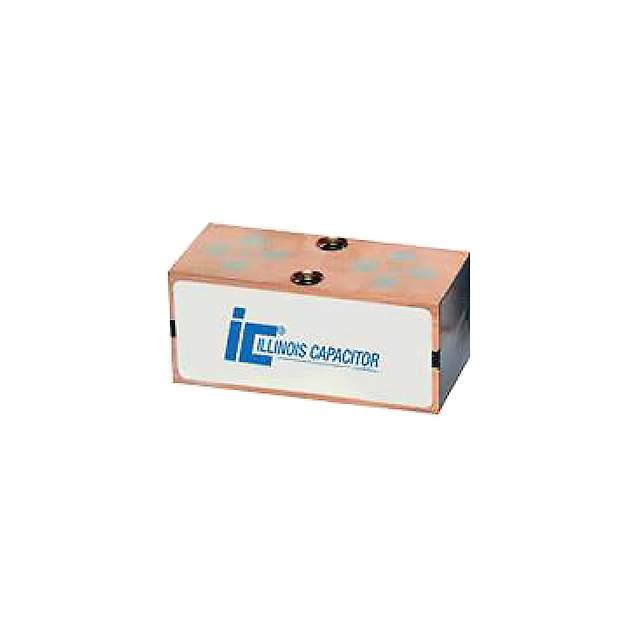

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC2
Part Status : Active
Capacitance : 0.66µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 400 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 2.677" L x 1.181" W (68.00mm x 30.00mm)
Height - Seated (Max) : 1.193" (30.30mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
28 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : -
Series : *
Part Status : Active
Capacitance : -
Tolerance : -
Voltage Rating - AC : -
Voltage Rating - DC : -
Dielectric Material : -
ESR (Equivalent Series Resistance) : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Size / Dimension : -
Height - Seated (Max) : -
Termination : -
Lead Spacing : -
Applications : -
Ratings : -
Features : -
0
20 in stock

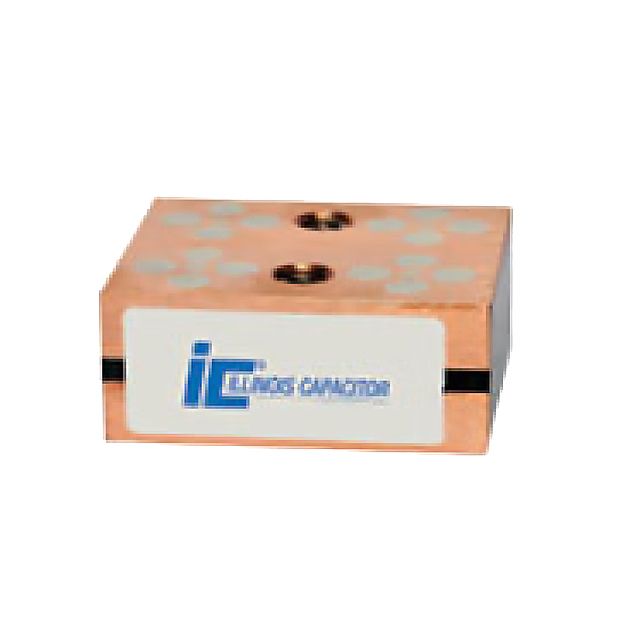

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC3
Part Status : Active
Capacitance : 0.66µF
Tolerance : ±10%
Voltage Rating - AC : 700V
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 800 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 2.205" L x 1.189" W (56.00mm x 30.20mm)
Height - Seated (Max) : 2.618" (66.50mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
2 in stock

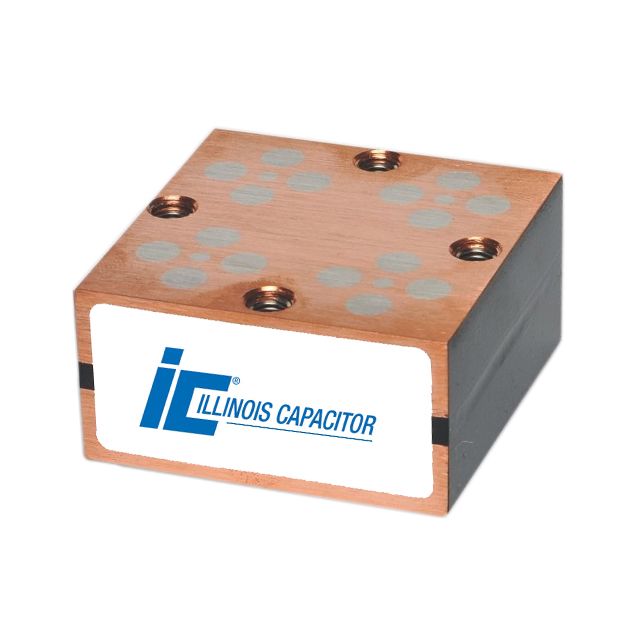

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : HC4
Part Status : Active
Capacitance : 0.66µF
Tolerance : ±10%
Voltage Rating - AC : 1000V (1kV)
Voltage Rating - DC : -
Dielectric Material : Polypropylene (PP)
ESR (Equivalent Series Resistance) : 800 µOhms
Operating Temperature : -40°C ~ 85°C
Mounting Type : Chassis Mount
Package / Case : Nonstandard
Size / Dimension : 2.205" L x 2.205" W (56.00mm x 56.00mm)
Height - Seated (Max) : 1.193" (30.30mm)
Termination : Threaded, Female
Lead Spacing : -
Applications : Conduction Cooled; High Pulse, DV/DT
Ratings : -
Features : -
0
6 in stock
