Illinois Capacitor
- Illinois Capacitor is a leading manufacturer of miniature capacitors for electronics, lighting, energy and other markets. These products include: aluminum electrolytic, metalized film, power film, supercapacitors (ultra capacitors) and other types. IC is one of the world’s most experienced capacitor manufacturers, well known for its benchmark quality, guaranteed delivery and responsive engineering support.
Part Number
Manufacturer
Description
Unit Price
In Stock

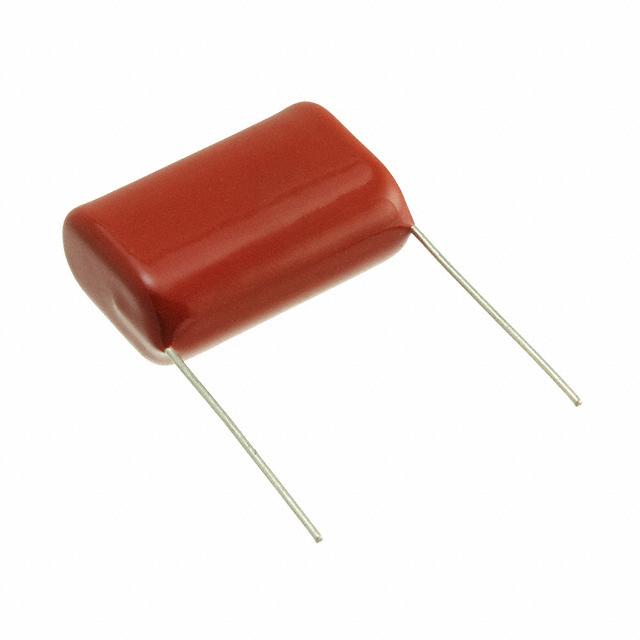

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 8.2µF
Tolerance : ±10%
Voltage Rating - AC : 63V
Voltage Rating - DC : 100V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.024" L x 0.394" W (26.00mm x 10.00mm)
Height - Seated (Max) : 0.827" (21.00mm)
Termination : PC Pins
Lead Spacing : 0.886" (22.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
4026 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : MMR
Part Status : Active
Capacitance : 8.2µF
Tolerance : ±10%
Voltage Rating - AC : 160V
Voltage Rating - DC : 250V
Dielectric Material : Polyester, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -40°C ~ 105°C
Mounting Type : Through Hole
Package / Case : Radial
Size / Dimension : 1.220" L x 0.563" W (31.00mm x 14.30mm)
Height - Seated (Max) : 0.965" (24.50mm)
Termination : PC Pins
Lead Spacing : 1.083" (27.50mm)
Applications : General Purpose
Ratings : -
Features : -
0
1468 in stock

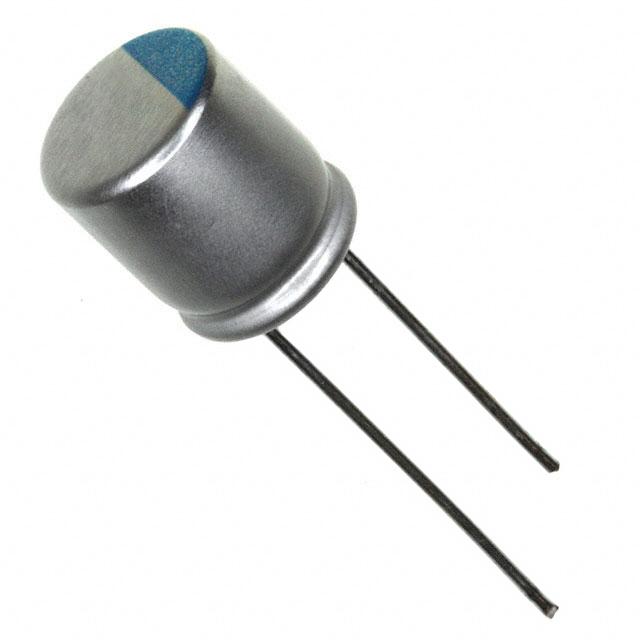

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : AVG
Part Status : Active
Type : Polymer
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 1500 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 232.5mA @ 120Hz
Ripple Current @ High Frequency : 4.65A @ 100kHz
Impedance : -
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
2868 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 1F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 200 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.571" (14.50mm)
Operating Temperature : -40°C ~ 65°C
0
79255 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 1F
Tolerance : -10%, +30%
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 260 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.472" (12.00mm)
Size / Dimension : 0.669" L x 0.335" W (17.00mm x 8.50mm)
Height - Seated (Max) : 0.709" (18.00mm)
Operating Temperature : -40°C ~ 65°C
0
2682 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 10F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.260" (32.00mm)
Operating Temperature : -40°C ~ 65°C
0
5074 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 10F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.063" (27.00mm)
Operating Temperature : -40°C ~ 65°C
0
217 in stock

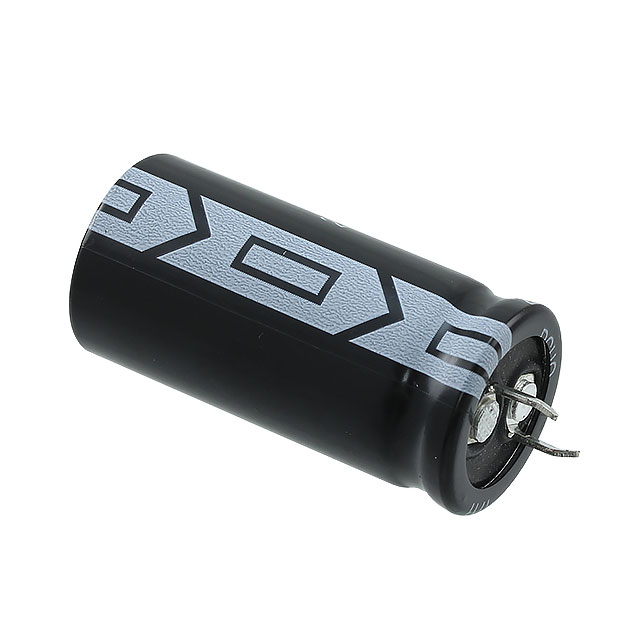

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 100F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 8 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 0.866" Dia (22.00mm)
Height - Seated (Max) : 1.850" (47.00mm)
Operating Temperature : -40°C ~ 65°C
0
598 in stock

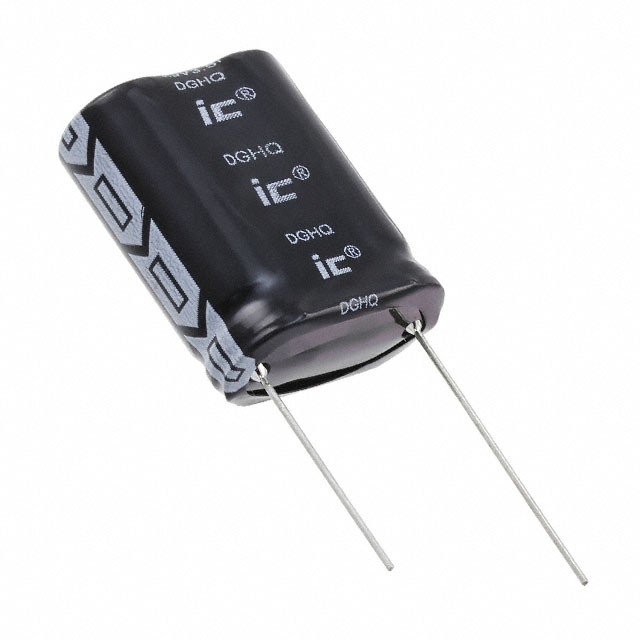

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 1.5F
Tolerance : -10%, +30%
Voltage - Rated : 5.5V
ESR (Equivalent Series Resistance) : 160 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.472" (12.00mm)
Size / Dimension : 0.669" L x 0.335" W (17.00mm x 8.50mm)
Height - Seated (Max) : 0.945" (24.00mm)
Operating Temperature : -40°C ~ 65°C
0
4282 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 15F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.260" (32.00mm)
Operating Temperature : -40°C ~ 65°C
0
3262 in stock
Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 2F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 130 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.610" (15.50mm)
Operating Temperature : -40°C ~ 65°C
0
9145 in stock

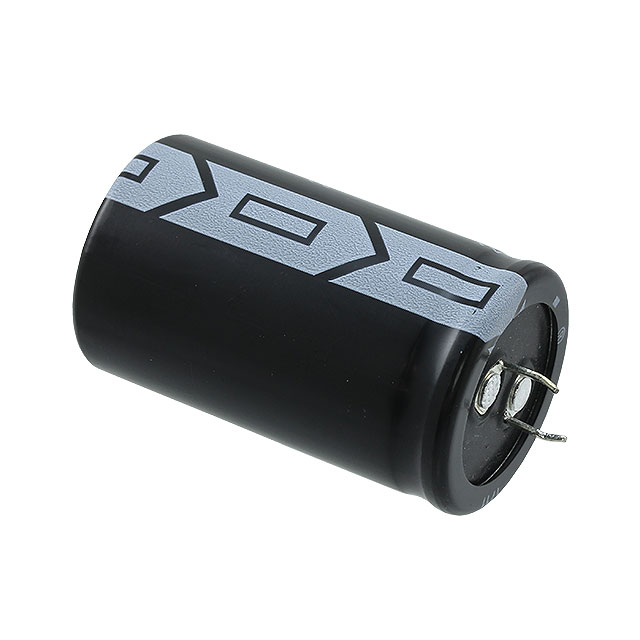

Illinois Capacitor
Manufacturer : Illinois Capacitor
Packaging : Bulk
Series : DGH
Part Status : Active
Capacitance : 200F
Tolerance : -10%, +30%
Voltage - Rated : 2.7V
ESR (Equivalent Series Resistance) : 6 mOhm
Lifetime @ Temp. : 1000 Hrs @ 65°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can - Snap-In
Lead Spacing : 0.394" (10.00mm)
Size / Dimension : 1.181" Dia (30.00mm)
Height - Seated (Max) : 2.047" (52.00mm)
Operating Temperature : -40°C ~ 65°C
0
107 in stock
