EPC
Part Number
Manufacturer
Description
Unit Price
In Stock

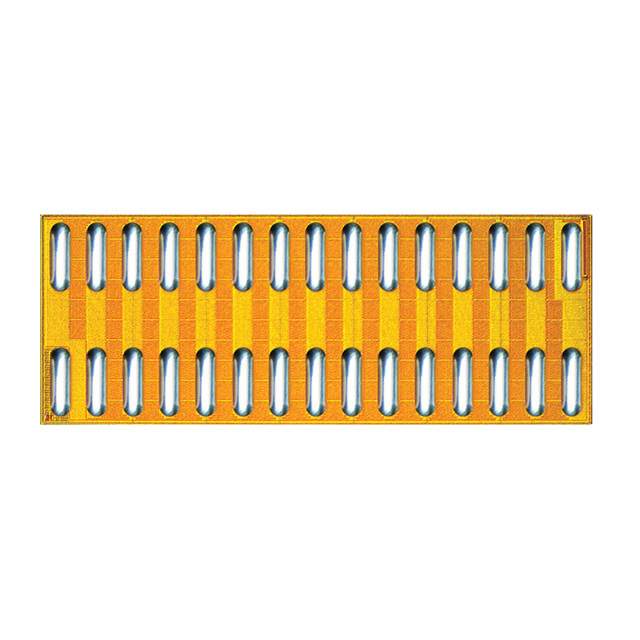

EPC2024
EPC
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 60A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 1.5 mOhm @ 37A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 19mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 2100pF @ 20V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 60A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 1.5 mOhm @ 37A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 19mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 2100pF @ 20V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
6350 in stock
EPC2025
EPC
Manufacturer : EPC
Packaging : Tape & Reel (TR)
Series : eGaN®
Part Status : Obsolete
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 300V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 150 mOhm @ 3A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 194pF @ 240V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Tape & Reel (TR)
Series : eGaN®
Part Status : Obsolete
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 300V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 150 mOhm @ 3A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 194pF @ 240V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
100 in stock

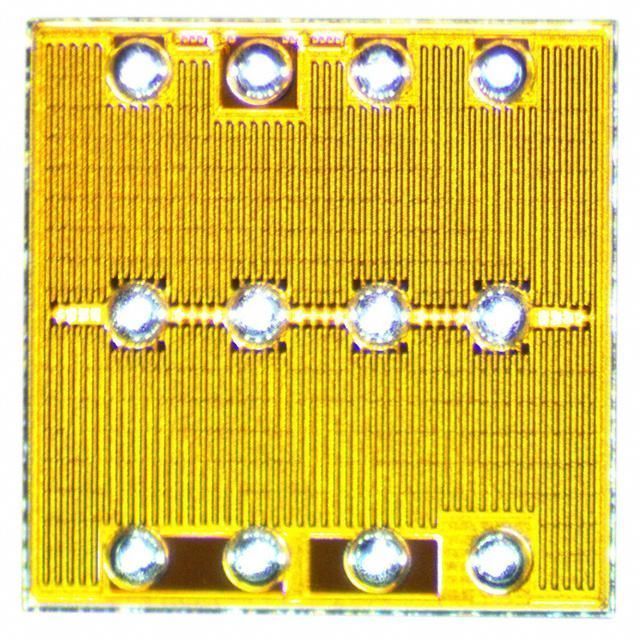

EPC2025ENGR
EPC
Manufacturer : EPC
Packaging : Tray
Series : eGaN®
Part Status : Obsolete
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 300V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 150 mOhm @ 3A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 1.85nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 194pF @ 240V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die Outline (12-Solder Bar)
Package / Case : Die
Packaging : Tray
Series : eGaN®
Part Status : Obsolete
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 300V
Current - Continuous Drain (Id) @ 25°C : 4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 150 mOhm @ 3A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 1.85nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 194pF @ 240V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die Outline (12-Solder Bar)
Package / Case : Die
0
100 in stock
EPC2029
EPC
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 48A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 3.2 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 12mA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1410pF @ 40V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 48A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 3.2 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 12mA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1410pF @ 40V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
6926 in stock
EPC2030
EPC
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : 2.4 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 16mA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 5V
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : 1900pF @ 20V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : 2.4 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 16mA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 5V
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : 1900pF @ 20V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
8716 in stock
EPC2030ENGRT
EPC
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 2.4 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 16mA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1900pF @ 20V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 2.4 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 16mA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1900pF @ 20V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
3999 in stock
EPC2031
EPC
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : 2.6 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 15mA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 5V
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 300V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : 2.6 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 15mA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 5V
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 300V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
5505 in stock

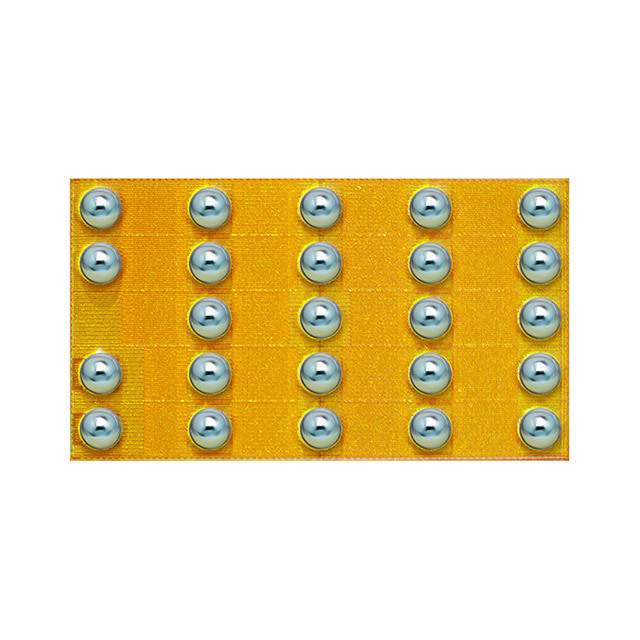

EPC2031ENGRT
EPC
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 2.6 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 15mA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 300V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 2.6 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 15mA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 300V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
5541 in stock
EPC2032
EPC
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 48A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 11mA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1530pF @ 50V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 48A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 11mA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1530pF @ 50V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
5944 in stock
EPC2032ENGRT
EPC
Manufacturer : EPC
Packaging : Tape & Reel (TR)
Series : eGaN®
Part Status : Discontinued at
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 48A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 11mA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1530pF @ 50V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Tape & Reel (TR)
Series : eGaN®
Part Status : Discontinued at
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 48A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 30A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 11mA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1530pF @ 50V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
100 in stock
EPC2033
EPC
Manufacturer : EPC
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : 7 mOhm @ 25A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 9mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 5V
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : 1140pF @ 75V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eGaN®
Part Status : Active
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : -
Rds On (Max) @ Id, Vgs : 7 mOhm @ 25A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 9mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 5V
Vgs (Max) : -
Input Capacitance (Ciss) (Max) @ Vds : 1140pF @ 75V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
7924 in stock
EPC2033ENGRT
EPC
Manufacturer : EPC
Packaging : Tape & Reel (TR)
Series : eGaN®
Part Status : Discontinued at
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 7 mOhm @ 25A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 9mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1140pF @ 75V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
Packaging : Tape & Reel (TR)
Series : eGaN®
Part Status : Discontinued at
FET Type : N-Channel
Technology : GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss) : 150V
Current - Continuous Drain (Id) @ 25°C : 31A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 5V
Rds On (Max) @ Id, Vgs : 7 mOhm @ 25A, 5V
Vgs(th) (Max) @ Id : 2.5V @ 9mA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 5V
Vgs (Max) : +6V, -4V
Input Capacitance (Ciss) (Max) @ Vds : 1140pF @ 75V
FET Feature : -
Power Dissipation (Max) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : Die
Package / Case : Die
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
