Cornell Dubilier
- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.
Part Number
Manufacturer
Description
Unit Price
In Stock
ESRD121M06XB
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD121M06XR
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 120µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD150M08B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD150M08R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 40 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

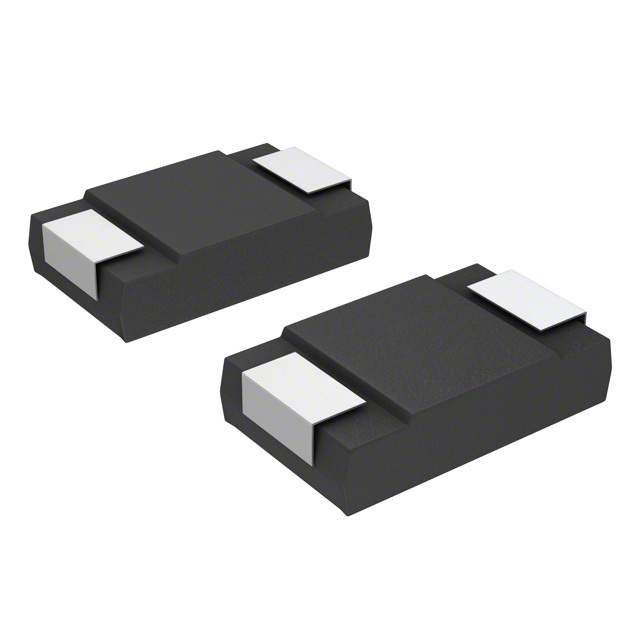

ESRD150M12B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 12.5V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 12.5V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD150M12R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 12.5V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 15µF
Tolerance : ±20%
Voltage - Rated : 12.5V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD151M04XR
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 4V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD151M0EB
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD151M0ER
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD181M02B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

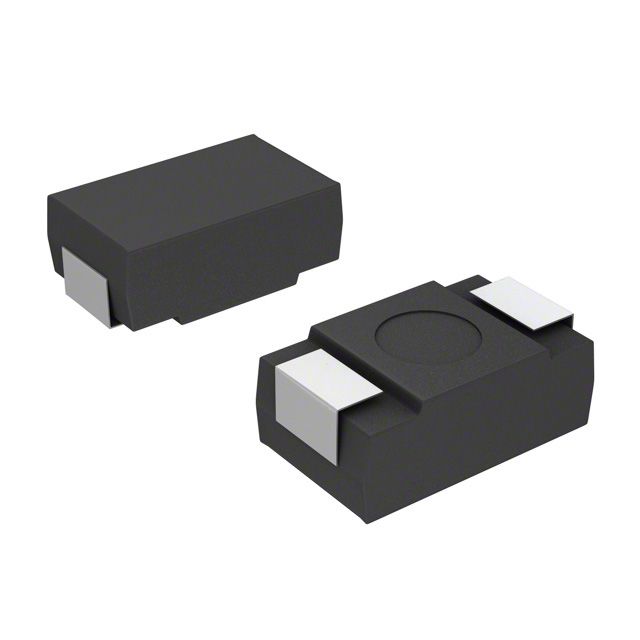

ESRD181M02R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD181M0EB
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
