Part Number
Manufacturer
Description
Unit Price
In Stock

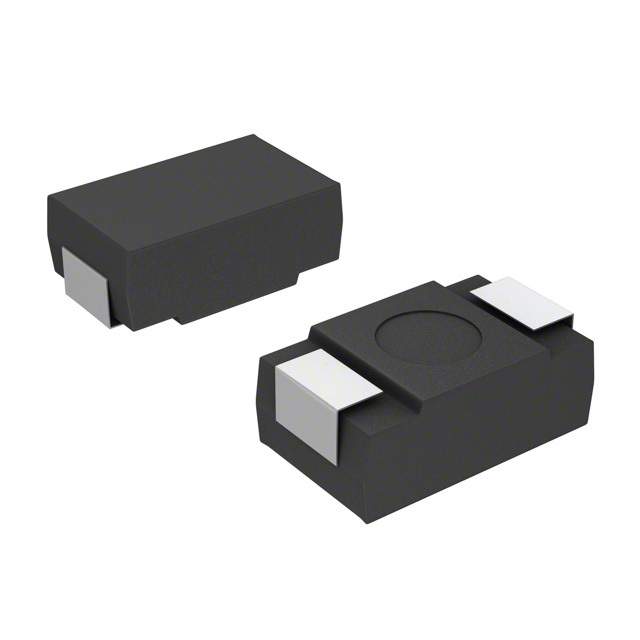

ESRD271M02XR
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.110" (2.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

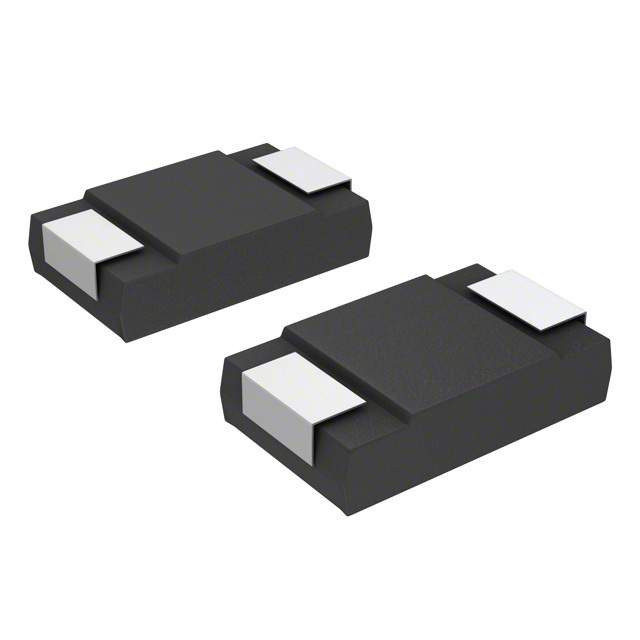

ESRD2R2M16B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 2.2µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 110 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 2.2µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 110 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD2R2M16R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 2.2µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 110 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 2.2µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 110 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD330M06B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD330M06R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 28 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD330M08B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD330M08R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD330M08R-F
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 33µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD470M06B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Discontinued at
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Discontinued at
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD470M06R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 47µF
Tolerance : ±20%
Voltage - Rated : 6.3V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
3500 in stock
ESRD4R7M12B
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 12.5V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 12.5V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
ESRD4R7M12R
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 12.5V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 4.7µF
Tolerance : ±20%
Voltage - Rated : 12.5V
ESR (Equivalent Series Resistance) : 80 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
