Cornell Dubilier
- Cornell Dubilier is the source for capacitors that transform your applications to success stories. It excels with aluminum electrolytic, mica, motor run and AC and DC plastic film capacitors. Cornell Dubilier only makes capacitors and has been doing it for almost 100 years. The world leaders in welders, UPS systems, motors, drives, avionics, power and military electronics and medical lasers are prominently among its more than 33,000 customers.
Part Number
Manufacturer
Description
Unit Price
In Stock

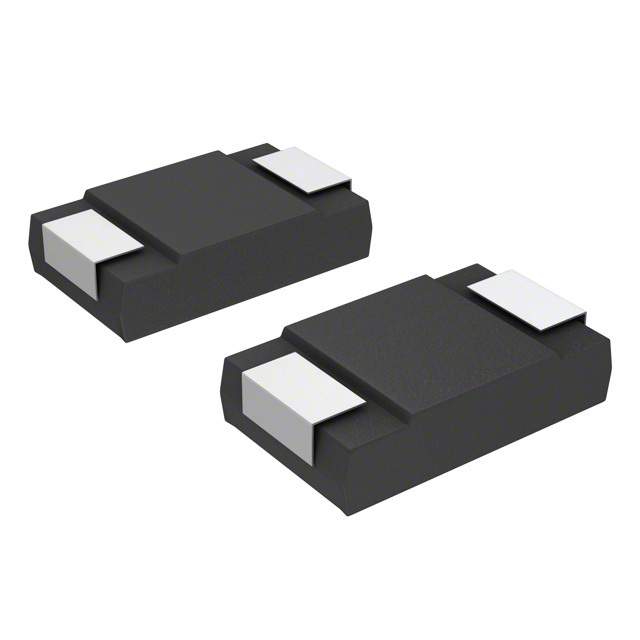

Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 82µF
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 18 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 8.2µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 55 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 8.2µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 55 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRD
Part Status : Obsolete
Type : Polymer
Capacitance : 8.2µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : ESRD
Part Status : Last Time Buy
Type : Polymer
Capacitance : 8.2µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : 45 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 1.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.071" (1.80mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : ESRD
Part Status : Obsolete
Kit Type : Aluminum (Polymer)
Capacitance Range : -
Mounting Type : Surface Mount
Voltage - Rated : -
Tolerance : ±20%
Applications : Bypass, Decoupling
Features : -
Quantity : -
Packages Included : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : ESRD
Part Status : Obsolete
Kit Type : Aluminum (Polymer)
Capacitance Range : 8.2µF ~ 56µF
Mounting Type : Surface Mount
Voltage - Rated : 4 ~ 16 V
Tolerance : ±20%
Applications : Bypass, Decoupling
Features : -
Quantity : 30 Pieces (5 Values - 6 Each)
Packages Included : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : ESRD
Part Status : Obsolete
Kit Type : Aluminum (Polymer)
Capacitance Range : -
Mounting Type : Surface Mount
Voltage - Rated : -
Tolerance : ±20%
Applications : Bypass, Decoupling
Features : -
Quantity : -
Packages Included : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : ESRD
Part Status : Obsolete
Kit Type : Aluminum (Polymer)
Capacitance Range : -
Mounting Type : Surface Mount
Voltage - Rated : -
Tolerance : ±20%
Applications : Bypass, Decoupling
Features : -
Quantity : -
Packages Included : 2917 (7343 Metric)
0
100 in stock
Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Series : ESRD
Part Status : Obsolete
Kit Type : Aluminum (Polymer)
Capacitance Range : 100µF ~ 200µF
Mounting Type : Surface Mount
Voltage - Rated : 2 ~ 6.3 V
Tolerance : ±20%
Applications : Bypass, Decoupling
Features : -
Quantity : 30 Pieces (5 Values - 6 Each)
Packages Included : 2917 (7343 Metric)
0
100 in stock

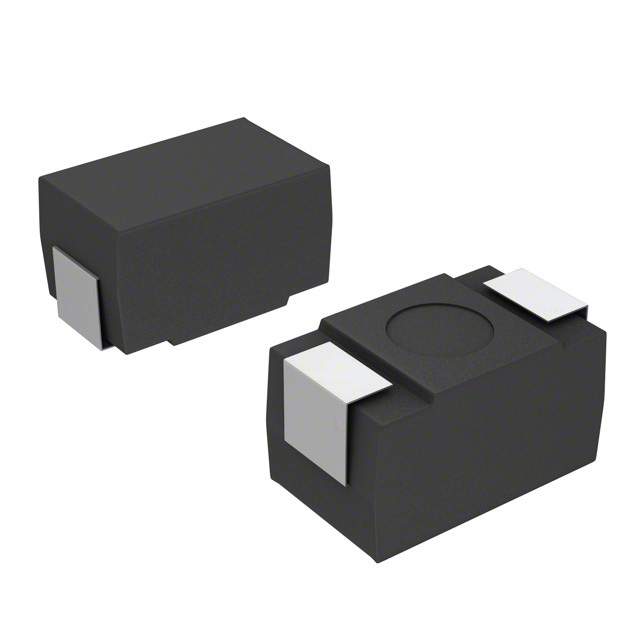

Cornell Dubilier Electronics
Manufacturer : Cornell Dubilier Electronics (CDE)
Packaging : Bulk
Alternate Packaging
Series : ESRE
Part Status : Discontinued at
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 8V
ESR (Equivalent Series Resistance) : 12 mOhm
Lifetime @ Temp. : 1000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : Bypass, Decoupling
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.161" (4.10mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
