Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 48V
Voltage - Breakdown (Min) : 53.3V
Voltage - Clamping (Max) @ Ipp : 77.4V
Current - Peak Pulse (10/1000µs) : 2.58A
Power - Peak Pulse : 200W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

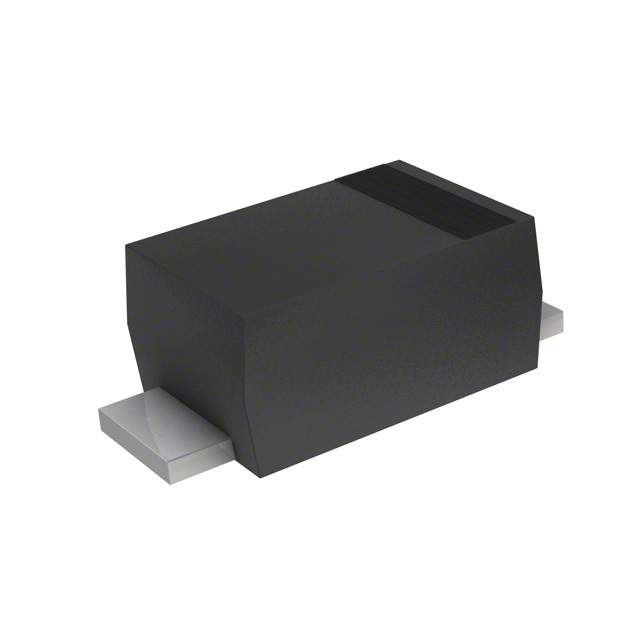

Package / Case : SOD-123
Supplier Device Package : SOD-123
0
3000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 6V
Voltage - Breakdown (Min) : 6.67V
Voltage - Clamping (Max) @ Ipp : 10.3V
Current - Peak Pulse (10/1000µs) : 19.42A
Power - Peak Pulse : 200W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
0
3000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 12V
Voltage - Breakdown (Min) : 13.3V
Voltage - Clamping (Max) @ Ipp : 19.9V
Current - Peak Pulse (10/1000µs) : 20.1A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount

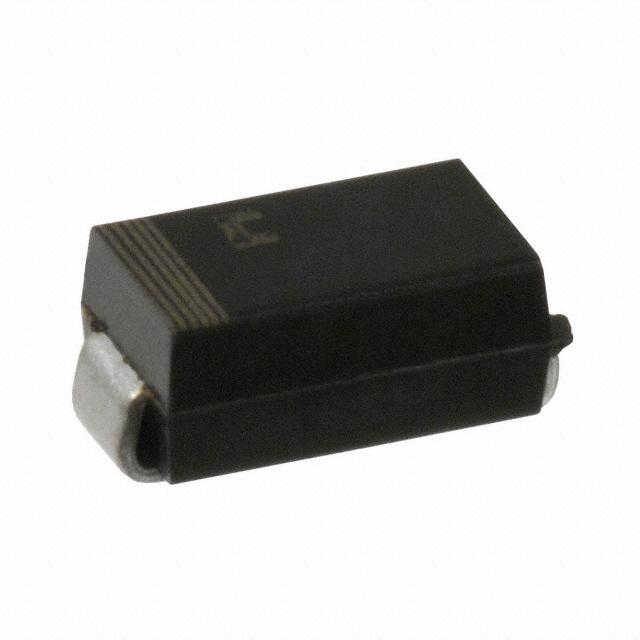

Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
20529 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 15V
Voltage - Breakdown (Min) : 16.7V
Voltage - Clamping (Max) @ Ipp : 24.4V
Current - Peak Pulse (10/1000µs) : 16.39A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
7441 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 22V
Voltage - Breakdown (Min) : 24.4V
Voltage - Clamping (Max) @ Ipp : 35.5V
Current - Peak Pulse (10/1000µs) : 11.27A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
14220 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 24V
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 38.9V
Current - Peak Pulse (10/1000µs) : 10.28A
Power - Peak Pulse : 400W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
0
61359 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 26V
Voltage - Breakdown (Min) : 28.9V
Voltage - Clamping (Max) @ Ipp : 42.1V
Current - Peak Pulse (10/1000µs) : 14.25A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -
Mounting Type : Surface Mount

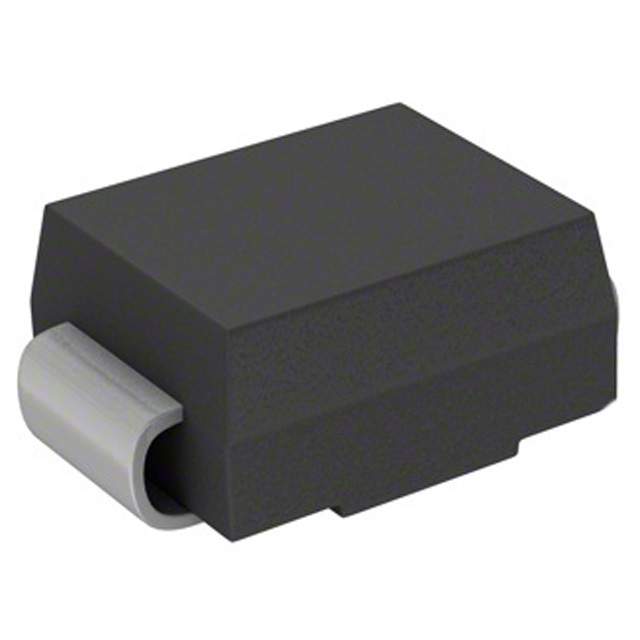

Package / Case : DO-214AA, SMB
Supplier Device Package : SMB (DO-214AA)
0
11710 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : -
Voltage - Breakdown (Min) : -
Voltage - Clamping (Max) @ Ipp : -
Current - Peak Pulse (10/1000µs) : -
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB (DO-214AA)
0
2820 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 513V
Voltage - Breakdown (Min) : 570V
Voltage - Clamping (Max) @ Ipp : 828V
Current - Peak Pulse (10/1000µs) : 720mA
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB (DO-214AA)
0
100 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 5µA @ 200V
Capacitance @ Vr, F : 20pF @ 4V, 1MHz
Mounting Type : Through Hole

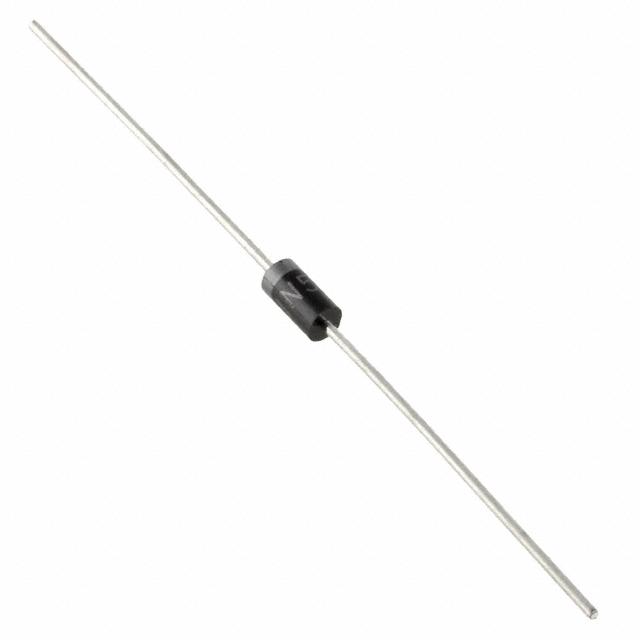

Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
7366 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 5µA @ 400V
Capacitance @ Vr, F : 20pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
9015 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -55°C ~ 150°C
0
9478 in stock
