Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock

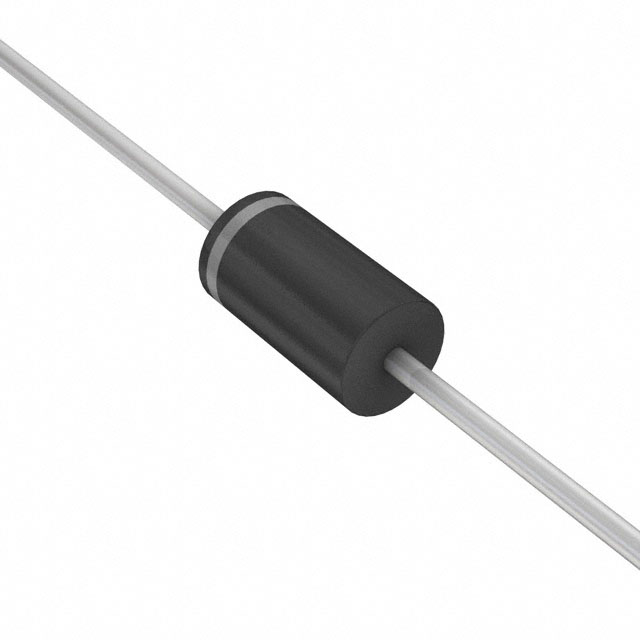

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -65°C ~ 125°C
0
2182 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -65°C ~ 150°C
0
1263 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 500pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -65°C ~ 150°C
0
6919 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 500pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -65°C ~ 125°C
0
20537 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : 500pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -65°C ~ 150°C
0
970 in stock

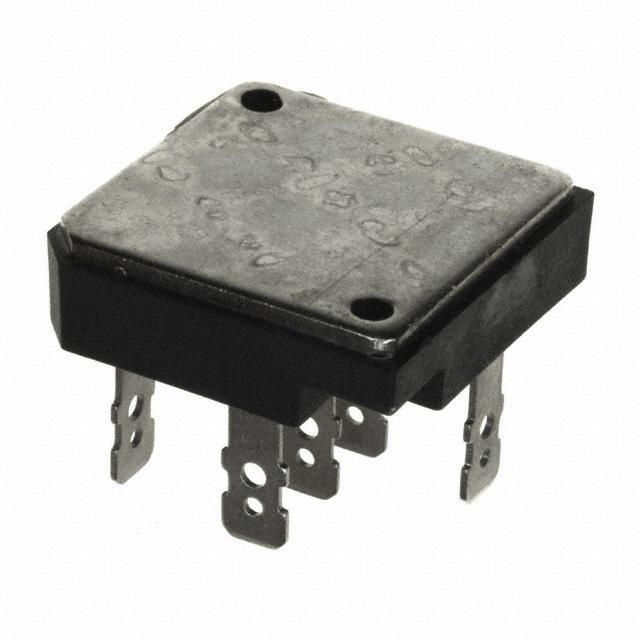

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tray
Series : -
Part Status : Active
Diode Type : Three Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1.6kV
Current - Average Rectified (Io) : 50A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 12.5A
Current - Reverse Leakage @ Vr : 100µA @ 1600V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : QC Terminal
Package / Case : 5-Square, SCVB
Supplier Device Package : SCVB
0
45 in stock

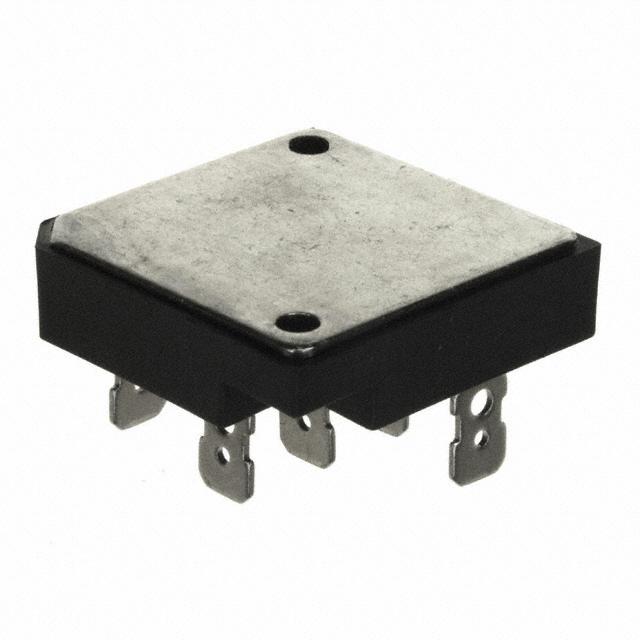

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tray
Series : -
Part Status : Active
Diode Type : Three Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 800V
Current - Average Rectified (Io) : 50A
Voltage - Forward (Vf) (Max) @ If : 1.05V @ 12.5A
Current - Reverse Leakage @ Vr : 10µA @ 800V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : QC Terminal
Package / Case : 5-Square, SCVB
Supplier Device Package : SCVB
0
19 in stock

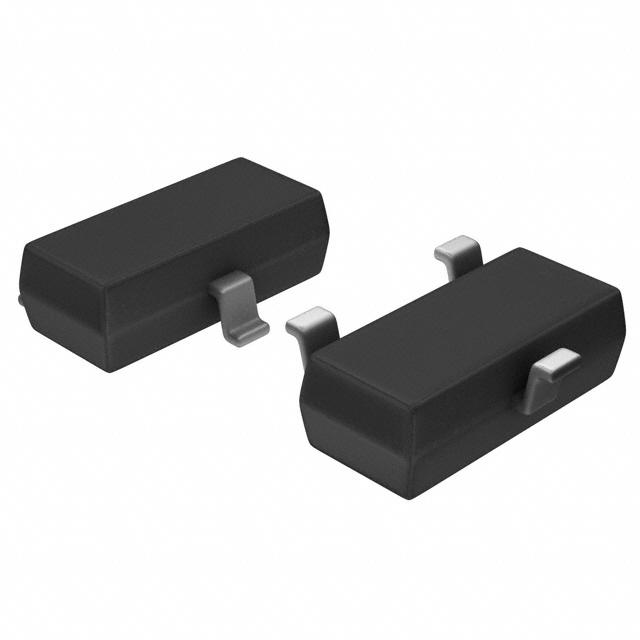

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 400mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 1V
Power - Max : 300mW
Frequency - Transition : 100MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
4949 in stock

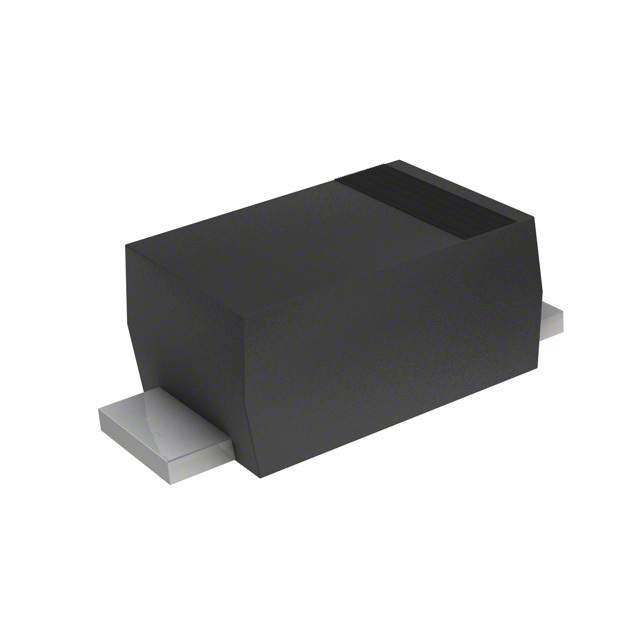

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 100V
Voltage - Breakdown (Min) : 111V
Voltage - Clamping (Max) @ Ipp : 162V
Current - Peak Pulse (10/1000µs) : 1.23A
Power - Peak Pulse : 200W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOD-123F
Supplier Device Package : SOD-123
0
29 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 20V
Voltage - Breakdown (Min) : 22.2V
Voltage - Clamping (Max) @ Ipp : 32.4V
Current - Peak Pulse (10/1000µs) : 6.17A
Power - Peak Pulse : 200W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
0
21975 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 28V
Voltage - Breakdown (Min) : 31.1V
Voltage - Clamping (Max) @ Ipp : 45.4V
Current - Peak Pulse (10/1000µs) : 4.41A
Power - Peak Pulse : 200W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
0
5975 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 30V
Voltage - Breakdown (Min) : 33.3V
Voltage - Clamping (Max) @ Ipp : 48.4V
Current - Peak Pulse (10/1000µs) : 4.13A
Power - Peak Pulse : 200W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOD-123
Supplier Device Package : SOD-123
0
1938 in stock
