Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock

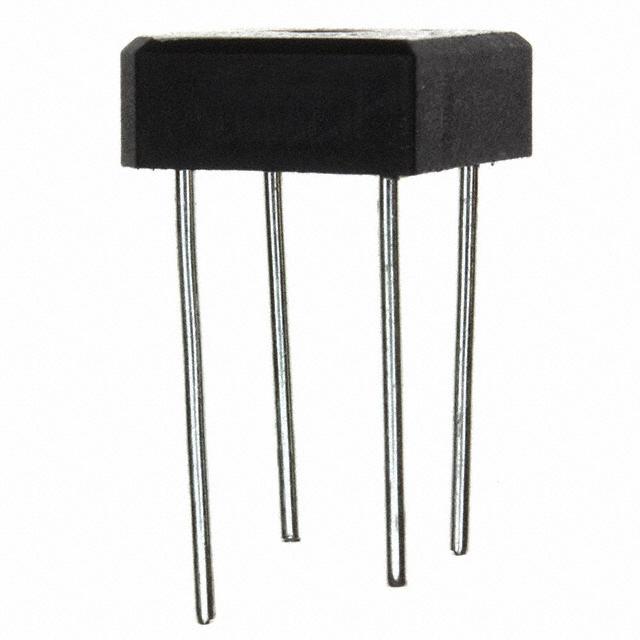

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tray
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 400V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 5A
Current - Reverse Leakage @ Vr : 10µA @ 400V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 4-Square, MP-8
Supplier Device Package : MP8
0
1787 in stock

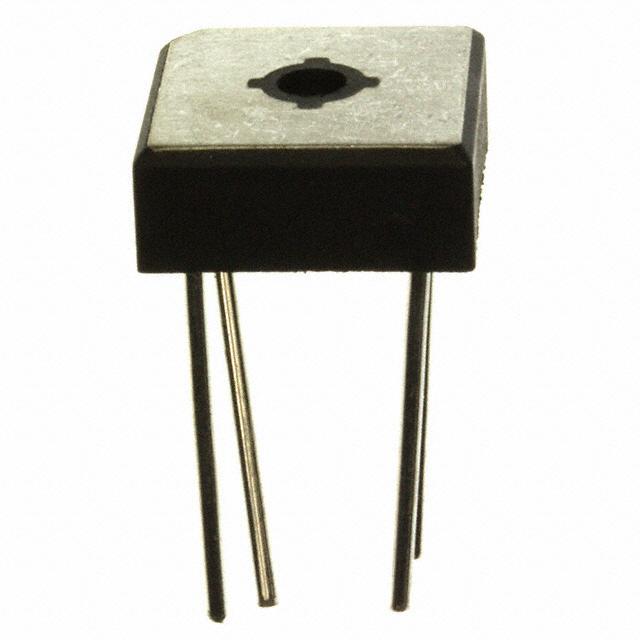

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tray
Series : -
Part Status : Active
Diode Type : Single Phase
Technology : Standard
Voltage - Peak Reverse (Max) : 1kV
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 5A
Current - Reverse Leakage @ Vr : 10µA @ 1000V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 4-Square, MP-8
Supplier Device Package : MP8
0
2127 in stock

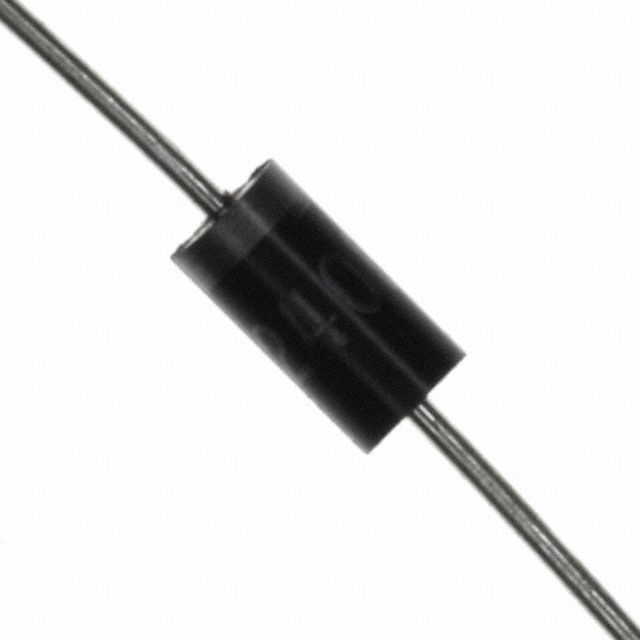

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5.8V
Voltage - Breakdown (Min) : 6.45V
Voltage - Clamping (Max) @ Ipp : 10.5V
Current - Peak Pulse (10/1000µs) : 57.14A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
0
3000 in stock

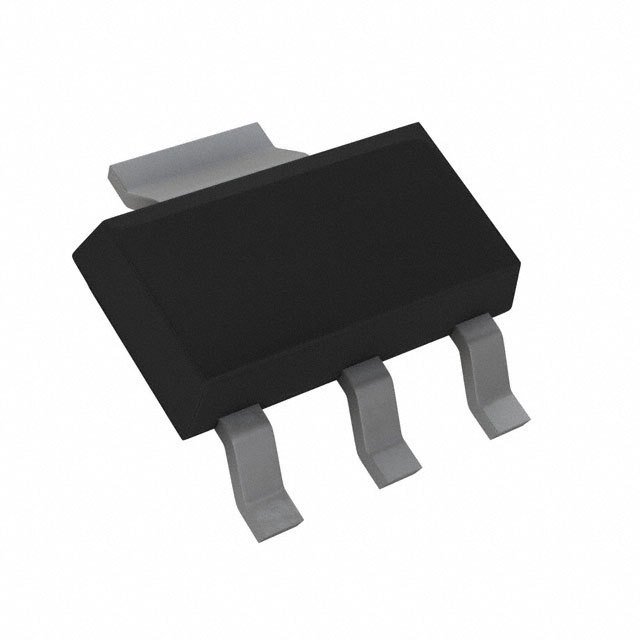

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : NPN
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 400V
Vce Saturation (Max) @ Ib, Ic : 750mV @ 5mA, 50mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 50 @ 10mA, 10V
Power - Max : 1W
Frequency - Transition : 20MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
1 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 350mV @ 10mA
Speed : Small Signal =
-
10µA @ 10V
-
Surface Mount
SOD-723
SOD-723
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : SOD-723
Supplier Device Package : SOD-723
Operating Temperature - Junction : 125°C (Max)
0
26430 in stock

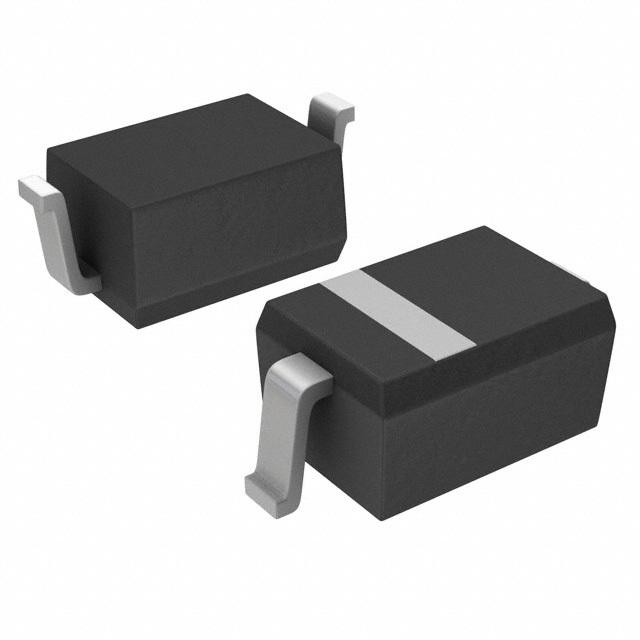

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 30mA
Voltage - Forward (Vf) (Max) @ If : 370mV @ 1mA
Speed : Small Signal =
-
500nA @ 30V
2pF @ 1V, 1MHz
Surface Mount
SC-76, SOD-323
SOD-323
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500nA @ 30V
Capacitance @ Vr, F : 2pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
Operating Temperature - Junction : 125°C (Max)
0
2993 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 150°C
0
5056 in stock

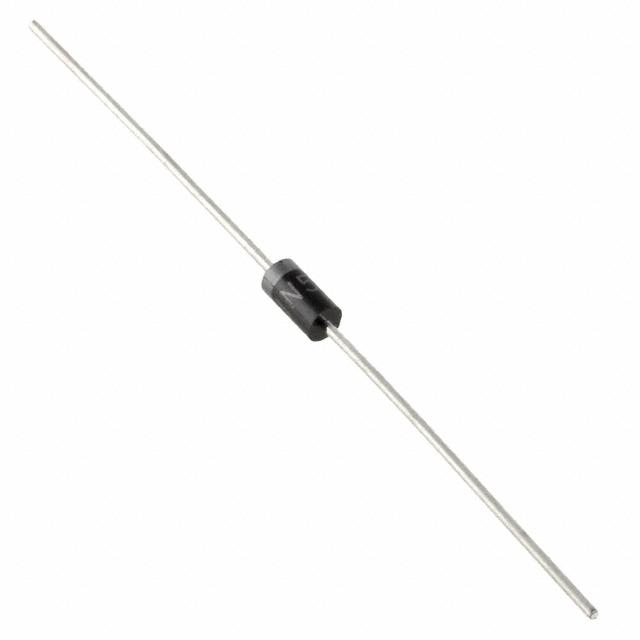

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 125°C
0
4455 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 150°C
0
8537 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
Operating Temperature - Junction : -65°C ~ 150°C
0
4981 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 170pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
Operating Temperature - Junction : -65°C ~ 125°C
0
3845 in stock

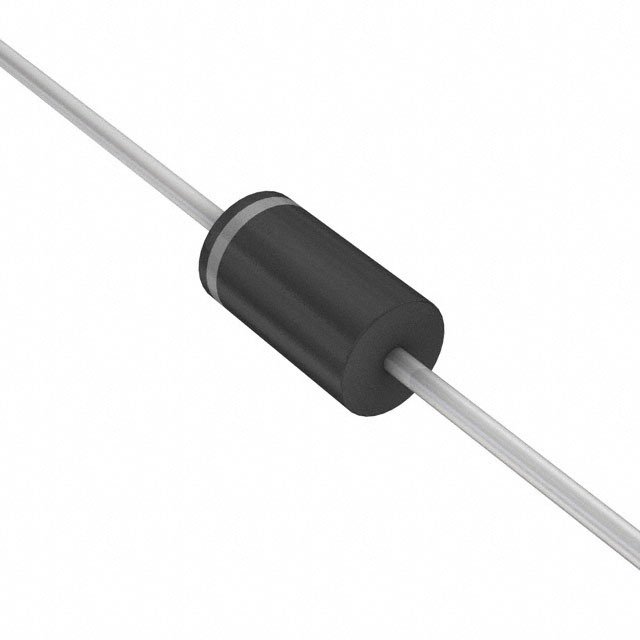

Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 3A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 250pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -65°C ~ 150°C
0
1245 in stock
