Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 40mA
Speed : Small Signal =
5ns
200nA @ 30V
5pF @ 0V, 1MHz
Surface Mount
0402 (1005 Metric)
0402/SOD-923F
125°C (Max)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 200nA @ 30V
Capacitance @ Vr, F : 5pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402/SOD-923F
Operating Temperature - Junction : 125°C (Max)
0
28838 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
5ns
2µA @ 25V
10pF @ 1V, 1MHz
Surface Mount
0402 (1005 Metric)
0402/SOD-923F
125°C (Max)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 2µA @ 25V
Capacitance @ Vr, F : 10pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402/SOD-923F
Operating Temperature - Junction : 125°C (Max)
0
23503 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) : 70mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 15mA
Speed : Small Signal =
5ns
100nA @ 50V
2pF @ 0V, 1MHz
Surface Mount
0402 (1005 Metric)
0402/SOD-923F
125°C (Max)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 100nA @ 50V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402/SOD-923F
Operating Temperature - Junction : 125°C (Max)
0
52457 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 70V
Current - Average Rectified (Io) : 70mA
Voltage - Forward (Vf) (Max) @ If : 1V @ 15mA
Speed : Small Signal =
5ns
100nA @ 50V
2pF @ 0V, 1MHz
Surface Mount
0402 (1005 Metric)
0402/SOD-923F
125°C (Max)
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 100nA @ 50V
Capacitance @ Vr, F : 2pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402/SOD-923F
Operating Temperature - Junction : 125°C (Max)
0
4704 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 500mV @ 200mA
Speed : Small Signal =
-
50µA @ 30V
40pF @ 0V, 1MHz
Surface Mount

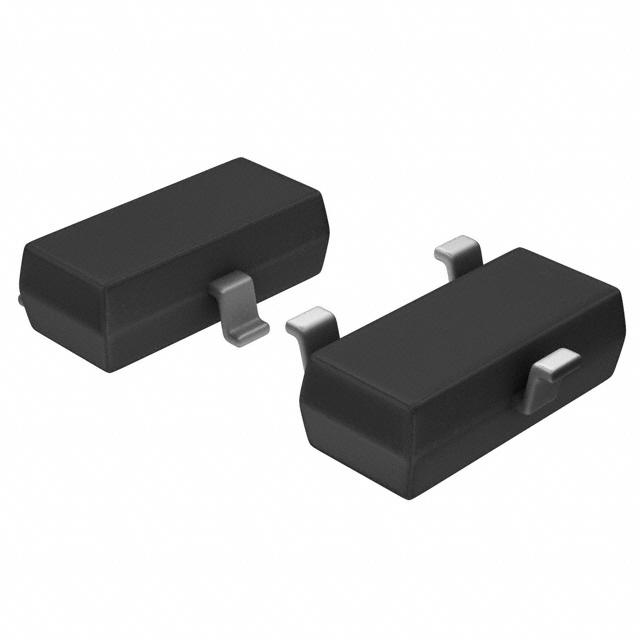

TO-236-3, SC-59, SOT-23-3
SOT-23-3
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 50µA @ 30V
Capacitance @ Vr, F : 40pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Operating Temperature - Junction : 125°C (Max)
0
5126 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) (per Diode) : 200mA (DC)
Voltage - Forward (Vf) (Max) @ If : 1V @ 100mA
Speed : Small Signal =
5ns
2µA @ 25V
125°C (Max)
Surface Mount
TO-236-3, SC-59, SOT-23-3
SOT-23-3
Reverse Recovery Time (trr) : 5ns
Current - Reverse Leakage @ Vr : 2µA @ 25V
Operating Temperature - Junction : 125°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
3000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 30mA
Voltage - Forward (Vf) (Max) @ If : 370mV @ 1mA
Speed : Small Signal =
-
1µA @ 40V
1.5pF @ 1V, 1MHz
Surface Mount
2-SMD, No Lead
0603C/SOD-523F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1µA @ 40V
Capacitance @ Vr, F : 1.5pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603C/SOD-523F
Operating Temperature - Junction : 125°C (Max)
0
172608 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 30mA
Voltage - Forward (Vf) (Max) @ If : 370mV @ 1mA
Speed : Small Signal =
-
1µA @ 40V
1.5pF @ 1V, 1MHz
Surface Mount
2-SMD, No Lead
0603C/SOD-523F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1µA @ 40V
Capacitance @ Vr, F : 1.5pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603C/SOD-523F
Operating Temperature - Junction : 125°C (Max)
0
4000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 440mV @ 100mA
Speed : Small Signal =
-
30µA @ 30V
9pF @ 10V, 1MHz
Surface Mount
2-SMD, No Lead
0603C/SOD-523F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 30µA @ 30V
Capacitance @ Vr, F : 9pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603C/SOD-523F
Operating Temperature - Junction : 125°C (Max)
0
128298 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 350mV @ 10mA
Speed : Small Signal =
-
10µA @ 10V
-
Surface Mount
2-SMD, No Lead
0603C/SOD-523F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603C/SOD-523F
Operating Temperature - Junction : 125°C (Max)
0
83905 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 350mV @ 10mA
Speed : Small Signal =
-
10µA @ 10V
-
Surface Mount
2-SMD, No Lead
0603C/SOD-523F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603C/SOD-523F
Operating Temperature - Junction : 125°C (Max)
0
3000 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 450mV @ 10mA
Speed : Small Signal =
-
500nA @ 10V
-
Surface Mount
2-SMD, No Lead
0603C/SOD-523F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500nA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Supplier Device Package : 0603C/SOD-523F
Operating Temperature - Junction : 125°C (Max)
0
191211 in stock
