Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tube
Series : -
Part Status : Active

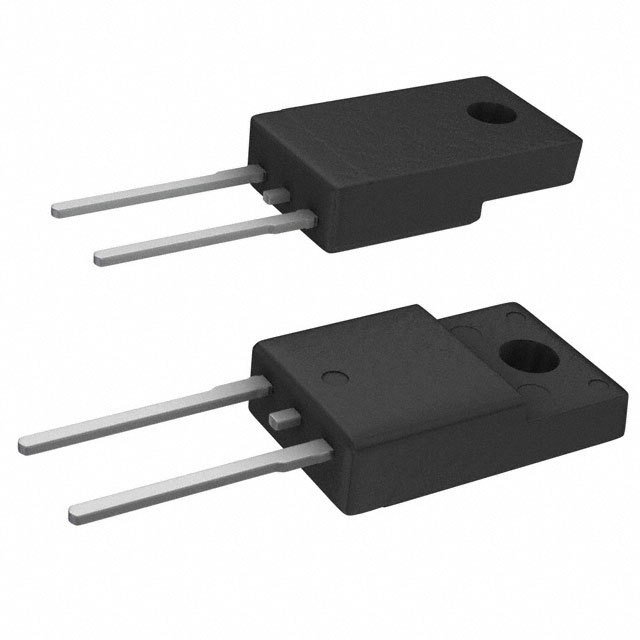

Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 5A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 100µA @ 650V
Capacitance @ Vr, F : 430pF @ 0V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack
Supplier Device Package : TO-220F
Operating Temperature - Junction : -55°C ~ 175°C
0
500 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 850mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123T
Supplier Device Package : Mini SMA/SOD-123
Operating Temperature - Junction : -50°C ~ 150°C
0
74166 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123T
Supplier Device Package : Mini SMA/SOD-123
Operating Temperature - Junction : -50°C ~ 125°C
0
178717 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A (DC)
Voltage - Forward (Vf) (Max) @ If : 850mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
171411 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : 1A (DC)
Voltage - Forward (Vf) (Max) @ If : 920mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 150V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
2875 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A (DC)
Voltage - Forward (Vf) (Max) @ If : 500mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 125°C
0
8036 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 1A (DC)
Voltage - Forward (Vf) (Max) @ If : 700mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
2975 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 2A (DC)
Voltage - Forward (Vf) (Max) @ If : 850mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 160pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
26808 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 2A (DC)
Voltage - Forward (Vf) (Max) @ If : 500mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 160pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 125°C
0
33722 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 2A (DC)
Voltage - Forward (Vf) (Max) @ If : 700mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : 160pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SOD-123H
Supplier Device Package : SOD-123H
Operating Temperature - Junction : -55°C ~ 150°C
0
26754 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 300mV @ 10mA
Speed : Small Signal =
-
10µA @ 10V
20pF @ 1V, 1MHz
Surface Mount
0402 (1005 Metric)
0402C/SOD-923F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 10V
Capacitance @ Vr, F : 20pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : 0402 (1005 Metric)
Supplier Device Package : 0402C/SOD-923F
Operating Temperature - Junction : 125°C (Max)
0
30173 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 480mV @ 200mA
Speed : Small Signal =
-
30µA @ 30V
20pF @ 1V, 1MHz
Surface Mount
0402 (1006 Metric)
0402/SOD-923F
-40°C ~ 125°C
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 30µA @ 30V
Capacitance @ Vr, F : 20pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : 0402 (1006 Metric)
Supplier Device Package : 0402/SOD-923F
Operating Temperature - Junction : -40°C ~ 125°C
0
5040 in stock
