Comchip Technology
- Comchip Technology Corporation leads in the design and manufacture of SMD discrete semiconductors. With innovative research and patented manufacturing capabilities, Comchip offers bridge rectifiers, fast efficient rectifiers, switching diodes, Zener diodes, Schottky diodes, TVS and ESD surge protectors. We have the right diode for your application. Comchip Technology is the first manufacturer to standardize DFN/flat chip packaging that are RoHS compliant and zero Tin-Whisker potential by using gold termination. DFN packages are available in SOD-323F (1005), SOD-523F (0603), SOD-723F (0503), SOD-923F (0402) and 0201 sizes.
Comchip products are suitable for vast array of applications including lighting, automotive, industrial computers, TFT-LCD panels, network/telecom, medical, portable and consumer electronics, as well as high reliability applications that can benefit from the zero Tin-Whisker potential.. To ensure superior quality and reliability, Comchip’s quality control process and factory are TS16949, ISO9001, and ISO14001 certified. As an added layer of security, Comchip’s bridge rectifier and TVS have passed UL testing for safety device application. Many Comchip diodes meet the automotive stress test requirements AEC-Q101 and are well suited for automotive as well as high reliability application.
Part Number
Manufacturer
Description
Unit Price
In Stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 33A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 10A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 100µA @ 650V
Capacitance @ Vr, F : 690pF @ 0V, 1MHz
Mounting Type : Surface Mount

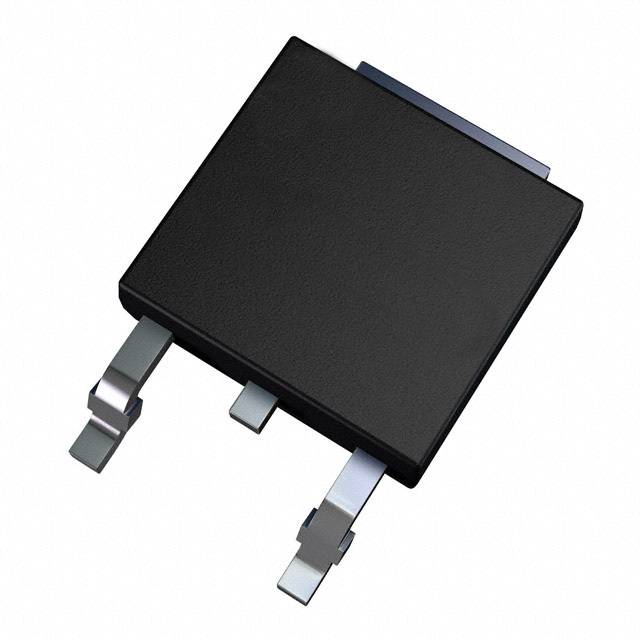

Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : D-PAK (TO-252)
Operating Temperature - Junction : -55°C ~ 175°C
0
480 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 11A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 3A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 100µA @ 650V
Capacitance @ Vr, F : 181pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : D-PAK (TO-252)
Operating Temperature - Junction : -55°C ~ 175°C
0
480 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 18A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 100µA @ 1200V
Capacitance @ Vr, F : 475pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : D-PAK (TO-252)
Operating Temperature - Junction : -55°C ~ 175°C
0
480 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 21.5A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 5A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 100µA @ 650V
Capacitance @ Vr, F : 424pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : D-PAK (TO-252)
Operating Temperature - Junction : -55°C ~ 175°C
0
466 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
Diode Type : Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) : 650V
Current - Average Rectified (Io) : 25.5A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 8A
Speed : No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) : 0ns
Current - Reverse Leakage @ Vr : 100µA @ 650V
Capacitance @ Vr, F : 550pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : D-PAK (TO-252)
Operating Temperature - Junction : -55°C ~ 175°C
0
478 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 30mA
Voltage - Forward (Vf) (Max) @ If : 370mV @ 1mA
Speed : Small Signal =
-
1µA @ 40V
1.5pF @ 1V, 1MHz
Surface Mount

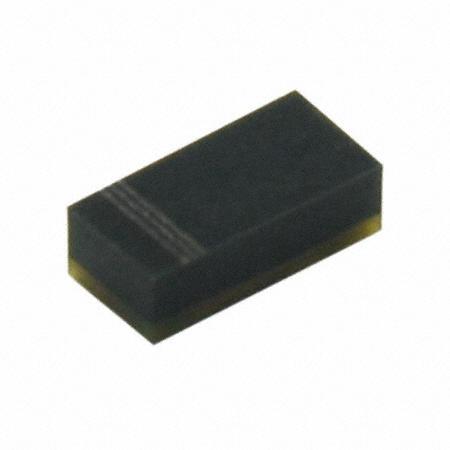

1005 (2512 Metric)
1005/SOD-323F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1µA @ 40V
Capacitance @ Vr, F : 1.5pF @ 1V, 1MHz
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
Operating Temperature - Junction : 125°C (Max)
0
3913 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 350mV @ 10mA
Speed : Small Signal =
-
10µA @ 10V
-
Surface Mount
1005 (2512 Metric)
1005/SOD-323F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
Operating Temperature - Junction : 125°C (Max)
0
24177 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 100mA
Voltage - Forward (Vf) (Max) @ If : 450mV @ 10mA
Speed : Small Signal =
-
500nA @ 10V
-
Surface Mount
1005 (2512 Metric)
1005/SOD-323F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500nA @ 10V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
Operating Temperature - Junction : 125°C (Max)
0
7698 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 550mV @ 200mA
Speed : Small Signal =
-
1µA @ 10V
9pF @ 10V, 1MHz
Surface Mount
1005 (2512 Metric)
1005/SOD-323F
125°C (Max)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1µA @ 10V
Capacitance @ Vr, F : 9pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
Operating Temperature - Junction : 125°C (Max)
0
12414 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 20V
Current - Average Rectified (Io) : 500mA
Voltage - Forward (Vf) (Max) @ If : 470mV @ 500mA
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 100µA @ 20V
Capacitance @ Vr, F : 100pF @ 0V, 1MHz
Mounting Type : Surface Mount
Package / Case : 1005 (2512 Metric)
Supplier Device Package : 1005/SOD-323F
Operating Temperature - Junction : 125°C (Max)
0
1724 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A (DC)
Voltage - Forward (Vf) (Max) @ If : 550mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount

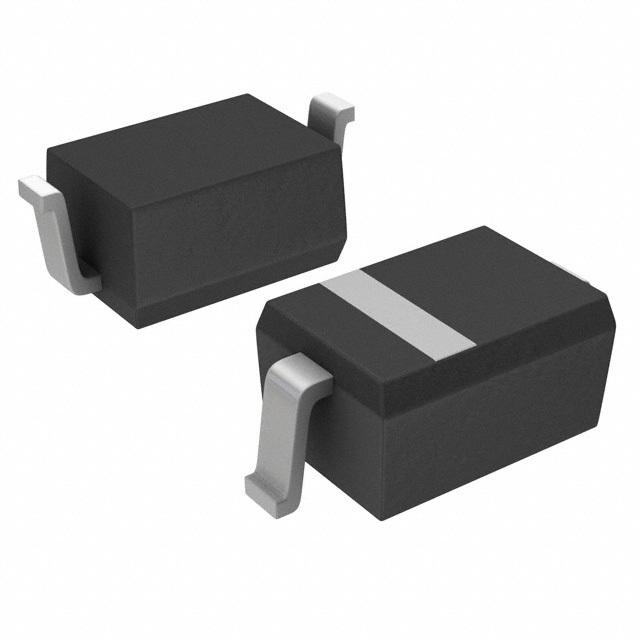

Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
Operating Temperature - Junction : -50°C ~ 125°C
0
2943 in stock
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 1A (DC)
Voltage - Forward (Vf) (Max) @ If : 700mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : 120pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
Operating Temperature - Junction : -50°C ~ 150°C
0
3000 in stock
