Central Semiconductor

- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.

Part Number
Manufacturer
Description
Unit Price
In Stock

PN2907A PN2907A

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 600mA
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 10V
Power - Max : 625mW
Frequency - Transition : 200MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
12432 in stock

PN3563 PN3563

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 12V
Frequency - Transition : -
Noise Figure (dB Typ @ f) : -
Gain : -
Power - Max : -
DC Current Gain (hFE) (Min) @ Ic, Vce : -
Current - Collector (Ic) (Max) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
2056 in stock

PN3565 PN3565

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 50mA
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 100µA, 1mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 150 @ 1mA, 10V
Power - Max : 625mW
Frequency - Transition : 240MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
4063 in stock

PN4250A PN4250A

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 250mV @ 500µA, 10mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 250 @ 100µA, 5V
Power - Max : 625mW
Frequency - Transition : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
2602 in stock

PN4391 TRE PN4391 TRE

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 50mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 4V @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : 30 Ohms
Power - Max : 625mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
2228 in stock

PN4393 TRA PN4393 TRA

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Voltage - Breakdown (V(BR)GSS) : 40V
Drain to Source Voltage (Vdss) : -
Current - Drain (Idss) @ Vds (Vgs=0) : 5mA @ 20V
Current Drain (Id) - Max : -
Voltage - Cutoff (VGS off) @ Id : 500mV @ 1nA
Input Capacitance (Ciss) (Max) @ Vds : 14pF @ 20V
Resistance - RDS(On) : 100 Ohms
Power - Max : 625mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
782 in stock

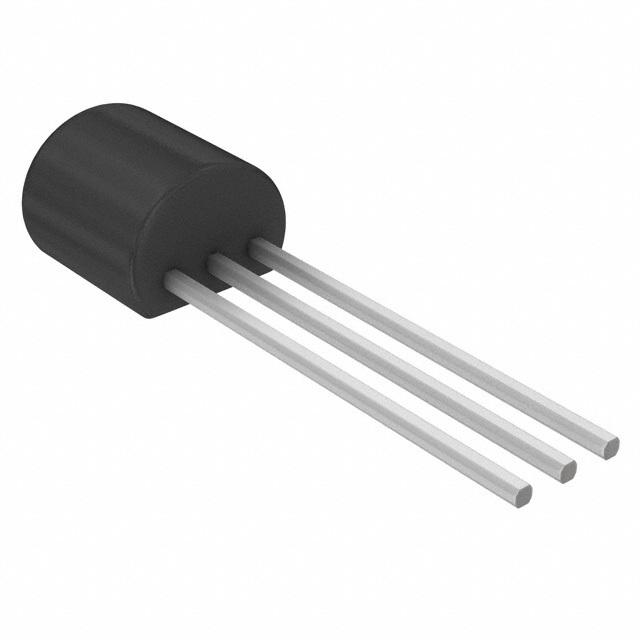

PN5033 PN5033

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : P-Channel
Frequency : 1kHz
Gain : -
Voltage - Test : -
Current Rating : -
Noise Figure : 2dB
Current - Test : -
Power - Output : -
Voltage - Rated : 20V
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
2284 in stock

UF4002 TR UF4002 TR

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 10µA @ 100V
Capacitance @ Vr, F : 20pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 150°C
0
100 in stock

UF4005 TR UF4005 TR

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 150°C
0
115000 in stock

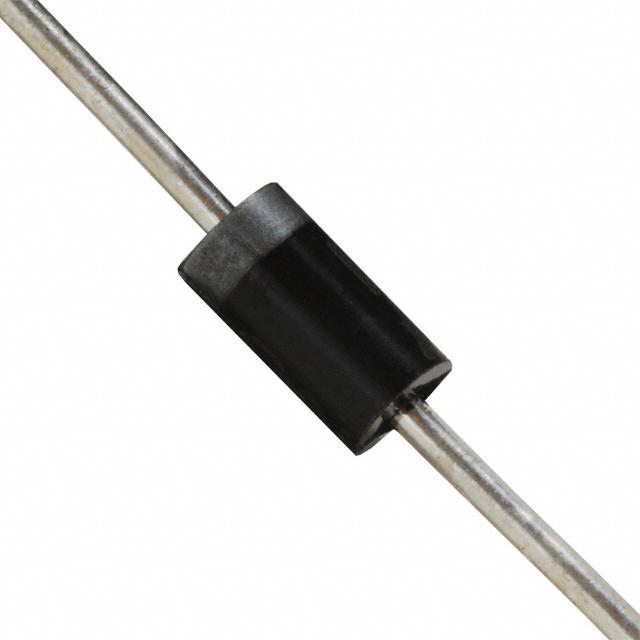

UF4007 TR UF4007 TR

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 75ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : 10pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 150°C
0
100 in stock
