Central Semiconductor
- Since 1974, Central Semiconductor has manufactured innovative discrete semiconductors used in electronic products worldwide. Devices currently include standard and custom small signal transistors, bipolar power transistors, MOSFETs, diodes, rectifiers, protection devices, current limiting diodes, bridge rectifiers, thyristors, and silicon carbide devices. Central’s devices are available in industry standard surface mount and through-hole packages, bare die, TLMs (Tiny Leadless Modules™), and MDMs (Multi Discrete Modules™). Central has earned a reputation as a manufacturer of the highest quality products consistently delivered on-time, and a provider of exceptional value-added services.
Part Number
Manufacturer
Description
Unit Price
In Stock

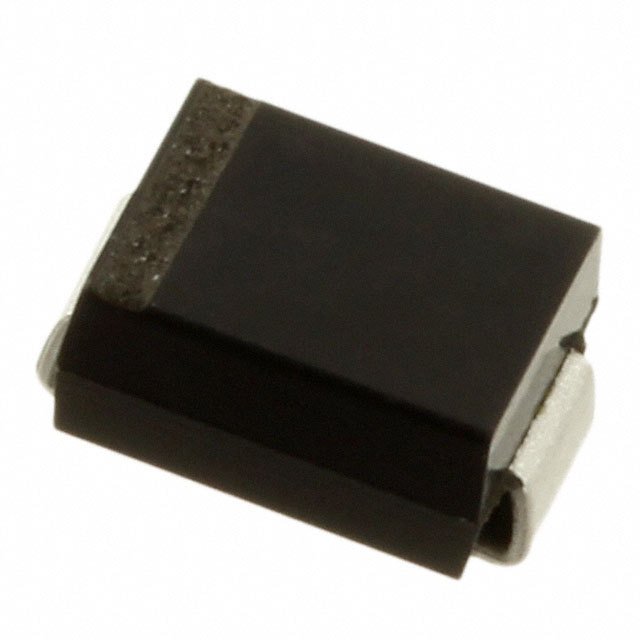

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 9.4V
Voltage - Breakdown (Min) : 10.5V
Voltage - Clamping (Max) @ Ipp : 15.6V
Current - Peak Pulse (10/1000µs) : 38A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
2975 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 9.4V
Voltage - Breakdown (Min) : 10.5V
Voltage - Clamping (Max) @ Ipp : 15.6V
Current - Peak Pulse (10/1000µs) : 38A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
2500 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 11.1V
Voltage - Breakdown (Min) : 12.4V
Voltage - Clamping (Max) @ Ipp : 18.2V
Current - Peak Pulse (10/1000µs) : 33A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 128V
Voltage - Breakdown (Min) : 142.5V
Voltage - Clamping (Max) @ Ipp : 207V
Current - Peak Pulse (10/1000µs) : 2.9A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
5897 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 145V
Voltage - Breakdown (Min) : 161.5V
Voltage - Clamping (Max) @ Ipp : 234V
Current - Peak Pulse (10/1000µs) : 2.6A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
8994 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 15.3V
Voltage - Breakdown (Min) : 17.1V
Voltage - Clamping (Max) @ Ipp : 25.2V
Current - Peak Pulse (10/1000µs) : 24A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 171V
Voltage - Breakdown (Min) : 190V
Voltage - Clamping (Max) @ Ipp : 274V
Current - Peak Pulse (10/1000µs) : 2.2A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
3000 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 185V
Voltage - Breakdown (Min) : 209V
Voltage - Clamping (Max) @ Ipp : 328V
Current - Peak Pulse (10/1000µs) : 1.8A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
2987 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 25.6V
Voltage - Breakdown (Min) : 28.5V
Voltage - Clamping (Max) @ Ipp : 41.4V
Current - Peak Pulse (10/1000µs) : 14.4A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
4868 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 1
Voltage - Reverse Standoff (Typ) : 36.8V
Voltage - Breakdown (Min) : 40.9V
Voltage - Clamping (Max) @ Ipp : 59.3V
Current - Peak Pulse (10/1000µs) : 10.1A
Power - Peak Pulse : 600W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
0
2500 in stock

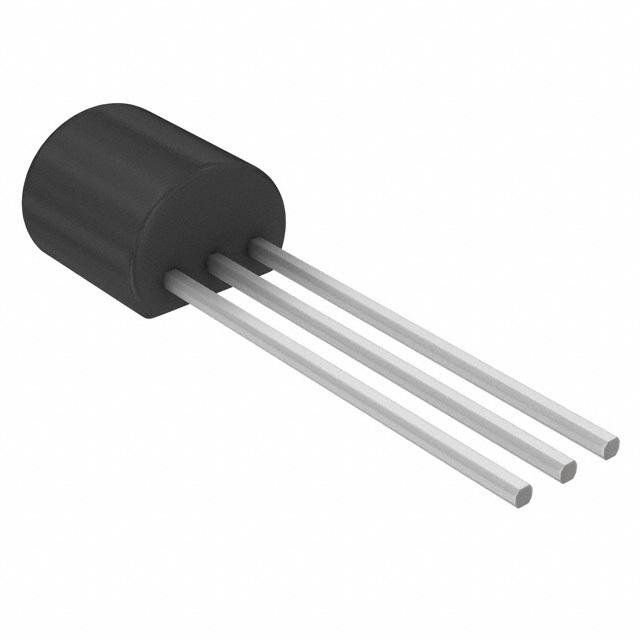

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 800mA
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 50mA, 500mA
Current - Collector Cutoff (Max) : 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 150mA, 10V
Power - Max : 625mW
Frequency - Transition : 300MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
35929 in stock
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 10mA, 100mA
Current - Collector Cutoff (Max) : 400nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 40 @ 10mA, 1V
Power - Max : 350mW
Frequency - Transition : 500MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92
0
1311 in stock
