API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 1µH
Tolerance : ±10%
Current Rating : 1.19A
Current - Saturation : 1.29A
Shielding : Shielded
DC Resistance (DCR) : 147 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
54 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±10%
Current Rating : 1.08A
Current - Saturation : 1.06A
Shielding : Shielded
DC Resistance (DCR) : 175 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
13 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 1.8µH
Tolerance : ±10%
Current Rating : 1.03A
Current - Saturation : 965mA
Shielding : Shielded
DC Resistance (DCR) : 195 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 18µH
Tolerance : ±10%
Current Rating : 322mA
Current - Saturation : 304mA
Shielding : Shielded
DC Resistance (DCR) : 2 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
965 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 3.3µH
Tolerance : ±10%
Current Rating : 692mA
Current - Saturation : 718mA
Shielding : Shielded
DC Resistance (DCR) : 440 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
151 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 390µH
Tolerance : ±10%
Current Rating : 80mA
Current - Saturation : 65mA
Shielding : Shielded
DC Resistance (DCR) : 32.4 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 470nH
Tolerance : ±10%
Current Rating : 1.44A
Current - Saturation : 1.87A
Shielding : Shielded
DC Resistance (DCR) : 100 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
554 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 560nH
Tolerance : ±10%
Current Rating : 1.38A
Current - Saturation : 1.72A
Shielding : Shielded
DC Resistance (DCR) : 109 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
269 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 680nH
Tolerance : ±10%
Current Rating : 1.32A
Current - Saturation : 1.58A
Shielding : Shielded
DC Resistance (DCR) : 119 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
100 in stock

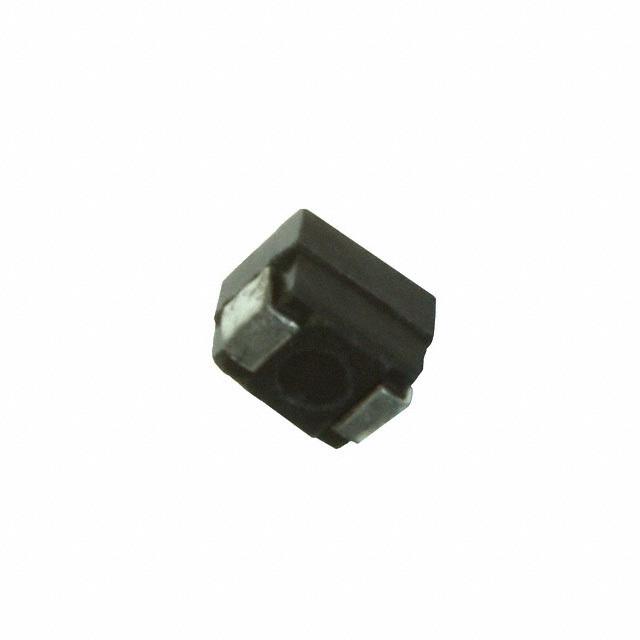

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1210R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 820nH
Tolerance : ±10%
Current Rating : 1.25A
Current - Saturation : 1.42A
Shielding : Shielded
DC Resistance (DCR) : 133 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Supplier Device Package : 1210
Size / Dimension : 0.128" L x 0.095" W (3.25mm x 2.42mm)
Height - Seated (Max) : 0.101" (2.57mm)
0
4 in stock
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1812R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 12µH
Tolerance : ±10%
Current Rating : 767mA
Current - Saturation : 602mA
Shielding : Shielded
DC Resistance (DCR) : 340 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
204 in stock

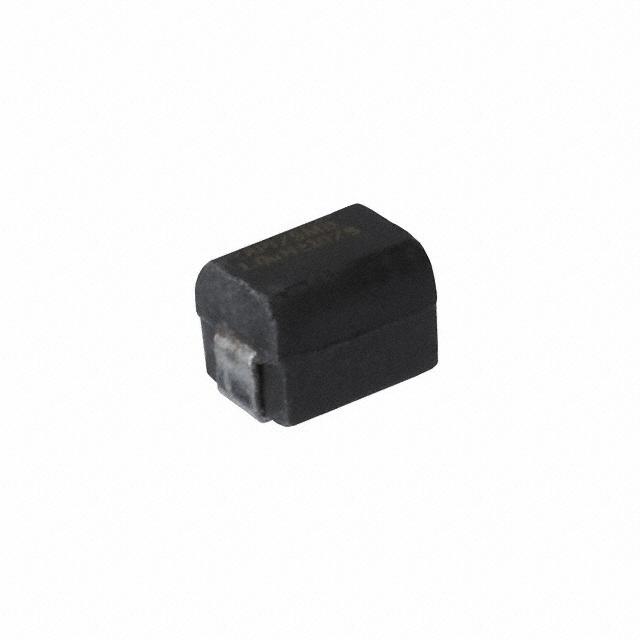

API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SP1812R
Part Status : Discontinued at
Type : -
Material - Core : Ferrite
Inductance : 1.5µH
Tolerance : ±10%
Current Rating : 1.43A
Current - Saturation : 1.69A
Shielding : Shielded
DC Resistance (DCR) : 98 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Supplier Device Package : 1812
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.134" (3.40mm)
0
615 in stock
