API Delevan
- API Delevan designs, manufactures, and markets an extensive line of quality inductors, chokes, and coils to satisfy various electrical filtering requirements. The Group concentrates on producing high performance inductive devices to meet stringent government and customer specifications relating to high product quality and reliability.
Part Number
Manufacturer
Description
Unit Price
In Stock
SPD73R-223M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD73R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.75A
Current - Saturation : 1.75A
Shielding : Shielded
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.154" (3.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD73R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 1.75A
Current - Saturation : 1.75A
Shielding : Shielded
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
450 in stock
SPD73R-224M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD73R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 570mA
Current - Saturation : 570mA
Shielding : Shielded
DC Resistance (DCR) : 1.65 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.154" (3.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD73R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 570mA
Current - Saturation : 570mA
Shielding : Shielded
DC Resistance (DCR) : 1.65 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
3990 in stock

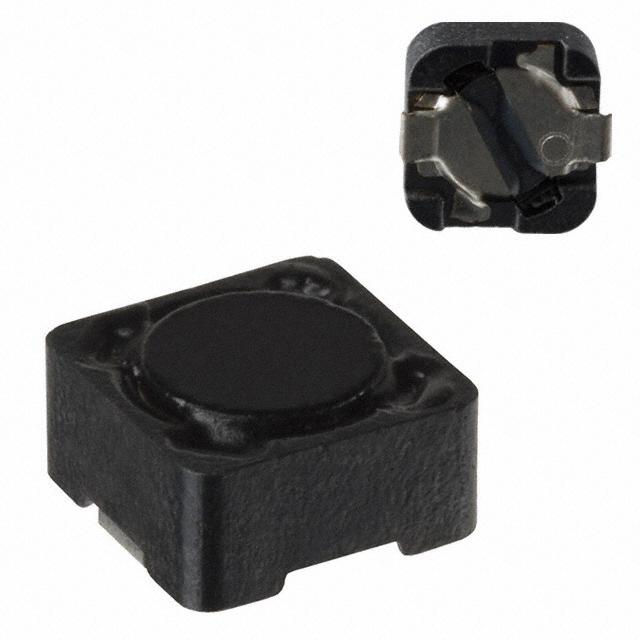

SPD73R-334M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD73R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±20%
Current Rating : 500mA
Current - Saturation : 500mA
Shielding : Shielded
DC Resistance (DCR) : 2.62 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.154" (3.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD73R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 330µH
Tolerance : ±20%
Current Rating : 500mA
Current - Saturation : 500mA
Shielding : Shielded
DC Resistance (DCR) : 2.62 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
5778 in stock
SPD73R-474M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD73R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±20%
Current Rating : 380mA
Current - Saturation : 380mA
Shielding : Shielded
DC Resistance (DCR) : 4.18 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.154" (3.90mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD73R
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ferrite
Inductance : 470µH
Tolerance : ±20%
Current Rating : 380mA
Current - Saturation : 380mA
Shielding : Shielded
DC Resistance (DCR) : 4.18 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.154" (3.90mm)
0
52 in stock
SPD74R-103M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 3.2A
Current - Saturation : 3.2A
Shielding : Shielded
DC Resistance (DCR) : 49 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 3.2A
Current - Saturation : 3.2A
Shielding : Shielded
DC Resistance (DCR) : 49 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
1213 in stock
SPD74R-104M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 860mA
Current - Saturation : 860mA
Shielding : Shielded
DC Resistance (DCR) : 610 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 100µH
Tolerance : ±20%
Current Rating : 860mA
Current - Saturation : 860mA
Shielding : Shielded
DC Resistance (DCR) : 610 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
2017 in stock
SPD74R-105M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±20%
Current Rating : 280mA
Current - Saturation : 280mA
Shielding : Shielded
DC Resistance (DCR) : 6 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 1mH
Tolerance : ±20%
Current Rating : 280mA
Current - Saturation : 280mA
Shielding : Shielded
DC Resistance (DCR) : 6 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
1152 in stock

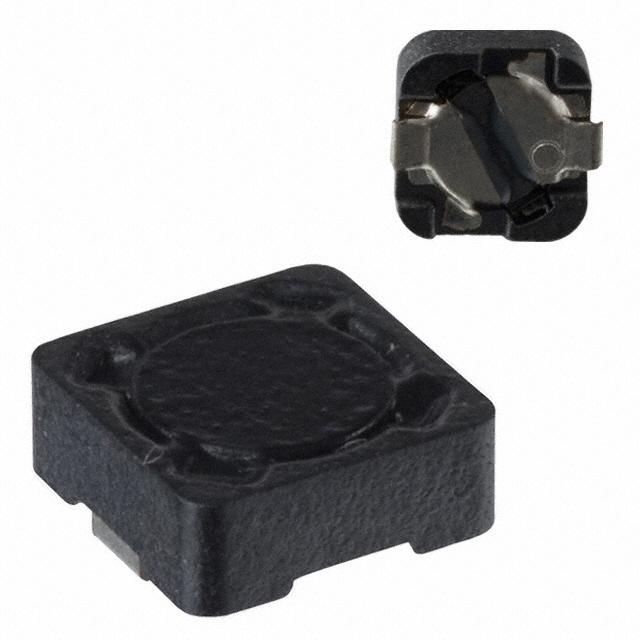

SPD74R-153M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 2.4A
Current - Saturation : 2.4A
Shielding : Shielded
DC Resistance (DCR) : 81 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 15µH
Tolerance : ±20%
Current Rating : 2.4A
Current - Saturation : 2.4A
Shielding : Shielded
DC Resistance (DCR) : 81 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
1180 in stock
SPD74R-223M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : 2A
Shielding : Shielded
DC Resistance (DCR) : 110 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 22µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : 2A
Shielding : Shielded
DC Resistance (DCR) : 110 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
17515 in stock
SPD74R-224M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 600mA
Current - Saturation : 600mA
Shielding : Shielded
DC Resistance (DCR) : 1.17 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 220µH
Tolerance : ±20%
Current Rating : 600mA
Current - Saturation : 600mA
Shielding : Shielded
DC Resistance (DCR) : 1.17 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
1439 in stock
SPD74R-563M
API Delevan
Manufacturer : API Delevan Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 56µH
Tolerance : ±20%
Current Rating : 1.1A
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SPD74R
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 56µH
Tolerance : ±20%
Current Rating : 1.1A
Current - Saturation : 1.1A
Shielding : Shielded
DC Resistance (DCR) : 350 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max) : 0.185" (4.70mm)
0
834 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
