Part Number

Manufacturer

Description

Unit Price

In Stock

PE80252V3-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.300 in H2O (74.7 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 43.5 dB(A)
Power (Watts) : 3.29W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)

30 in stock

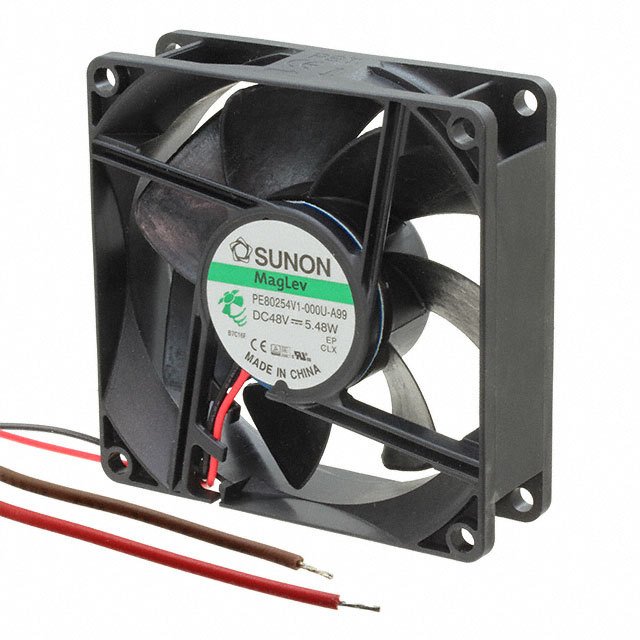

PE80254V1-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PE
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 25.00mm
Air Flow : 60.0 CFM (1.68m鲁/min)
Static Pressure : 0.410 in H2O (102.1 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 46.5 dB(A)
Power (Watts) : 5.48W
RPM : 4800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.201 lb (91.17g)

56 in stock

PE92252B1-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : PE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 47.0 dB(A)
Power (Watts) : 5.28W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.227 lb (102.97g)

1033 in stock

PE92252V1-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PE
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 25.00mm
Air Flow : 75.0 CFM (2.10m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Vapo-Bearing™
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 46.0 dB(A)
Power (Watts) : 5.28W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.227 lb (102.97g)

30 in stock

PF38281B1-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 18.1 CFM (0.507m鲁/min)
Static Pressure : 1.420 in H2O (353.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 51.8 dB(A)
Power (Watts) : 3.78W
RPM : 16000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.091 lb (41.28g)

100 in stock

PF38281B1-000U-G99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 18.1 CFM (0.507m鲁/min)
Static Pressure : 1.420 in H2O (353.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 51.8 dB(A)
Power (Watts) : 3.78W
RPM : 16000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.091 lb (41.28g)

100 in stock

PF38281B2-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 16.9 CFM (0.473m鲁/min)
Static Pressure : 1.260 in H2O (313.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 55.0 dB(A)
Power (Watts) : 3.48W
RPM : 15000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.089 lb (40.37g)

526 in stock

PF38281B3-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 14.9 CFM (0.417m鲁/min)
Static Pressure : 1.000 in H2O (249.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 49.3 dB(A)
Power (Watts) : 2.33W
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.088 lb (39.92g)

30 in stock

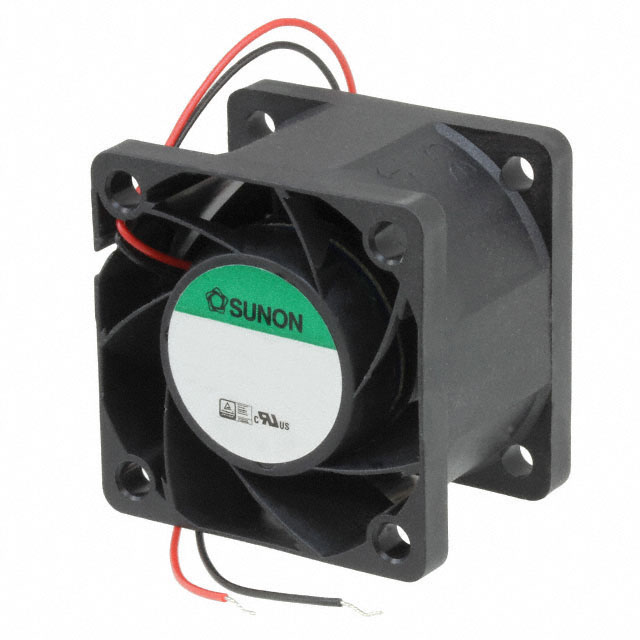

PF38281B4-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 11.3 CFM (0.316m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 42.8 dB(A)
Power (Watts) : 1.38W
RPM : 10000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.088 lb (39.92g)

30 in stock

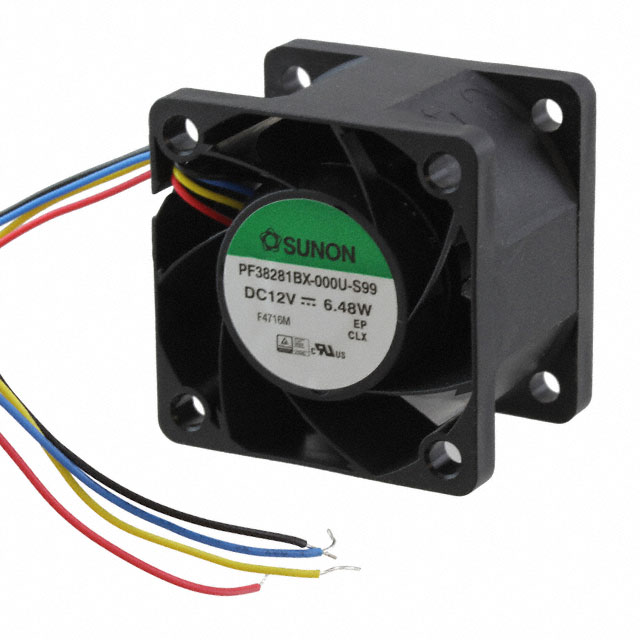

PF38281BX-000U-S99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 23.0 CFM (0.644m鲁/min)
Static Pressure : 2.230 in H2O (555.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 59.0 dB(A)
Power (Watts) : 6.24W
RPM : 20000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.091 lb (41.28g)

547 in stock

PF40281B1-000U-A99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.9 CFM (0.697m鲁/min)
Static Pressure : 1.950 in H2O (485.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 58.8 dB(A)
Power (Watts) : 6.12W
RPM : 17600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)

262 in stock

PF40281B1-000U-G99

Sunon

Manufacturer : Sunon Fans
Series : PF
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.9 CFM (0.697m鲁/min)
Static Pressure : 1.950 in H2O (485.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, Speed Sensor (Tach)
Noise : 58.8 dB(A)
Power (Watts) : 6.12W
RPM : 17600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.093 lb (42.18g)

1395 in stock
