Part Number
Manufacturer
Description
Unit Price
In Stock

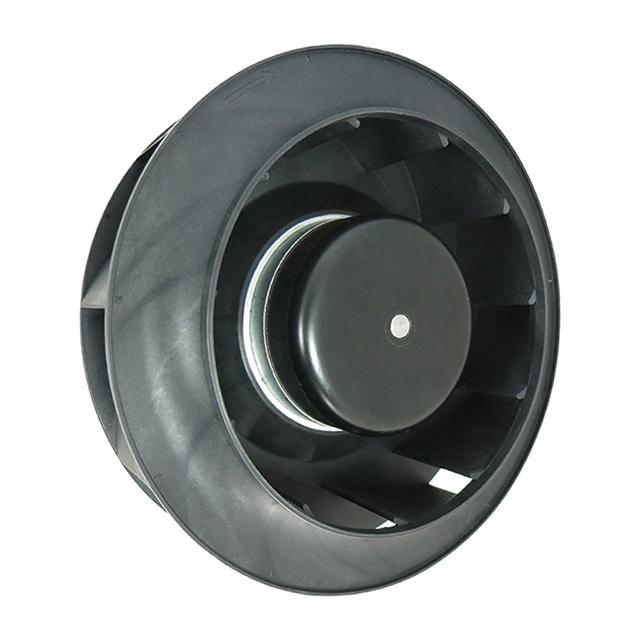

ODB22071-48HB10A
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 221.5mm Dia
Width : 71.00mm
Air Flow : 618.0 CFM (17.30m鲁/min)
Static Pressure : 2.410 in H2O (600.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 68.0 dB
Power (Watts) : 130.0W
RPM : 3150 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.1 lbs (1.4kg)
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 221.5mm Dia
Width : 71.00mm
Air Flow : 618.0 CFM (17.30m鲁/min)
Static Pressure : 2.410 in H2O (600.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 68.0 dB
Power (Watts) : 130.0W
RPM : 3150 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.1 lbs (1.4kg)
0
6 in stock
ODB22599-24HB10A
Orion Fans
Manufacturer : Orion Fans
Series : ODB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 835.0 CFM (23.38m鲁/min)
Static Pressure : 2.050 in H2O (510.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB
Power (Watts) : 110.4W
RPM : 2500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.3 lbs (1.5kg)
Series : ODB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 835.0 CFM (23.38m鲁/min)
Static Pressure : 2.050 in H2O (510.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB
Power (Watts) : 110.4W
RPM : 2500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.3 lbs (1.5kg)
0
8 in stock

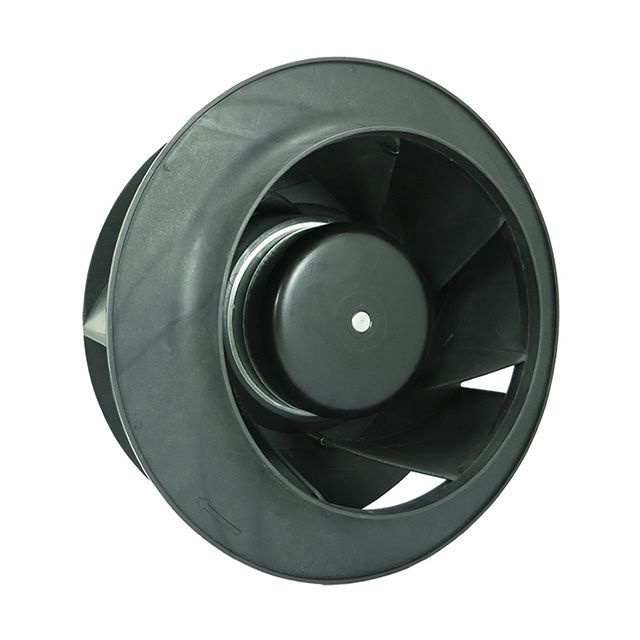

ODB22599-48HB10A
Orion Fans
Manufacturer : Orion Fans
Series : ODB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 835.0 CFM (23.38m鲁/min)
Static Pressure : 2.050 in H2O (510.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB
Power (Watts) : 110.4W
RPM : 2500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.3 lbs (1.5kg)
Series : ODB
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 225mm Dia
Width : 99.00mm
Air Flow : 835.0 CFM (23.38m鲁/min)
Static Pressure : 2.050 in H2O (510.6 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB
Power (Watts) : 110.4W
RPM : 2500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 3.3 lbs (1.5kg)
0
8 in stock

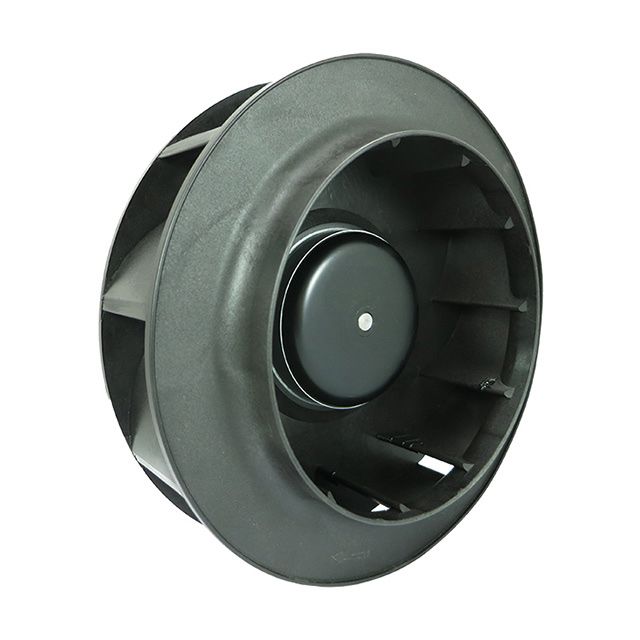

ODB250110-24HB10A
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 250mm Dia
Width : 106.5mm
Air Flow : 790.0 CFM (22.12m鲁/min)
Static Pressure : 2.220 in H2O (553.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB
Power (Watts) : 130.0W
RPM : 2600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 5.1 lbs (2.3kg)
Series : -
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Round - 250mm Dia
Width : 106.5mm
Air Flow : 790.0 CFM (22.12m鲁/min)
Static Pressure : 2.220 in H2O (553.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB
Power (Watts) : 130.0W
RPM : 2600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 5.1 lbs (2.3kg)
0
4 in stock
ODB250110-48HB10A
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 250mm Dia
Width : 106.5mm
Air Flow : 790.0 CFM (22.12m鲁/min)
Static Pressure : 2.220 in H2O (553.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB
Power (Watts) : 130.0W
RPM : 2600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 5.1 lbs (2.3kg)
Series : -
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Round - 250mm Dia
Width : 106.5mm
Air Flow : 790.0 CFM (22.12m鲁/min)
Static Pressure : 2.220 in H2O (553.0 Pa)
Bearing Type : Ball
Fan Type : Motorized Impellers
Features : PWM Control, Speed Sensor (Tach)
Noise : 78.0 dB
Power (Watts) : 130.0W
RPM : 2600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 149°F (-10 ~ 65°C)
Approvals : CE, cURus, TUV, UR
Weight : 5.1 lbs (2.3kg)
0
4 in stock
ODB5115-12HB
Orion Fans
Manufacturer : Orion Fans
Series : ODB5115
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 51.11mm L x 47.76mm H
Width : 15.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.500 in H2O (124.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 38.0 dB
Power (Watts) : 1.92W
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.059 lb (26.76g)
Series : ODB5115
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 51.11mm L x 47.76mm H
Width : 15.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.500 in H2O (124.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 38.0 dB
Power (Watts) : 1.92W
RPM : 5500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.059 lb (26.76g)
0
491 in stock
ODB5115-12LB
Orion Fans
Manufacturer : Orion Fans
Series : ODB5115
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 51.11mm L x 47.76mm H
Width : 15.00mm
Air Flow : 2.4 CFM (0.067m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 32.0 dB
Power (Watts) : 840mW
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.059 lb (26.76g)
Series : ODB5115
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 51.11mm L x 47.76mm H
Width : 15.00mm
Air Flow : 2.4 CFM (0.067m鲁/min)
Static Pressure : 0.200 in H2O (49.8 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 32.0 dB
Power (Watts) : 840mW
RPM : 3500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus
Weight : 0.059 lb (26.76g)
0
17 in stock

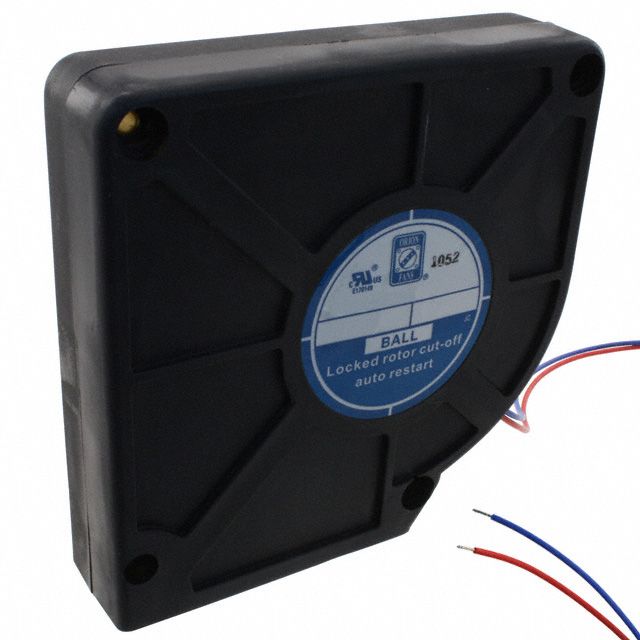

ODB600PT-12HB
Orion Fans
Manufacturer : Orion Fans
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.590 in H2O (147.0 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 49.0 dB
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.590 in H2O (147.0 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 49.0 dB
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
37 in stock

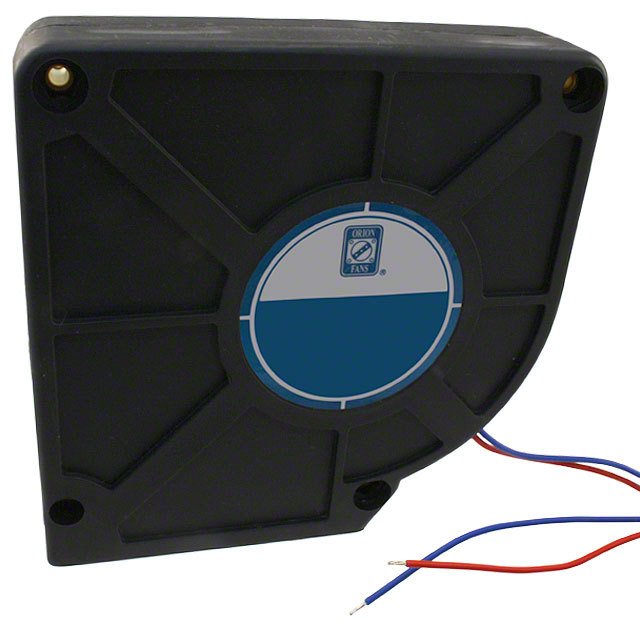

ODB600PT-12LB
Orion Fans
Manufacturer : Orion Fans
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 20.0 CFM (0.560m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 30.0 dB
Power (Watts) : -
RPM : 1800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 20.0 CFM (0.560m鲁/min)
Static Pressure : 0.390 in H2O (97.1 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 30.0 dB
Power (Watts) : -
RPM : 1800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
43 in stock

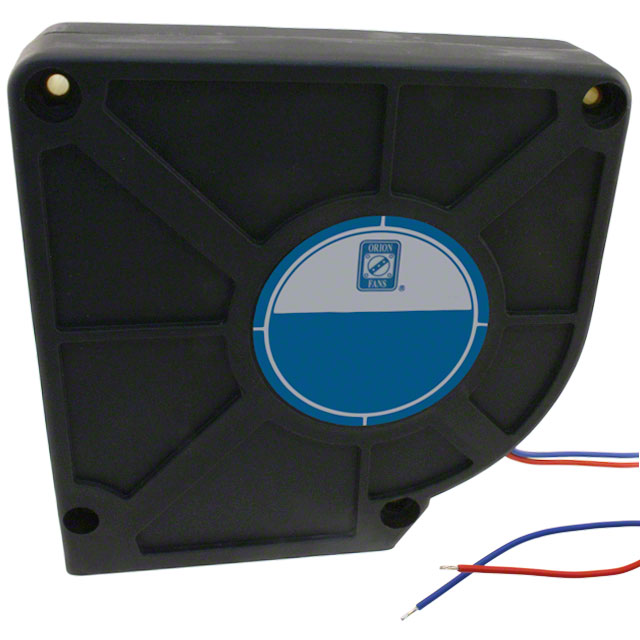

ODB600PT-12MB
Orion Fans
Manufacturer : Orion Fans
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.470 in H2O (117.1 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 42.0 dB
Power (Watts) : -
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
Series : ODB600PT
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 25.0 CFM (0.700m鲁/min)
Static Pressure : 0.470 in H2O (117.1 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 42.0 dB
Power (Watts) : -
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
101 in stock

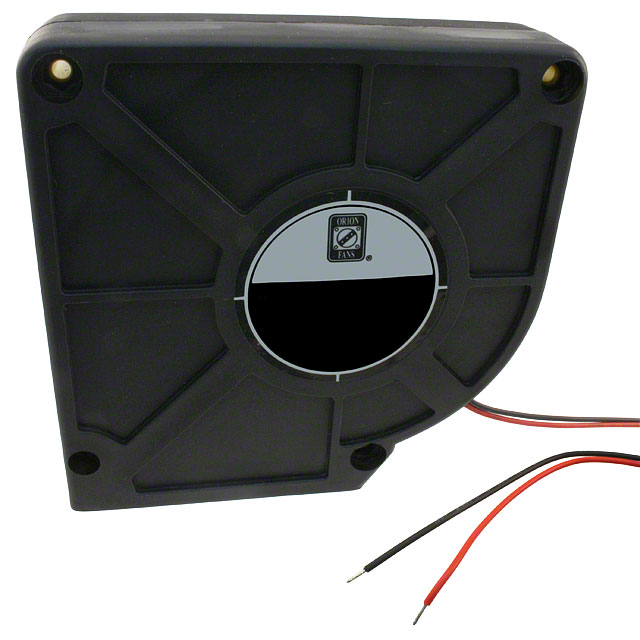

ODB600PT-24HB
Orion Fans
Manufacturer : Orion Fans
Series : ODB600PT
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.590 in H2O (147.0 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 49.0 dB
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
Series : ODB600PT
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 120.5mm L x 120.5mm H
Width : 32.00mm
Air Flow : 35.0 CFM (0.980m鲁/min)
Static Pressure : 0.590 in H2O (147.0 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 49.0 dB
Power (Watts) : -
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus
Weight : -
0
53 in stock

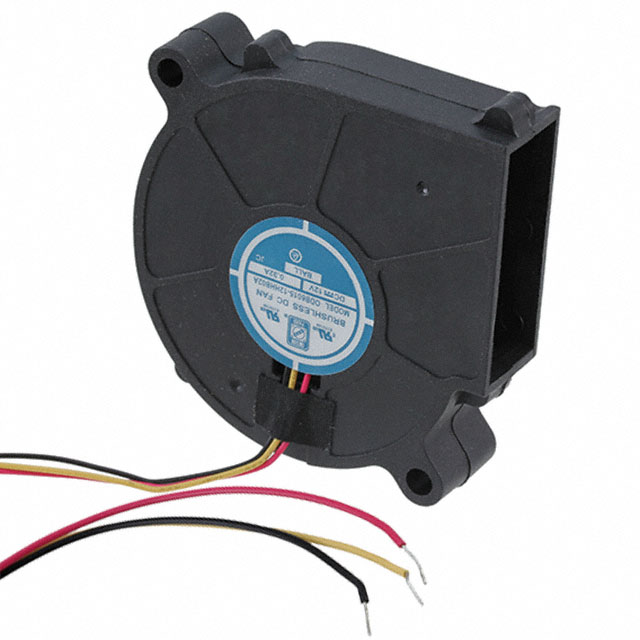

ODB6015-12HHB02A
Orion Fans
Manufacturer : Orion Fans
Series : ODB6015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 57.25mm L x 50.37mm H
Width : 15.20mm
Air Flow : 7.4 CFM (0.207m鲁/min)
Static Pressure : 0.800 in H2O (199.3 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Locked Rotor Sensor
Noise : 44.0 dB
Power (Watts) : 3.84W
RPM : 5000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.077 lb (34.93g)
Series : ODB6015
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 57.25mm L x 50.37mm H
Width : 15.20mm
Air Flow : 7.4 CFM (0.207m鲁/min)
Static Pressure : 0.800 in H2O (199.3 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Locked Rotor Sensor
Noise : 44.0 dB
Power (Watts) : 3.84W
RPM : 5000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.077 lb (34.93g)
0
622 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
