Taoglas
- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.
Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.
Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.
Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.
Part Number
Manufacturer
Description
Unit Price
In Stock

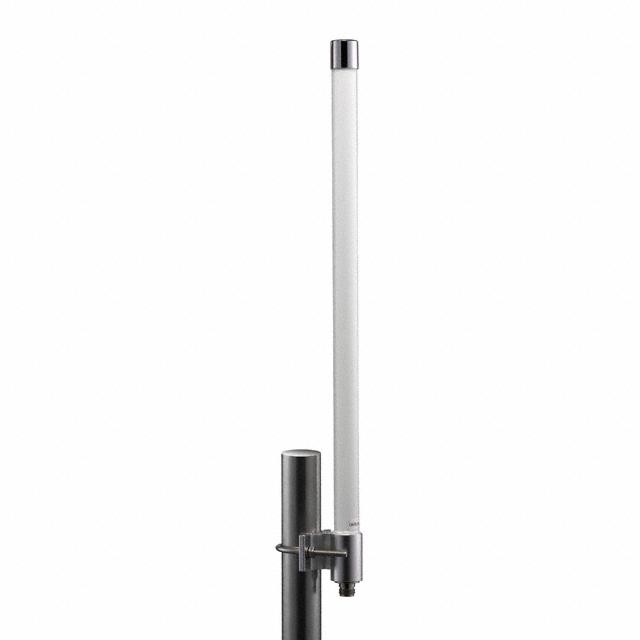

Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 892MHz, 1.9GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Whip, Straight
Number of Bands : 2
VSWR : 2
Return Loss : -
Gain : 2.13dBi, 4.89dBi
Power - Max : 50W
Features : -
Termination : Connector, N Female
Ingress Protection : -
Mounting Type : Bracket Mount
Height (Max) : 20.748" (527.00mm)
Applications : CDMA, GSM
0
110 in stock

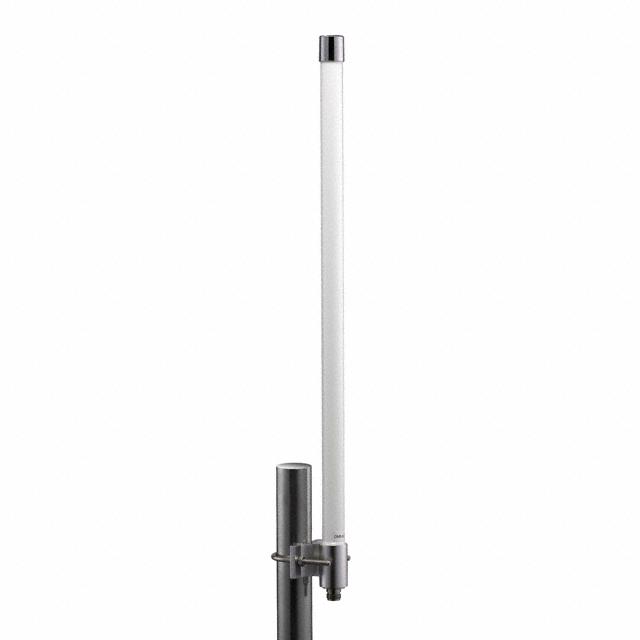

Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Barracuda
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.8MHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Whip, Straight
Number of Bands : 5
VSWR : 2
Return Loss : -
Gain : 3.04dBi, 3.03dBi, 4.3dBi, 4.83dBi, 5.56dBi
Power - Max : 50W
Features : -
Termination : Connector, N Female
Ingress Protection : -
Mounting Type : Bracket Mount
Height (Max) : 23.425" (595.00mm)
Applications : DCS, GSM, PCS, WCDMA
0
138 in stock

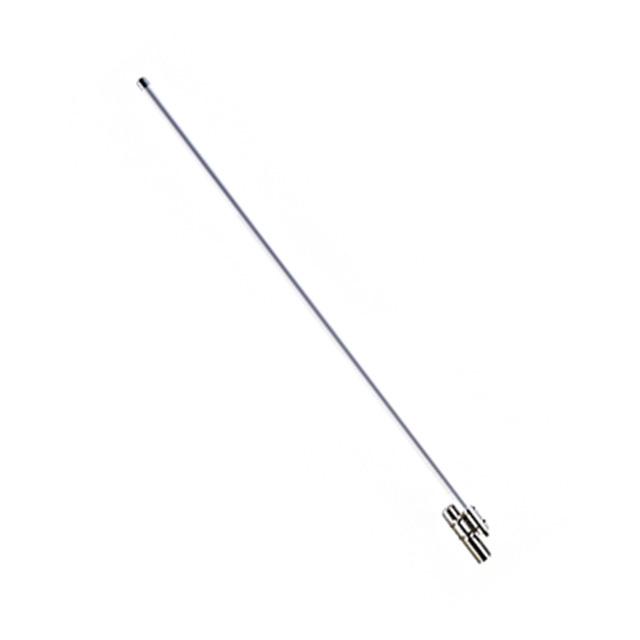

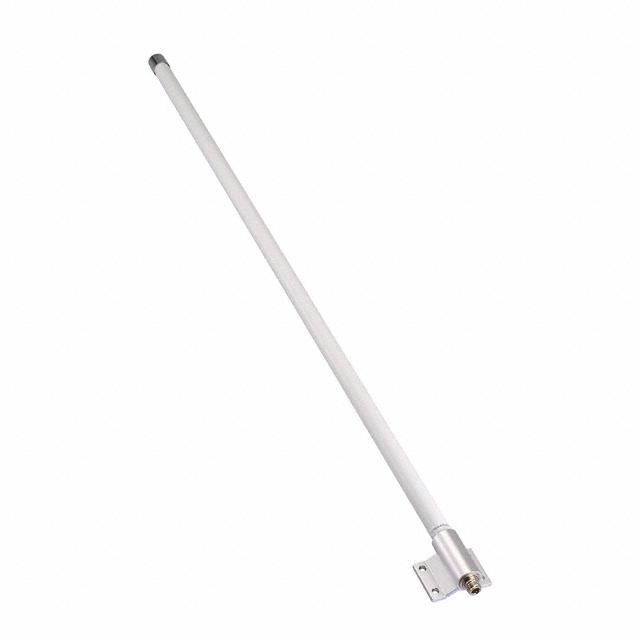

Taoglas
Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz)
Frequency (Center/Band) : 915MHz
Frequency Range : 902MHz ~ 928MHz
Antenna Type : Whip, Straight
Number of Bands : 1
VSWR : 1.5
Return Loss : -
Gain : 3.5dBi
Power - Max : 50W
Features : -
Termination : Connector, N Female
Ingress Protection : -
Mounting Type : Bracket Mount
Height (Max) : 12.598" (320.00mm)
Applications : -
0
63 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : -
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -
0
19 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.484GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 2
Return Loss : -
Gain : 1.5dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.118" (3.00mm)
Applications : Bluetooth, WLAN, Zigbee™
0
1288 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Series : -
Part Status : Active
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.484GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : 2
Return Loss : -
Gain : 1.5dBi
Power - Max : 2W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.118" (3.00mm)
Applications : Bluetooth, WLAN, Zigbee™
0
1282 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Frequency Group : UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 2.4GHz
Frequency Range : 2.4GHz ~ 2.5GHz
Antenna Type : Chip
Number of Bands : 1
VSWR : -
Return Loss : -21dB
Gain : -3.1dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.130" (3.30mm)
Applications : Bluetooth, 802.11a/b/g
0
100 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 920MHz, 1.9GHz
Frequency Range : 880MHz ~ 960MHz, 1.71GHz ~ 1.99GHz
Antenna Type : Chip
Number of Bands : 2
VSWR : 2.5
Return Loss : -
Gain : -1.96dBi, 2.48dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.197" (5.00mm)
Applications : GSM
0
100 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Anam
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 824MHz ~ 960MHz, 1.7GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 6
VSWR : 3
Return Loss : -6.4dB, -12.7dB, -10.8dB, -13.5dB
Gain : 1.49dBi, 1.76dBi, 2.4dBi, 2.53dBi, 2.46dBi, 4.62dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.236" (6.00mm)
Applications : CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA
0
9775 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Anam
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 2.2GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz
Antenna Type : PCB Trace
Number of Bands : 2
VSWR : 3.5
Return Loss : -
Gain : 3.9dBi
Power - Max : 5W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.236" (6.00mm)
Applications : LTE
0
1912 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Viking
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type : Chip
Number of Bands : 6
VSWR : 3
Return Loss : -
Gain : 2dBi, 1.4dBi, 0.9dBi, 3.7dBi, 3.9dBi, 4.1dBi
Power - Max : -
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.197" (5.00mm)
Applications : CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
0
1102 in stock
Taoglas
Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Viking
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 800MHz, 900MHz, 1.5GHz, 1.7GHz, 2.1GHz, 2.5GHz
Frequency Range : 698MHz ~ 800MHz, 824MHz ~ 960MHz, 1.41GHz ~ 1.52GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz
Antenna Type : Chip
Number of Bands : 6
VSWR : 3.5
Return Loss : -5dB, -14dB, -7dB, -7dB, -7.5dB
Gain : -3.6dBi, -0.5dBi, -1dBi, 0.5dBi, 2.7dBi
Power - Max : 5W
Features : -
Termination : Solder
Ingress Protection : -
Mounting Type : Surface Mount
Height (Max) : 0.197" (5.00mm)
Applications : CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
0
1603 in stock
