Taoglas

- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.

Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.

Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.

Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.


Part Number

Manufacturer

Description

Unit Price

In Stock

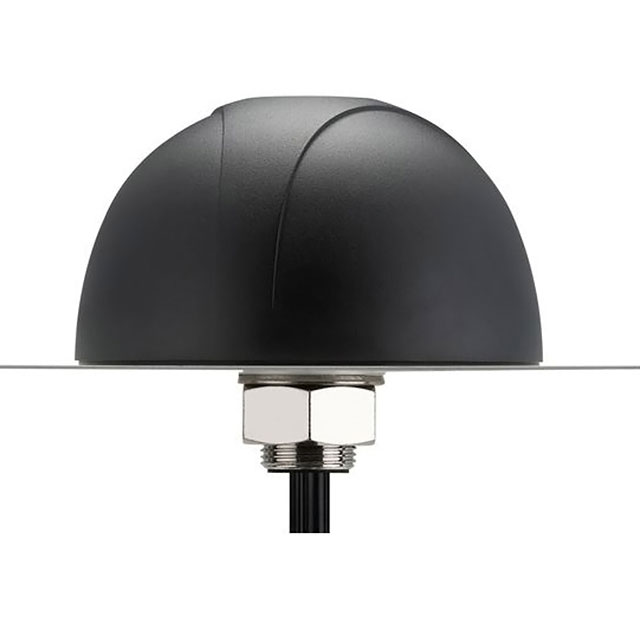

MA761.B.BICG.003

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Pantheon
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : Dome
Number of Bands : 5
VSWR : -
Return Loss : -6dB
Gain : 2.4dBi
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 3.327" (84.50mm)
Applications : LTE, Wi-Fi

50 in stock

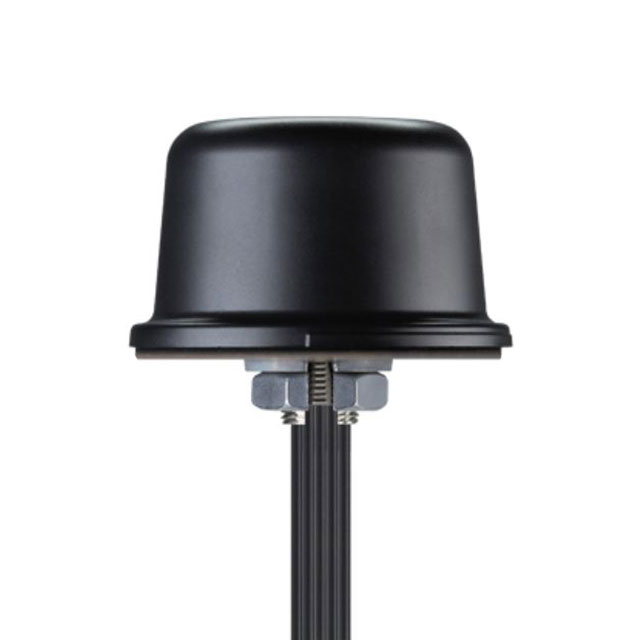

MA850.A.LBICG.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.94GHz, 2.59GHz, 5.38GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 4.9GHz ~ 5.85GHz
Antenna Type : Dome
Number of Bands : 4
VSWR : 3
Return Loss : -10dB
Gain : 4.3dBi
Power - Max : -
Features : LNA, Filter
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Panel Mount
Height (Max) : 2.260" (57.40mm)
Applications : BEIDOU, GLONASS, GPS, LTE, WLAN

16 in stock

MA930.W.A.LBICGJ.005

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Guardian
Part Status : Obsolete
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.575GHz, 1.94GHz, 2.59GHz, 3.45GHz
Frequency Range : 698MHz ~ 960MHz, 1.559GHz ~1.607GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz
Antenna Type : Module
Number of Bands : 5
VSWR : 2
Return Loss : -10dB
Gain : 7dBi
Power - Max : -
Features : LNA, Filter
Termination : Cable (1M) - SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.787" (20.00mm)
Applications : Beidou, GLONASS, GPS, GNSS, GSM, LTE, UMTS, Wi-Fi

100 in stock

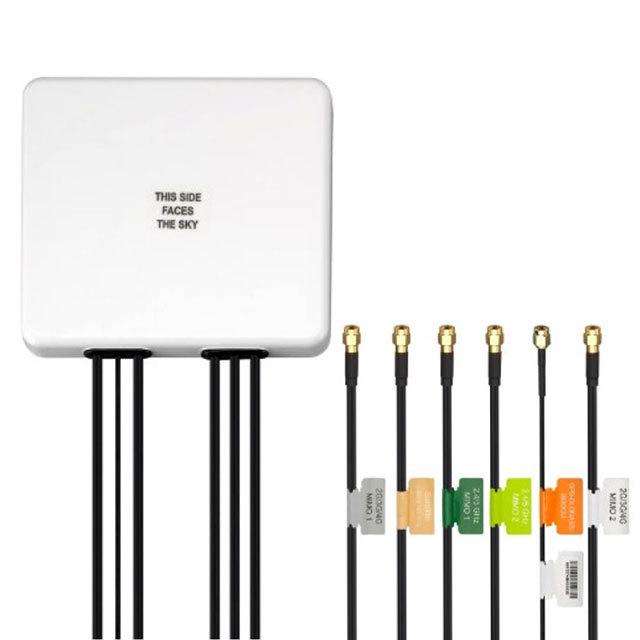

MA931.A.LBICGH.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Guardian
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz
Frequency Range : 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz
Antenna Type : Module
Number of Bands : 7
VSWR : 3
Return Loss : -10dB
Gain : 28dBi
Power - Max : -
Features : LNA, Filter
Termination : Cable (1M) - SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.787" (20.00mm)
Applications : Beidou, GLONASS, GPS, GNSS, GSM, LTE, UMTS, Wi-Fi

58 in stock

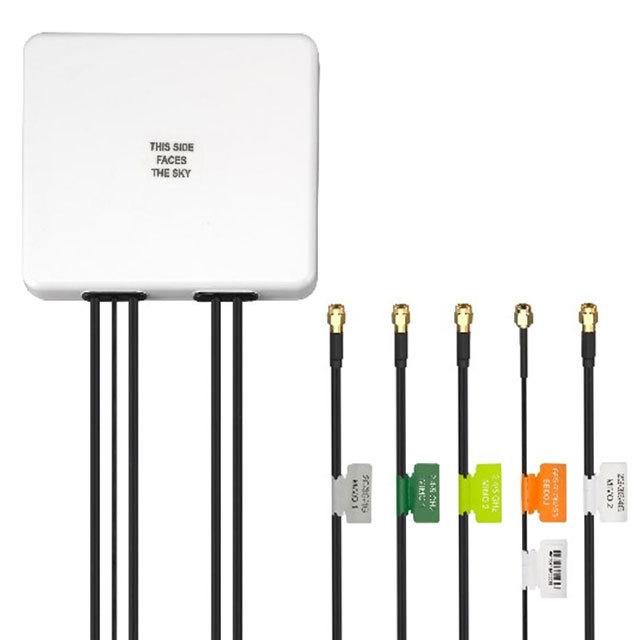

MA950.A.LBICG.005

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Guardian
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz
Frequency Range : 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz
Antenna Type : Module
Number of Bands : 7
VSWR : 2
Return Loss : -10dB
Gain : 28dB
Power - Max : -
Features : LNA, Filter
Termination : Cable (1M) - SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.787" (20.00mm)
Applications : Beidou, GLONASS, GPS, GNSS, GSM, LTE, UMTS, Wi-Fi

59 in stock

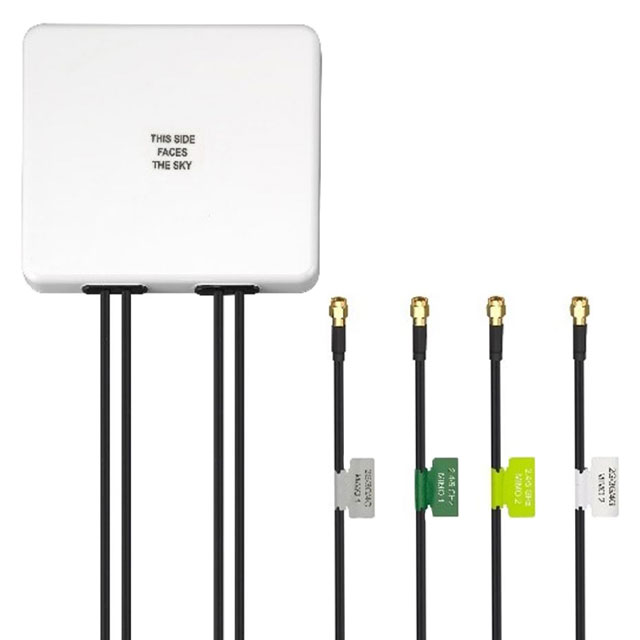

MA961.A.BICG.002

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Guardian
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 829MHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz
Frequency Range : 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz, 5.8GHz
Antenna Type : Module
Number of Bands : 6
VSWR : 3
Return Loss : -
Gain : 7dBi
Power - Max : -
Features : -
Termination : Connector, RP-SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.787" (20.00mm)
Applications : GSM, LTE, UMTS, Wi-Fi

15 in stock

MB.200.C

Taoglas

Manufacturer : Taoglas Limited
Series : -
Part Status : Active
Accessory Type : Antenna Mounting Base
For Use With/Related Products : Antennas or Video Cameras

100 in stock

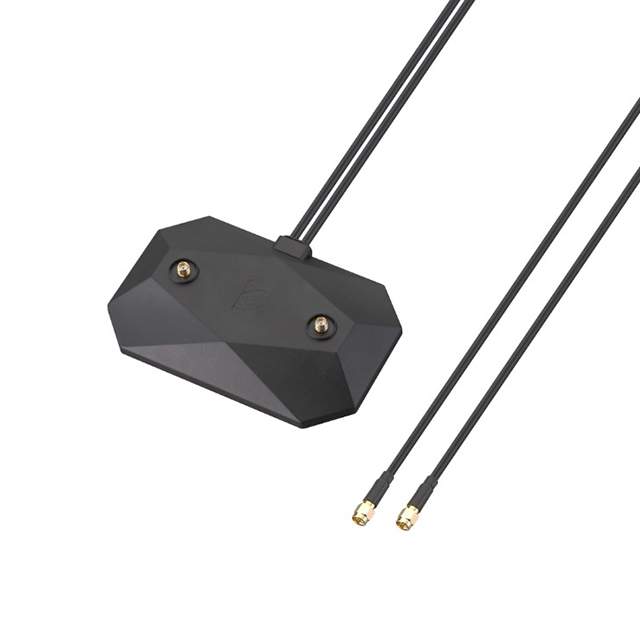

MB.250.B

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Magneto
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 3.3GHz
Frequency Range : 500MHz ~ 6GHz
Antenna Type : Module
Number of Bands : 1
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Magnetic
Height (Max) : 0.827" (21.00mm)
Applications : LTE, Wi-Fi

25 in stock

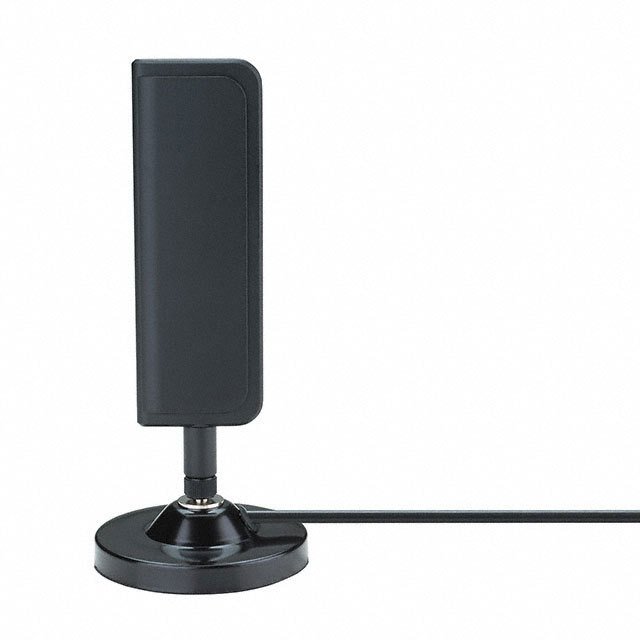

MB.TG30.A.305111

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Apex Magforce
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz
Frequency Range : 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz
Antenna Type : Whip, Straight
Number of Bands : 8
VSWR : -
Return Loss : -5dB, -6dB, -5dB, -10dB, -5dB
Gain : 2.97dBi, 1.45dBi, 0.62dBi, 1.61dBi, 1.23dBi, 1.19dBi, 1.23dBi, 2.84dBi
Power - Max : 50W
Features : -
Termination : Cable (3M) - SMA Male
Ingress Protection : IP67
Mounting Type : Magnetic
Height (Max) : 7.720" (196.10mm)
Applications : CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi

224 in stock

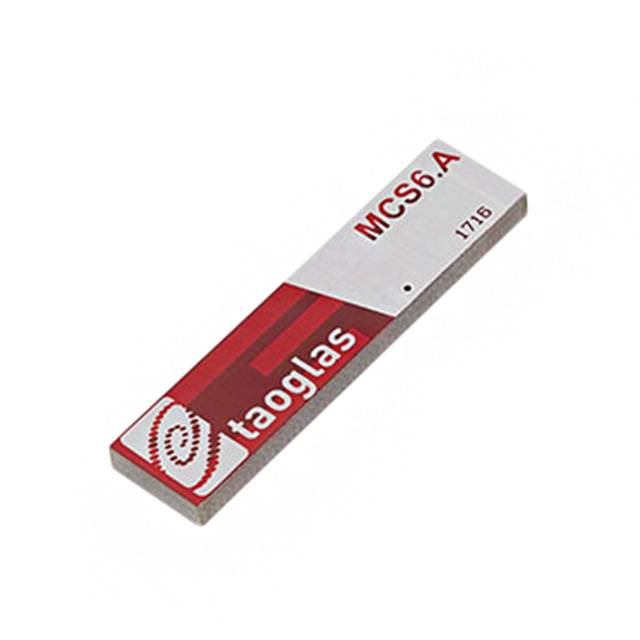

MCS6.A

Taoglas

Manufacturer : Taoglas Limited
Packaging : Cut Tape (CT)
Alternate Packaging
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -

826 in stock

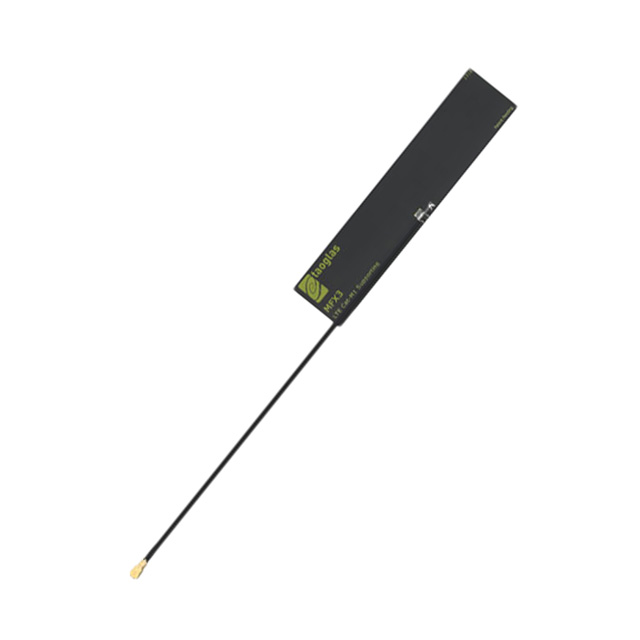

MFX3.07.0150C

Taoglas

Manufacturer : Taoglas Limited
Packaging : -
Series : *
Part Status : Active
Frequency Group : -
Frequency (Center/Band) : -
Frequency Range : -
Antenna Type : -
Number of Bands : -
VSWR : -
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : -
Ingress Protection : -
Mounting Type : -
Height (Max) : -
Applications : -

269 in stock

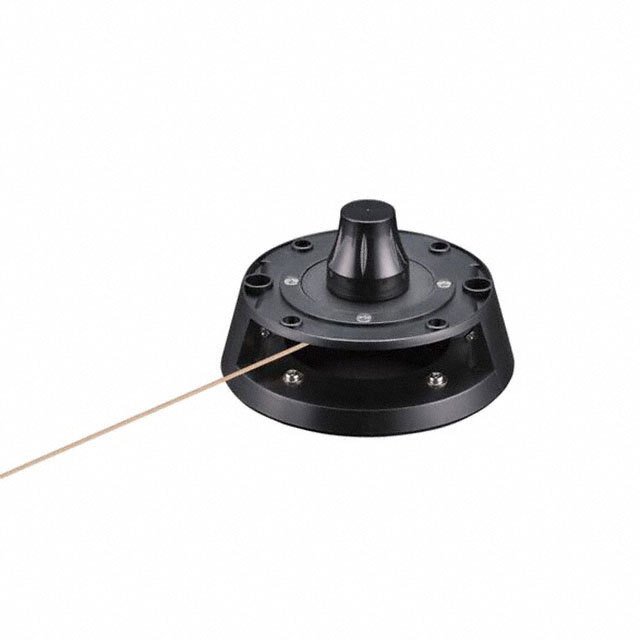

MMB.A.EXTMA.16

Taoglas

Manufacturer : Taoglas Limited
Series : -
Part Status : Active
Accessory Type : Mount
For Use With/Related Products : -

10 in stock
