Welcome to Eruic

Tamura Corporation of America

- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.

Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.

Part Number
Manufacturer
Description
Unit Price
In Stock

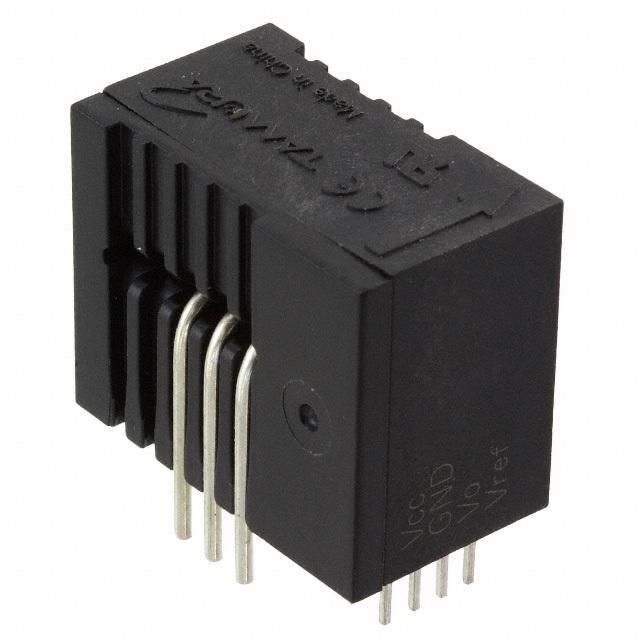

F02P025S05L F02P025S05L

Tamura
Manufacturer : Tamura
Packaging : -
Series : F02P
Part Status : Active
For Measuring : AC
Sensor Type : Flux Gate, Closed Loop
Current - Sensing : 25A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 25mV/A
Frequency : 300kHz
Linearity : ±1%
Accuracy : ±1%
Voltage - Supply : 5V
Response Time : 0.3µs
Current - Supply (Max) : 35mA
Operating Temperature : -40°C ~ 105°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : -
0
300 in stock

F02P050S05L F02P050S05L

Tamura
Manufacturer : Tamura
Packaging : -
Series : F02P
Part Status : Active
For Measuring : AC
Sensor Type : Flux Gate, Closed Loop
Current - Sensing : 50A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 12.5mV/A
Frequency : 300kHz
Linearity : ±1%
Accuracy : ±0.9%
Voltage - Supply : 5V
Response Time : 0.3µs
Current - Supply (Max) : 55mA
Operating Temperature : -40°C ~ 105°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : -
0
81 in stock

F03P006S05 F03P006S05

Tamura
Manufacturer : Tamura
Packaging : -
Series : F03P
Part Status : Active
For Measuring : AC
Sensor Type : Flux Gate, Closed Loop
Current - Sensing : 6A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 104.2mV/A
Frequency : 300kHz
Linearity : ±1%
Accuracy : ±1.7%
Voltage - Supply : 5V
Response Time : 0.3µs
Current - Supply (Max) : 25mA
Operating Temperature : -40°C ~ 105°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : -
0
116 in stock

F03P015S05 F03P015S05

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : F03P
Part Status : Active
For Measuring : AC
Sensor Type : Flux Gate, Closed Loop
Current - Sensing : 15A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 41.7mV/A
Frequency : 300kHz
Linearity : ±1%
Accuracy : ±1.2%
Voltage - Supply : 5V
Response Time : 0.3µs
Current - Supply (Max) : 30mA
Operating Temperature : -40°C ~ 105°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : -
0
206 in stock

F03P025S05L F03P025S05L

Tamura
Manufacturer : Tamura
Packaging : -
Series : F03P
Part Status : Active
For Measuring : AC
Sensor Type : Flux Gate, Closed Loop
Current - Sensing : 25A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 25mV/A
Frequency : 300kHz
Linearity : ±0.1%
Accuracy : -
Voltage - Supply : 4.75 V ~ 5.25 V
Response Time : 0.3µs
Current - Supply (Max) : 35mA
Operating Temperature : -40°C ~ 105°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : -
0
287 in stock

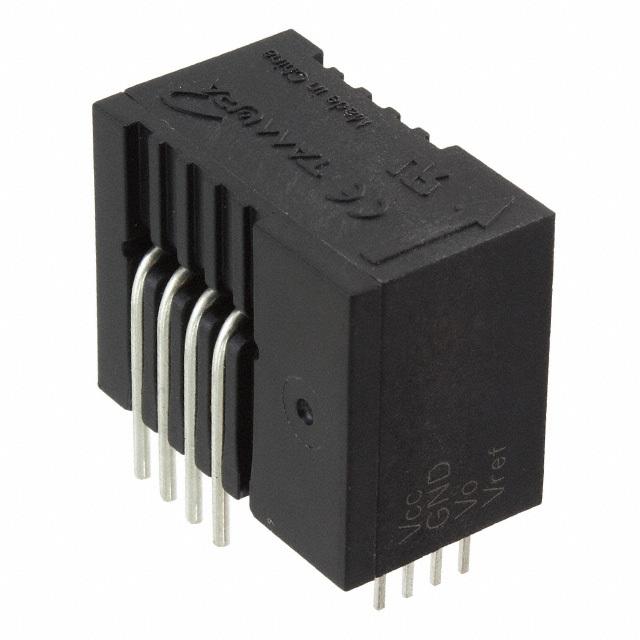

F03P050S05 F03P050S05

Tamura
Manufacturer : Tamura
Packaging : -
Series : F03P
Part Status : Active
For Measuring : AC
Sensor Type : Flux Gate, Closed Loop
Current - Sensing : 50A
Number of Channels : 1
Output : Ratiometric, Voltage
Sensitivity : 12.5mV/A
Frequency : 300kHz
Linearity : ±1%
Accuracy : ±0.9%
Voltage - Supply : 5V
Response Time : 0.3µs
Current - Supply (Max) : 55mA
Operating Temperature : -40°C ~ 105°C
Polarization : Bidirectional
Mounting Type : Through Hole
Package / Case : -
0
107 in stock

G500 G500

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : G5
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 5mH
Energy Time (E.T.) : 25V µS
Turns Ratio - Primary:Secondary : 1:1:1 Ter
Mounting Type : Through Hole
Size / Dimension : 0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
3485 in stock

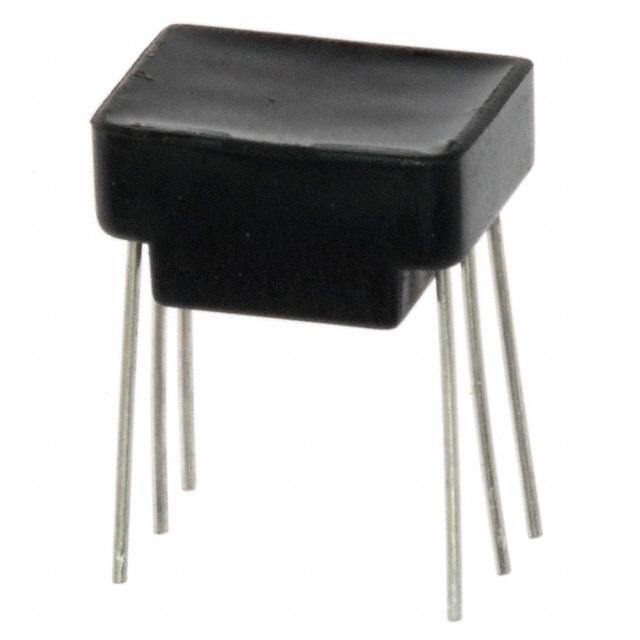

G503 G503

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : G5
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 200µH
Energy Time (E.T.) : 5V µS
Turns Ratio - Primary:Secondary : 1:1:1 Ter
Mounting Type : Through Hole
Size / Dimension : 0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
186 in stock

G506 G506

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : G5
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 2mH
Energy Time (E.T.) : 16V µS
Turns Ratio - Primary:Secondary : 2:1:1 Ter
Mounting Type : Through Hole
Size / Dimension : 0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
2 in stock

G508 G508

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : G5
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 2mH
Energy Time (E.T.) : 16V µS
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
46 in stock

G509 G509

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : G5
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 500µH
Energy Time (E.T.) : 8.5V µS
Turns Ratio - Primary:Secondary : 1CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
969 in stock

G512 G512

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : G5
Part Status : Active
Transformer Type : Isolation and Data Interface (Encapsulated)
Inductance : 2mH
Energy Time (E.T.) : 16V µS
Turns Ratio - Primary:Secondary : 2CT:1CT
Mounting Type : Through Hole
Size / Dimension : 0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max) : 0.250" (6.35mm)
Operating Temperature : 0°C ~ 70°C
0
20 in stock
