Tamura Corporation of America
- Established in 1951, Microtran Corporation manufactured high-quality, magnetic components for both commercial and military applications. Offshore facilities provided expanded manufacturing capabilities on an extremely cost-effective basis for large volume requirements. Modified catalog items and custom designs were available on special order to meet customers' exact requirements.
Tamura Corporation of America acquired Microtran's product line and customer base in 1994. Prior to this acquisition, Tamura had been a subcontractor for Microtran for at least ten years and had manufactured many of the products found in the Microtran catalog. Since the acquisition, Tamura has combined identical and similar products into one product bearing a dual marking of both the Tamura and Microtran part numbers. This "dual marking" has enabled Tamura to continue to supply customers whose drawings referenced only the Microtran part number.
Part Number
Manufacturer
Description
Unit Price
In Stock

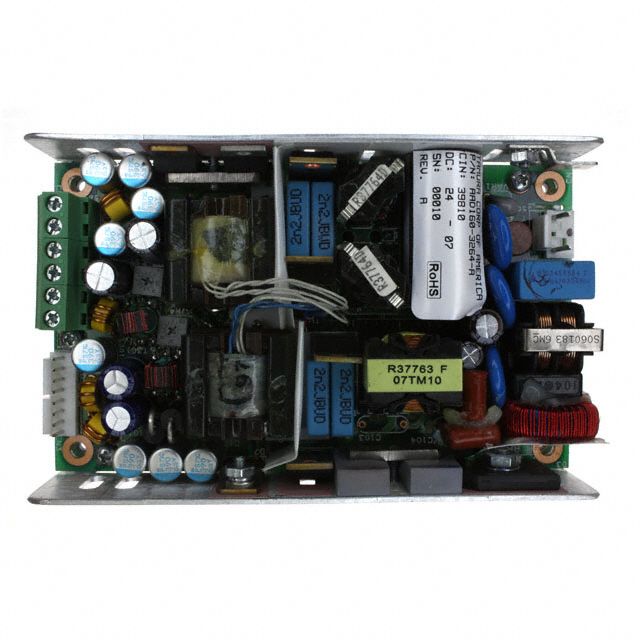

Tamura
Manufacturer : Tamura
Series : AAD160 (160W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : 3.3V
Voltage - Output 3 : 24V
Voltage - Output 4 : -12V
Current - Output (Max) : 16A, 14A, 1.75A, 2A
Power (Watts) : 80W (130W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 88%
Operating Temperature : 0°C ~ 50°C
Features : PFC, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm)
0
100 in stock
Tamura
Manufacturer : Tamura
Series : AAD160 (160W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : 12V
Voltage - Output 3 : -12V
Voltage - Output 4 : -
Current - Output (Max) : 16A, 6A, 2A
Power (Watts) : 80W (130W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 88%
Operating Temperature : 0°C ~ 50°C
Features : PFC, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm)
0
100 in stock
Tamura
Manufacturer : Tamura
Series : AAD160 (160W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 4
Voltage - Input : 90 ~ 264 VAC
Voltage - Output 1 : 5V
Voltage - Output 2 : 12V
Voltage - Output 3 : 24V
Voltage - Output 4 : -12V
Current - Output (Max) : 16A, 6A, 1.75A, 2A
Power (Watts) : 80W (130W Forced Air)
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 88%
Operating Temperature : 0°C ~ 50°C
Features : PFC, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 5.00" L x 3.14" W x 1.25" H (127.0mm x 79.8mm x 31.8mm)
0
100 in stock

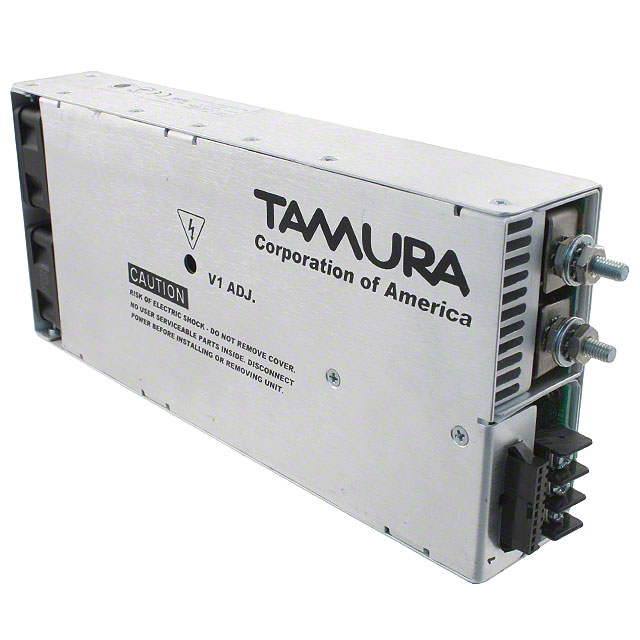

Tamura
Manufacturer : Tamura
Series : AAD600S (600W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 42A
Power (Watts) : 600W
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm)
0
100 in stock
Tamura
Manufacturer : Tamura
Series : AAD600S (600W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 36A
Power (Watts) : 600W
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm)
0
100 in stock
Tamura
Manufacturer : Tamura
Series : AAD600S (600W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 23A
Power (Watts) : 600W
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm)
0
100 in stock
Tamura
Manufacturer : Tamura
Series : AAD600S (600W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 28V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 600W
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm)
0
100 in stock
Tamura
Manufacturer : Tamura
Series : AAD600S (600W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 36V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 16A
Power (Watts) : 600W
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm)
0
100 in stock
Tamura
Manufacturer : Tamura
Series : AAD600S (600W)
Part Status : Obsolete
Type : Open Frame
Number of Outputs : 1
Voltage - Input : 85 ~ 264 VAC
Voltage - Output 1 : 48V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 12.5A
Power (Watts) : 600W
Applications : ITE (Commercial)
Voltage - Isolation : -
Efficiency : 92%
Operating Temperature : 0°C ~ 70°C (With Derating)
Features : Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input
Mounting Type : Chassis Mount
Size / Dimension : 9.00" L x 4.00" W x 1.59" H (228.6mm x 101.6mm x 40.4mm)
0
10 in stock

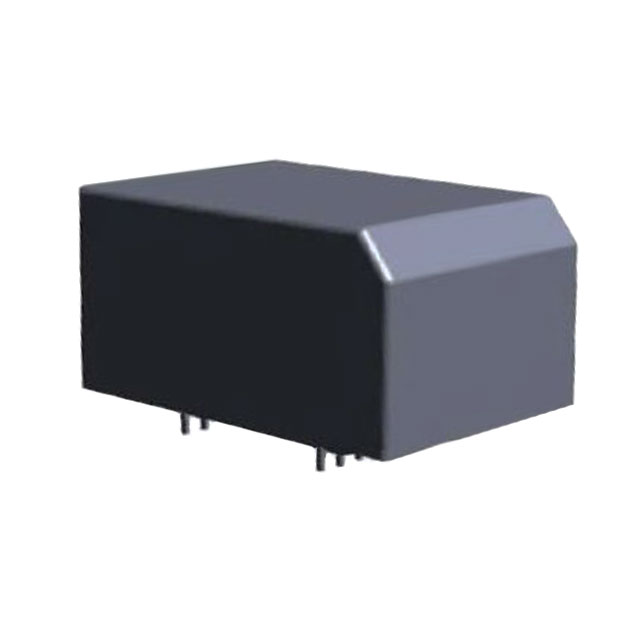

Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : BPM
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 140V
Voltage - Input (Max) : 340V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 3.4A
Power (Watts) : 40W
Voltage - Isolation : 3.0kV
Applications : ITE (Commercial)
Features : OTP, OVP
Operating Temperature : -20°C ~ 80°C
Efficiency : 90%
Mounting Type : Through Hole
Package / Case : 14-DIP Module
Size / Dimension : 1.30" L x 1.22" W x 0.81" H (33.0mm x 31.0mm x 20.7mm)
Supplier Device Package : -
Control Features : -
0
192 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : BPM
Part Status : Active
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 140V
Voltage - Input (Max) : 340V
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 1.7A
Power (Watts) : 40W
Voltage - Isolation : 3.0kV
Applications : ITE (Commercial)
Features : OTP, OVP
Operating Temperature : -20°C ~ 80°C
Efficiency : 90%
Mounting Type : Through Hole
Package / Case : 14-DIP Module
Size / Dimension : 1.30" L x 1.22" W x 0.81" H (33.0mm x 31.0mm x 20.7mm)
Supplier Device Package : -
Control Features : -
0
34 in stock
Tamura
Manufacturer : Tamura
Packaging : Bulk
Series : CMF
Part Status : Obsolete
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 33mH @ 1kHz
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 5.4 Ohm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" L x 0.630" W (17.50mm x 16.00mm)
Height (Max) : 0.807" (20.50mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock
