Taitien

- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

XXGGGINANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±50ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

4300 in stock

XXGPPLNANF-20.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±15ppm
Frequency Tolerance : ±15ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

11865 in stock

XXHCCCNANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±20ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 20pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

460 in stock

XXHCCLNANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±20ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 20pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

9862 in stock

XXHCECNANF-26.690000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 26.69MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 20pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

490 in stock

XXHCELNANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 26MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 20pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

480 in stock

XXHEECNANF-30.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 30MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 20pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

495 in stock

XXHEELNANF-18.432000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 18.432MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 20pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

760 in stock

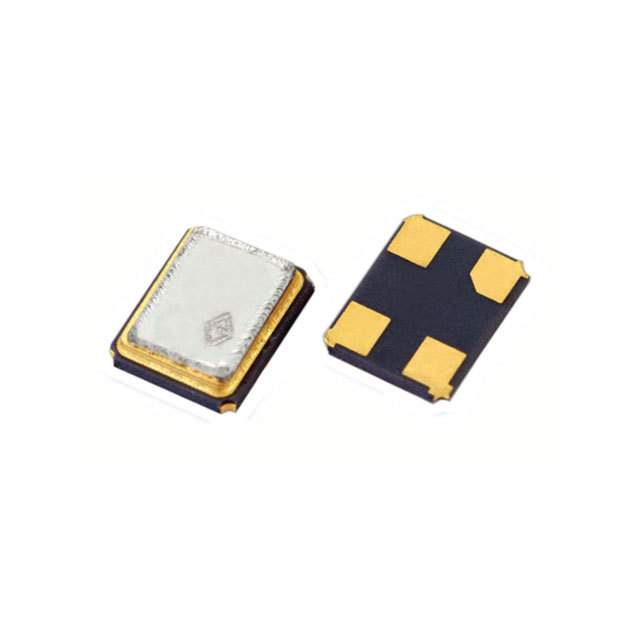

XXHEELNANF-24.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 20pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

314 in stock

XXHEGCNANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 20pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

500 in stock

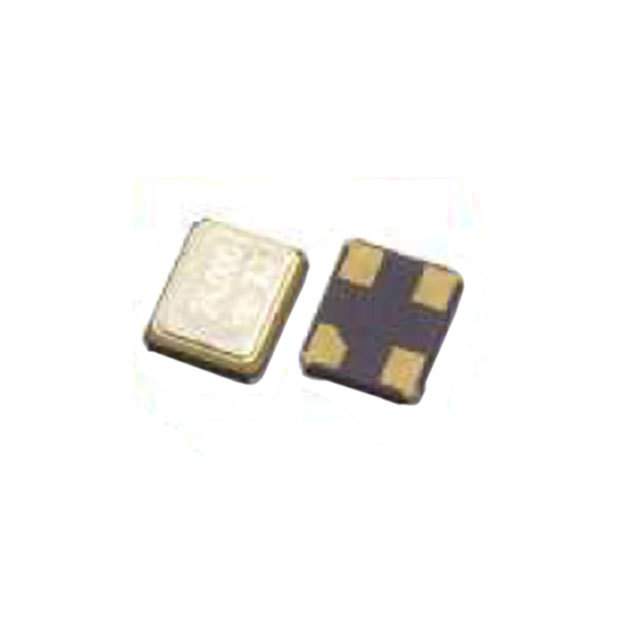

XYABBCNANF-24.576000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XY
Part Status : Active
Type : MHz Crystal
Frequency : 24.576MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.100" L x 0.081" W (2.55mm x 2.05mm)
Height - Seated (Max) : 0.022" (0.55mm)

3000 in stock

XYABBCNANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XY
Part Status : Active
Type : MHz Crystal
Frequency : 26MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 8pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.100" L x 0.081" W (2.55mm x 2.05mm)
Height - Seated (Max) : 0.022" (0.55mm)

2958 in stock
