Taitien

- Taitien is a leading global manufacturer of frequency control products and offers a wide range of quartz crystals, oscillators, VCXOs, TCXOs, OCXOs, precision crystals, and thickness monitor crystals. The company is ISO 9001 and TS 16949 certified, with design and application engineering resources in Taiwan, China, and The United States.

Taitien was founded in 1976, as one of the original manufacturers of the tuning fork. In the early 1990s, Taitien became a primary VCXO supplier for major telecommunication companies. In the following years, Taitien invested significant resources into R&D, becoming one of the leading producers of surface mount oscillators with CMOS and LVPECL outputs. To this day, Taitien continues to operate as a top tier manufacturer in the FCP industry, offering leading edge solutions to its customers worldwide.


Part Number

Manufacturer

Description

Unit Price

In Stock

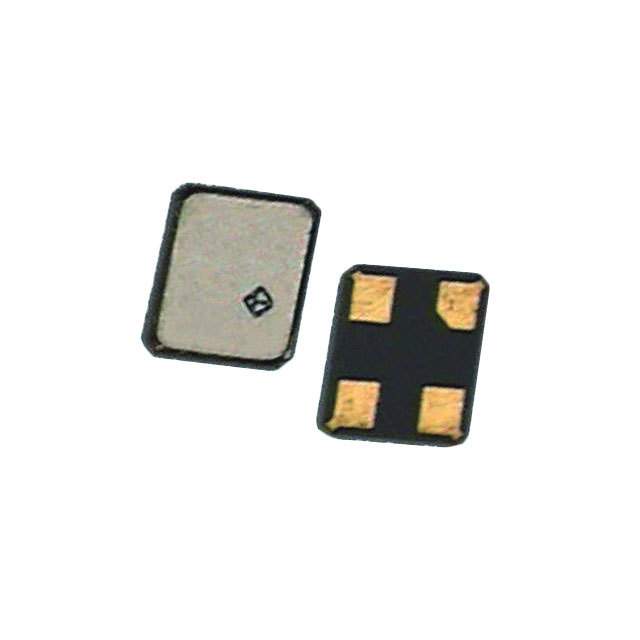

X3LEELNANF-27.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : X3
Part Status : Active
Type : MHz Crystal
Frequency : 27MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : 150 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) : 0.018" (0.45mm)

3000 in stock

X3LEELNANF-27.120000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : X3
Part Status : Active
Type : MHz Crystal
Frequency : 27.12MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : 150 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) : 0.018" (0.45mm)

3000 in stock

X3LEELNANF-30.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : X3
Part Status : Active
Type : MHz Crystal
Frequency : 30MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : 150 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) : 0.018" (0.45mm)

2996 in stock

X3LEELNANF-32.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : X3
Part Status : Active
Type : MHz Crystal
Frequency : 32MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : 150 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) : 0.018" (0.45mm)

2990 in stock

X3LEELNANF-38.400000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : X3
Part Status : Active
Type : MHz Crystal
Frequency : 38.4MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : 150 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) : 0.018" (0.45mm)

3000 in stock

X3LEELNANF-40.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : X3
Part Status : Active
Type : MHz Crystal
Frequency : 40MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : 150 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) : 0.018" (0.45mm)

3000 in stock

X3LEELNANF-48.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : X3
Part Status : Active
Type : MHz Crystal
Frequency : 48MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) : 0.018" (0.45mm)

3000 in stock

X3LEELNANF-50.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : X3
Part Status : Active
Type : MHz Crystal
Frequency : 50MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 6pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) : 0.018" (0.45mm)

2798 in stock

XXBBBCNANF-16.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 9pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

11970 in stock

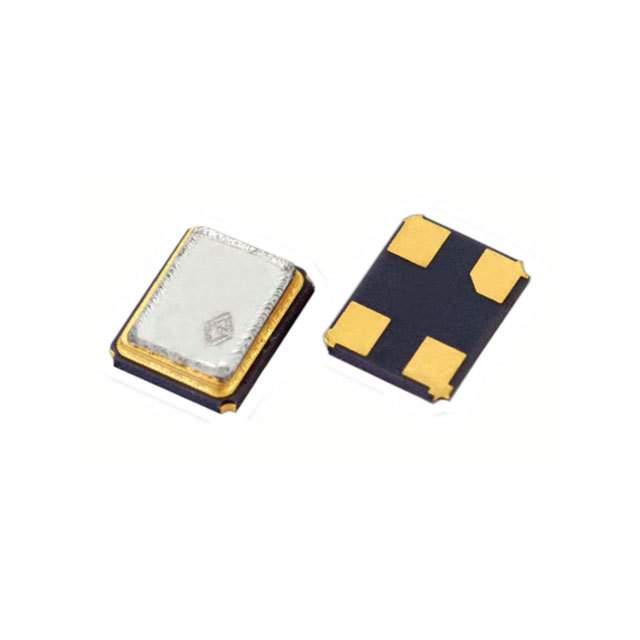

XXBBBCNANF-26.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 26MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 9pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

5947 in stock

XXCBBCNANF-24.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±10ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

485 in stock

XXCBPLNANF-25.000000

Taitien

Manufacturer : Taitien
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XX
Part Status : Active
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±15ppm
Frequency Tolerance : ±10ppm
Load Capacitance : 10pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.035" (0.90mm)

64 in stock
