SMC Diode Solutions
- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.
SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.
SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.
Part Number
Manufacturer
Description
Unit Price
In Stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : -
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 35mA
Voltage - On State (Vtm) (Max) : 1.55V
Current - On State (It (AV)) (Max) : -
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 75mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 460A @ 50Hz
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220B
0
100 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 5V (Max)
Voltage - Breakdown (Min) : 6V
Voltage - Clamping (Max) @ Ipp : 9.8V
Current - Peak Pulse (10/1000µs) : 1A (8/20µs)
Power - Peak Pulse : 300W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 600pF @ 1MHz
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount

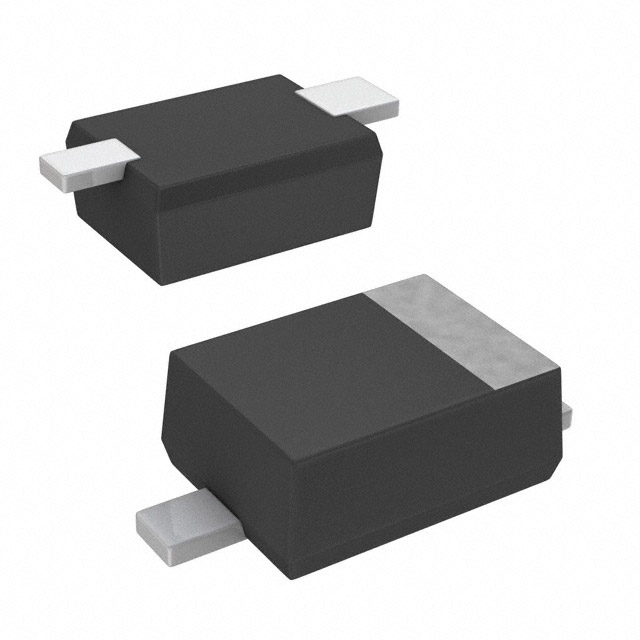

Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
0
7839 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 15V (Max)
Voltage - Breakdown (Min) : 16.7V
Voltage - Clamping (Max) @ Ipp : 24V
Current - Peak Pulse (10/1000µs) : 1A (8/20µs)
Power - Peak Pulse : 300W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 140pF @ 1MHz
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
0
1160 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 1
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 24V (Max)
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 43V
Current - Peak Pulse (10/1000µs) : 1A
Power - Peak Pulse : 300W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 90pF @ 1MHz
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount

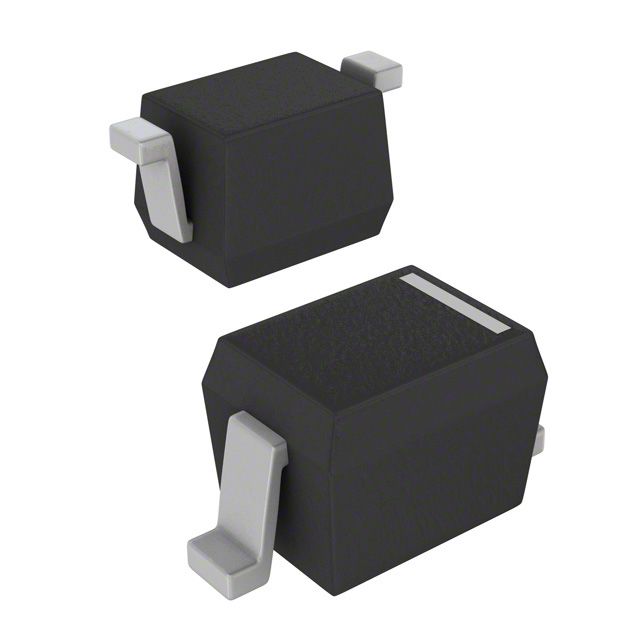

Package / Case : SC-76, SOD-323
Supplier Device Package : SOD-323
0
2950 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 5A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 9µA @ 600V
Capacitance @ Vr, F : 50pF @ 4V, 1MHz
Mounting Type : Surface Mount

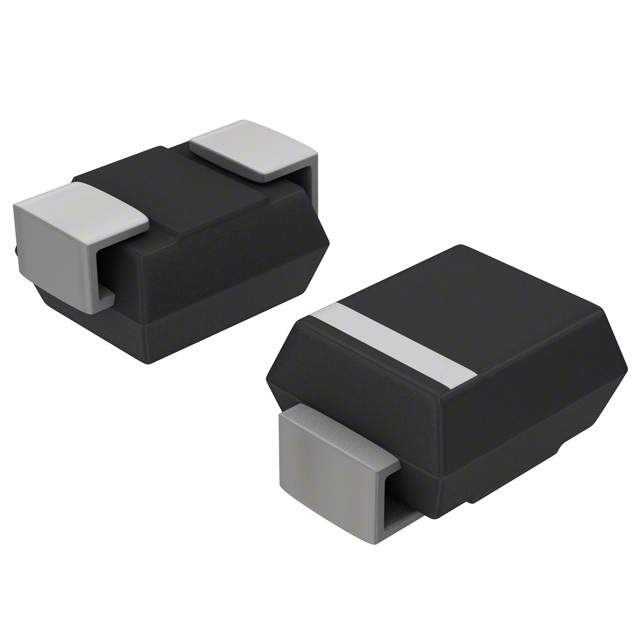

Package / Case : DO-214AA, SMB
Supplier Device Package : SMB
Operating Temperature - Junction : -65°C ~ 175°C
0
154481 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 750mV @ 5A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 60V
Capacitance @ Vr, F : 550pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : SMC
Operating Temperature - Junction : -55°C ~ 125°C
0
3890 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 6A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 6A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount

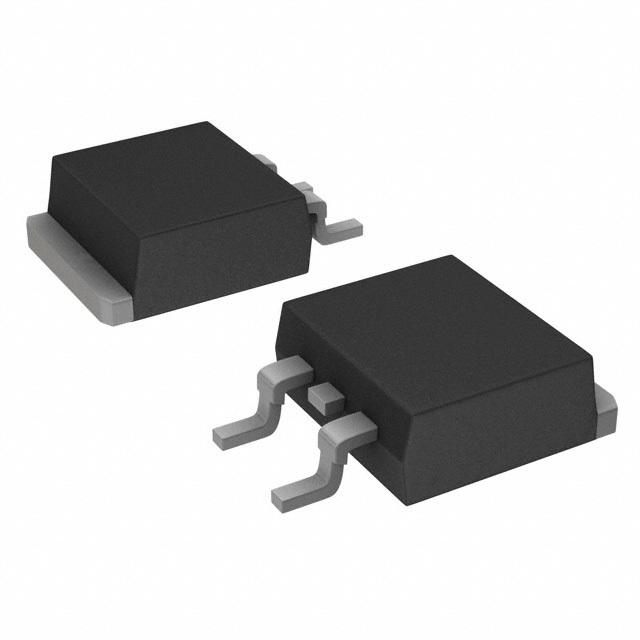

Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Operating Temperature - Junction : -55°C ~ 150°C
0
2494 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 1.15V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 15µA @ 200V
Capacitance @ Vr, F : 60pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 150°C
0
1000 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 975mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 10µA @ 200V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole

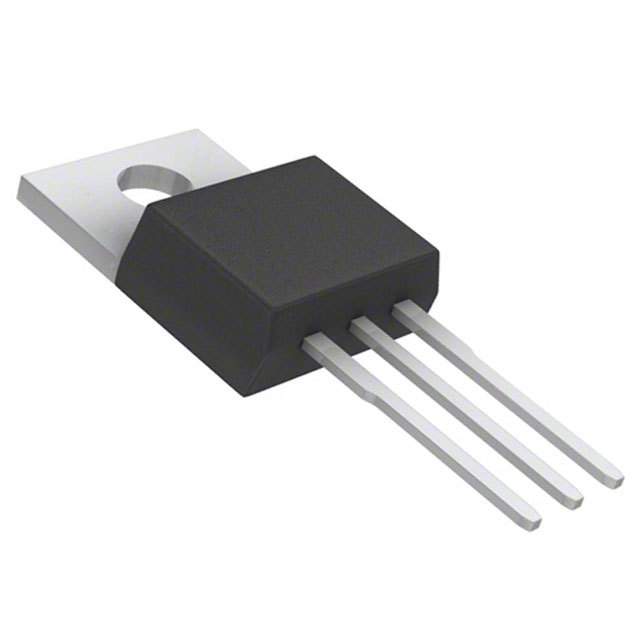

Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
990 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 30µA @ 300V
Capacitance @ Vr, F : -
Mounting Type : Through Hole

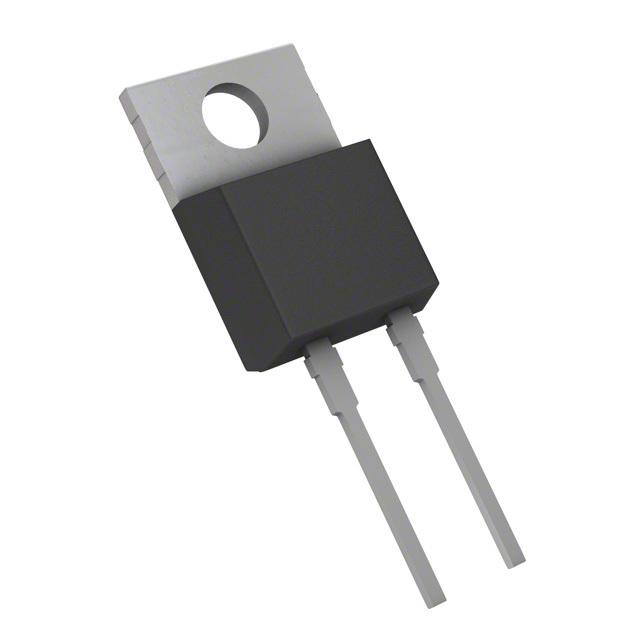

Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 150°C
0
950 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : -
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 45ns
Current - Reverse Leakage @ Vr : 30µA @ 300V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
1000 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 45ns
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 150°C
0
997 in stock
