SMC Diode Solutions
- Sangdest Microelectronic (Nanjing) Co., Ltd (SMC) was founded in 1997. SMC's products (formerly sold under the Sensitron Semiconductor brand name) are sold for a variety of applications in the commercial market including LCD displays, telecom equipment, power supplies, industrial, and aircraft industries which have demanding reliability and quality requirements.
SMC manufactures and designs their own products which are widely accepted in both domestic and international markets. SMC follows rigorous qualification standards from large aerospace, communication, and consumer electronics suppliers that are known world-wide for both their superior products and within the industry for their exceptionally demanding supplier qualification teams. SMC is ISO9001, ISO14001 and TS16949 qualified.
SMC's staff is dedicated to consistently meeting our customer's high expectations by delivering quality products with on-time delivery. Please challenge our team to meet your unique requirements.
Part Number
Manufacturer
Description
Unit Price
In Stock

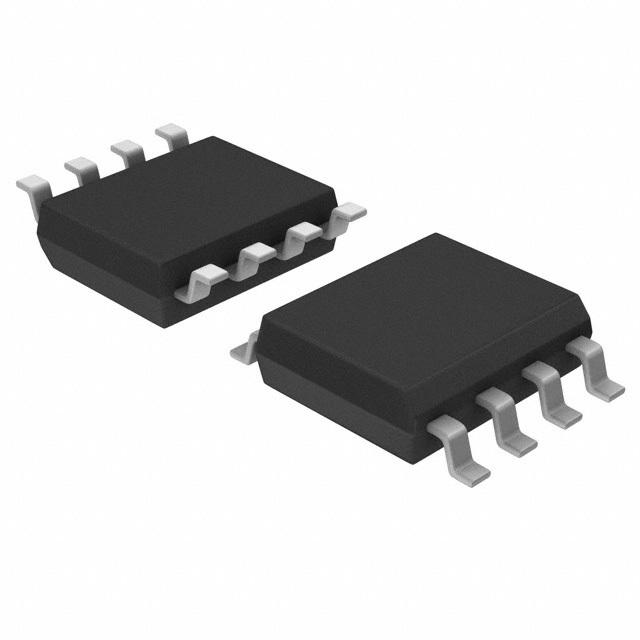

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : 2
Bidirectional Channels : -
Voltage - Reverse Standoff (Typ) : 24V (Max)
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 44V
Current - Peak Pulse (10/1000µs) : 1A
Power - Peak Pulse : 500W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 3pF @ 1MHz
Operating Temperature : -55°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2000 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 4
Voltage - Reverse Standoff (Typ) : 3.3V (Max)
Voltage - Breakdown (Min) : 4V
Voltage - Clamping (Max) @ Ipp : 8V
Current - Peak Pulse (10/1000µs) : 1A
Power - Peak Pulse : 500W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 5pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2500 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 4
Voltage - Reverse Standoff (Typ) : 12V (Max)
Voltage - Breakdown (Min) : 13.3V
Voltage - Clamping (Max) @ Ipp : 19V
Current - Peak Pulse (10/1000µs) : 1A
Power - Peak Pulse : 500W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 5pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2500 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Zener
Unidirectional Channels : -
Bidirectional Channels : 4
Voltage - Reverse Standoff (Typ) : 24V (Max)
Voltage - Breakdown (Min) : 26.7V
Voltage - Clamping (Max) @ Ipp : 43V
Current - Peak Pulse (10/1000µs) : 1A
Power - Peak Pulse : 500W
Power Line Protection : No
Applications : General Purpose
Capacitance @ Frequency : 5pF @ 1MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2500 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.05V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 150V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : DO-201AD, Axial
Supplier Device Package : DO-201AD
Operating Temperature - Junction : -50°C ~ 150°C
0
16749 in stock

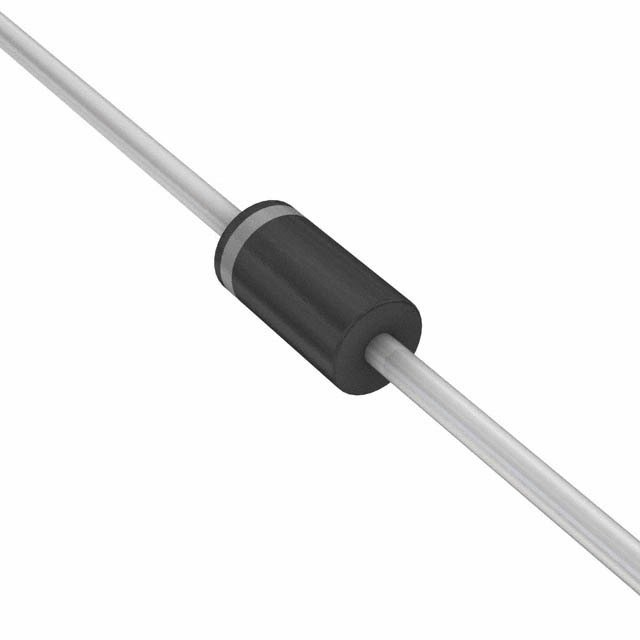

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 110pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 125°C
0
3794 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : 80pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 125°C
0
3289 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 850mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : 140pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
Operating Temperature - Junction : -55°C ~ 150°C
0
2557 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : -
Voltage - Forward (Vf) (Max) @ If : 880mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 150V
Capacitance @ Vr, F : 140pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
Operating Temperature - Junction : -55°C ~ 150°C
0
2261 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 30V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 30V
Capacitance @ Vr, F : 170pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AL, DO-41, Axial
Supplier Device Package : DO-41
Operating Temperature - Junction : -65°C ~ 150°C
0
2942 in stock
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 40V
Capacitance @ Vr, F : 170pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
Operating Temperature - Junction : -65°C ~ 150°C
0
12875 in stock

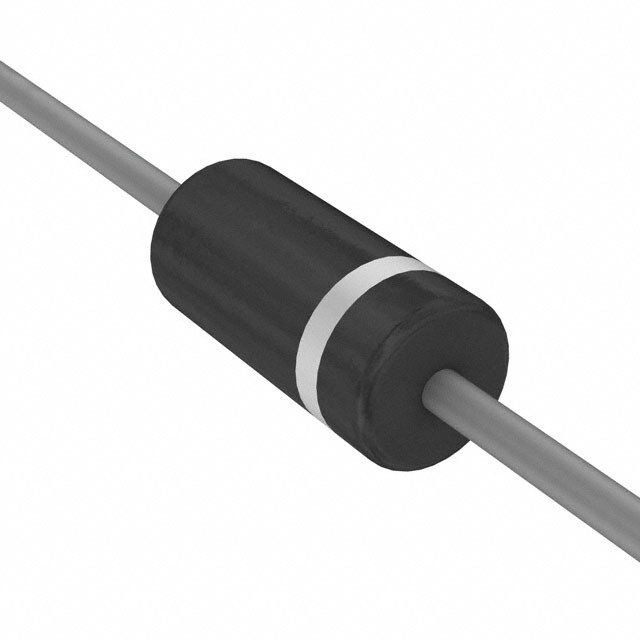

SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 2A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 60V
Capacitance @ Vr, F : 140pF @ 4V, 1MHz
Mounting Type : Through Hole
Package / Case : DO-204AC, DO-15, Axial
Supplier Device Package : DO-15
Operating Temperature - Junction : -65°C ~ 150°C
0
126 in stock
