Rubycon

- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.

Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.

Rubycon: Quality / Reliability / Innovation

Part Number
Manufacturer
Description
Unit Price
In Stock

25MU105MA23216  25MU105MA23216

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 1µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
319 in stock

25MU106MD15750  25MU106MD15750

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 2220 (5750 Metric)
Size / Dimension : 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
100 in stock

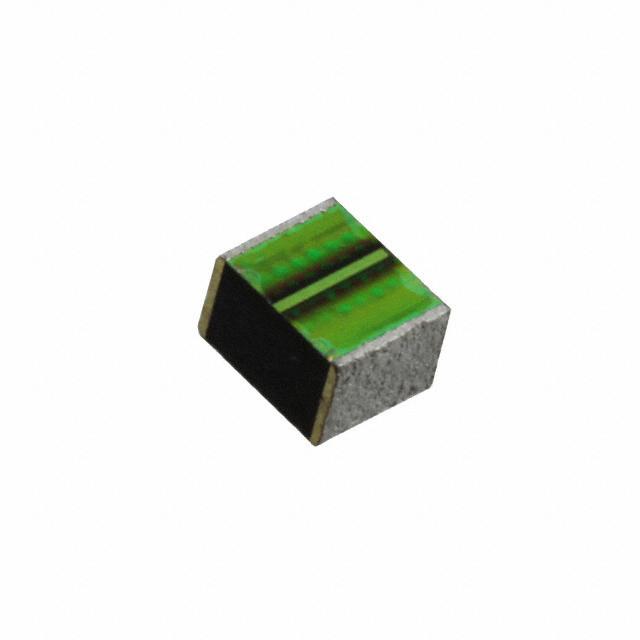

25MU155MB33225  25MU155MB33225

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 1.5µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.087" (2.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
53 in stock

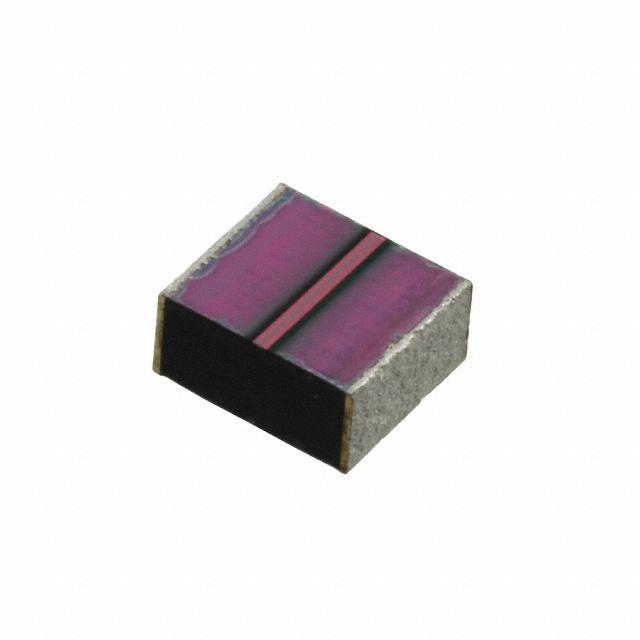

25MU156MD35750  25MU156MD35750

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 15µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 2220 (5750 Metric)
Size / Dimension : 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) : 0.110" (2.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
100 in stock

25MU225MB23225  25MU225MB23225

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 2.2µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
8 in stock

25MU335MC14532  25MU335MC14532

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 3.3µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
10 in stock

25MU475MC24532  25MU475MC24532

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
134 in stock

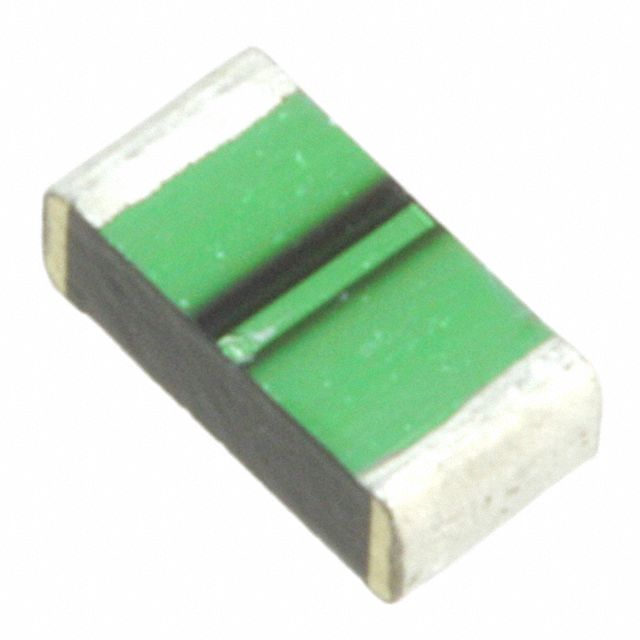

25MU684MA23216  25MU684MA23216

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
200 in stock

25MU685MC44532  25MU685MC44532

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 6.8µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 25V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.110" (2.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
23 in stock

25PEV100M6.3X8  25PEV100M6.3X8

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
11 in stock

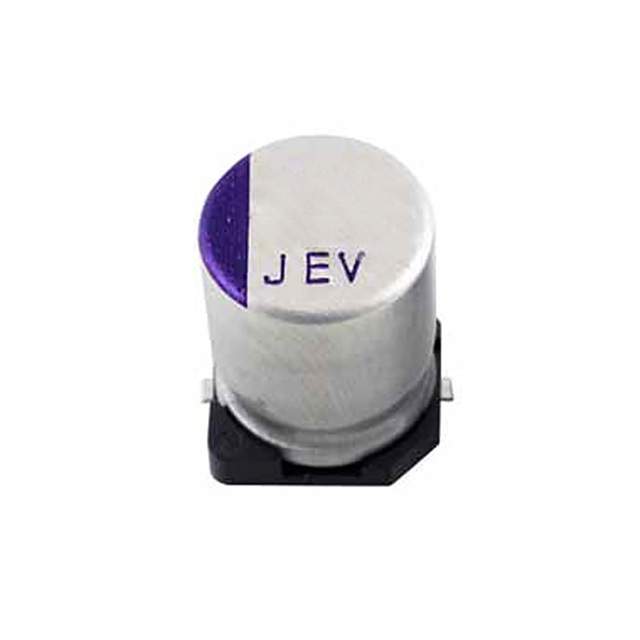

25PEV220M8X10.5  25PEV220M8X10.5

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 27 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 115mA @ 120Hz
Ripple Current @ High Frequency : 2.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1986 in stock

25PEV330M10X10.5  25PEV330M10X10.5

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 125mA @ 120Hz
Ripple Current @ High Frequency : 2.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
900 in stock
