Rubycon
- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.
Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.
Rubycon: Quality / Reliability / Innovation
Part Number
Manufacturer
Description
Unit Price
In Stock

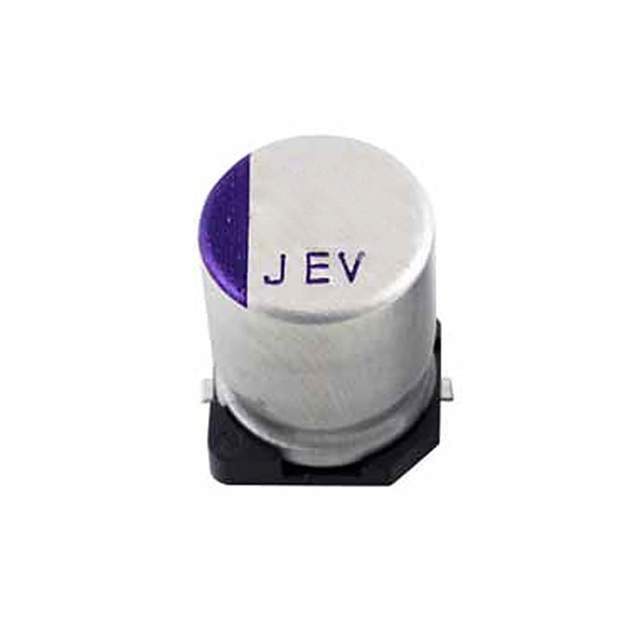

25PEV56M6.3X6.1
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1935 in stock

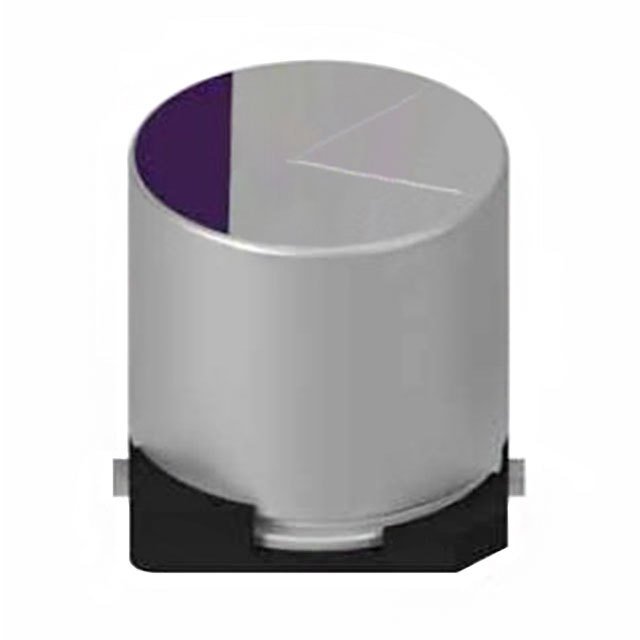

25PFV100M6.3X8
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1228 in stock

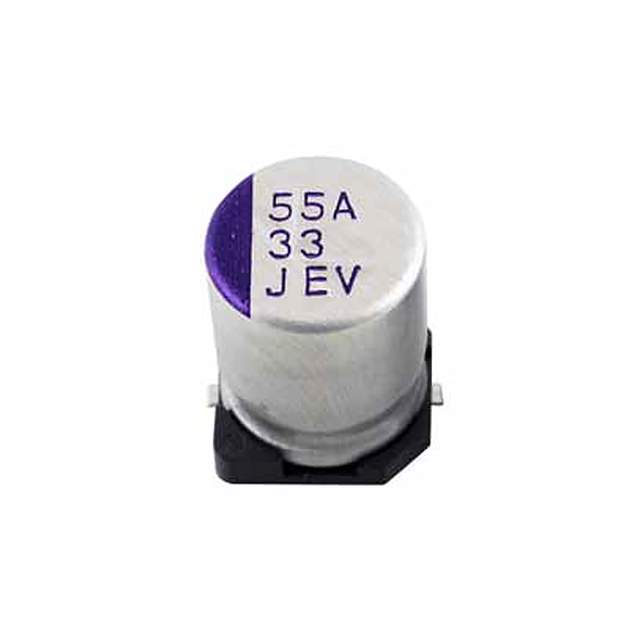

25PFV220M8X10.5
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 27 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 80mA @ 120Hz
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 27 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 80mA @ 120Hz
Ripple Current @ High Frequency : 1.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
299 in stock
25PFV330M10X10.5
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 100mA @ 120Hz
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 100mA @ 120Hz
Ripple Current @ High Frequency : 2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
1543 in stock
25PFV56M6.3X6.1
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : -
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
4880 in stock
25PHV100M6.3X8
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PHV
Part Status : Active
Type : Hybrid
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 2000 Hrs @ 135°C
Operating Temperature : -55°C ~ 135°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 110mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PHV
Part Status : Active
Type : Hybrid
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 30 mOhm
Lifetime @ Temp. : 2000 Hrs @ 135°C
Operating Temperature : -55°C ~ 135°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 110mA @ 120Hz
Ripple Current @ High Frequency : 2.2A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.315" (8.00mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock
25PHV220M8X10.5
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PHV
Part Status : Active
Type : Hybrid
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 22 mOhm
Lifetime @ Temp. : 4000 Hrs @ 135°C
Operating Temperature : -55°C ~ 135°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 145mA @ 120Hz
Ripple Current @ High Frequency : 2.9A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PHV
Part Status : Active
Type : Hybrid
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 22 mOhm
Lifetime @ Temp. : 4000 Hrs @ 135°C
Operating Temperature : -55°C ~ 135°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 145mA @ 120Hz
Ripple Current @ High Frequency : 2.9A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock
25PHV330M10X10.5
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PHV
Part Status : Active
Type : Hybrid
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 4000 Hrs @ 135°C
Operating Temperature : -55°C ~ 135°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 180mA @ 120Hz
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PHV
Part Status : Active
Type : Hybrid
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 4000 Hrs @ 135°C
Operating Temperature : -55°C ~ 135°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 180mA @ 120Hz
Ripple Current @ High Frequency : 3.6A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock
25PHV56M6.3X6.1
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PHV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 2000 Hrs @ 135°C
Operating Temperature : -55°C ~ 135°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 70mA @ 120Hz
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PHV
Part Status : Active
Type : Hybrid
Capacitance : 56µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 50 mOhm
Lifetime @ Temp. : 2000 Hrs @ 135°C
Operating Temperature : -55°C ~ 135°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 70mA @ 120Hz
Ripple Current @ High Frequency : 1.4A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.240" (6.10mm)
Surface Mount Land Size : 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock
25PJV270M8X10.5
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PJV
Part Status : Active
Type : Hybrid
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 96mA @ 120Hz
Ripple Current @ High Frequency : 1.92A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PJV
Part Status : Active
Type : Hybrid
Capacitance : 270µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 25 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 96mA @ 120Hz
Ripple Current @ High Frequency : 1.92A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock
25PJV470M10X10.5
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PJV
Part Status : Active
Type : Hybrid
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 140mA @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PJV
Part Status : Active
Type : Hybrid
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : 20 mOhm
Lifetime @ Temp. : 4000 Hrs @ 125°C
Operating Temperature : -55°C ~ 125°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 140mA @ 120Hz
Ripple Current @ High Frequency : 2.8A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD
0
100 in stock

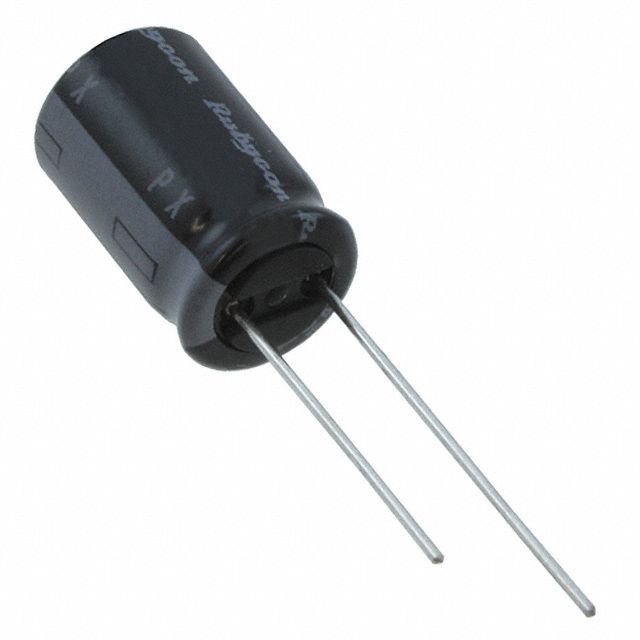

25PX1000MEFCT810X16
Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PX
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 740mA @ 120Hz
Ripple Current @ High Frequency : 888mA @ 10kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.689" (17.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PX
Part Status : Active
Capacitance : 1000µF
Tolerance : ±20%
Voltage - Rated : 25V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 740mA @ 120Hz
Ripple Current @ High Frequency : 888mA @ 10kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.689" (17.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
45556 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
