Rubycon

- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.

Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.

Rubycon: Quality / Reliability / Innovation


Part Number

Manufacturer

Description

Unit Price

In Stock

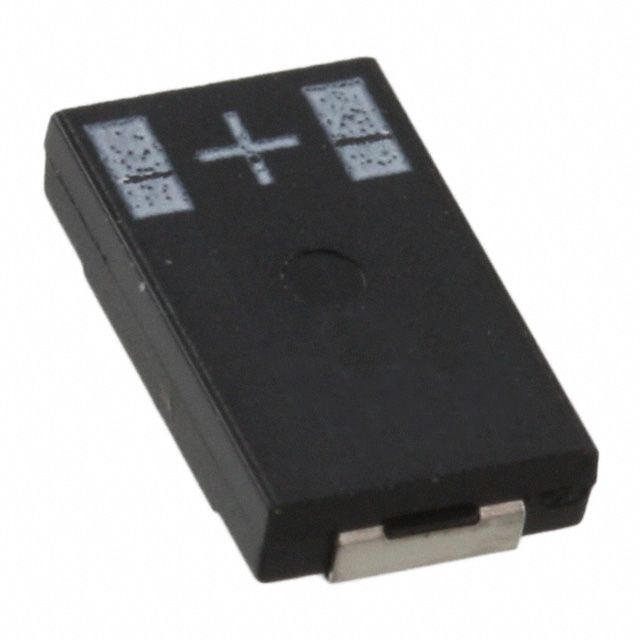

2SZE100M

Rubycon

Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SZE
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.055" (1.40mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)

100 in stock

2SZE150M

Rubycon

Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SZE
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.055" (1.40mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)

100 in stock

35MU105MB13225

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 1µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

412 in stock

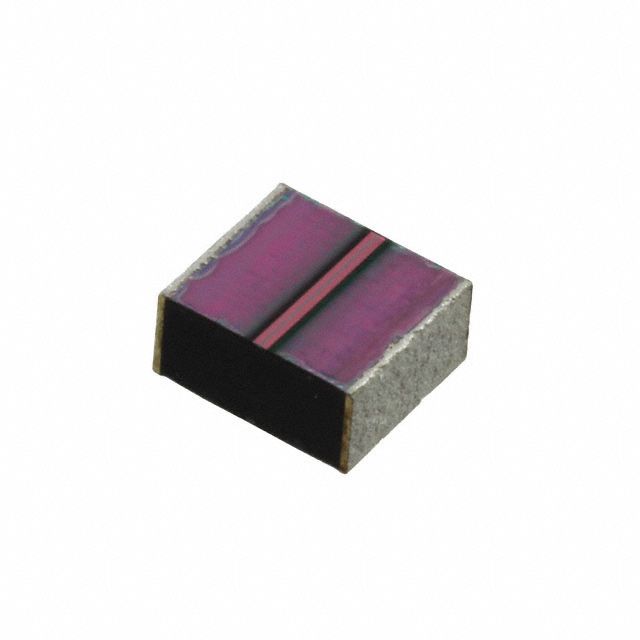

35MU106MD35750

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 10µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 2220 (5750 Metric)
Size / Dimension : 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) : 0.110" (2.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

393 in stock

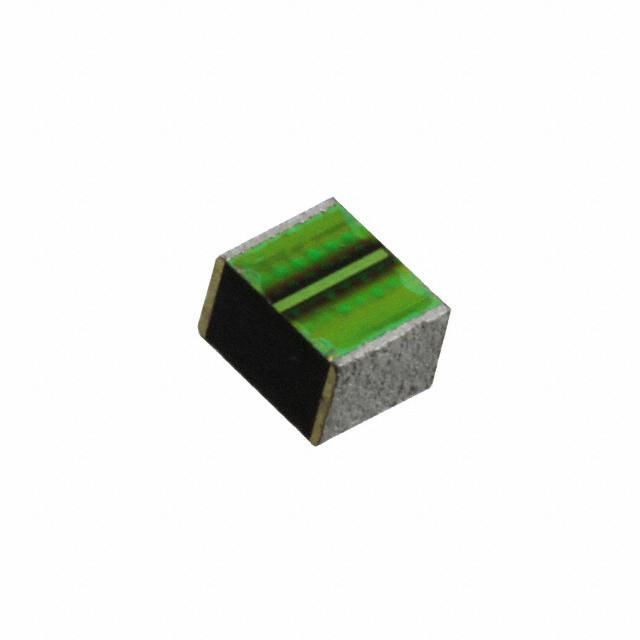

35MU155MB33225

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 1.5µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.087" (2.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

88 in stock

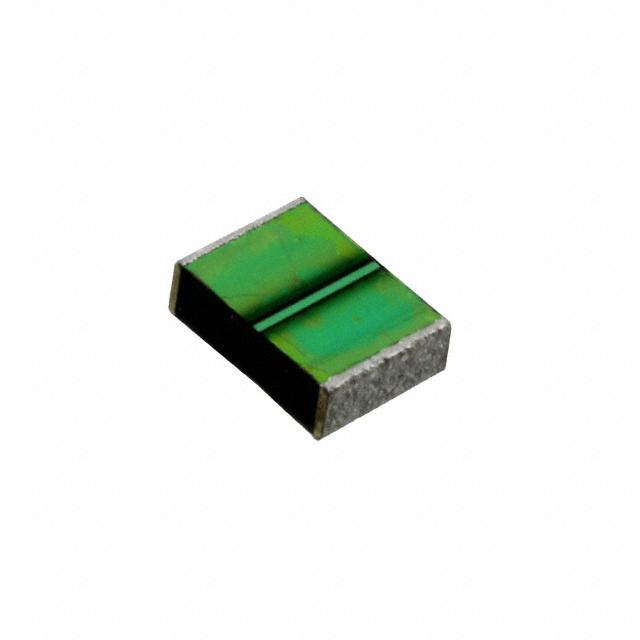

35MU225MC14532

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 2.2µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

60 in stock

35MU335MC24532

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 3.3µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

68 in stock

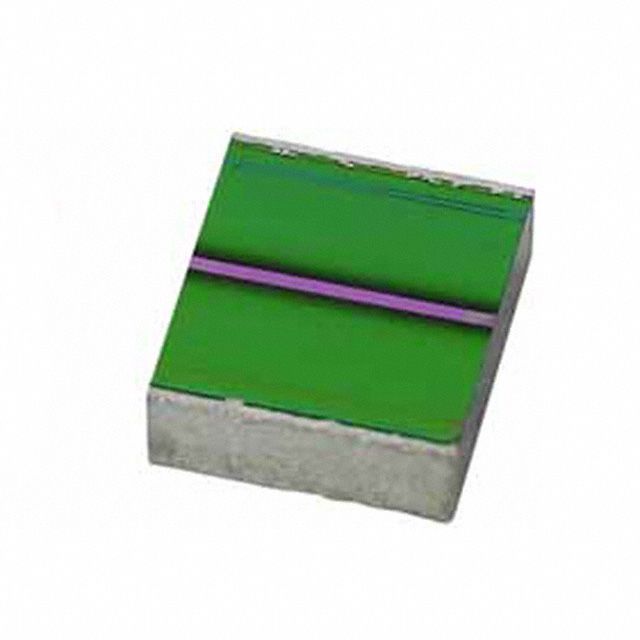

35MU473MZ22012

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) : 0.047" (1.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

243 in stock

35MU475MC44532

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 4.7µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.110" (2.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

100 in stock

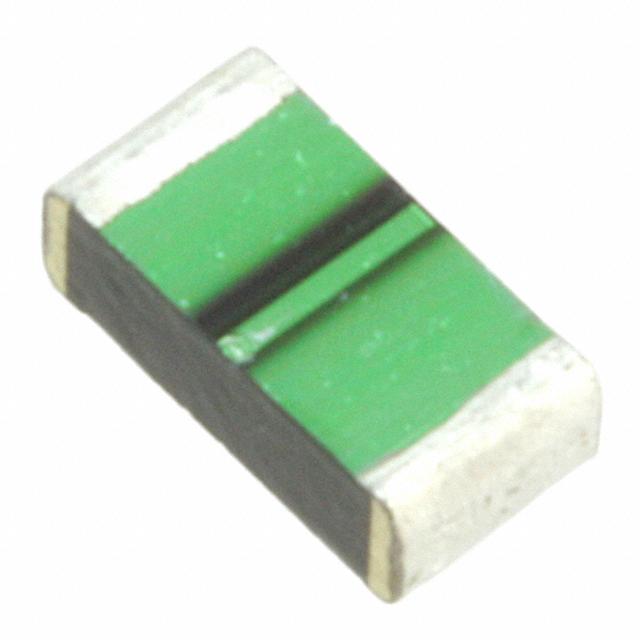

35MU684MA23216

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.68µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

215 in stock

35MU685MD15750

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 6.8µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 35V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 2220 (5750 Metric)
Size / Dimension : 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

48 in stock

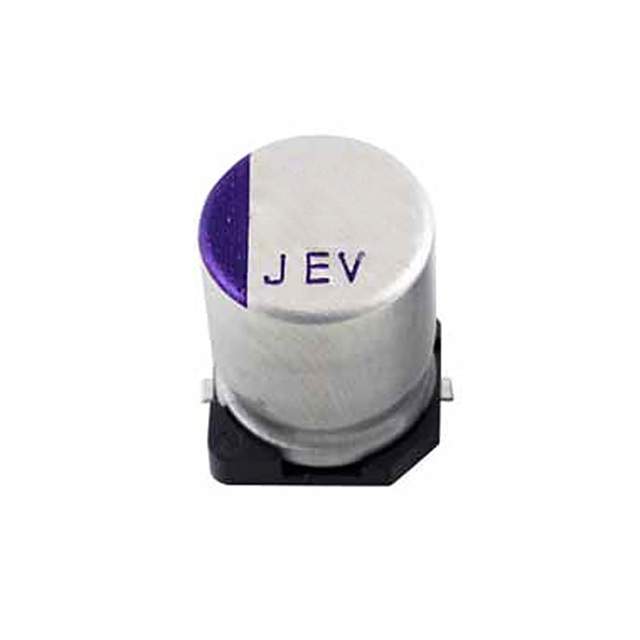

35PEV150M8X10.5

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PEV
Part Status : Active
Type : Hybrid
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 35V
ESR (Equivalent Series Resistance) : 27 mOhm
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : AEC-Q200
Applications : Automotive
Ripple Current @ Low Frequency : 115mA @ 120Hz
Ripple Current @ High Frequency : 2.3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.413" (10.50mm)
Surface Mount Land Size : 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type : Surface Mount
Package / Case : Radial, Can - SMD

100 in stock
