- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.
Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.
Rubycon: Quality / Reliability / Innovation
Part Number
Manufacturer
Description
Unit Price
In Stock

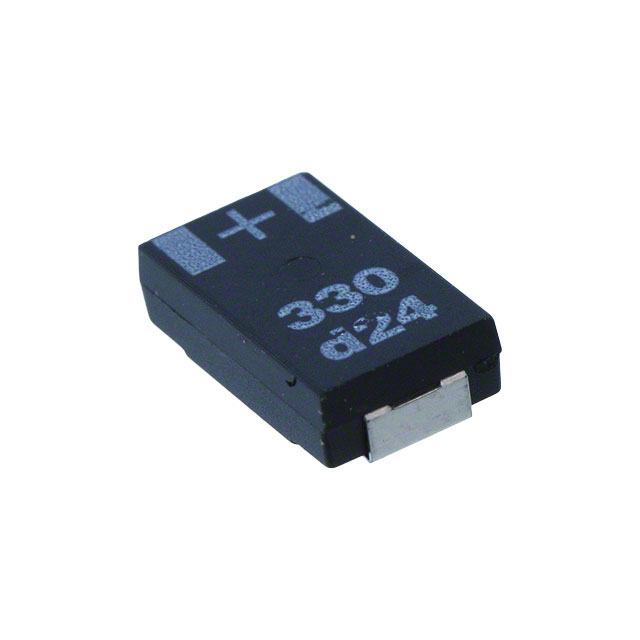

2SWZ330MR05
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SWZ
Part Status : Obsolete
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 4.5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SWZ
Part Status : Obsolete
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 4.5 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

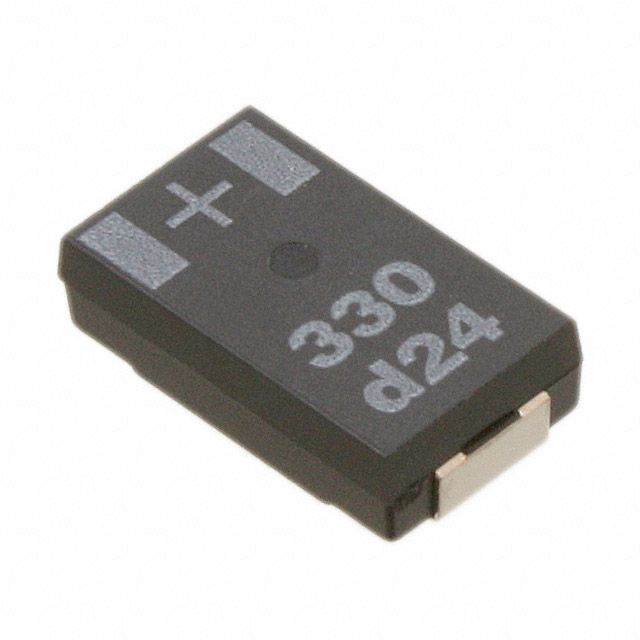

2SWZ330MR06
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SWZ
Part Status : Obsolete
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 6 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SWZ
Part Status : Obsolete
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 6 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3.5A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

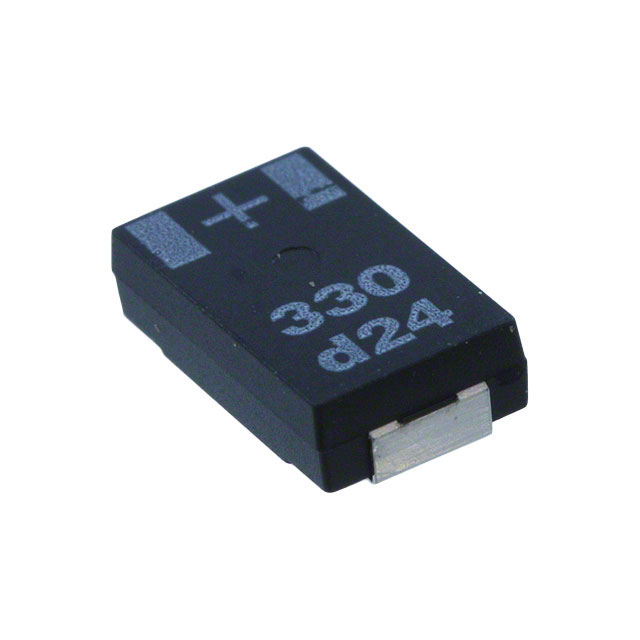

2SWZ330MR09
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SWZ
Part Status : Obsolete
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SWZ
Part Status : Obsolete
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

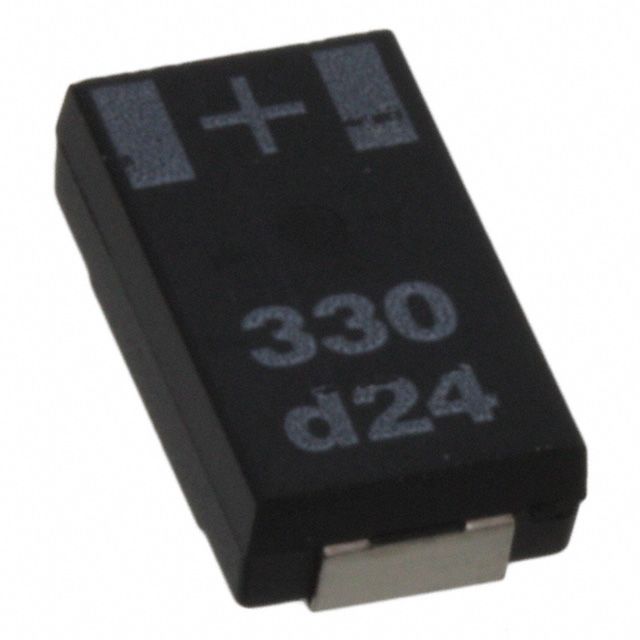

2SWZ330MR15
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SWZ
Part Status : Obsolete
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.7A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SWZ
Part Status : Obsolete
Type : Polymer
Capacitance : 330µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 15 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 2.7A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

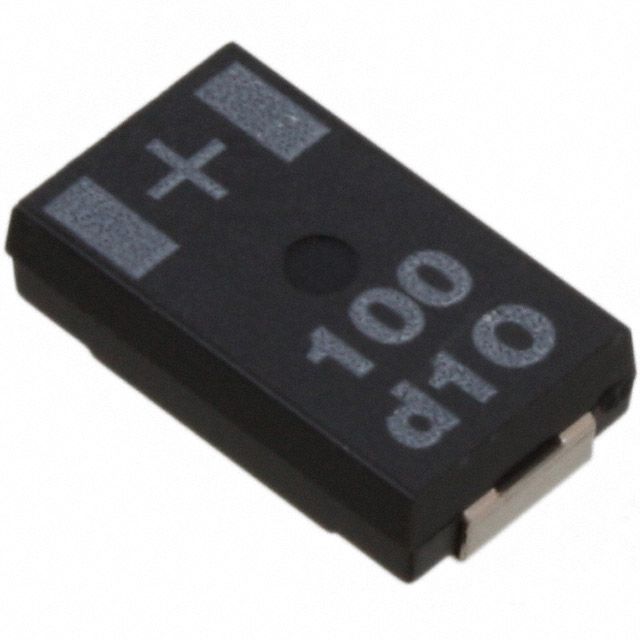

2SXB100M
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXB
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SXB
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

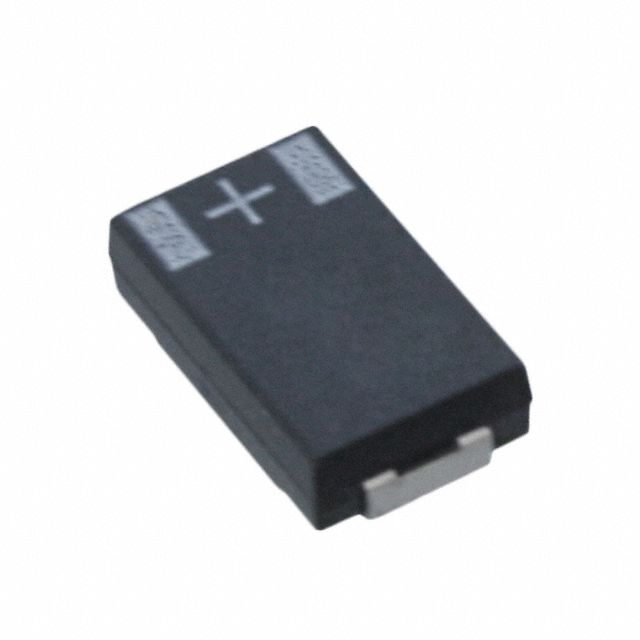

2SXB150M
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXB
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SXB
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

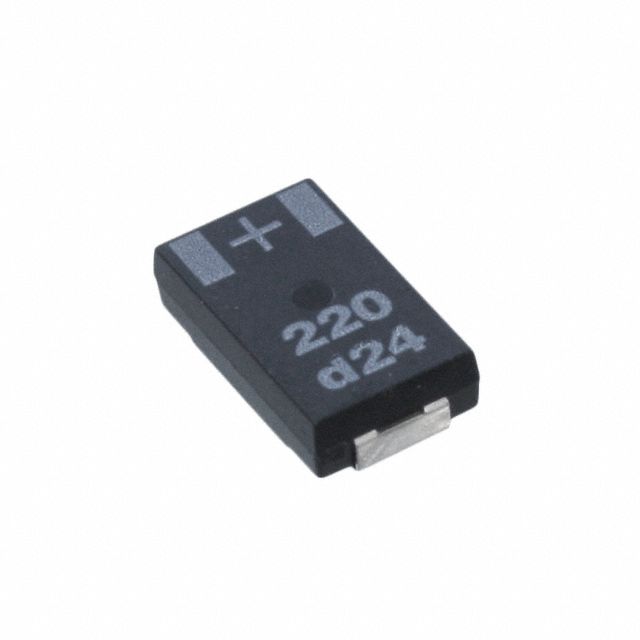

2SXB220M
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXB
Part Status : Obsolete
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SXB
Part Status : Obsolete
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 13 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

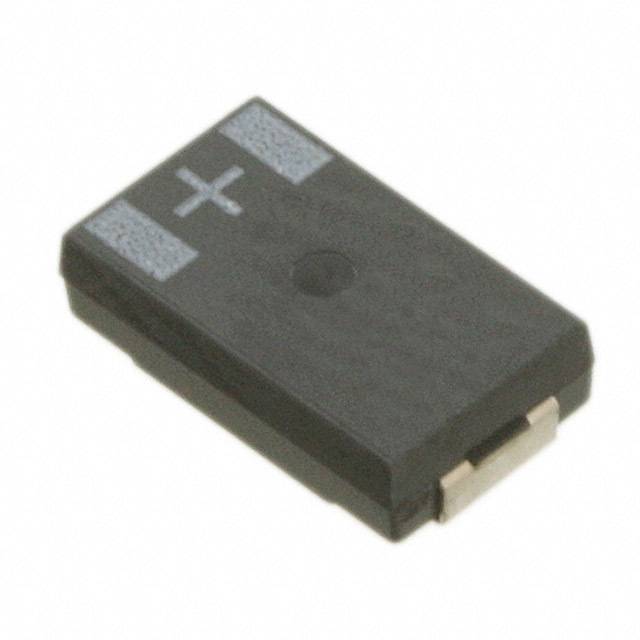

2SXE100M
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
2SXE150M
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 150µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

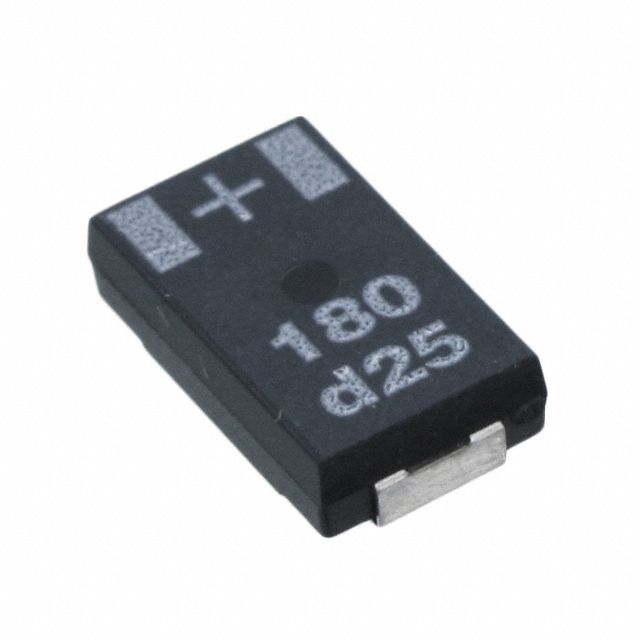

2SXE180M
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 180µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock

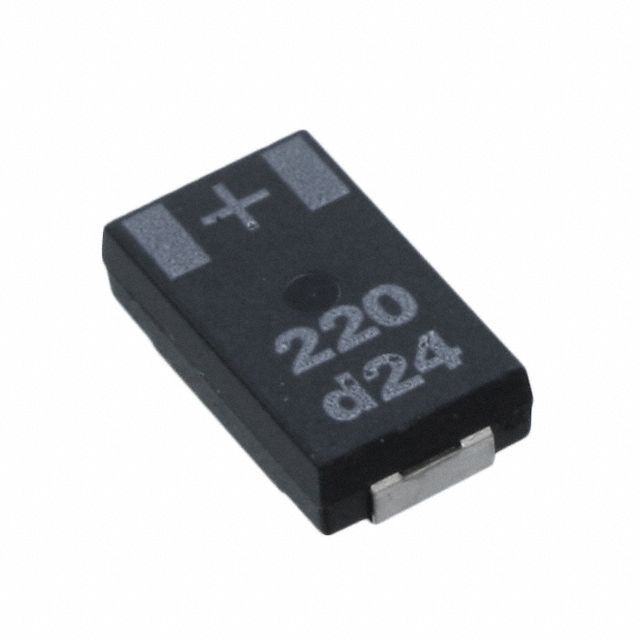

2SXE220M
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 9 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
2SXE220MR07
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 7 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
Packaging : Tape & Reel (TR)
Series : PC-CON, SXE
Part Status : Obsolete
Type : Polymer
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 2V
ESR (Equivalent Series Resistance) : 7 mOhm
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : -
Ripple Current @ High Frequency : 3A @ 100kHz
Impedance : -
Lead Spacing : -
Size / Dimension : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) : 0.075" (1.90mm)
Surface Mount Land Size : 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type : Surface Mount
Package / Case : 2917 (7343 Metric)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Eruic
- krics@eruic.com
- krics@eruic.com
- Room 25i, Block A, Duhui 100 Building, Zhonghang Road, Huaqiang North Street, Futian District, Shenzhen, Guangdong
Customer service
Copyright © 2025 Eruic. All rights reserved.
web.ui.design.webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
