Rubycon

- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.

Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.

Rubycon: Quality / Reliability / Innovation


Part Number

Manufacturer

Description

Unit Price

In Stock

100MU104MB23225

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.1µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

300 in stock

100MU223MA13216

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.022µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.047" (1.20mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

50 in stock

100MU473MA23216

Rubycon

Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PMLCAP®, MU
Part Status : Active
Capacitance : 0.047µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.063" (1.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

75 in stock

100ST104MB23225

Rubycon

Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 0.1µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.071" (1.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

400 in stock

100ST223MA13216

Rubycon

Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 0.022µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.039" (1.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

100 in stock

100ST473MA23216

Rubycon

Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 0.047µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 100V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 105°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.055" (1.40mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -

400 in stock

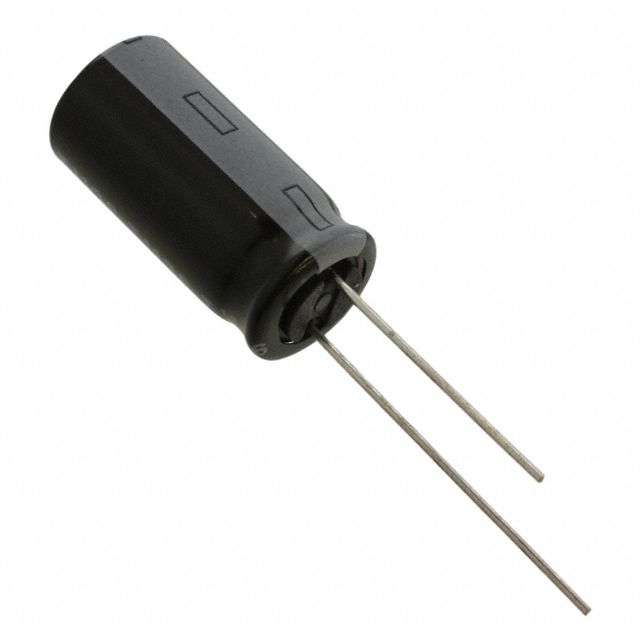

100ZLH100MEFC10X20

Rubycon

Manufacturer : Rubycon
Packaging : Bulk
Series : ZLH
Part Status : Active
Capacitance : 100µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 520mA @ 120Hz
Ripple Current @ High Frequency : 1.04A @ 100kHz
Impedance : 120 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.866" (22.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can

7700 in stock

100ZLH470MEFC16X31.5

Rubycon

Manufacturer : Rubycon
Packaging : Bulk
Series : ZLH
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.32A @ 120Hz
Ripple Current @ High Frequency : 2.4A @ 100kHz
Impedance : 33 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.319" (33.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can

3582 in stock

100ZLJ220M12.5X25

Rubycon

Manufacturer : Rubycon
Packaging : Bulk
Series : ZLJ
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.105A @ 120Hz
Ripple Current @ High Frequency : 2.21A @ 100kHz
Impedance : 47 mOhms
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.492" Dia (12.50mm)
Height - Seated (Max) : 1.063" (27.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can

11047 in stock

100ZLJ560M16X35.5

Rubycon

Manufacturer : Rubycon
Packaging : Bulk
Series : ZLJ
Part Status : Active
Capacitance : 560µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.573A @ 120Hz
Ripple Current @ High Frequency : 2.86A @ 100kHz
Impedance : 29 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.476" (37.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can

10094 in stock

100ZLJ820M18X40

Rubycon

Manufacturer : Rubycon
Packaging : Bulk
Series : ZLJ
Part Status : Active
Capacitance : 820µF
Tolerance : ±20%
Voltage - Rated : 100V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 10000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 2.316A @ 120Hz
Ripple Current @ High Frequency : 3.86A @ 100kHz
Impedance : 26 mOhms
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.709" Dia (18.00mm)
Height - Seated (Max) : 1.654" (42.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can

5746 in stock

10PX3300MEFC10X20

Rubycon

Manufacturer : Rubycon
Packaging : Bulk
Series : PX
Part Status : Active
Capacitance : 3300µF
Tolerance : ±20%
Voltage - Rated : 10V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 2000 Hrs @ 105°C
Operating Temperature : -55°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 1.1A @ 120Hz
Ripple Current @ High Frequency : 1.265A @ 10kHz
Impedance : -
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 0.846" (21.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can

46279 in stock
