Rubycon
- Tracing its roots back to 1952, Rubycon is one of the original pioneers in the aluminum capacitor market. With monthly production of up to 1 billion capacitors from over 8,000 product items, Rubycon ranks as one of the largest suppliers of miniature electrolytic capacitors. Large-scale production, vertical integration, and quality resulting from innovative technology are synonymous with the name Rubycon.
Rubycon is the North America subsidiary of Rubycon based in Gurnee, IL. Rubycon offers sales and engineering support including an independent rep network of over 100 agents throughout the region to support your needs.
Rubycon: Quality / Reliability / Innovation
Part Number
Manufacturer
Description
Unit Price
In Stock

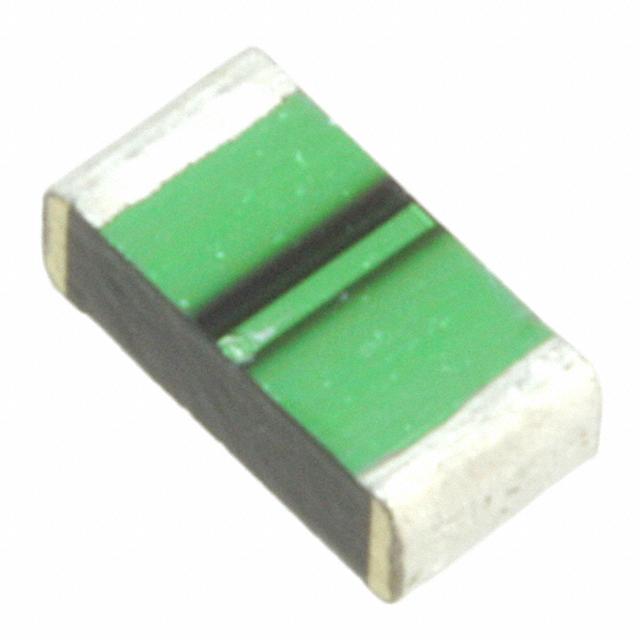

Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 1.5µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1206 (3216 Metric)
Size / Dimension : 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) : 0.055" (1.40mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
2200 in stock

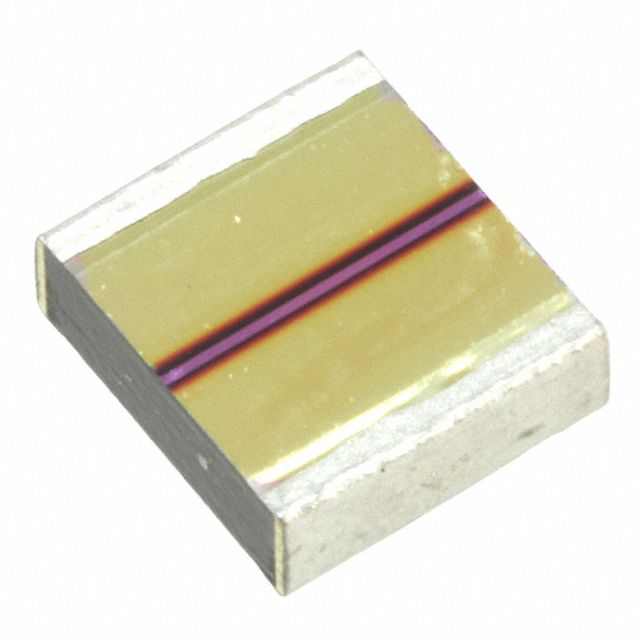

Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 15µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 2220 (5750 Metric)
Size / Dimension : 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) : 0.071" (1.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
100 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 2.2µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.071" (1.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
200 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 22µF
Tolerance : ±10%
Voltage Rating - AC : -
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 2220 (5750 Metric)
Size / Dimension : 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) : 0.110" (2.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
1000 in stock

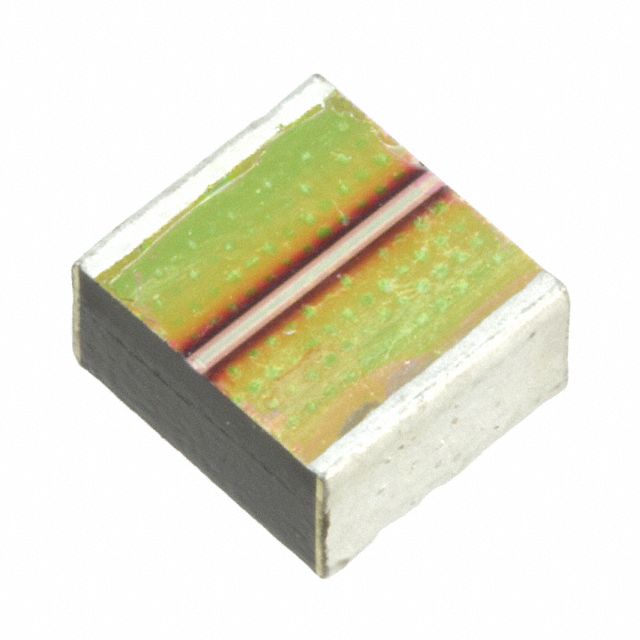

Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 22µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 2220 (5750 Metric)
Size / Dimension : 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) : 0.102" (2.60mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
3200 in stock

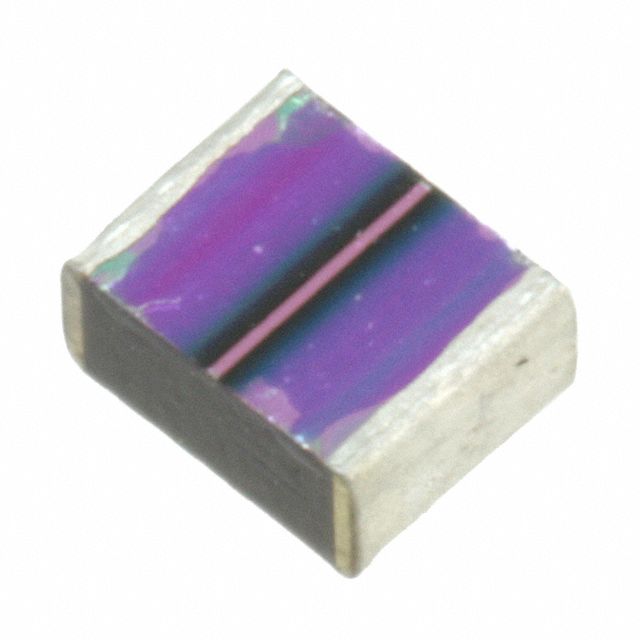

Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 3.3µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.079" (2.00mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
800 in stock

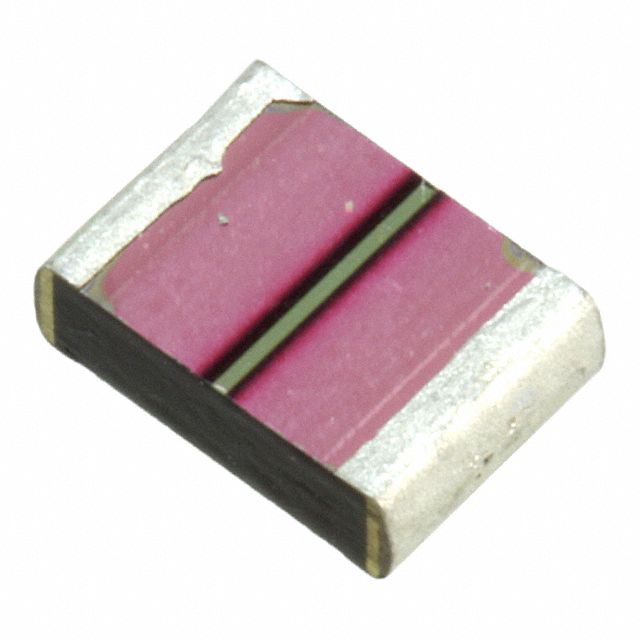

Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 4.7µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.055" (1.40mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
1600 in stock

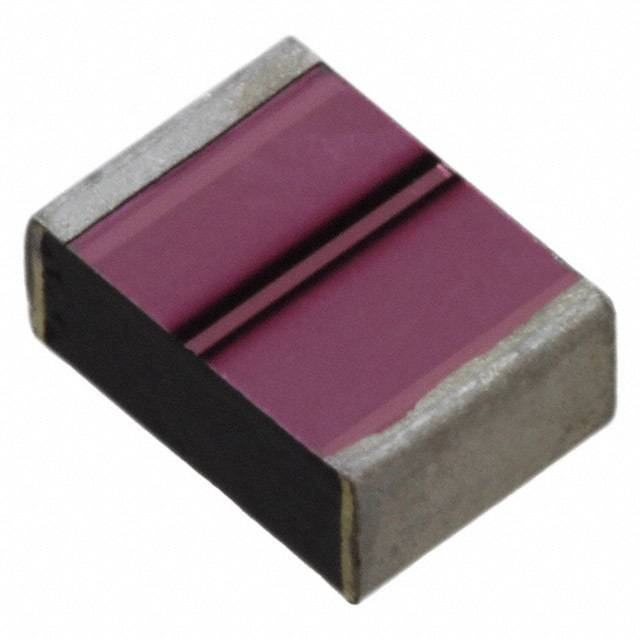

Rubycon
Manufacturer : Rubycon
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : PMLCAP®, ST
Part Status : Obsolete
Capacitance : 6.8µF
Tolerance : ±20%
Voltage Rating - AC : -
Voltage Rating - DC : 16V
Dielectric Material : Acrylic, Metallized
ESR (Equivalent Series Resistance) : -
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 1812 (4532 Metric)
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) : 0.071" (1.80mm)
Termination : Solder Pads
Lead Spacing : -
Applications : DC Link, DC Filtering
Ratings : -
Features : -
0
100 in stock

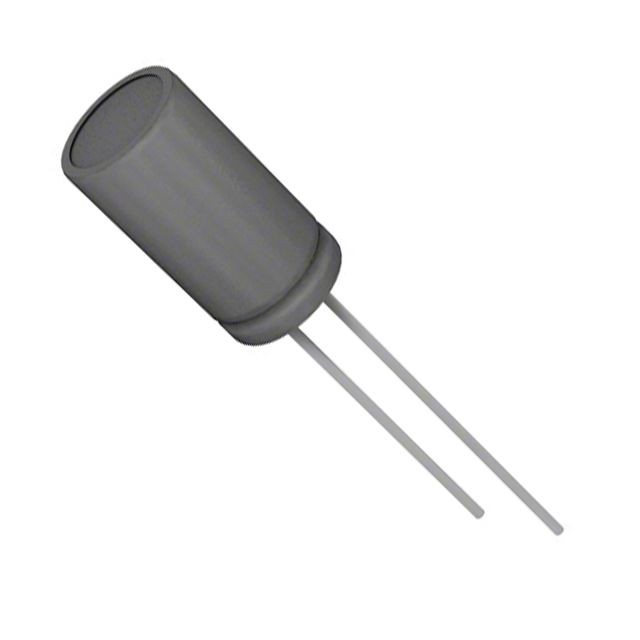

Rubycon
Manufacturer : Rubycon
Packaging : Cut Tape (CT)
Alternate Packaging
Series : YXJ
Part Status : Active
Capacitance : 220µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 7000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 280mA @ 120Hz
Ripple Current @ High Frequency : 400mA @ 100kHz
Impedance : 220 mOhms
Lead Spacing : 0.098" (2.50mm)
Size / Dimension : 0.248" Dia (6.30mm)
Height - Seated (Max) : 0.492" (12.50mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
242827 in stock

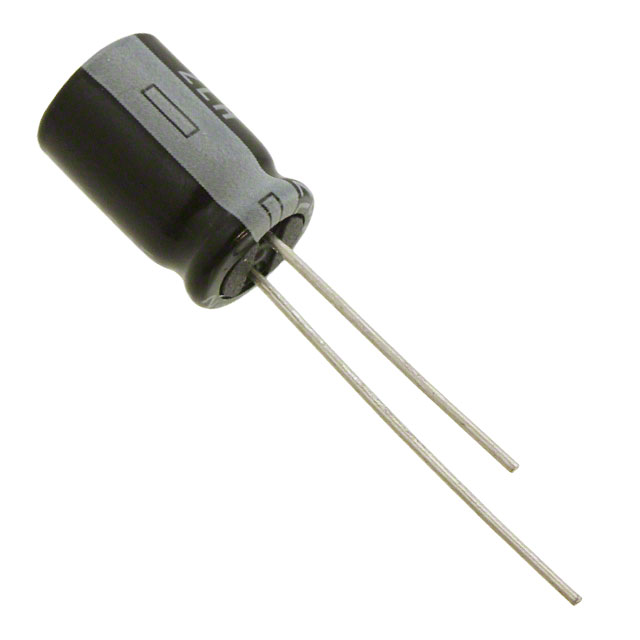

Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : ZLH
Part Status : Active
Capacitance : 470µF
Tolerance : ±20%
Voltage - Rated : 16V
ESR (Equivalent Series Resistance) : -
Lifetime @ Temp. : 8000 Hrs @ 105°C
Operating Temperature : -40°C ~ 105°C
Polarization : Polar
Ratings : -
Applications : General Purpose
Ripple Current @ Low Frequency : 519.75mA @ 120Hz
Ripple Current @ High Frequency : 945mA @ 100kHz
Impedance : 56 mOhms
Lead Spacing : 0.138" (3.50mm)
Size / Dimension : 0.315" Dia (8.00mm)
Height - Seated (Max) : 0.512" (13.00mm)
Surface Mount Land Size : -
Mounting Type : Through Hole
Package / Case : Radial, Can
0
126173 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : DMB
Part Status : Active
Capacitance : 10F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 200 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.197" (5.00mm)
Size / Dimension : 0.394" Dia (10.00mm)
Height - Seated (Max) : 1.457" (37.00mm)
Operating Temperature : -25°C ~ 70°C
0
212 in stock
Rubycon
Manufacturer : Rubycon
Packaging : Bulk
Series : DMB
Part Status : Active
Capacitance : 22F
Tolerance : ±20%
Voltage - Rated : 2.5V
ESR (Equivalent Series Resistance) : 100 mOhm @ 1kHz
Lifetime @ Temp. : 1000 Hrs @ 70°C
Termination : PC Pins
Mounting Type : Through Hole
Package / Case : Radial, Can
Lead Spacing : 0.295" (7.50mm)
Size / Dimension : 0.630" Dia (16.00mm)
Height - Seated (Max) : 1.063" (27.00mm)
Operating Temperature : -25°C ~ 70°C
0
9 in stock
