Over its 65-year history, NKK has designed and manufactured the industry’s most extensive selection of electromechanical switches setting the standard for quality, stability and reliability in switch solutions.

Available in a variety of actuator types including toggle, rocker, pushbutton, slide, rotary and keylock switches to illuminated, process-sealed, miniature, surface-mount, touch screen and programmable switch devices.

Part Number
Manufacturer
Description
Unit Price
In Stock

AS11CV AS11CV

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPST
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 3.80mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle, Vertical
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
460 in stock

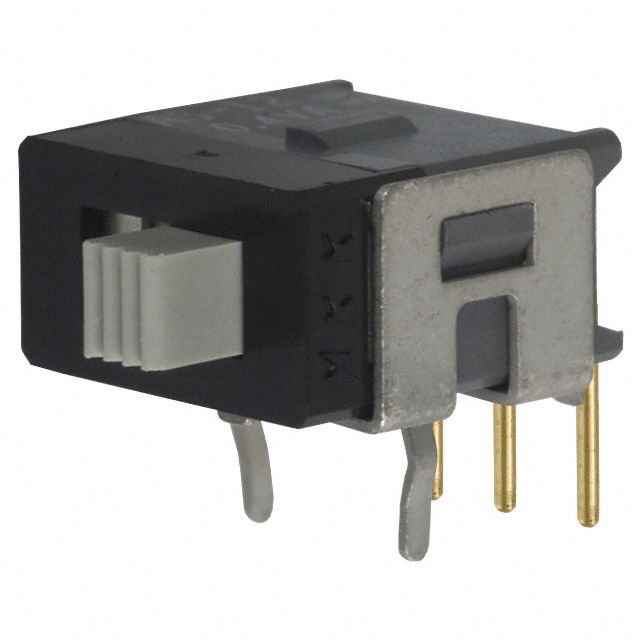

AS12AH AS12AH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
100 in stock

AS12AP AS12AP

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
1679 in stock

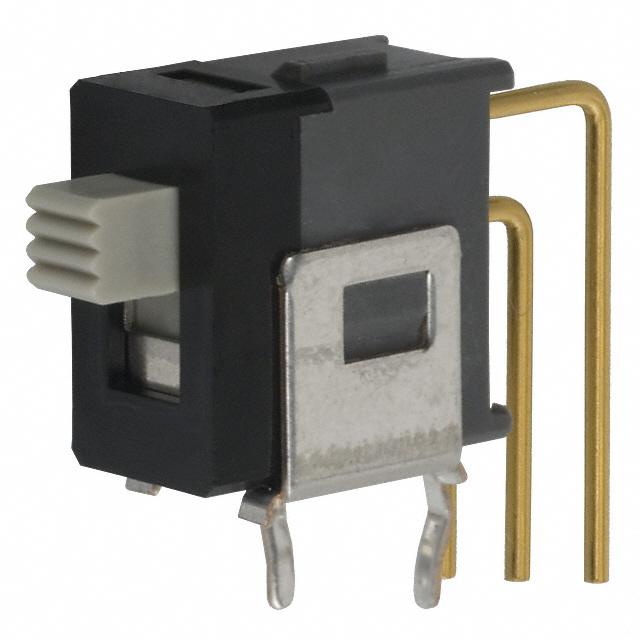

AS12AV AS12AV

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle, Vertical
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
899 in stock

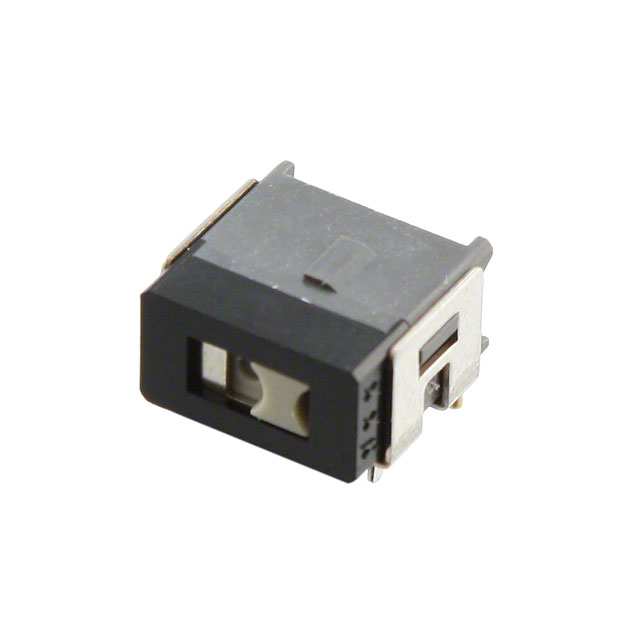

AS12BH AS12BH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Flush
Actuator Length : Flush
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
31 in stock

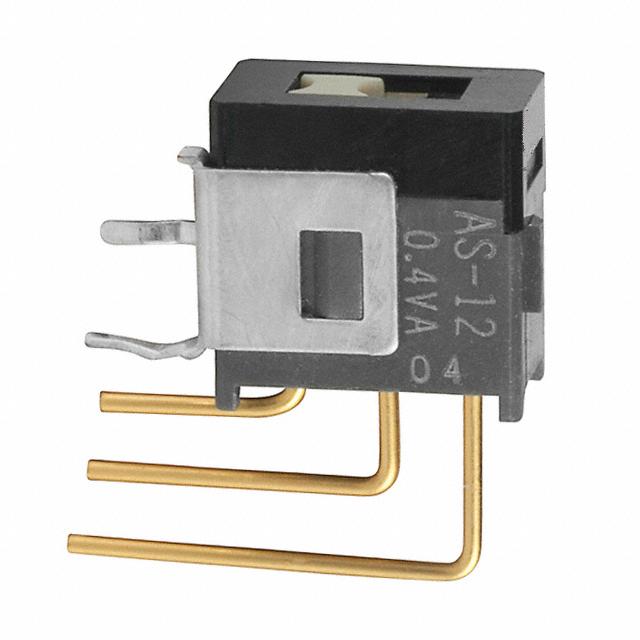

AS12BV AS12BV

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Flush
Actuator Length : Flush
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle, Vertical
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
2625 in stock

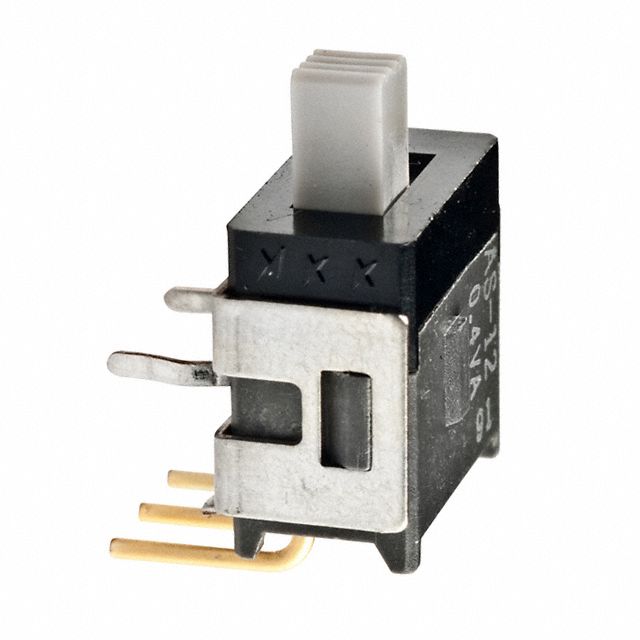

AS12CH AS12CH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 3.80mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
143 in stock

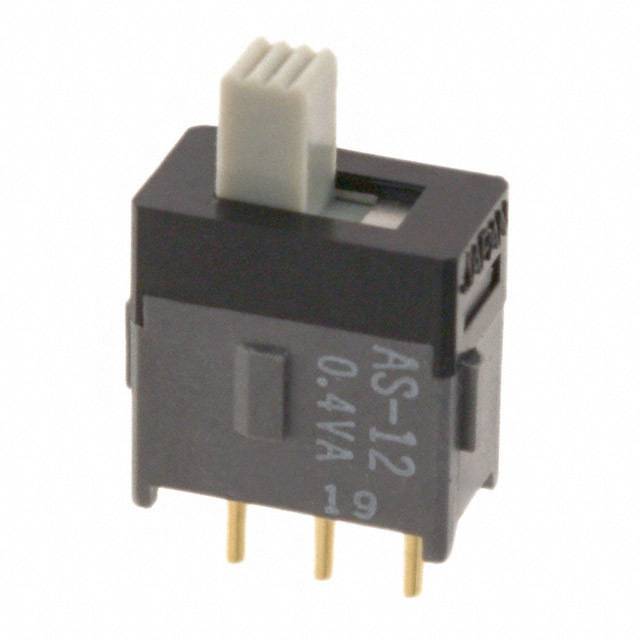

AS12CP AS12CP

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 3.80mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
389 in stock

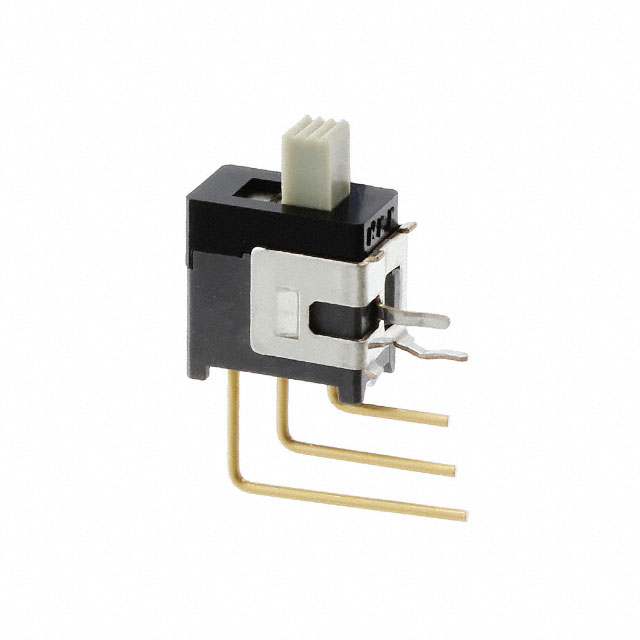

AS12CV AS12CV

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 3.80mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle, Vertical
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
877 in stock

AS13AH AS13AH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
21 in stock

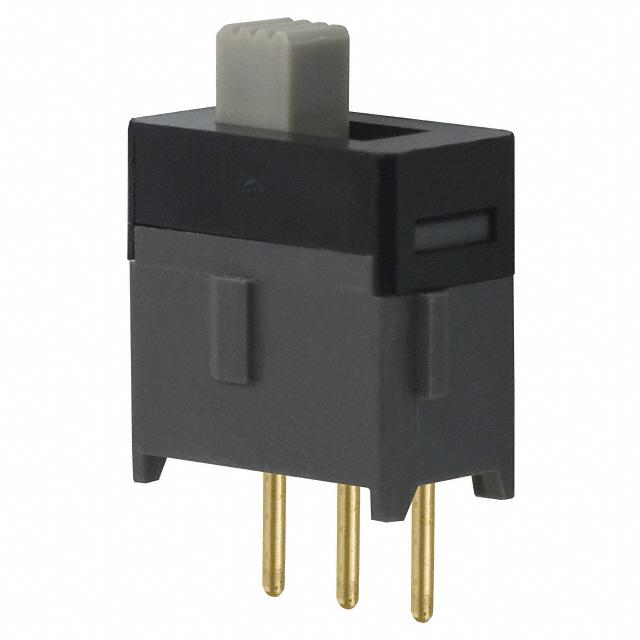

AS13AP AS13AP

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
110 in stock

AS13AV AS13AV

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle, Vertical
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
181 in stock
