NKK Switches

- 65 Years, Over 4 Million Products

Over its 65-year history, NKK has designed and manufactured the industry’s most extensive selection of electromechanical switches setting the standard for quality, stability and reliability in switch solutions.

Available in a variety of actuator types including toggle, rocker, pushbutton, slide, rotary and keylock switches to illuminated, process-sealed, miniature, surface-mount, touch screen and programmable switch devices.

Part Number
Manufacturer
Description
Unit Price
In Stock

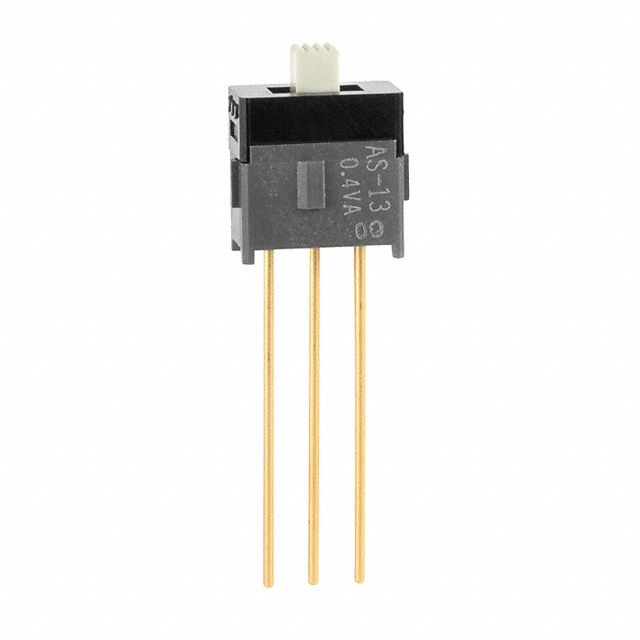

AS13AW AS13AW

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : Wire Wrap
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
3711 in stock

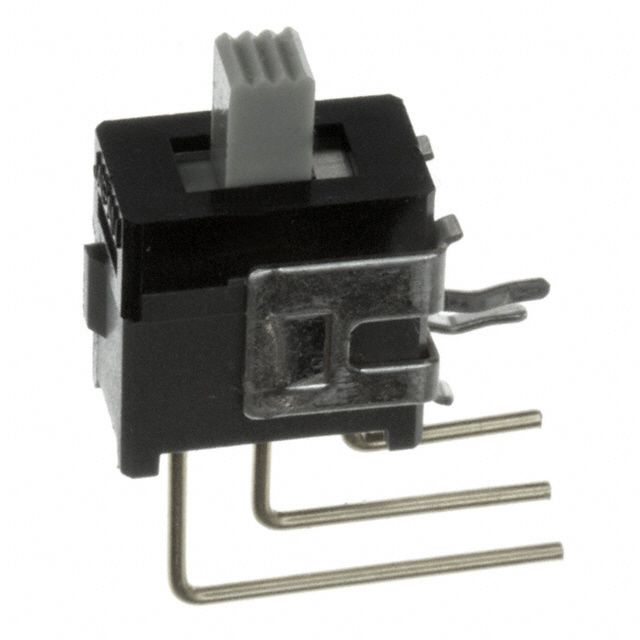

AS13CV AS13CV

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 3.80mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle, Vertical
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
337 in stock

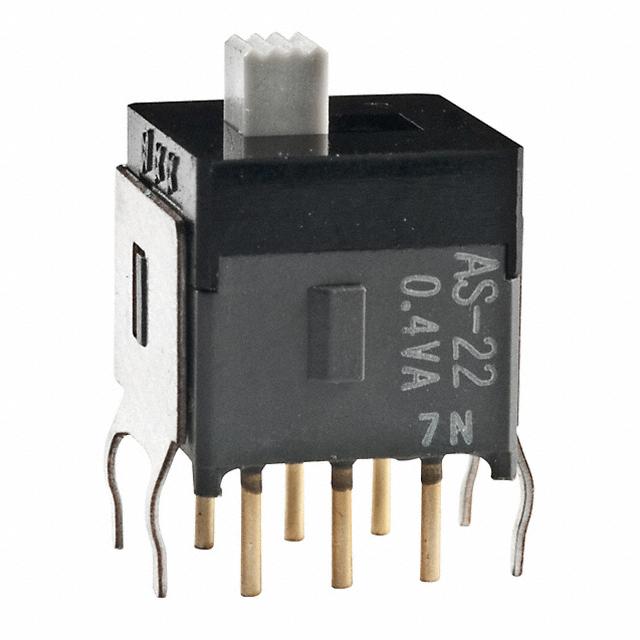

AS22AB AS22AB

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
1701 in stock

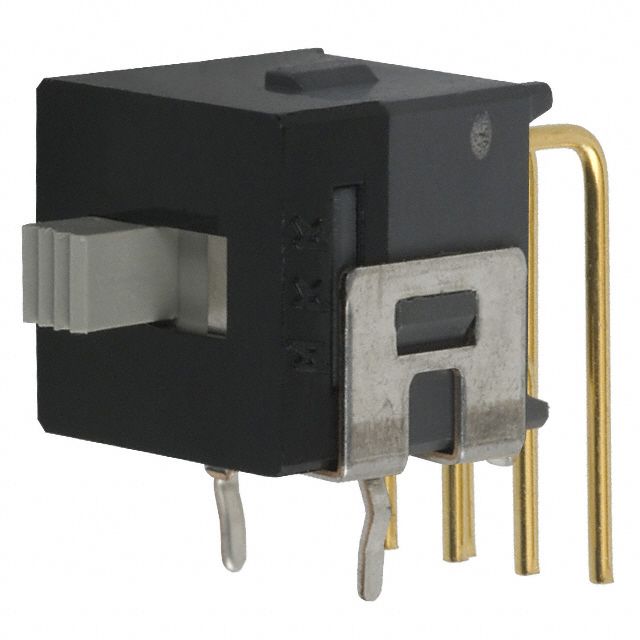

AS22AH AS22AH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
328 in stock

AS22AP AS22AP

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
1129 in stock

AS22AV AS22AV

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle, Vertical
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
2025 in stock

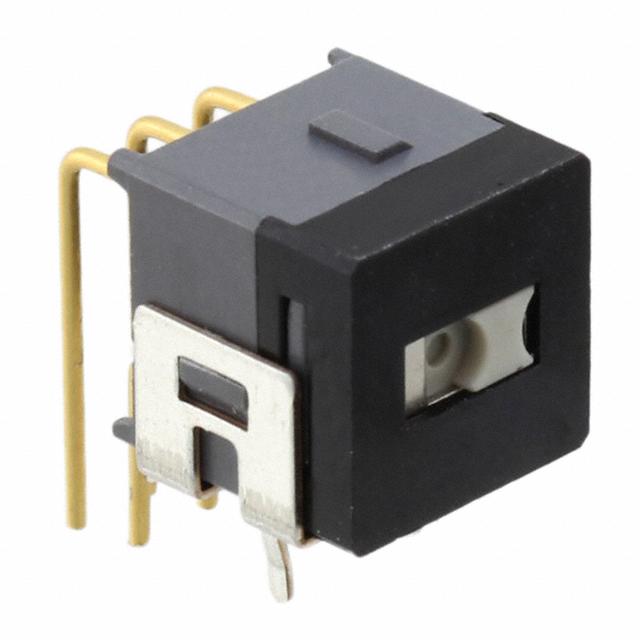

AS22BH AS22BH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Flush
Actuator Length : Flush
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
48 in stock

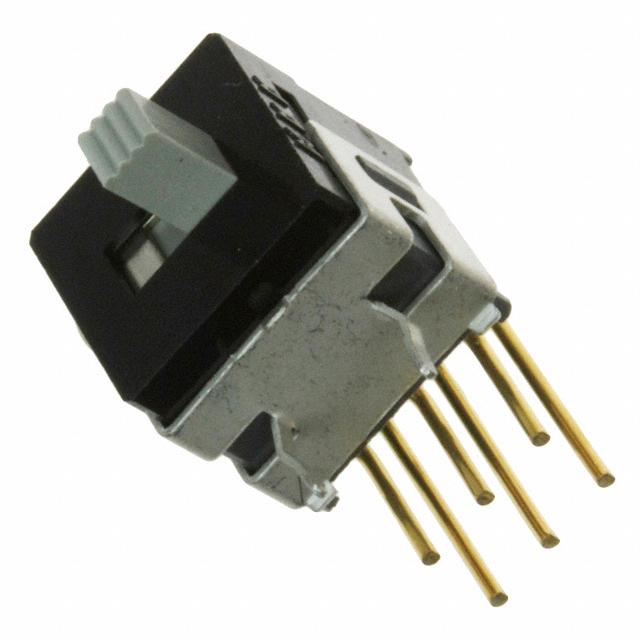

AS22CH AS22CH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 3.80mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
50 in stock

AS23AH AS23AH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
21 in stock

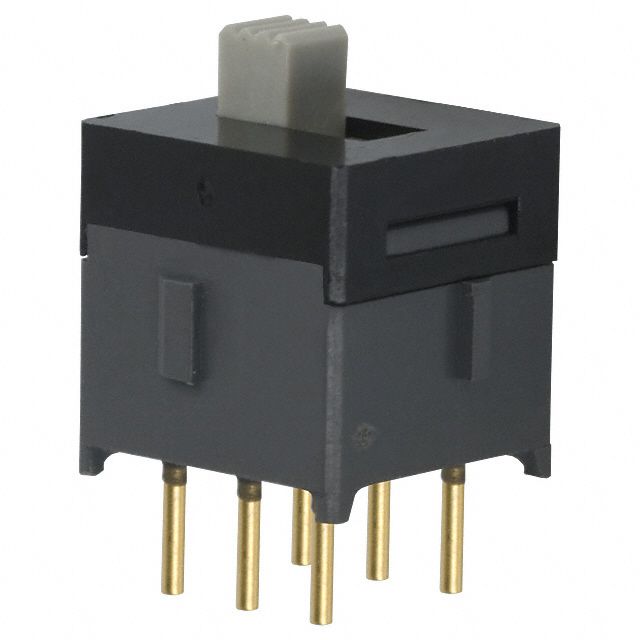

AS23AP AS23AP

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : DPDT
Contact Timing : Non-Shorting (BBM)
Switch Function : On-Off-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
0
100 in stock

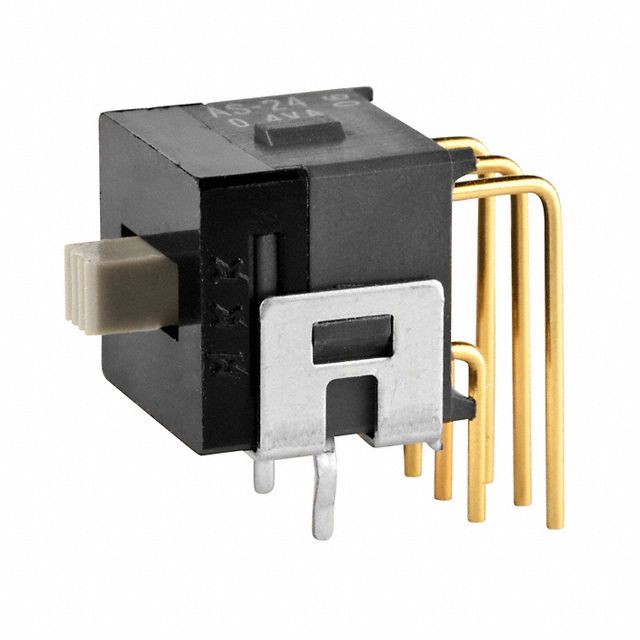

AS24AH AS24AH

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SP3T
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole, Right Angle
Termination Style : PC Pin
Features : Jumper needed to achieve triple throw
Operating Temperature : -30°C ~ 85°C
0
250 in stock

AS24AP AS24AP

NKK Switches
Manufacturer : NKK Switches
Packaging : Tray
Series : AS
Part Status : Active
Circuit : SP3T
Contact Timing : Non-Shorting (BBM)
Switch Function : On-On-On
Current Rating : 0.4VA (AC/DC)
Voltage Rating - AC : 28V
Voltage Rating - DC : 28V
Actuator Type : Standard
Actuator Length : 2.50mm
Contact Material : Phosphor Bronze
Contact Finish : Gold
Mounting Type : Through Hole
Termination Style : PC Pin
Features : Jumper needed to achieve triple throw
Operating Temperature : -30°C ~ 85°C
0
255 in stock
