Murata Power Solutions

- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.

Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.

Part Number
Manufacturer
Description
Unit Price
In Stock

1001C 1001C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1000
Part Status : Active
Transformer Type : -
Inductance : 3mH
Energy Time (E.T.) : 200V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.593" L x 0.593" W (15.06mm x 15.06mm)
Height - Seated (Max) : 0.640" (16.25mm)
Operating Temperature : 0°C ~ 70°C
0
772 in stock

1002C 1002C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1000
Part Status : Active
Transformer Type : -
Inductance : 3mH
Energy Time (E.T.) : 200V µS
Turns Ratio - Primary:Secondary : 1:1:1
Mounting Type : Through Hole
Size / Dimension : 0.593" L x 0.593" W (15.06mm x 15.06mm)
Height - Seated (Max) : 0.640" (16.25mm)
Operating Temperature : 0°C ~ 70°C
0
9994 in stock

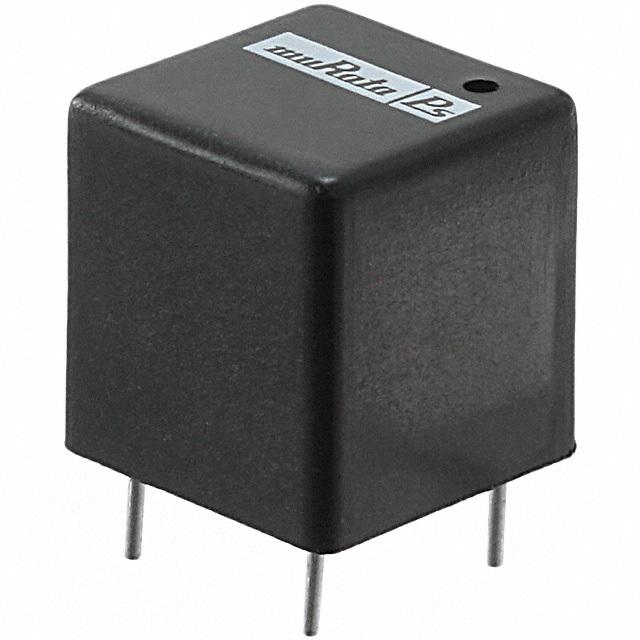

1003C 1003C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : 1000
Part Status : Active
Transformer Type : -
Inductance : 12mH
Energy Time (E.T.) : 400V µS
Turns Ratio - Primary:Secondary : 2:1:1
Mounting Type : Through Hole
Size / Dimension : 0.593" L x 0.593" W (15.06mm x 15.06mm)
Height - Seated (Max) : 0.640" (16.25mm)
Operating Temperature : 0°C ~ 70°C
0
438 in stock

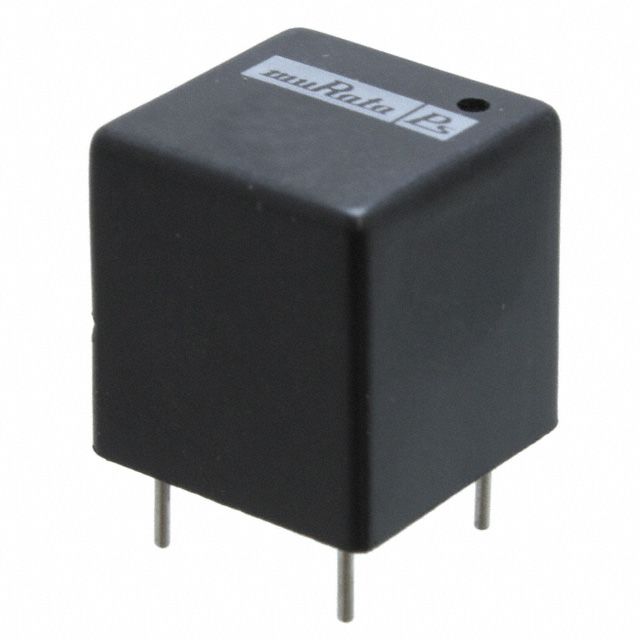

1017C 1017C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1000
Part Status : Active
Transformer Type : -
Inductance : 800µH
Energy Time (E.T.) : 130V µS
Turns Ratio - Primary:Secondary : 1:1
Mounting Type : Through Hole
Size / Dimension : 0.593" L x 0.593" W (15.06mm x 15.06mm)
Height - Seated (Max) : 0.640" (16.25mm)
Operating Temperature : 0°C ~ 70°C
0
1694 in stock

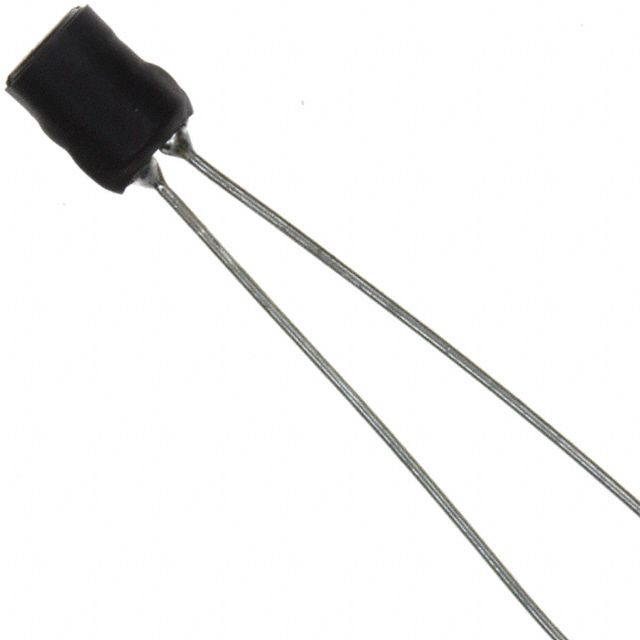

11R102C 11R102C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1100R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 1µH
Tolerance : ±20%
Current Rating : 3A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 20 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
154 in stock

11R103C 11R103C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1100R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 10µH
Tolerance : ±10%
Current Rating : 950mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 140 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
7454 in stock

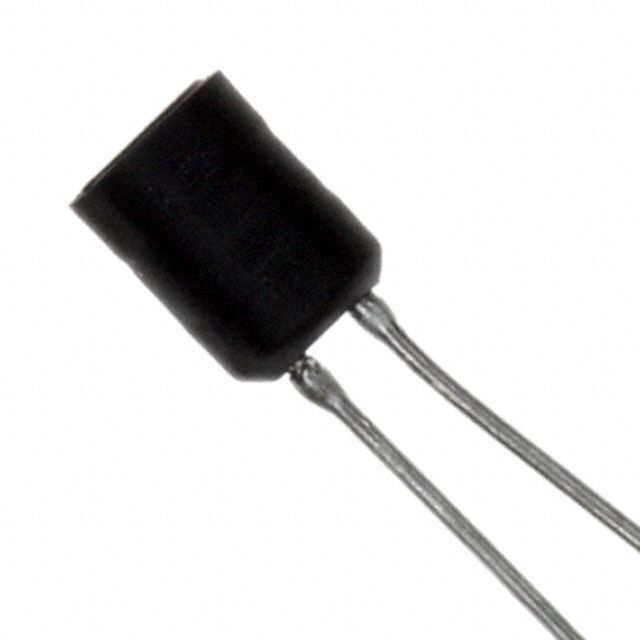

11R104C 11R104C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1100R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 100µH
Tolerance : ±10%
Current Rating : 350mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.1 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
3784 in stock

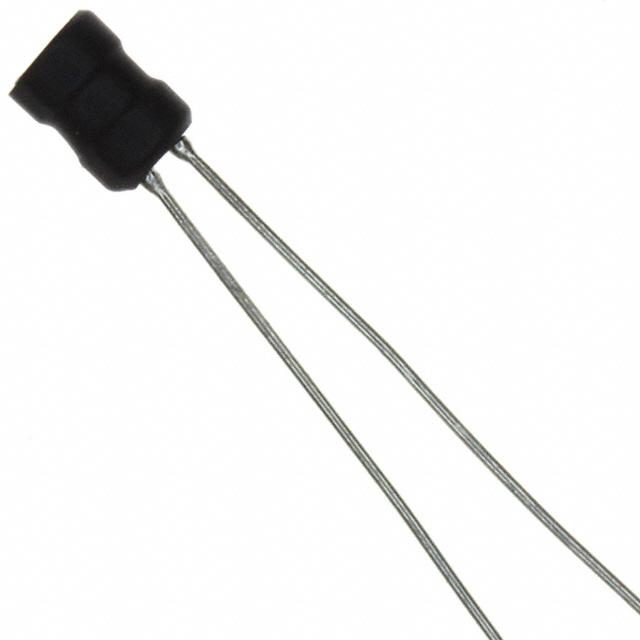

11R153C 11R153C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1100R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 15µH
Tolerance : ±10%
Current Rating : 800mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 190 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
524 in stock

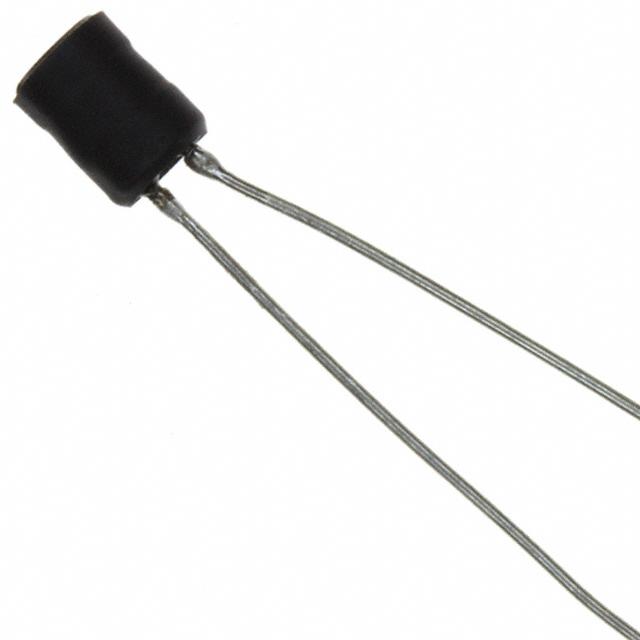

11R154C 11R154C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1100R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 150µH
Tolerance : ±10%
Current Rating : 300mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.65 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
676 in stock

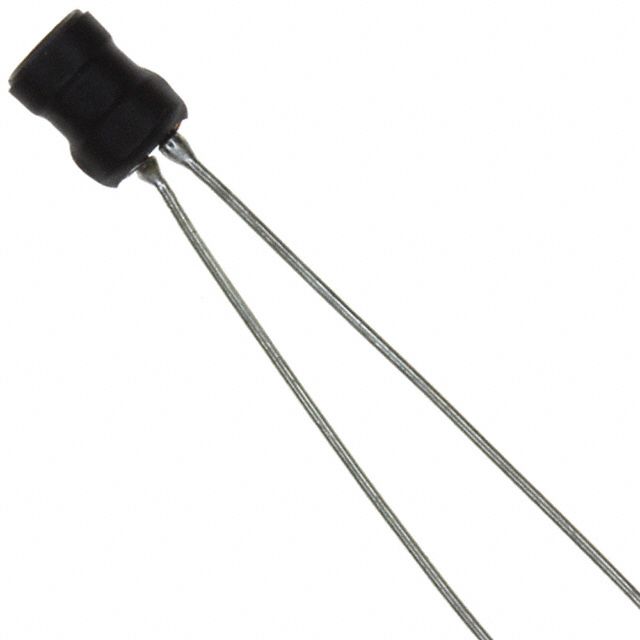

11R222C 11R222C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1100R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 1.9A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 50 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
2079 in stock

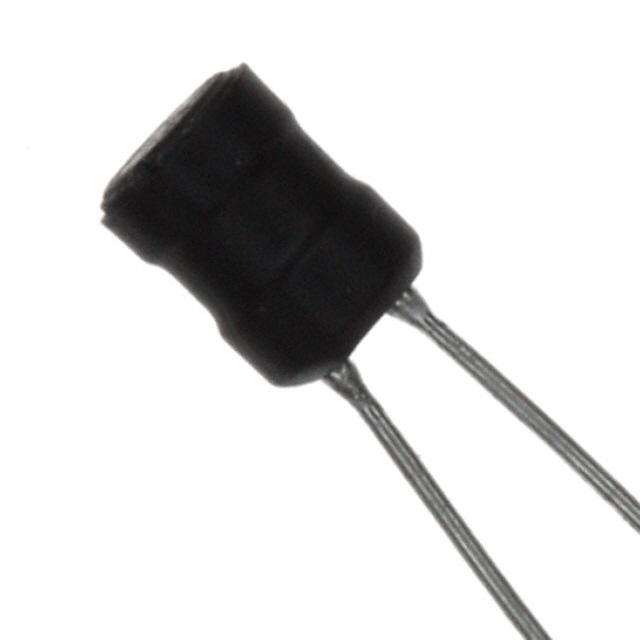

11R223C 11R223C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1100R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 22µH
Tolerance : ±10%
Current Rating : 650mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 270 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
684 in stock

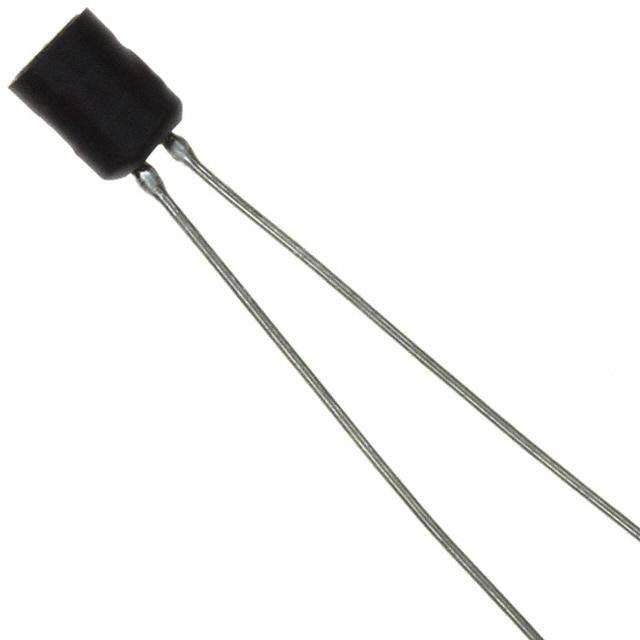

11R224C 11R224C

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Bulk
Series : 1100R
Part Status : Active
Type : Wirewound
Material - Core : -
Inductance : 220µH
Tolerance : ±10%
Current Rating : 240mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 2.4 Ohm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 85°C
Inductance Frequency - Test : 1kHz
Features : -
Mounting Type : Through Hole
Package / Case : Radial
Supplier Device Package : -
Size / Dimension : 0.197" Dia (5.00mm)
Height - Seated (Max) : 0.295" (7.50mm)
0
96 in stock
