Murata Power Solutions
- Murata Power Solutions designs and manufactures DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Digital Panel Meters, and offers these products in custom, standard and modified-standard variations. Currently the world's number 1 supplier of DC/DC converters and one of the top 5 largest suppliers of power electronics overall, our products are used within numerous applications including telecommunications, computing, industrial, medical, office-equipment and more.
Murata Power Solutions was formed in 2007 when Murata Manufacturing Corporation acquired the power electronics division of C&D Technologies. We are headquartered in Mansfield, Massachusetts (USA) with over 1,300 employees in locations in the USA, Canada, Mexico, England, France, Germany, Japan, China and Singapore.
Part Number
Manufacturer
Description
Unit Price
In Stock

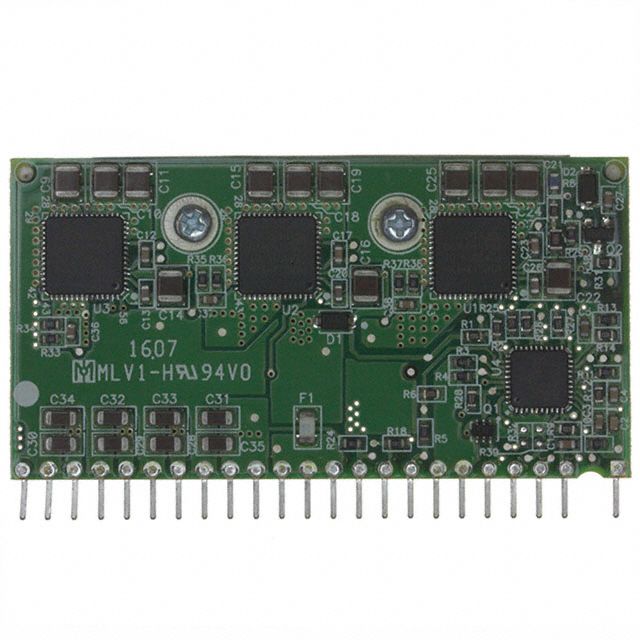

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : VCN60
Part Status : Obsolete
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 10.2V
Voltage - Input (Max) : 13.2V
Voltage - Output 1 : 0.6 ~ 3.5 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 60A
Power (Watts) : 210W
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : -
Operating Temperature : 0°C ~ 70°C
Efficiency : 88%
Mounting Type : Through Hole
Package / Case : 24-SIP Module, 23 Leads
Size / Dimension : 2.40" L x 0.38" W x 1.25" H (61.0mm x 9.7mm x 31.8mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

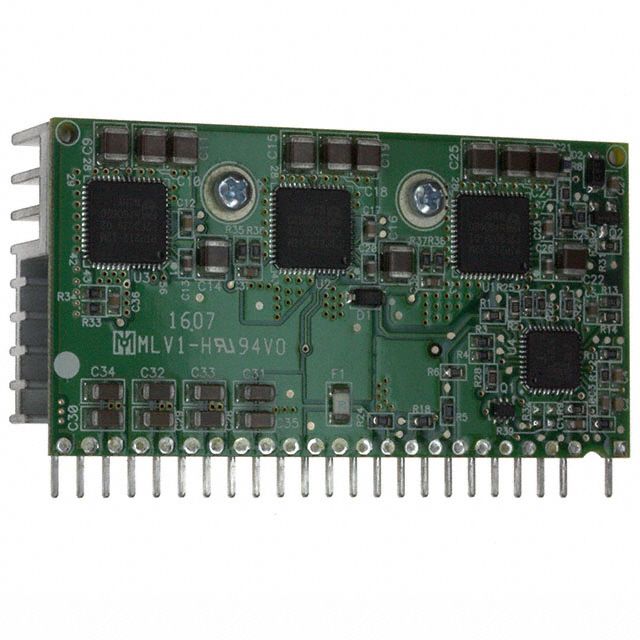

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tray
Series : VCN70
Part Status : Obsolete
Type : Non-Isolated PoL Module
Number of Outputs : 1
Voltage - Input (Min) : 10.2V
Voltage - Input (Max) : 13.2V
Voltage - Output 1 : 0.6 ~ 3.5 V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 70A
Power (Watts) : 245W
Voltage - Isolation : -
Applications : ITE (Commercial)
Features : -
Operating Temperature : 0°C ~ 70°C
Efficiency : 88%
Mounting Type : Through Hole
Package / Case : 24-SIP Module, 23 Leads
Size / Dimension : 2.40" L x 0.66" W x 1.25" H (61.0mm x 16.8mm x 31.8mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

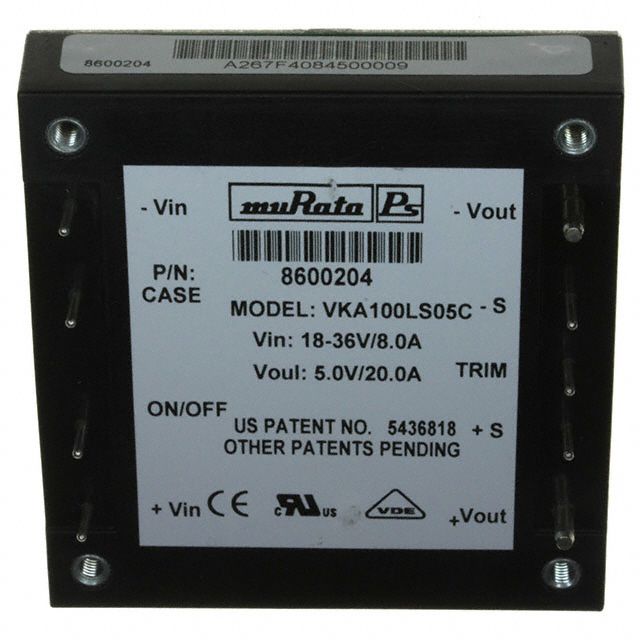

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : VKA100xSC
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 5V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 20A
Power (Watts) : 100W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 100°C
Efficiency : 86%
Mounting Type : Through Hole
Package / Case : 9-DIP Module, 1/2 Brick
Size / Dimension : 2.40" L x 2.28" W x 0.53" H (61.0mm x 57.9mm x 13.5mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

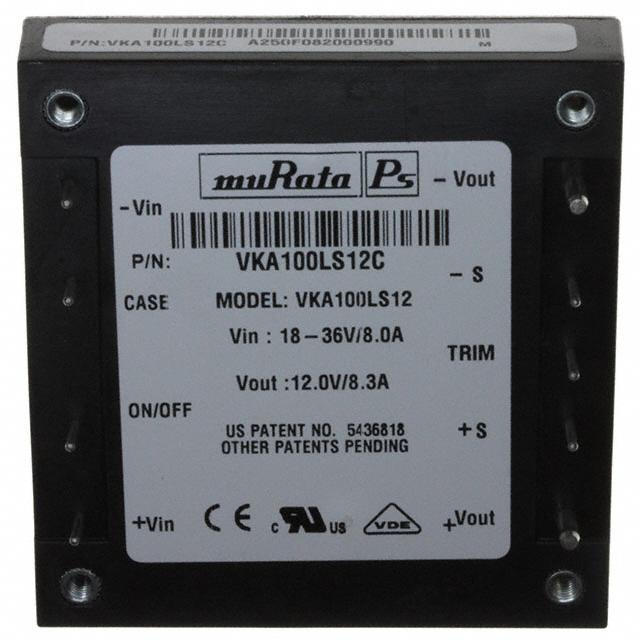

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : VKA100xSC
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 12V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 8.3A
Power (Watts) : 100W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 100°C
Efficiency : 88%
Mounting Type : Through Hole
Package / Case : 9-DIP Module, 1/2 Brick
Size / Dimension : 2.40" L x 2.28" W x 0.53" H (61.0mm x 57.9mm x 13.5mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

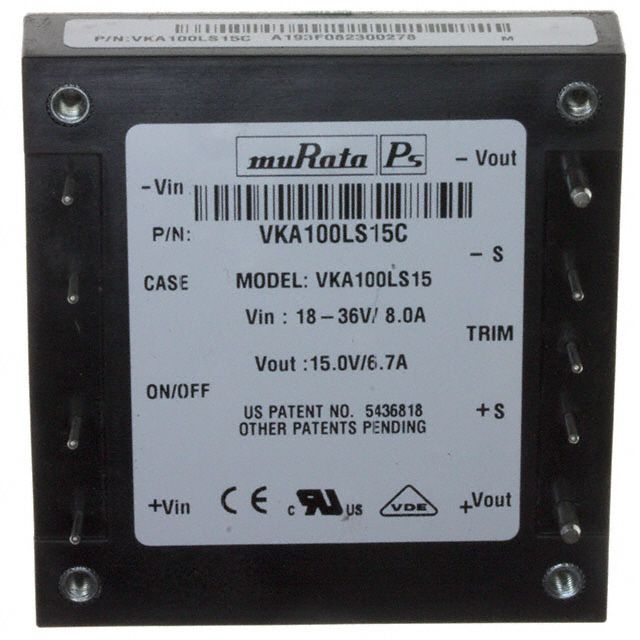

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : VKA100xSC
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 15V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 6.7A
Power (Watts) : 100W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 100°C
Efficiency : 89%
Mounting Type : Through Hole
Package / Case : 9-DIP Module, 1/2 Brick
Size / Dimension : 2.40" L x 2.28" W x 0.53" H (61.0mm x 57.9mm x 13.5mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

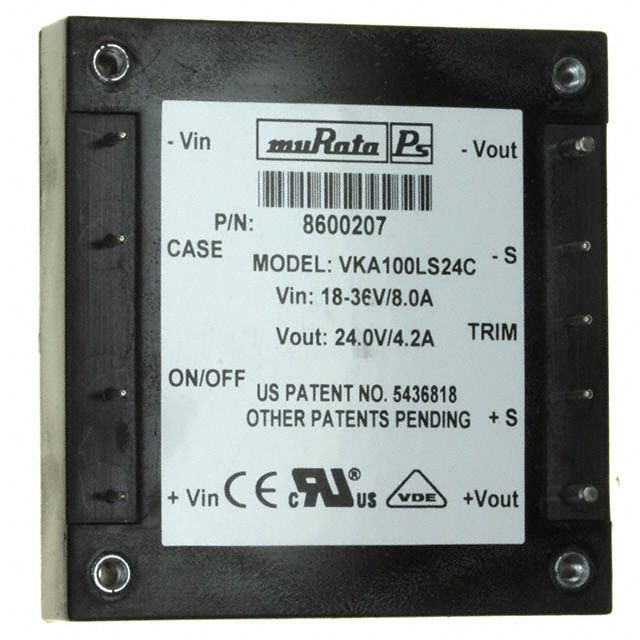

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : VKA100xSC
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 1
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 24V
Voltage - Output 2 : -
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 4.2A
Power (Watts) : 100W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 100°C
Efficiency : 90%
Mounting Type : Through Hole
Package / Case : 9-DIP Module, 1/2 Brick
Size / Dimension : 2.40" L x 2.28" W x 0.53" H (61.0mm x 57.9mm x 13.5mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

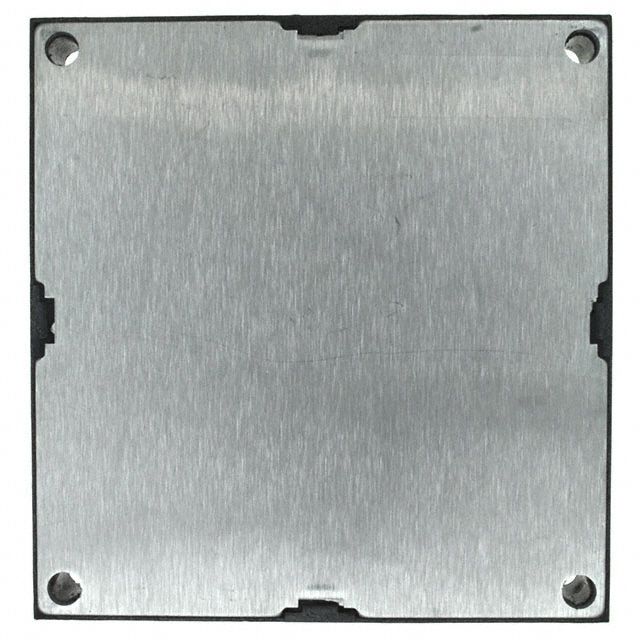

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : VKP60xTC
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 3
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 5.1V
Voltage - Output 2 : 12V
Voltage - Output 3 : -12V
Voltage - Output 4 : -
Current - Output (Max) : 12A, 2.5A, 2.5A
Power (Watts) : 60W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 100°C
Efficiency : 87%
Mounting Type : Through Hole
Package / Case : 12-DIP Module, 1/2 Brick
Size / Dimension : 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
Supplier Device Package : -
Control Features : -
0
100 in stock
Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : VKP60xTC
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 3
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 5V
Voltage - Output 2 : 15V
Voltage - Output 3 : -15V
Voltage - Output 4 : -
Current - Output (Max) : 12A, 2A, 2A
Power (Watts) : 60W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 100°C
Efficiency : 87%
Mounting Type : Through Hole
Package / Case : 12-DIP Module, 1/2 Brick
Size / Dimension : 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
Supplier Device Package : -
Control Features : -
0
100 in stock

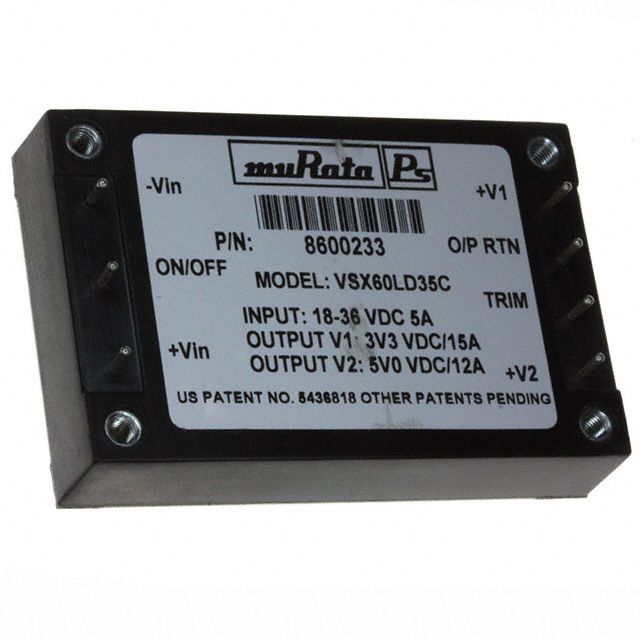

Murata Power Solutions
Manufacturer : Murata Power Solutions Inc.
Packaging : Tube
Series : VSX60xD35C
Part Status : Obsolete
Type : Isolated Module
Number of Outputs : 2
Voltage - Input (Min) : 18V
Voltage - Input (Max) : 36V
Voltage - Output 1 : 5V
Voltage - Output 2 : 3.3V
Voltage - Output 3 : -
Voltage - Output 4 : -
Current - Output (Max) : 12A, 15A
Power (Watts) : 60W
Voltage - Isolation : 1.5kV
Applications : ITE (Commercial)
Features : -
Operating Temperature : -40°C ~ 100°C
Efficiency : 90%
Mounting Type : Through Hole
Package / Case : 7-DIP Module, 1/4 Brick
Size / Dimension : 2.30" L x 1.50" W x 0.50" H (58.4mm x 28.1mm x 12.7mm)
Supplier Device Package : -
Control Features : -
0
100 in stock
