Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -

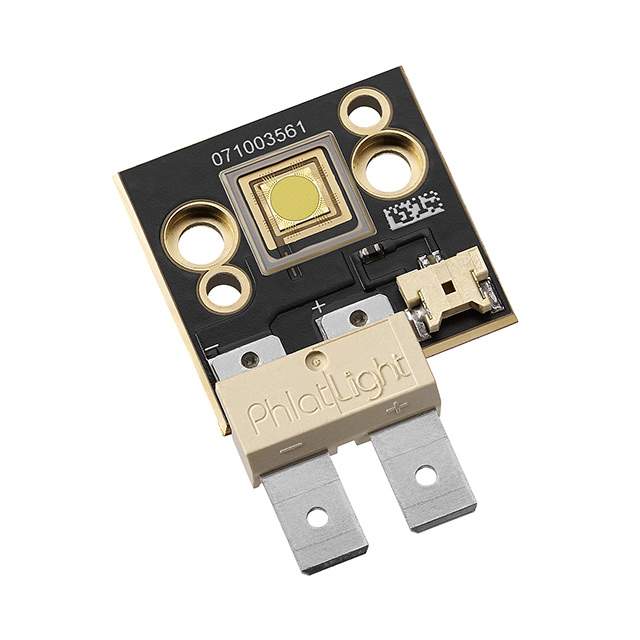

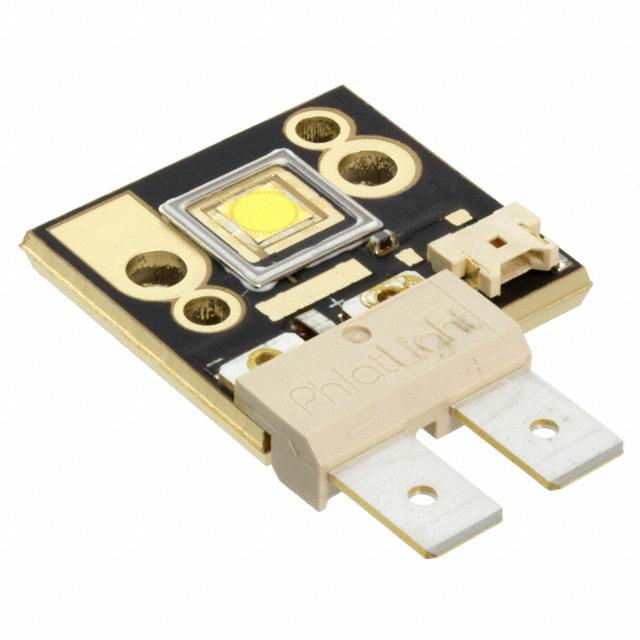

Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2725K ~ 3190K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2033 lm (1965 lm ~ 2100 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2725K ~ 3190K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2033 lm (1965 lm ~ 2100 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2033 lm (1965 lm ~ 2100 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2033 lm (1965 lm ~ 2100 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2725K ~ 3190K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2180 lm (2100 lm ~ 2260 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2725K ~ 3190K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2180 lm (2100 lm ~ 2260 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2180 lm (2100 lm ~ 2260 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2180 lm (2100 lm ~ 2260 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 29 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2725K ~ 3190K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2340 lm (2260 lm ~ 2420 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 31 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2725K ~ 3190K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2340 lm (2260 lm ~ 2420 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 31 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : Tray
Series : -
Part Status : Active

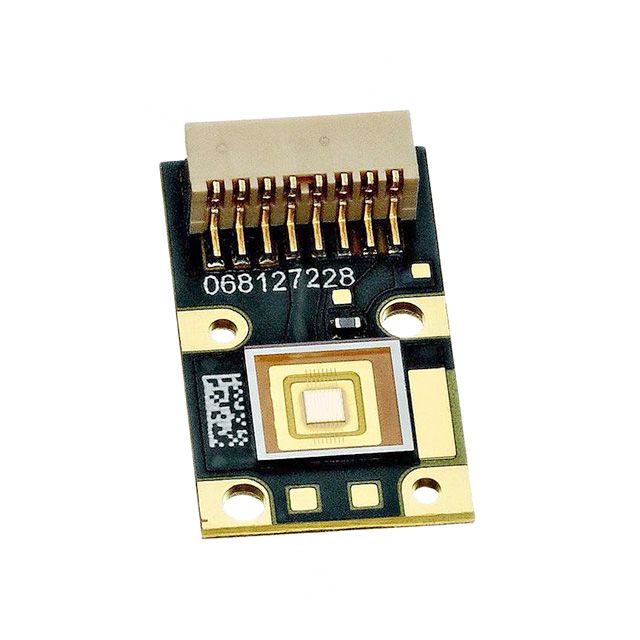

Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 6A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 400nm
Voltage - Forward (Vf) (Typ) : 3.5V
Viewing Angle : -
Orientation : Top View
Operating Temperature : 150°C (TJ)
Mounting Type : Screw Mount
Package / Case : Module
0
24 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -

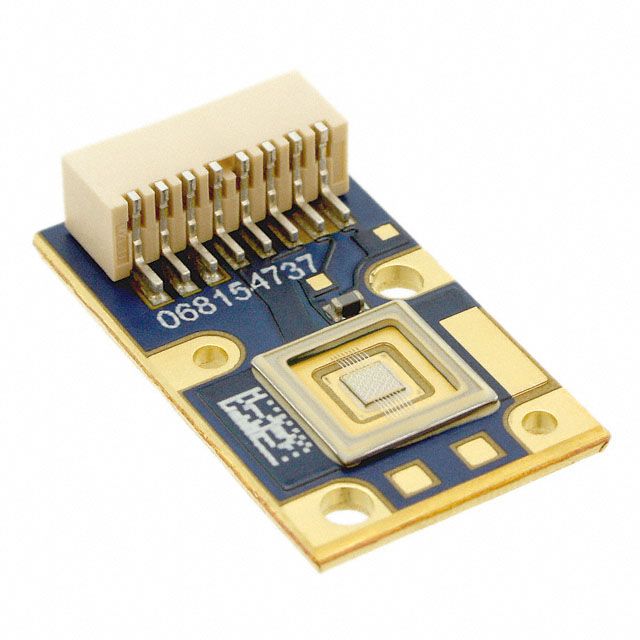

Series : CBT-40
Part Status : Obsolete
Type : LED Module
Color : Blue
CCT (K) : -
Wavelength : 463nm (450nm ~ 475nm)
Configuration : Rectangle
Flux @ Current/Temperature - Test : 110 lm (Typ)
Current - Test : 5.9A
Temperature - Test : 40°C
Voltage - Forward (Vf) (Typ) : 4.2V
Lumens/Watt @ Current - Test : 4 lm/W
Current - Max : 12A
CRI (Color Rendering Index) : -
Viewing Angle : -
Features : With Connector
Size / Dimension : 26.50mm L x 16.00mm W
Height : 6.30mm
Light Emitting Surface (LES) : 1.87mm L x 2.09mm W
Lens Type : Flat
0
100 in stock
