Luminus Devices, Inc.
- Luminus Devices, Inc. develops and markets solid-state lighting solutions (SSL) to help its customers migrate from conventional lamp technologies to long-life and energy-efficient LED illumination. Luminus offers a comprehensive range of LED solutions for indoor and outdoor illumination markets as well as high-output specialty lighting solutions for performance-driven markets including consumer displays, entertainment lighting, medical and industrial applications. Luminus is headquartered in Sunnyvale, CA, and has operations in Woburn, Massachusetts and Xiamen, China.
Part Number
Manufacturer
Description
Unit Price
In Stock

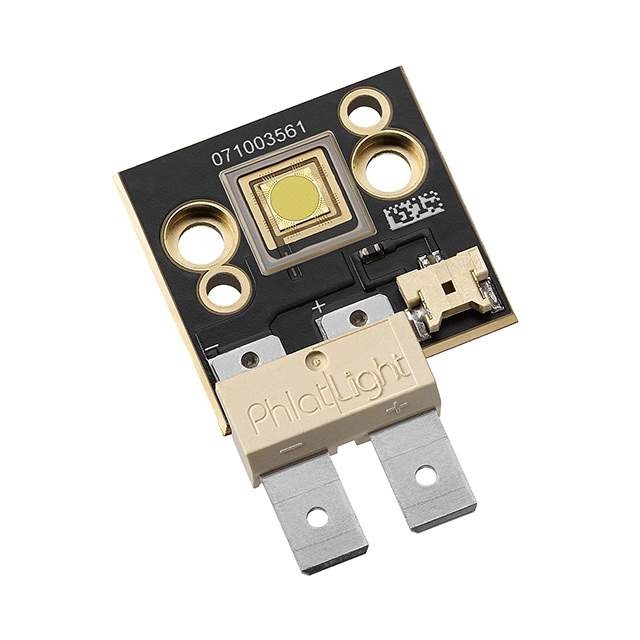

Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5310K ~ 6020K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3818 lm (3680 lm ~ 3955 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 50 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : 5310K ~ 6020K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2510 lm (2420 lm ~ 2600 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 33 lm/W
Current - Max : 21A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2510 lm (2420 lm ~ 2600 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 33 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 90 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2690 lm (2600 lm ~ 2780 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 36 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 90 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : White, Cool
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2690 lm (2600 lm ~ 2780 lm)
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 36 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 90 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5310K ~ 6020K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2340 lm (2260 lm ~ 2420 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 31 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
26 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : 5310K ~ 6020K
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2510 lm (2420 lm ~ 2600 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 33 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
126 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Active
Type : LED Module
Color : White, Cool
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : 2510 lm (2420 lm ~ 2600 lm)
Current - Test : 21A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : 33 lm/W
Current - Max : 28A
CRI (Color Rendering Index) : 92 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : -
Current - Max : 28A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : -
Current - Max : 28A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : -
Current - Max : 28A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
Luminus Devices
Manufacturer : Luminus Devices Inc.
Packaging : -
Series : CBT-140
Part Status : Obsolete
Type : LED Module
Color : -
CCT (K) : -
Wavelength : -
Configuration : Rectangle
Flux @ Current/Temperature - Test : -
Current - Test : 21A
Temperature - Test : 90°C
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : -
Current - Max : 28A
CRI (Color Rendering Index) : 95 (Typ)
Viewing Angle : -
Features : With Connector
Size / Dimension : 28.00mm L x 42.00mm W
Height : 5.70mm
Light Emitting Surface (LES) : 4.25mm Diameter
Lens Type : Flat
0
100 in stock
