Lite-On, Inc.
- Lite-On started producing LED lamps in 1975 and has steadily grown into one of the world's largest optoelectronics manufacturers by providing customers with both visible and infrared product solutions. High volume capacities for commodity items and application specific products, combined with strong R&D and vertical integration, have proven to be key distinguishing factors in Lite-On's success.
Part Number
Manufacturer
Description
Unit Price
In Stock

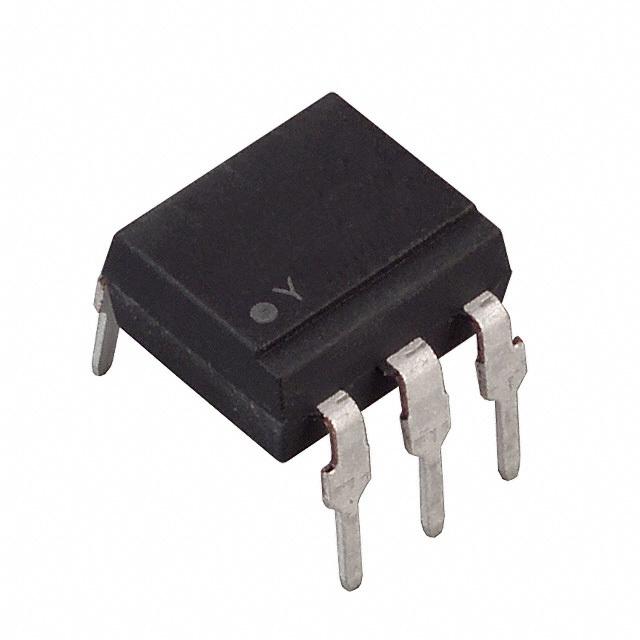

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 160% @ 10mA
Current Transfer Ratio (Max) : 320% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 5µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
4456 in stock

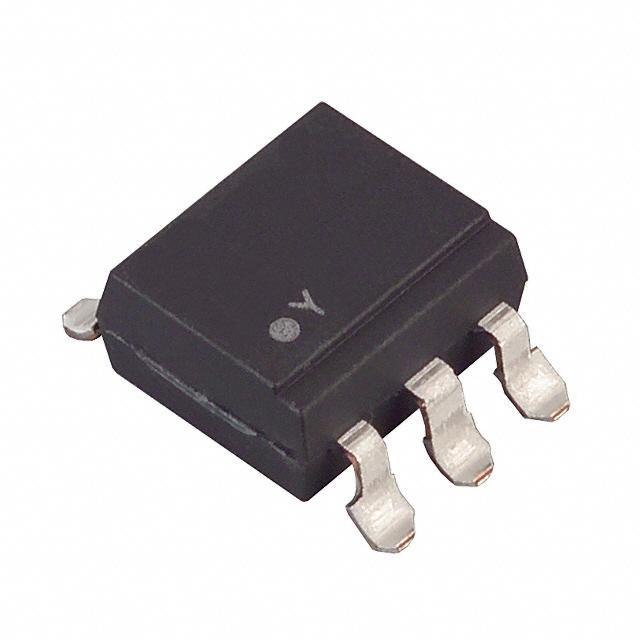

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 160% @ 10mA
Current Transfer Ratio (Max) : 320% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 5µs
Input Type : DC
Output Type : Transistor
Voltage - Output (Max) : 70V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD
0
5192 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 20% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 5µs, 5µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 300V
Current - Output / Channel : 100mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP
0
3322 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 20% @ 10mA
Current Transfer Ratio (Max) : -
Turn On / Turn Off Time (Typ) : 5µs, 5µs
Rise / Fall Time (Typ) : -
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 300V
Current - Output / Channel : 100mA
Voltage - Forward (Vf) (Typ) : 1.2V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 400mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD
0
11405 in stock

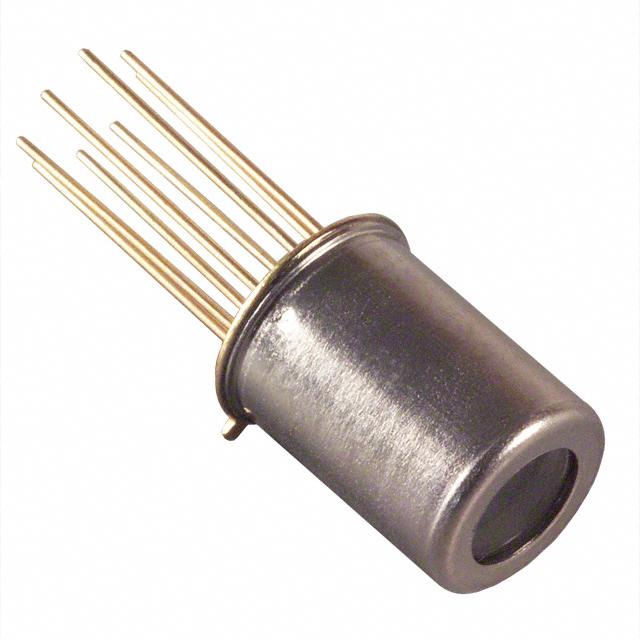

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Sensing Distance : 0.168" (4.27mm)
Sensing Method : Reflective
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : 8mA
Current - DC Forward (If) (Max) : 50mA
Output Type : Phototransistor
Response Time : -
Mounting Type : Through Hole
Package / Case : TO-5
0
100 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Sensing Distance : 0.168" (4.27mm)
Sensing Method : Reflective
Voltage - Collector Emitter Breakdown (Max) : -
Current - Collector (Ic) (Max) : -
Current - DC Forward (If) (Max) : 50mA
Output Type : Photodiode
Response Time : -
Mounting Type : Through Hole
Package / Case : TO-5
0
100 in stock

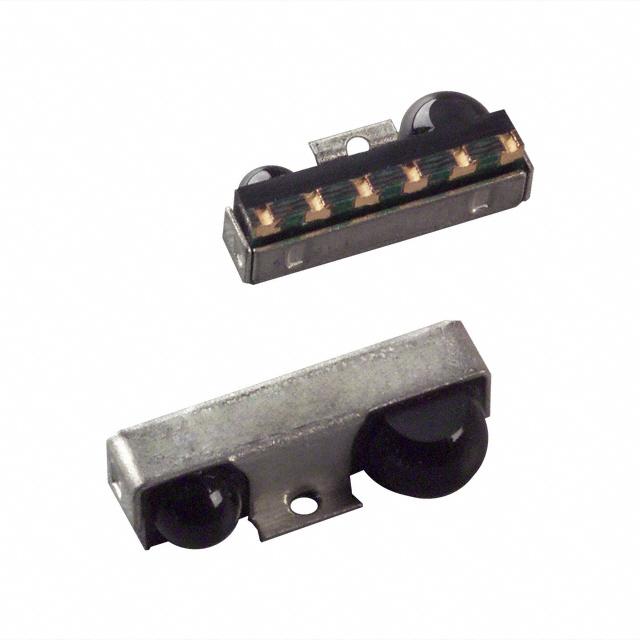

Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Data Rate : 115.2kbs (SIR)
Voltage - Supply : 2.7V ~ 5.5V
Idle Current, Typ @ 25°C : 20nA
Link Range, Low Power : 1.5m
Orientation : Side View
Operating Temperature : -20°C ~ 70°C
Size : 9.1mm x 3.7mm x 2.7mm
Standards : IrPHY 1.3
Shutdown : Yes
0
100 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Data Rate : 115.2kbps
Voltage - Supply : 2.7V ~ 5.5V
Idle Current, Typ @ 25°C : 290µA
Link Range, Low Power : 50cm
Orientation : Side View
Operating Temperature : -20°C ~ 70°C
Size : 9.10mm x 3.65mm x 2.7mm
Standards : IrDA 1.4
Shutdown : Yes
0
100 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Data Rate : 115.2kbps (SIR)
Voltage - Supply : 2.4V ~ 3.6V
Idle Current, Typ @ 25°C : 50µA
Link Range, Low Power : 50cm
Orientation : Side View
Operating Temperature : -20°C ~ 70°C
Size : 8.0mm x 2.95mm x 2.0mm
Standards : IrDA 1.4
Shutdown : Yes
0
100 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Data Rate : -
Voltage - Supply : -
Idle Current, Typ @ 25°C : -
Link Range, Low Power : -
Orientation : -
Operating Temperature : -
Size : -
Standards : -
Shutdown : -
0
100 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Data Rate : 115.2kbps (SIR)
Voltage - Supply : 2.4V ~ 3.6V
Idle Current, Typ @ 25°C : 50µA
Link Range, Low Power : 50cm
Orientation : Top View
Operating Temperature : -25°C ~ 85°C
Size : 8.0mm x 3.0mm x 2.5mm
Standards : IrDA 1.4
Shutdown : Yes
0
100 in stock
Lite-On, Inc.
Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Data Rate : 4Mbps
Voltage - Supply : 2.4V ~ 3.6V
Idle Current, Typ @ 25°C : 2mA
Link Range, Low Power : 50cm
Orientation : Side View
Operating Temperature : -25°C ~ 85°C
Size : 10.4mm x 2.95mm x 2.5mm
Standards : IrDA 1.4
Shutdown : Yes
0
100 in stock
