Lite-On, Inc.

- Lite-On started producing LED lamps in 1975 and has steadily grown into one of the world's largest optoelectronics manufacturers by providing customers with both visible and infrared product solutions. High volume capacities for commodity items and application specific products, combined with strong R&D and vertical integration, have proven to be key distinguishing factors in Lite-On's success.


Part Number

Manufacturer

Description

Unit Price

In Stock

ASDL-4263-C22

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 9.72mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

100 in stock

ASDL-4263-C31

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 50mA
Radiant Intensity (Ie) Min @ If : 9.72mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 20°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

100 in stock

ASDL-4264-C22

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 150mA
Radiant Intensity (Ie) Min @ If : 6.02mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 22°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

100 in stock

ASDL-4264-C31

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 150mA
Radiant Intensity (Ie) Min @ If : 6.02mW/sr @ 20mA
Wavelength : 940nm
Voltage - Forward (Vf) (Typ) : 1.2V
Viewing Angle : 22°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Through Hole
Package / Case : Radial

100 in stock

ASDL-4360-C22

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 1mW/sr @ 20mA
Wavelength : 885nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 2-PLCC

100 in stock

ASDL-4560-C22

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 100mA
Radiant Intensity (Ie) Min @ If : 2mW/sr @ 50mA
Wavelength : 875nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)

100 in stock

ASDL-4561-C22

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 60mA
Radiant Intensity (Ie) Min @ If : 1.64mW/sr @ 50mA
Wavelength : 870nm
Voltage - Forward (Vf) (Typ) : 1.3V
Viewing Angle : 150°
Orientation : Top View
Operating Temperature : -40°C ~ 85°C (TA)
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric)

100 in stock

ASDL-4860-C22

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Type : Infrared (IR)
Current - DC Forward (If) (Max) : 500mA
Radiant Intensity (Ie) Min @ If : 40mW/sr @ 500mA
Wavelength : 850nm
Voltage - Forward (Vf) (Typ) : 1.4V
Viewing Angle : 120°
Orientation : Top View
Operating Temperature : -40°C ~ 100°C (TA)
Mounting Type : Surface Mount
Package / Case : 4-SMD, Flat Leads

100 in stock

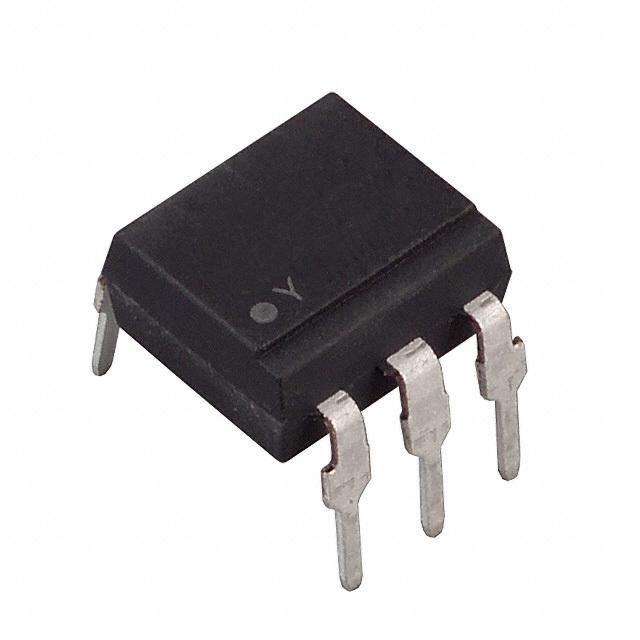

CNY17-1

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 5µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP

6383 in stock

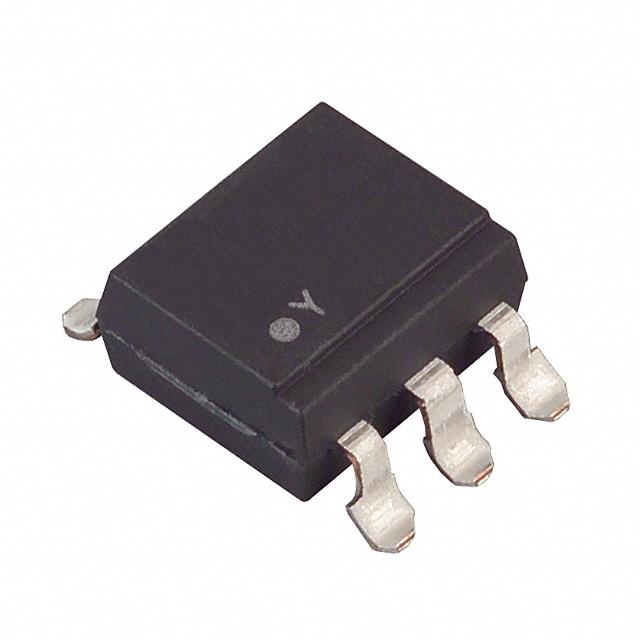

CNY17-1S

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 40% @ 10mA
Current Transfer Ratio (Max) : 80% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 5µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD

8393 in stock

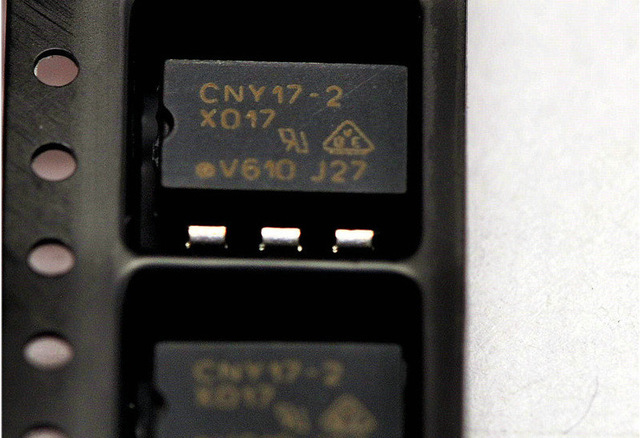

CNY17-2

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 5µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Through Hole
Package / Case : 6-DIP (0.300", 7.62mm)
Supplier Device Package : 6-DIP

2904 in stock

CNY17-2S

Lite-On, Inc.

Manufacturer : Lite-On Inc.
Packaging : Tube
Series : -
Part Status : Active
Number of Channels : 1
Voltage - Isolation : 5000Vrms
Current Transfer Ratio (Min) : 63% @ 10mA
Current Transfer Ratio (Max) : 125% @ 10mA
Turn On / Turn Off Time (Typ) : -
Rise / Fall Time (Typ) : 5µs, 5µs
Input Type : DC
Output Type : Transistor with Base
Voltage - Output (Max) : 70V
Current - Output / Channel : 150mA
Voltage - Forward (Vf) (Typ) : 1.45V
Current - DC Forward (If) (Max) : 60mA
Vce Saturation (Max) : 300mV
Operating Temperature : -55°C ~ 100°C
Mounting Type : Surface Mount
Package / Case : 6-SMD, Gull Wing
Supplier Device Package : 6-SMD

2650 in stock
