LED Engin
- LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED emitters, optics and light engines to create uncompromised lighting experiences for a wide range of entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented compact ceramic package. The small size, yet remarkably powerful beam output and superior in-source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional light is required.
Part Number
Manufacturer
Description
Unit Price
In Stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock

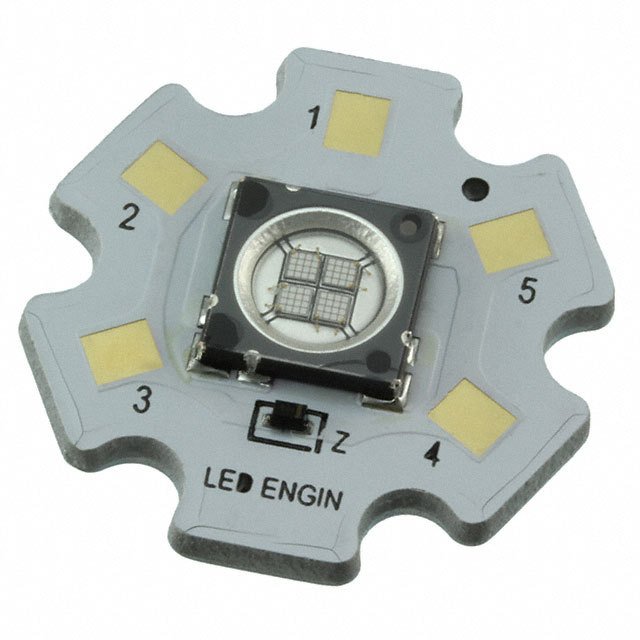

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Bulk
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 365nm
Voltage - Forward (Vf) (Typ) : 15.2V
Viewing Angle : 110°
Orientation : Top View
Operating Temperature : 130°C (TJ)
Mounting Type : Surface Mount
Package / Case : Star Array
0
184 in stock

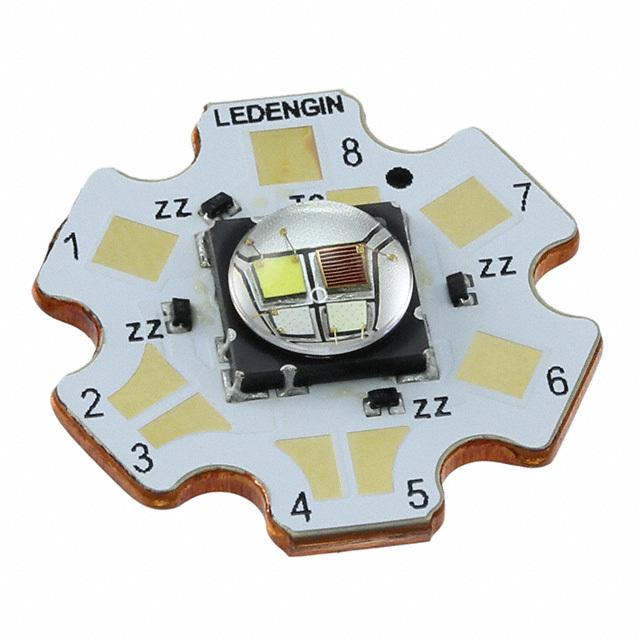

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Active
Type : LED Module
Color : Red, Green, Blue, White - Cool
CCT (K) : 6335K
Wavelength : 624nm Red, 525nm Green, 457nm Blue
Configuration : Starboard
Flux @ Current/Temperature - Test : 133 lm Red, 160 lm Green, 33 lm Blue, 234 lm White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 95°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 6.50mm Diameter
Lens Type : Domed
0
229 in stock

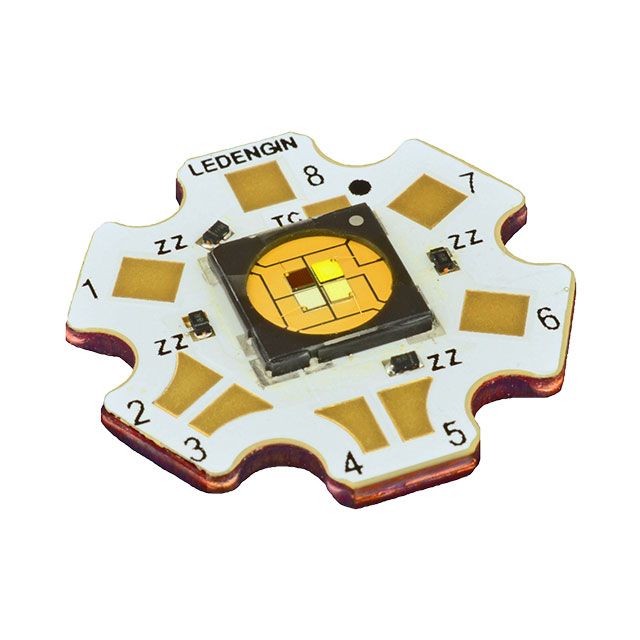

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : LuxiGen™
Part Status : Active
Type : LED Module
Color : Red, Green, Blue, White - Cool (RGBW)
CCT (K) : 6335K
Wavelength : 624nm Red, 525nm Green, 454nm Blue
Configuration : Starboard
Flux @ Current/Temperature - Test : 115 lm Red, 220 lm Green, 1250mW Blue, 293 lm White
Current - Test : 1A Red, 1A Green, 1A Blue, 1A White
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 2.4V Red, 3.5V Green, 3V Blue, 3V White
Lumens/Watt @ Current - Test : 48 lm/W Red, 63 lm/W Green, 98 lm/W White
Current - Max : 2.5A Red, 3A Green, 3A Blue, 3A White
CRI (Color Rendering Index) : 75 (Typ)
Viewing Angle : 110°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 2.66mm
Light Emitting Surface (LES) : 7.00mm L x 7.00mm W
Lens Type : Flat
0
437 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 4750K ~ 7040K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 1800 lm (Typ)
Current - Test : 3 x 700mA
Voltage - Forward (Vf) (Typ) : 9.7V
Lumens/Watt @ Current - Test : 88 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 800mA
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
100 in stock

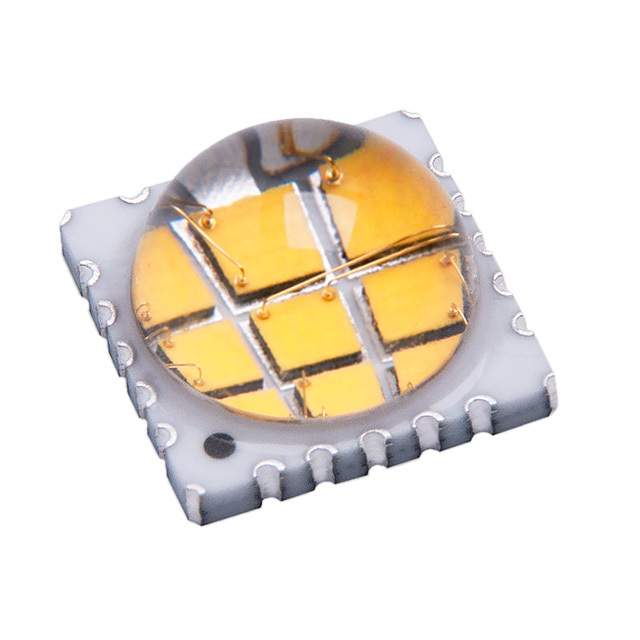

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Cool
CCT (K) : 5600K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 1800 lm (Typ)
Current - Test : 3 x 700mA
Voltage - Forward (Vf) (Typ) : 9.7V
Lumens/Watt @ Current - Test : 88 lm/W
CRI (Color Rendering Index) : 70
Current - Max : 800mA
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Warm
CCT (K) : 2700K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 1113 lm (868 lm ~ 1357 lm)
Current - Test : 3 x 700mA
Voltage - Forward (Vf) (Typ) : 9.7V
Lumens/Watt @ Current - Test : 55 lm/W
CRI (Color Rendering Index) : 98
Current - Max : 1A
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 2850K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 1113 lm (868 lm ~ 1357 lm)
Current - Test : 3 x 700mA
Voltage - Forward (Vf) (Typ) : 9.7V
Lumens/Watt @ Current - Test : 55 lm/W
CRI (Color Rendering Index) : 98
Current - Max : 1A
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
100 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : White, Warm
CCT (K) : 3000K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 1113 lm (868 lm ~ 1357 lm)
Current - Test : 3 x 700mA
Voltage - Forward (Vf) (Typ) : 9.7V
Lumens/Watt @ Current - Test : 55 lm/W
CRI (Color Rendering Index) : 98
Current - Max : 1A
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
95 in stock
LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : White, Warm
CCT (K) : 3000K
Flux @ 85°C, Current - Test : -
Flux @ 25°C, Current - Test : 1060 lm (868 lm ~ 1357 lm)
Current - Test : 3 x 700mA
Voltage - Forward (Vf) (Typ) : 9.7V
Lumens/Watt @ Current - Test : 52 lm/W
CRI (Color Rendering Index) : 95
Current - Max : 800mA
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.165" (4.20mm)
0
100 in stock
