LED Engin

- LED Engin, an OSRAM business based in California’s Silicon Valley, develops, manufactures, and sells advanced LED emitters, optics and light engines to create uncompromised lighting experiences for a wide range of entertainment, architectural, general lighting and specialty applications. LuxiGenTM multi-die emitter and secondary lens combinations reliably deliver industry-leading flux density, upwards of 5000 quality lumens to a target, in a wide spectrum of colors including whites, tunable whites, multi-color and UV LEDs in a unique patented compact ceramic package. The small size, yet remarkably powerful beam output and superior in-source color mixing, allows for a previously unobtainable freedom of design wherever high-flux density, directional light is required.

Part Number
Manufacturer
Description
Unit Price
In Stock

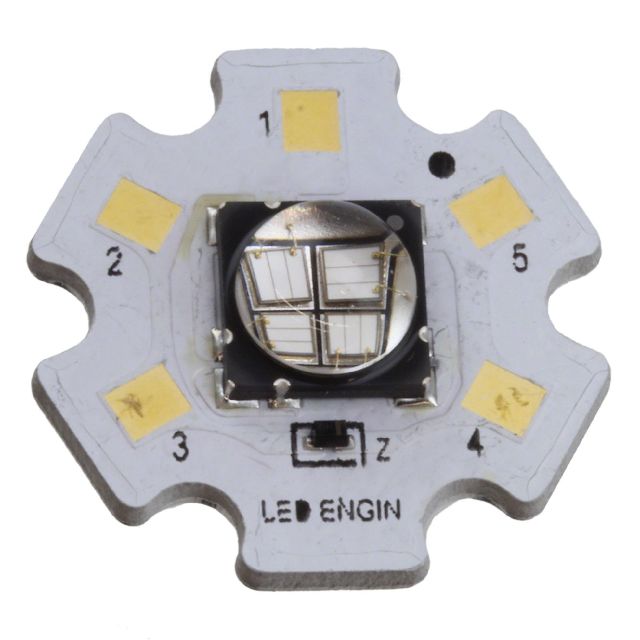

LZ4-40UA00-00U6 LZ4-40UA00-00U6

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Obsolete
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 400nm
Voltage - Forward (Vf) (Typ) : 4.1V
Viewing Angle : 97°
Orientation : Top View
Operating Temperature : 125°C (TJ)
Mounting Type : Screw Mount
Package / Case : Star Array
0
100 in stock

LZ4-40UA00-00U7 LZ4-40UA00-00U7

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Obsolete
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 405nm
Voltage - Forward (Vf) (Typ) : 4.1V
Viewing Angle : 97°
Orientation : Top View
Operating Temperature : 125°C (TJ)
Mounting Type : Screw Mount
Package / Case : Star Array
0
100 in stock

LZ4-40UA00-00U8 LZ4-40UA00-00U8

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Obsolete
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 410nm
Voltage - Forward (Vf) (Typ) : 4.1V
Viewing Angle : 97°
Orientation : Top View
Operating Temperature : 125°C (TJ)
Mounting Type : Screw Mount
Package / Case : Star Array
0
100 in stock

LZ4-40UB00-00U4 LZ4-40UB00-00U4

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 388nm (385nm ~ 390nm)
Voltage - Forward (Vf) (Typ) : 14.8V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : 130°C (TJ)
Mounting Type : Surface Mount
Package / Case : Star Array
0
200 in stock

LZ4-40UB00-00U6 LZ4-40UB00-00U6

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 398nm (395nm ~ 400nm)
Voltage - Forward (Vf) (Typ) : 14.8V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : 130°C (TJ)
Mounting Type : Surface Mount
Package / Case : Star Array
0
83 in stock

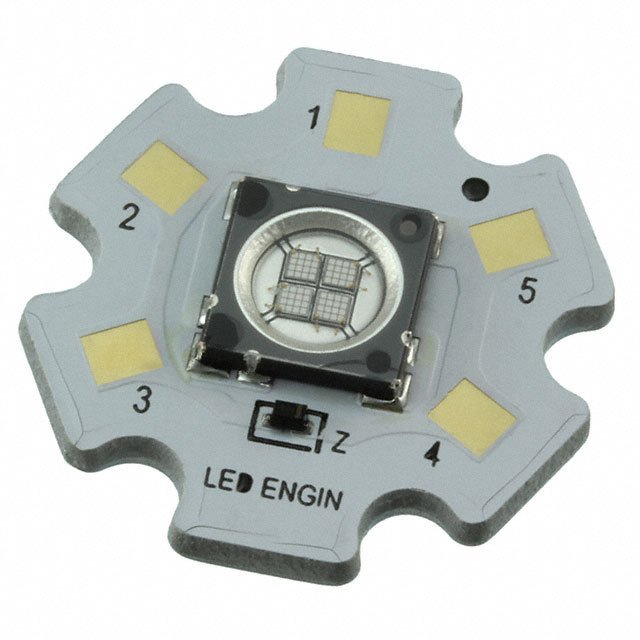

LZ4-40UB00-00U8 LZ4-40UB00-00U8

LED Engin
Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Active
Type : Ultraviolet (UV)
Current - DC Forward (If) (Max) : 1A
Radiant Intensity (Ie) Min @ If : -
Wavelength : 408nm (405nm ~ 410nm)
Voltage - Forward (Vf) (Typ) : 14.8V
Viewing Angle : 90°
Orientation : Top View
Operating Temperature : 130°C (TJ)
Mounting Type : Surface Mount
Package / Case : Star Array
0
173 in stock

LZ4-40WW08-0027 LZ4-40WW08-0027

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock

LZ4-40WW08-0030 LZ4-40WW08-0030

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock

LZ4-40WW08-0035 LZ4-40WW08-0035

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock

LZ4-40WW08-0227 LZ4-40WW08-0227

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock

LZ4-40WW08-0230 LZ4-40WW08-0230

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock

LZ4-40WW08-0235 LZ4-40WW08-0235

LED Engin
Manufacturer : LED Engin Inc.
Packaging : -
Series : -
Part Status : Obsolete
Type : LED Module
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Starboard
Flux @ Current/Temperature - Test : 712 lm (556 lm ~ 868 lm)
Current - Test : 700mA
Temperature - Test : 25°C
Voltage - Forward (Vf) (Typ) : 12.6V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 1A
CRI (Color Rendering Index) : 80 (Typ)
Viewing Angle : 90°
Features : -
Size / Dimension : 19.90mm Diameter
Height : 5.40mm
Light Emitting Surface (LES) : 5.60mm Diameter
Lens Type : Domed
0
100 in stock
